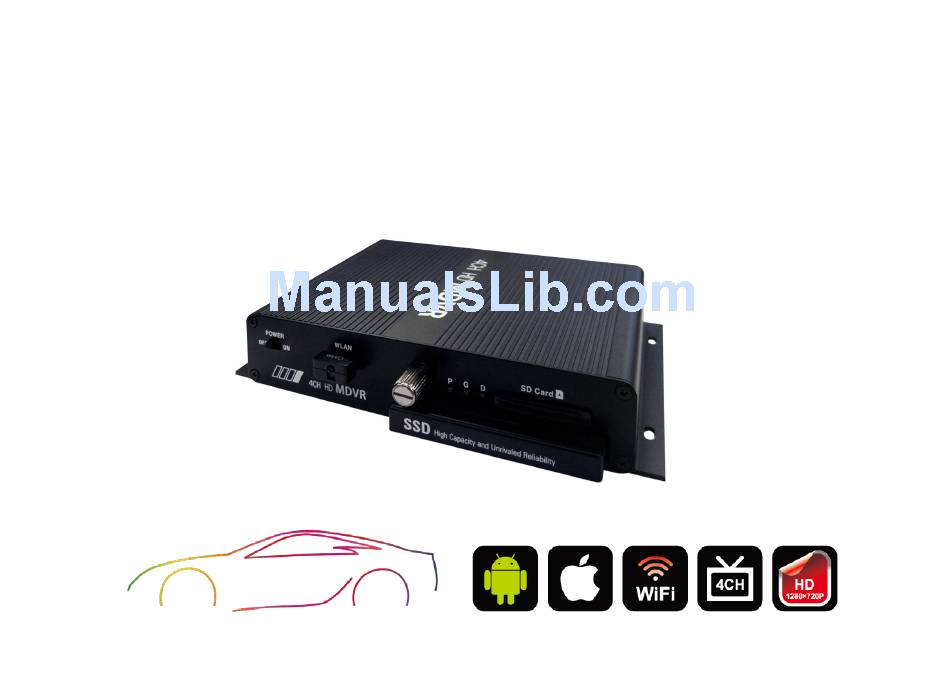

4CH HD MDVR
User Manual
This product should only be used as an ancillary device for recording and storing videos while vehicle is in motion and/or parked. The manufacturer will NOT be
responsible for the loss that could occur from any recording failures, data loss and product defects while product is in use. The manufacturer does NOT guarantee
100% recording of video coverage. Some videos may not record dependent on varying circumstances. Please drive responsibly and keep all local regulations.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D15 and is the answer not in the manual?

Questions and answers

Summary of Contents for EyeSpyPro D15

  • Page 1 4CH HD MDVR User Manual This product should only be used as an ancillary device for recording and storing videos while vehicle is in motion and/or parked. The manufacturer will NOT be responsible for the loss that could occur from any recording failures, data loss and product defects while product is in use. The manufacturer does NOT guarantee 100% recording of video coverage.

  • Page 2: Table Of Contents

    Contents 0. Before Use 19. Viewer – Checking and Recovery of Storage 1. Overview 20. App - Installation 2. Features 21. App – Connecting through Wi-Fi 3. Components 22. App – Main Menu 4. Precautions for Installation 23. App – Real-time Monitoring 5.

  • Page 3: Before Use

    0. Before Use  All the contents of this manual are protected according to the federal and international copyright laws.  The product and its information shown in this manual are sole properties of Its manufacturer.  All the rights to the program used for this product belong to its manufacturer and are protected by federal and international copyright laws.

  • Page 4: Overview

    1. Overview The product is designed to store video and audio information to assist as a secondary safety device while driving and during parked. Videos taken from the device may be used as a circumstantial reference data to help identify the scene of various events.

  • Page 5: Features

    2. Features (1)  High-Quality recording of videos. This product shoots High Definition videos for clarity both day and night for optimal viewing pleasure. HD videos are taken during vehicle motion and/or while vehicle is parked.  Wi-Fi Function This product supports 4Ch live videos and recorded video playbacks via smart phone(android/iOS) using provided mobile application.
  • Page 6 2. Features (2)  Digital zooming During video playback on the provided PC viewer, videos can be digitally zoomed in and out for enhanced viewing experience.  Checking the Recorded Data through the PC viewer 4 Channel Simultaneous play back is available through the provided viewer program ...

  • Page 7: Components

    3. Components After purchasing the product, consumer is asked to check for all components that are included in the package. If a component is damaged or missing, please contact retailer for prompt replacement. Main body Micro Memory for Continuous Front / Rear camera Left / Right CD Manual stand...

  • Page 8: Precautions For Installation

    4. Precautions for Installation ▶ It is recommended to install the device in an area with a flat surface. The ignition must be turned off while installing.. ▶ Please check the power supply first before installing the system onto a vehicle. Also check to make sure the cameras in front / rear / left / right are functioning properly before continuing to install.

  • Page 9: Precautions Before Use

    5. Precautions Before Use  Scope of warranty and responsibilities This product should only be used as an ancillary device for recording and storing videos while vehicle is in motion and/or parked. The manufacturer will NOT be responsible for the loss that could occur from any recording failures, data loss and product defects while product is in use.

  • Page 10: Cautions In Use

    6. Cautions In Use Safety precautions must be followed to prevent possible accidents and risks by using the product in a safe and proper manner. The manufacturer is NOT responsible for negligence of manual instructions. Warning: Serious injuries or death could occur. Do NOT place the product in a heating device such as a heater, microwave and ovens to dry when wet as this can cause explosion.
  • Page 11 6. Cautions In Use Precaution: Failure to follow instruction may result in minor injuries or damages to the product. Do not use the product for over 24 hours without ignition to prevent battery discharge. Apply the dual-side tape firmly when installing the cameras. It may change its position due to vibrations and downward gravity pull.

  • Page 12: Exterior Names And Functions

    7. Exterior Names and Functions SSD LOCK Screw GPS LED SD Card Slot Parking LED Wi-Fi USB Power Switch SSD Tray Driving LED GPS In DC In Front Camera Left Camera Video Out Video Out Rear Camera MIC In Right Camera CVBS...

  • Page 13: Operating Modes And Status

    8. Operating Modes and Status Buttons Operation State LED indications Buzzer P, G, D turned on Powering it on. System preparation Long beep~ After booting turned off The file that is being currently recorded P, G, D turned on Powering if off. ends safely after the power is turned off.

  • Page 14: Firmware Upgrade

    9. Firmware Upgrade (1) [ Automatic updating ] Through the provided viewer installed onto a PC, the updated file can be installed from the memory card automatically. After connecting the Memory to the PC, click the button on the top left side of the viewer’ s main screen. The current firmware version for the firmware updating can be checked through the 4HD MDVR update manager window.
  • Page 15 9. Firmware Upgrade (2) [ Automatic updating ] After the power for the black box is turned off, the Memory needs to be inserted into the main body of the black box. Required to supply power to the black box. Required to wait for about 10-20 seconds.
  • Page 16 9. Firmware Upgrade (3) [ Manual updating ] The firmware update file needs to be copied into the Memory The Memory must be formatted first through the specific PC viewer or through the main body of the black box before copying the update file (main_d15_1.23.4567-20150226.ko.bin).

  • Page 17: Viewer - Installation

    10. Viewer – Installation Execute 4HD_MDVR.msi, the setup file for the specific viewer for the black box, which is stored in the storage and then follow the procedure as shown below for installing the viewer.

  • Page 18: Viewer - Execution And Removal

    11. Viewer – Execution and Removal Select the icon on the wallpaper of the Windows or the start menu on the Windows, and check whether “4HD-MDVR” is installed as shown below. Execute “4HD-MDVR”. The viewer can be removed by executing “4HD-MDVR_uninstall” on the start program.

  • Page 19: Viewer - Default Window

    12. Viewer – Default Window Setup Capture Update Print Full Screen File List Video Front Rear Left File Opening Right Open File Graph +/- ON/OFF Google map Acceleration / Time Acceleration / Speed Graphs Play Control • The information of latitude, longitude, speed and map is displayed only when the GPS module, an optional item, is connected. •...

  • Page 20: Viewer - Buttons And Functions

    13. Viewer – Buttons and Functions (1) Program version information This provides the version information of the specific viewer and the firmware of the black box and supports the direct link to the home page’s download center. The version information can be checked when the storage is connected to a PC. In addition, the specific viewer and the firmware can be updated automatically.
  • Page 21 13. Viewer – Buttons and Functions (2) Move to the previous/next frame For moving to a video taken in the unit of every 10 seconds before or after an incident. Start playback For starting to play the selected file back from the list. Play the temporarily recorded video back again. Stop playback temporarily For temporarily stopping the file that is being played back currently.
  • Page 22 13. Viewer – Buttons and Functions (3) Acceleration/Speed graphs The toggle buttons individually show the acceleration and speed graphs. The speed graph can be displayed only when the GPS module, an optional item, is installed. Black box environment setting For storing the set environment of the black box in the storage. The setting can be performed after the storage is connected to a computer.

  • Page 23: Viewer - Maximized Window

    14. Viewer – Maximized Window ◆ For viewing a video in maximized window while it is being played back, it is required to double-click on the screen. [ Normal Window ] [ Maximized Window ] 1. Maximized window: double-clicking will shift the video to be maximized. 2.

  • Page 24: Viewer - Digital Zooming

    15. Viewer – Digital Zooming ◆ In the maximized window mode, A red-colored digital zooming box will be brought up at the bottom left of the screen. [ Before digitally zoomed ] [ When digitally zoomed ] 1. Scrolling the mouse wheel forwards or backwards will enlarge or reduce the screen. 2.
  • Page 25 16. Viewer – Playback of Recorded Files ◆ When it comes to the video data that are stored in the storage of the black box, all of the data or the data that are sorted out based on types can be selected and played back. It is also possible to format, recover and test storage. Take out the storage that is inserted in the black box, and connect it to a computer.

  • Page 26: Viewer - Playback Of Recorded Files

    17. Viewer – Recorded Information: Shock, Speed, Map ◈ While a video is being played back, it is possible to see the three-axis gravitational acceleration graphs as shown in the figure on the left. The three-axial directions include the front-rear direction, the left-right [ Gravitational acceleration graphs ] direction and the up-down direction.

  • Page 27: Viewer - Recorded Information

    18. Viewer – Blackbox Settings (1) ◆ Black box setting: Click the button on the specific viewer’s main screen to open the black box setting window as shown below. The window shows the tabs for Viewer setting/Environment setting/Time setting/Audio and video setting/Version information.

  • Page 28: Viewer - Blackbox Settings

    18. Viewer – Blackbox Settings (2) 1. Motion sensitivity: For adjusting the sensitivity of the sensor that detects a motion (while parked). It is possible to choose among the four levels: high, medium, low, and no use. 2. Buzzer: For turning on or off the buzzer. 3.
  • Page 29 18. Viewer – Blackbox Settings (3) It is possible to set the black box time and the standard time by selecting the time setting tab. Blackbox time setup: If there is no GPS module in the product, it will be impossible to set the black box time. It is required to insert the storage into the black box unit immediately and supply power to it after setting the time in order to minimize the difference between the set time and the current time.

  • Page 30: Viewer - Checking And Recovery Of Storage

    19. Viewer – Checking and Recovery of Storage ◆ Checking and recovery of the storage: This process is for correcting errors that the storage has or finding and recovering faulty sectors. If other applications are accessing the storage, they should be ended before continuing this process. Take out the storage that is inserted in the black box and connect it to a computer.

  • Page 31: App - Installation

    20. App – Installation [Android APP] 1. Run the "Play Store" icon on your smartphone. 2. Search by "4CH HD MDVR" into the search box. Notices) You can download on Android or IOS-based smartphones only Multiple smart phone connections are not allowed.(only one connection at a time) If you are connected to the Black Box, Internet access may be limited.

  • Page 32: App - Connecting Through Wi-Fi

    21. App - Connecting through Wi-Fi ◆ iPhone Wi-Fi Connection 1. Select [settings] – [Wi-Fi]. 2. Select the searched name of unit that supplied and input the password. Default password is ‘12345678’ 3. Once Wi-Fi is confirmed (“connected”) user can begin using WiFi App. [Wi-Fi Settings ] [Select the Wi-Fi name] [Input Password]...

  • Page 33: App - Main Menu

    22. App - Main Menu ◆ Main Menu Real-time Real Time Live Display for Front and Rear view monitoring Remote playback and operation for setup, SD card Remote Search format, Firmware upgrading and Emergency set. Playback and upload to Youtube through remote My phone’s video searched and downloaded.

  • Page 34: App - Real-Time Monitoring

    23. App - Real-time Monitoring ◆ Real Time Monitoring Main Menu > Real Time Monitoring > Select a Model • : User can check front , Rear , Right, Left view as a real time. User can make Full screen mode or split screen mode with double •...

  • Page 35: App - Remote Search

    24. App - Remote Search ◆ Remote Search : User can check the recorded image list and playback the 1. Remote File Search downloaded video : User can check the image at [My phone image] 2. Remote Setup : Remote Setup 3.
  • Page 36 24. App - Remote Search > Remote File Search ◆ Remote File Search User can check the recorded image data through the mobile app. • The data is saved as an event list as [Entire, Driving, Driving Shock, Parking Motion, Parking Shock]. (Recorded image file type is an avi format and each file has 1 minutes.) User can playback the selected image and smart phone will •...
  • Page 37 24. App - Remote Search > Remote Setup (1) ◆ Remote Setup : Set the standard date and time Date and Time : Set resolution, frame rates, video quality. Video : Set audio recording and buzzer sound on/off Audio : Set Sensitivity level for driving, parking motion. Sensor Sensitivity : Set the storage space rates for recording type.
  • Page 38 24. App - Remote Search > Remote Setup (2) ◆ Remote Setup > Details [ Date and Time ] Set date and time. Select Time Zone Black Box will reboot when date and time is change. [ Video ] User can set each view’s Frame Rates, Video quality, Mirorring and Flip function.
  • Page 39 24. App - Remote Search > Remote Setup (3) ◆ Remote Setup > Details [ Audio ] User can set Voice recording on/off and Buzzer on/off [ Sensor sensitivity settings ] User can set driving status, parking motion and motion sensitivity.
  • Page 40 24. App - Remote Search > Remote Setup (4) ◆ Remote Setup > Details [ Storage Allocation ] User can set as 4 different recording pattern with recording rates for Driving, Driving shock, Parking motion and Parking shock. • A : Driving Normal 20%, Driving Shock 20%, Parking Motion 30%, Parking Shock 30% •...
  • Page 41 24. App - Remote Search > Emergency Setup ◆ Emergency Setup • User can set ‘sending message and voice’ when emergency situation or upturn. • User can set vehicle Information(Plate number, Driver Name), Shock sensitivity when Emergency function activate, Emergency Notice. ※...
  • Page 42 24. App - Remote Search > Remote SD card Formatting, Firmware Upgrade(Android) ◆ Remote SD card Formatting User can format the SD card remotely. ※ iPhone : [Remote Setup – Remote SD Card formatting] ◆ Firmware Upgrade – Android • User can upgrade the black box firmware remotely without using the SD card directly.
  • Page 43 24. App - Remote Search > Firmware Upgrade (iOS) ◆ Firmware Upgrade – IOS 1. User will see a message saying “connect 3G/4G” when remote upgrading then re connect to Wi-Fi that connected to wireless network or 3G and 4G. Connect to app and check the current firmware version and if you need upgrade then touch the [Firmware Upgrade] 3.

  • Page 44: App - Videos In My Phone

    25. App - Videos in My Phone ◆ My phone’s video • User can check the downloaded video with [Remote Search] (Saved format is in AVI and every data has 1 minute length video ) • User can play videos without download. .

  • Page 45: App - Screenshot

    26. App - Screenshot ◆ Screenshot • User can check the captured images while user captured the images with [Real Time Recording] mode. • User can check bigger image with detailed screen from the [Screen Shot] List. User can delete all or selected images with this •...

  • Page 46: App - Settings

    27. App - Settings ◆ Settings [ Android ] 1. Change saving path : Changing the saving path to Smart phone. 2. Load to default the saving folder : Return to the default path. 3. SD card setting : User can set the black box values. User have to insert the black box SD card to smart phone.

  • Page 47: App - Sd Card Via Otg On Android Phones

    28. App - SD Card via OTG on Android phones ◆ SD card • User can delete the black box SD card data. Insert the black box SD card to smart phone. • Data is sorted by [Entire, Continuous, Event, Parking Motion, Parking Shock] (Data format is AVI and stored in 1 minute.) Select , will show [Time sorting] and [Delete] menu at the bottom.

  • Page 48: App - Information

    29. App - Information ◆ Information • User can check current app version.

  • Page 49: Folders And Files In Storage

    30. Folders and Files in Storage 1. Black box folder: For storing data. Individual video files will be stored at every 1 minute continuously. - Continuous file) blackbox\15\02\23\07\20150223_071700_DNB.avi : A continuous driving file of rear camera at 07:17, February 23, 2015. - Event file While in the continuous recording mode, if there is shock or if needed to record an event manually, a video file of the incident, taken for 30 seconds totally from 10 seconds before to the 20 seconds after it, will be stored.

  • Page 50: Storage Partitioning And Usage

    31. Storage Partitioning and Usage [ Unit : Time ] [Table 1] Storage assignment for each recording mode by type and memory Capacity Capacity Continuous Parking Event Type (GB) (MB) (hours, min) (hours, min) (hours, min) 16.384 0.86 51.88 2.59 155.65 0.86 51.88...

  • Page 51: Pin Assignment Of Plugs

    32. Pin Assignment of Plugs Plug Image Pin description Power ① GND ② ACC ③ BAT(+12 or +24V DC) (3.5mm pie) ① VCC ② RxD (+5V DC IN) ③ GND ④ TxD (2.5mm pie) (Signal Output) ① SERIAL LINK(Video and Power) Rear camera ②...

  • Page 52: Specification

    33. Specification  Name : 4CH HD MDVR  Size: 174 x 112 x 33.6 mm (Main body)  Storage Device and Capacity : SDHC:16/32GB, SDXC:64GB/128GB, Class 10 is recommended SSD : <SAMSUNG 850 Pro128GB>, <Plextor M6S Series 128GB>  Recording: Continuous recording, event recording and recording of monitored events while parked ...

  • Page 53: Warranty

    34. Warranty The product warranty period 1 year. Except for the main body, separate warranty periods will be applied for ancillary components and expendable items.  The warranty service will be provided based on what is described in the warranty. ...

  • Page 54: Consumer Compensation Regulations

    35. Consumer compensation regulations A/S service within A/S service after the Cases that require consumer compensation the warranty warranty period period When a major repair work is required within 10 days after purchasing the product Replacement When an important part needs to be repaired within 1 month after purchasing the product. Replacement None When a major repair work is required within 1 month after the product is replaced.

  • Page 55: Before Calling Customer Service

    36. Before calling Customer Service Users should back up (Separate saving) periodically important. It is important to note that during Customer Service all data may delete. Customer Service is not responsible for any lost data during service. When sending package to Customer Service, please make sure to indicate “fragile” on the box and request special care to prevent undesired damage during shipment.
  • Page 56 37. Self Diagnosis before Calling Customer Service Symptoms Measures When there is no GPS module, it is required to select the The time of the black box not correct. black box setting menu on the specific viewer in order to set the time through the time setting menu.
