Summary of Contents for SM Modellbau gps-logger 2
- Page 1 Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) 1 of 38...
-
Page 2: Table Of Contents
Vario Connection Examples GPS-Logger without telemetry Minimum and Maximum values switched by receiver channel Connection as a telemetry sensor Connection of GPS-Logger 2 with UniLog1/2 or UniSens-E Using the UniDisplay Using in Online Contest (OLC) Telemetry Operation 10.1 Jeti Duplex 10.2... -
Page 3: Introduction
Robbe/Futaba FASSTest S.BUS2 JR DMSS FrSky The telemetry used in the GPS-Logger 2 must be specified, once only, in the settings. This is done either through our PC program "GPS Konverter" or the UniDisplay. On delivery HoTT is selected. The GPS logger 2 comes with a built-in high-resolution pressure sensor giving via telemetry a high-quality Vario, and the integrated TEK connection enables also the use of compensation nozzles. - Page 4 Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) In addition to its own measurements, the GPS-Logger 2 can also read all the data live from the UniLog 1/2 via a direct cable connection and write it to the memory card.
-
Page 5: Differences Gps-Logger 1 And Gps-Logger
GPS-Logger 2, the same functions. As of firmware version v1.13 with the introduction of GPS-Logger 2 this guide will only be available in the version for the new GPS logger 2. All areas which also affect the GPS- Logger 1 shall, of course, also apply to this. -
Page 6: What The Gps-Logger 2 Can Do
Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) 3. What the GPS-Logger can do • 10Hz GPS, and so 10 readings per second particularly good data resolution • Micro SD memory card almost unlimited recording and simple selection of data •... -
Page 7: Technical Data
5. Measured values The following measured values are captured by the GPS-Logger 2. Most of the data is written on the memory card and also transmitted by telemetry. Depending on the telemetry used, it is possible that only part of it is available on the transmitter. - Page 8 Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) Motorgeräusch Volume of the drive for the IGC mode in Online Contest (OLC) (Motor sound) HDOP Horizontal accuracy The smaller the better and the value should be below 1.5 ...
-
Page 9: Operation Of The Gps-Logger
We recommend the use only with the card provided or available as an accessory from us. The card is inserted into the slot on the back and pushed in until it clicks and is flush. The GPS-Logger 2 does not have an ejector for the memory card so the card is simply pulled out again with the fingers. -
Page 10: Basic Settings
PC or laptop, with our UniDisplay, or via the Jeti or HoTT telemetry. The settings are always backed up in parallel in the GPS-Logger 2 and on the memory card. When using the PC software “SM GPS Konverter” new settings are written to the card, these are then taken up next time you start the device. -
Page 11: Starting And Stopping Recording
With the option “Autostop landing” the recording ends automatically 10 seconds after the landing, that is if for 10 seconds the speed is less than 10 km/h. With each start of recording the GPS-Logger 2 begins a new file. The file names are numbered consecutively and have the following format: “2014-01-01 SM GPS 2 Logdatei 0001.nmea “... -
Page 12: Vario

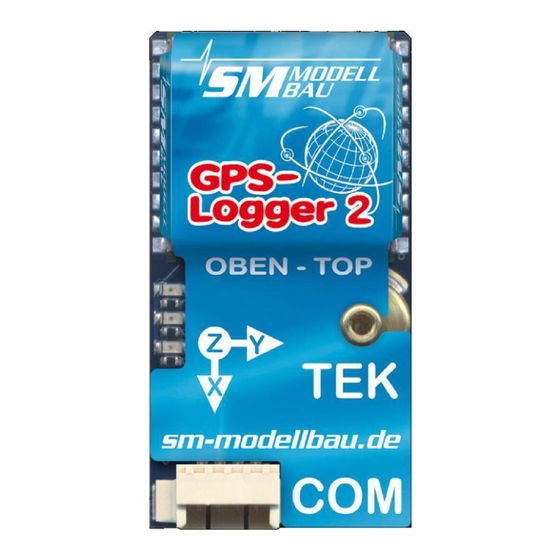

This of course is not a constant value but depends on the speed, buoyancy, and other factors. The GPS-Logger 2 has a TEK port on the top. The hose of the TEK nozzle is simply plugged into this. In principle all types of TEK nozzle can be used, including the well known Nicks nozzle or the Brunswick nozzle. - Page 13 Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) “Vario Schwelle” (Vario Threshold) is the response threshold for the Vario signal via telemetry, so if, and only If, the rise/ fall is greater than the threshold will a Vario tone be generated.
-
Page 14: Connection Examples
In addition the “Min / Max per Rx” option must be enabled in the settings of the GPS- Logger2. If this option is not used, the single receiver connector of the GPS-Logger 2 can simply remain free. 7.3 Connection as a telemetry sensor The GPS-Logger 2 is connected directly to the telemetry port. -
Page 15: Connection Of Gps-Logger 2 With Unilog1/2 Or Unisens-E
Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) 7.4 Connection of the GPS-Logger 2 and UniLog 1/2 or UniSens-E The GPS-Logger 2 can be connected directly to the UniLog 1 / 2 or UniSens- E with the leads stock no. 2720 or 2721. -
Page 16: Using The Unidisplay

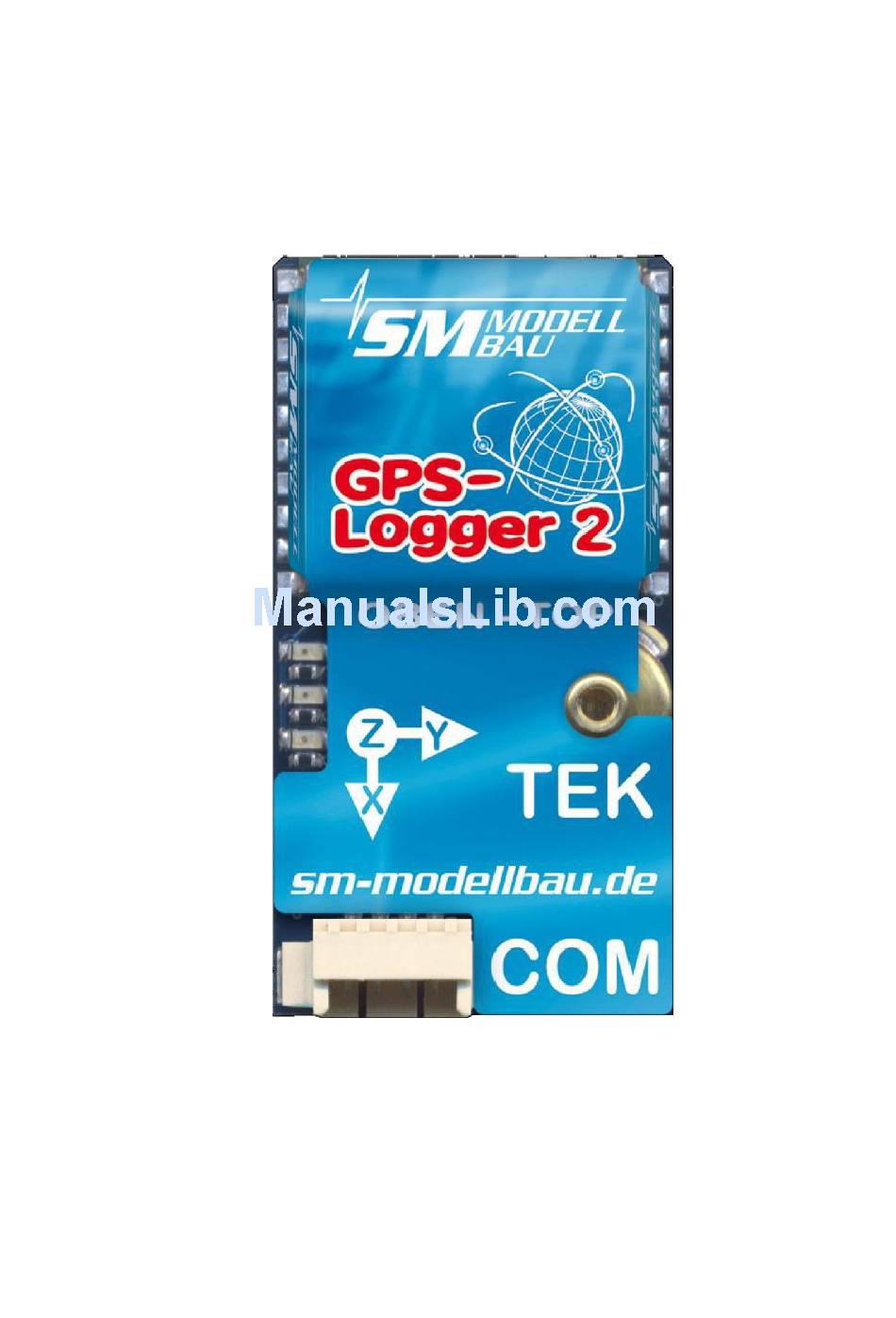

The UniDisplay and GPS-Logger 2 are connected with the cable provided with the display. The connector location can be seen on the top of the GPS-Logger 2 and is labelled “COM”. The cable connection can be made either way round, which end is used is irrelevant. - Page 17 The last line shows the servo pulse measured at the Rx port. Setup: Here the menu for all settings of the GPS-Logger 2 appears. In the second line is the firmware version of the GPS-Logger 2 and also the serial number. Move through the menu options with “Plus” and “Minus”, and select the appropriate point with “Enter”.
- Page 18 UniLog Alarms: Alarms can be set here for operation with Jeti Duplex and the UniLog 1 / 2 or UniSens-E connected to the GPS-Logger 2. When the arrow is in the left column and the appropriate menu option activated with “Enter”, the value of the alarm can be set.
-
Page 19: Using In Online Contest (Olc)
The GPS-Logger 2 can directly produce the IGC file which is needed for the flight evaluation in Online Contest. So no more conversion of files is necessary, just the .igc file transferred from the memory card directly into the OLC system and the flight is evaluated. -
Page 20: Telemetry Operation
Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) 10. Telemetry Operation Apart from its functions as data logger the GPS-Logger 2 is also a full telemetry sensor for different 2.4 GHz remote control systems. From the GPS-Logger 2 the telemetry systems of Jeti Duplex, Multiplex M-Link, and Graupner HoTT Robbe/Futaba FASSTest S.BUS2, JR... - Page 21 Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) The first item on the screen is an indicator of the current active data screen and/or the status of the GPS-Logger 2: first data screen, following screens B, C, etc.
- Page 22 Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) If a UniLog 1 / 2 or UniSens-E is attached to the GPS-Logger 2 and is read, the measured values of the UniLog will also appear here. Values the UniLog 1 does not deliver remain free i.e.
-
Page 23: Multiplex M-Link
Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) 10.2. Multiplex M-Link The GPS-Logger 2 is also a full telemetry sensor for the Multiplex M-Link 2.4 GHz system. The measured GPS values can be transferred live to the ground and be displayed directly on the Multiplex the Royal Pro or COCKPIT SX transmitter. - Page 24 Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) As an additional feature the GPS-Logger 2 writes all data continuously on the Multiplex M- Link bus system and stores it in parallel with its own data on the memory card. So you can...
-
Page 25: Graupner Hott
Go to text mode and “Settings, View”. Using the “up” and “down” keys of the left keypad of the transmitter, the “GPS” can be called from the GPS-Logger 2. With a click to the right you now get the text display of the GPS-Logger 2 from the receiver data. - Page 26 Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) 10.3.4. Digital Mode The GPS-Logger 2 sends the data in the “GPS” module format, so that the transmitter can display those values in the appropriate screens. From the default display of the transmitter the Digital mode can be selected using the “left”...
-
Page 27: Futaba S.bus2
Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) 10.4. Futaba S.Bus2 The GPS-Logger 2 can also be used with the Robbe / Futaba FASSTest telemetry as an S.BUS2 sensor. The GPS-Logger 2 is in this case connected like any other sensor to the S.BUS2 slot of the receiver. - Page 28 See the same values in the T14SG as follows (here the names cannot be changed): 10.4.2. Alarms In principle with S.BUS2 the alarms are defined in the transmitter. The GPS-Logger 2 has no way to directly trigger an alarm on the transmitter.
-
Page 29: Jr Propo Dmss
Telemetry has no GPS, therefore in this version only the transfer of height and Vario is possible. GPS data such as speed and coordinates are to be added later. The GPS-Logger 2 is connected like any other sensor to the sensor slot of the receiver and transfers the following data: >Luftdruck,... -
Page 30: Frsky
As of firmware version v1.13 the GPS-Logger 2 can also be used with FrSky telemetry. Only receivers with the new “S.Port” connection are supported. The GPS-Logger 2 is in this case connected like any other sensor to the sensor slot on the receiver and transmits the following data: ... -
Page 31: Operation With The Unilog 1/2 Or The Unisens-E
Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) 11. Operation with UniLog 1 / 2 or UniSens-E The GPS-Logger 2 can be connected directly to the UniLog 1 / 2 or UniSens-E with the leads stock no. 2720 or 2721. -
Page 32: The Sm Gps-Konverter Software
12. The “SM GPS-Konverter” software On our homepage, in Software & Updates, you will find the free software “SM GPS- Konverter”. Using this, the data is read from the GPS-Logger 2 and converted immediately into .kmz for use in Google Earth . -
Page 33: Maximum And Minimum Values
Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) 12.2. Minimum and Maximum Values Once a file has been converted all the extremes of values can clearly be seen in the “”Maximum” window. 33 of 38... -
Page 34: Gps Settings
Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) 12.3. GPS settings 34 of 38... -
Page 35: Igc Settings
12.5. Live Access to the GPS-Logger 2 If the GPS-Logger 2 is connected to the USB interface on the PC, the terminal function of our software can access the GPS-Logger 2 directly. The display is the same as with the live operation of the UniDisplay. -
Page 36: Info / Settings Of The Gps Converter
In the “Info” tab can be found programme information and also settings for Google Earth and for the automatic online update. Here the SM GPS Konverter searches on our website for new versions of the programme and the firmware of the GPS-Logger 2 and can install them. 36 of 38... -
Page 37: Firmware Update Of The Gps-Logger
Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) 13. Firmware update of the GPS-Logger 2 New firmware is simply up-loaded to the GPS-Logger 2 via the micro SD memory card. On improvements to the firmware an appropriate file with the update can be downloaded free of charge from our homepage www.sm-modellbau.de... -
Page 38: Version History
Translated by R.Whitehead 10-3-2014 (my best effort – accuracy is not guaranteed) 14. Version history Here you will find all firmware versions and the changes to the previous version. You can find the current version of your GPS-Logger 2 firmware with our software “SM GPS- Konverter” or the UniDisplay. Version...
