Summary of Contents for Williams-Sonoma KEATING BED

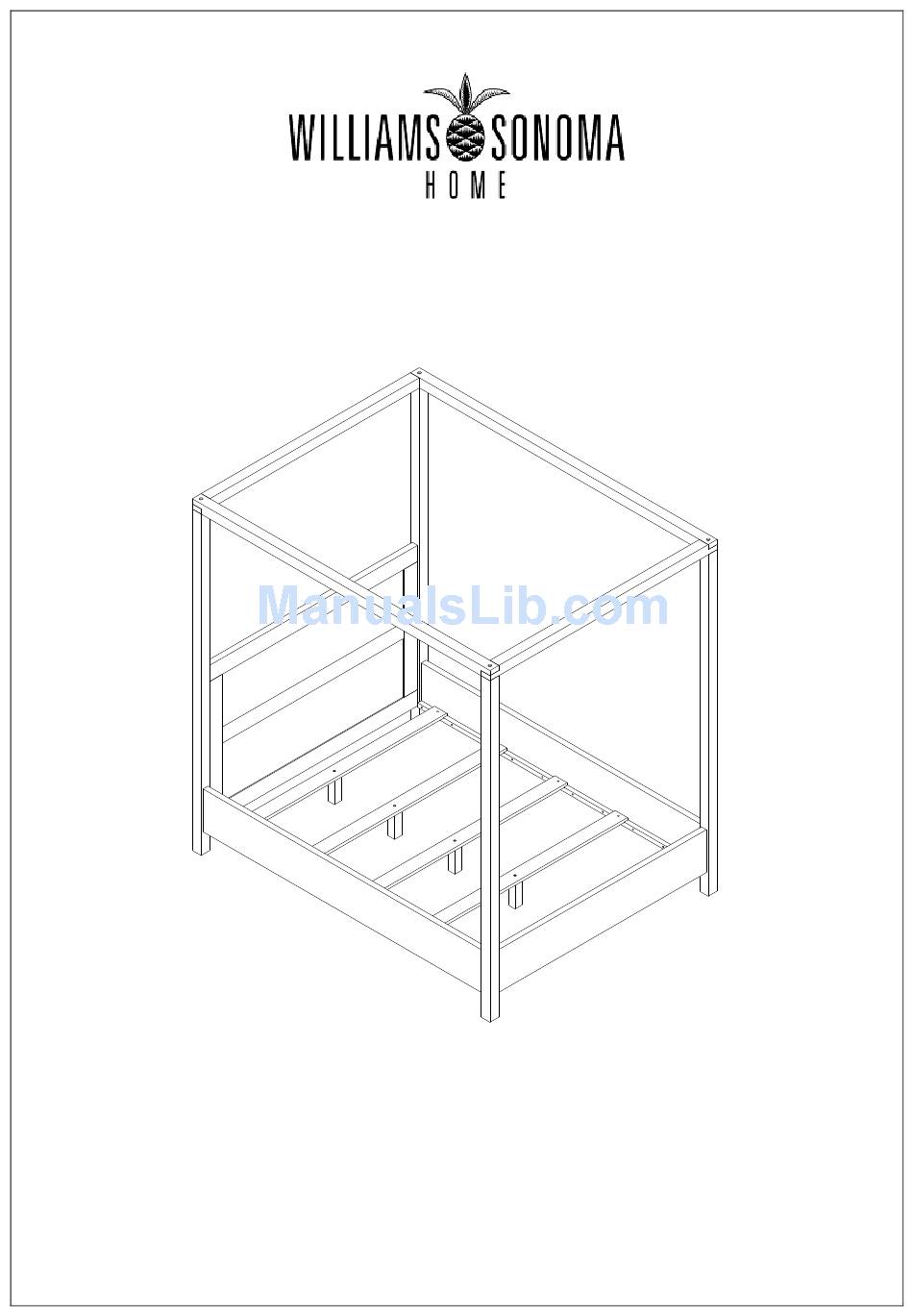

- Page 1 KEATING BED Date: 02-Apr-15 www.williams-sonoma.com Page 1 of 7 Rev:...
- Page 2 Footboard left post Footboard right post Short canopy rail Long canopy rail Slat Support leg Hardware Included: (L) Fitting (M) Flat washer (N) Spring washer (O) Allen bolt (P) Allen key M8x50 Date: 02-Apr-15 www.williams-sonoma.com Page 2 of 7 Rev:...
- Page 3 Insert fitting (L), flat washer (M), spring washer (N) and Allen bolt (O) into the cut holes on the headboard panel and then tighten by Allen key (P) as shown. 4. Repeat above steps to assembly the footboard left and right post (F&G) to the footboard panel (B). Date: 02-Apr-15 www.williams-sonoma.com Page 3 of 7 Rev:...
- Page 4 5. Attach the side rails (C) to the headboard and footboard with posts by inserting the hook into the correspondent groove on the posts. 6. Attach the short canopy rails (H) on the top of posts (D, E, F&G) by aligning the predrilled holes at two end of Date: 02-Apr-15 www.williams-sonoma.com Page 4 of 7 Rev:...
- Page 5 Insert flat washer (M), spring washer (N) and Allen bolt (O) into the holes on the canopy rails then tighten by Allen key (P) as shown. 9. Attach the support legs (K) to the slats (J) by insert the hanger bolt on the leg into insert nut on the slat. Date: 02-Apr-15 www.williams-sonoma.com Page 5 of 7 Rev:...
- Page 6 Slide each wood screw (Q) go through the screw hole on the end of slat into support slat rail on side rail. Tighten wood screws by Phillip Head Screwdriver as shown Adjusting the levelers: Date: 02-Apr-15 www.williams-sonoma.com Page 6 of 7 Rev:...
- Page 7 For glass tops and shelves, glass cleaner may be used, but avoid spraying it onto the metal or ceramic frame. Hardware may loosen over time. Periodically check to make sure all connections are tight. Re-tighten if necessary. Thank you for your purchase Stores | catalog Date: 02-Apr-15 www.williams-sonoma.com Page 7 of 7 Rev:...
