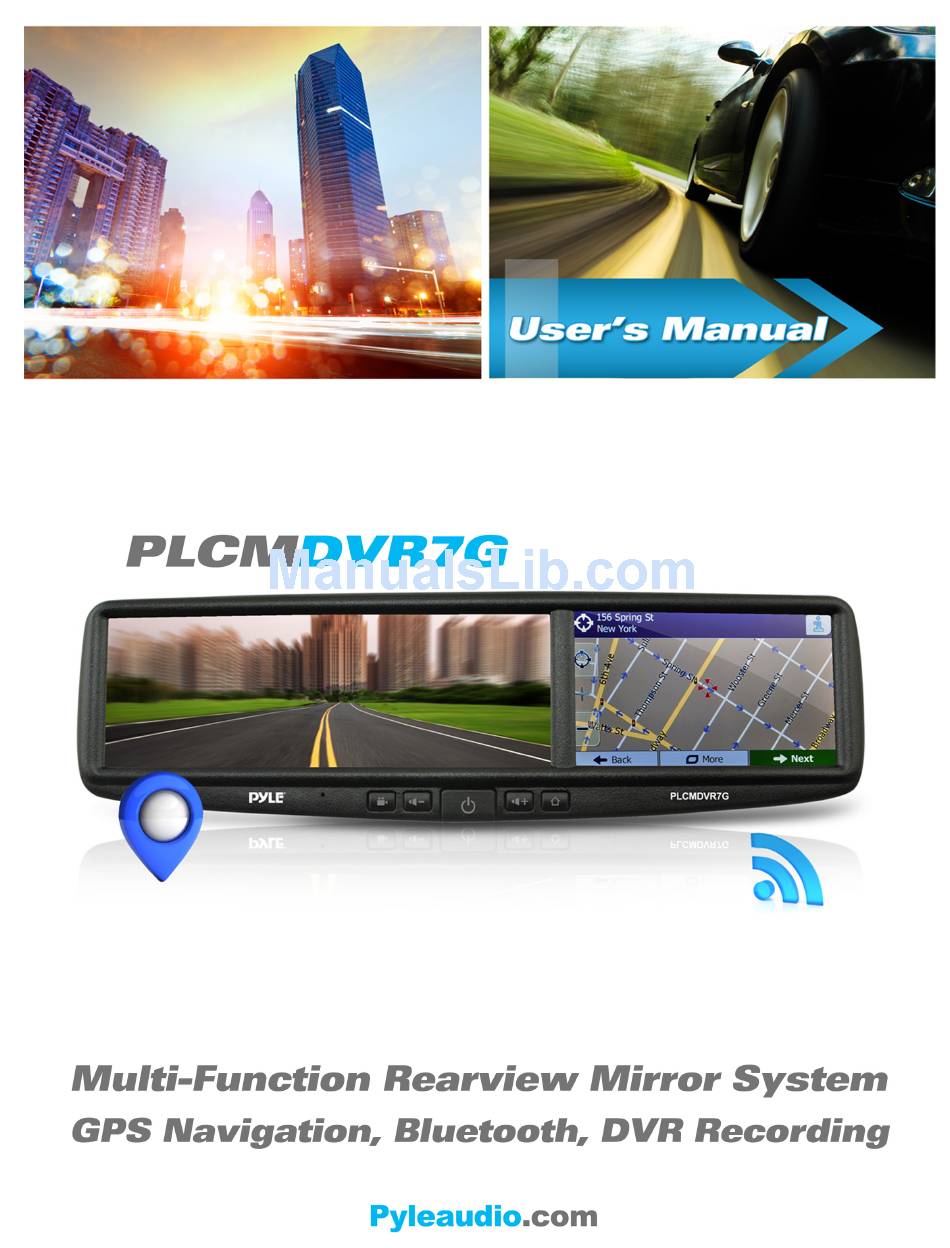

Summary of Contents for PYLE Audio PLCMDVR7G
- Page 2 5 Media Browser 6 Settings Menu 7 'Carcorder' Menu & Settings 8 Accessories Included 9 Mounting / Installation 10 Wring & Installation 11 Troubleshooting *For additional information visit www.PyleAudio.com Congratulations and thank you for purchasing the Pyle PLCMDVR7G Mirror Car Navigation & Camera System. We hope you will enjoy using this exciting product and trust that it will make your driving experience more comfortable and hassle‐free. The PLCMDVR7G provides an easy‐to‐use touch screen user interface, and innovative functionality in a mirror housing that mounts in place of your existing rearview factory mirror. The unit also has important safety features for safe operation and optimal performance. Please read and refer to this owner manual carefully. If you have any further questions about this unit, please visit pyleaudio.com for product support. Please carefully read the entire owner manual before using the product. www.pyleaudio.com GPS Navigation *Make sure to have Inserted a micro SD card with map data to begin using GPS navigation. This unit receives the signal from satellites with the GPS signal receiver antenna to search the destination / route to display it onto the mirror monitor's LCD display. The GPS system typically calculates the best (fastest) and safest route possible. Safety Notes & Warnings ‐ Important Information The Mirror Car Navigation & Camera System is intended to provide reliable and accurate GPS navigation directions that will help you quickly reach your designated route. The system was designed for automobile vehicles. It is recommend that you read and follow all information and instructions in this manual for optimal unit performance and to take full advantage of the unit's features. Please take caution when operating the touch screen panel. Make sure to keep the panel clean, avoiding the use of excessive moisture, or harsh chemicals. Do not use rough, sharp or pointy objects to control the touch screen ...
- Page 3 The Mirror Car Navigation & Camera System should be used along with regulatory driving principles. The route suggestions should never go against any local traffic laws or regulations, personal judgment of driving knowledge or any other practice of safe driving fundamentals. Before making any turns, or traveling any routes insisted by the PLCMDVR7G GPS navigation system, please be sure that the suggest driving practice can be completed legally and safely. Drive carefully! Do not rely on the Mirror Car Navigation & Camera System to locate emergency services or establishments. The GPS maps and software may not include all emergency services available, or there may be newer emergency services available. Please call 911 in an emergency situation. Adjust the volume level on the Mirror Car Navigation & Camera System to an appropriate level so you will be able to hear outside traffic and emergency vehicles. To reduce interference and possible irregular operation, please try to keep the GPS antenna away from smart phones, cell phones, tablets or other wireless devices. The wireless frequency and signals of these devices may weaken or interfere with the Mirror Car Navigation & Camera System's GPS satellite signal. Settings should be adjusted and configured once your vehicle is parked, or you are in a safe position away from traffic. Do not attempt to operate the Mirror Car Navigation & Camera System while in motion. Do not mount Mirror Car Navigation & Camera System in the deployment area of vehicle airbags. The system should be mounted mimicking the original factory's, OEM, rearview mirror assembly (at eye level ‐ or slightly above). Please make sure to apply adequate glue and to assure the mirror assembly is strongly, and safely, affixed to your windshield. Mount the Mirror Car Navigation & Camera System in a safe location, like in place of your existing rearview mirror. Make sure, once installed, that the Mirror Car Navigation & Camera System does not interfere with normal driving practices or does not obstruct the view of the road, of the driver. Make sure to have clear visual access to all mirrors once installed. Only refer to the technical support of a Pyle service technician, or similar vehicle specialist, when servicing, installing or troubleshooting the Mirror Car Navigation & Camera System. Avoid opening the system and self‐ servicing the Mirror Car Navigation & Camera System. For technical support and troubleshooting, please contact Pyle. If you feel the unit does not function as advertised, is damaged, or performs irregularly, please contact Pyle. Changes or modifications to the Mirror Car Navigation & Camera System will result in void of the unit's warranty. Choking Hazard: small parts present in the packaging of the Mirror Car Navigation & Camera System. Avoid excessive exposure to heat, moisture, smoke, sunlight, cold. Drive safely! PLCMDVR7G www.PyleAudio.com ...
- Page 4 Video (Camera) Display C Volume Down D Power E Volume Up F Menu / Back to Video Display G LCD Monitor H Mirror I Built‐in Speaker J GPS Antenna Input K Power & Wiring Cable L Adjustable Camera M Micro SD (for Media Playback) N USB Port O Micro SD (for GPS Maps) P Micro SD (for DVR ‐ Recording) PLCMDVR7G www.PyleAudio.com ...
- Page 5 Camera System, the Bluetooth network name 4 Dial Pad 'CAR_KITT' should appear as in your device. 5 Phonebook 6 Call Records *When pairing, if prompted, use the default 7 Settings password 0000. 8 Bluetooth Music Streaming 9 Delete (Phonebook Records) 10 Download Phonebook 11 Voice Switch To access Bluetooth ability, press the 'BT' icon on the LCD display monitor interface's home screen. If the home screen does not appear on the LCD display, press the 'Menu' button located on the bottom‐middle of the mirror assembly. Download Phonebook: Once in the 'Phonebook' screen, you can press the 'Download Phonebook' icon to download the contacts saved in your device. Voice Switch: You can change the speaker from which you hear your Bluetooth phone calls. Choose between your phone and the vehicle system. PLCMDVR7G www.PyleAudio.com ...
- Page 6 DVR ‐ Video Display H GPS Navigation I Bluetooth Media Browser Playback & Control AUX Control & Playback SD your inserted media USB device / flash memory Take note of the side‐loading micro SD card slots and USB port. Pay attention to the labeled micro SD cards slots as each serves a purpose. The 'DVR' slot saves video recordings and images, the 'GPS' slot is for the micro SD card with GPS maps, and the 'SD' slot is for media playback. The USB port s also for media playback. The user can access music, image and video files from this menu. *Please make sure to use class 10 micro SD cards for maximum performance. Maximum micro SD card support: 64GB Maximum USB flash drive support: 32GB PLCMDVR7G www.PyleAudio.com ...
- Page 7 Settings Menu In the 'Settings Menu' interface, you can access device configuration and adjust accordingly. Choose from options like FM Frequency Output Settings, Time, Wallpaper, Picture Adjustment, Audio EQ and more. The 'Set Navi' screen shows you the destination of the file of GPS maps used to navigate you to the desired destination. The destination file is located on the micro SD card. *Troubleshooting Tip: In case of system reset, or failure to acquire GPS maps navigation, the file should point to 'EXE' within the 'Set Navi' options screen. FM Out: Set the FM Transmitter ON / OFF. Also choose the FM frequency. Set System: The main system settings can be found here. Options include the device's power‐on startup logo, GPS monitor and calibration, reverse volume, language selection and more. Set Time: Set the date and time to be used in accordance with the watermark. Video: Brightness, contrast and hue settings adjustment. Wallpaper: Set the background for the mirror monitor's LCD display. Sound: Fade and balance vehicle audio. EQ: Choose presets like pop, classic, soft, rock, jazz or a custom user‐defined setting. PLCMDVR7G www.PyleAudio.com ...
- Page 8 D Microphone (Audio Record) E Next Page of Options F Previous Page of Options G Browse Captured Media H Change Camera View (PiP) I 'Carcorder' Settings J Format SD Card SOS Recording When recording a video, the PLCMDVR7G will record a video file in loop mode ‐ continually recording. When storage space on your inserted micro SD card reaches capacity, the DVR will being to overwrite previously recorded video to progressively record. Earlier recorded videos will be replaced by new videos and will not be saved onto the micro SD card. To prevent older videos from being 'overwrited' please stop recording by pressing the RECORD VIDEO icon. G‐Sensor The unit also features G‐Sensor recording that automatically triggers video recording in case of impact or collision. Upon G‐Sensor activation, the unit will continue to loop record however, the file will not be 'overwrited' or replaced by a new video file recording. This file can be deleted via the PLCMDVR7G's file browser, or when you insert the micro SD card into your computer and managed thereafter. *While recording video, manually record an SOS file by pressing the button on the interface. PLCMDVR7G www.PyleAudio.com ...
- Page 9 Turn ON/OFF voice recording (Record Mark) Light Frequency Setting: 50Hz/60Hz Sensitivity Set (for G‐Sensor impact recording): Close, Low, Mid, High Factory Settings Reset: Recover Default Settings GPS Navigation The PLCMDVR7G features built‐in iGo ™ GPS Navigation Software. To access the software and navigate to a desired destination press on the 'Navi' icon on the main menu interface display. Accessories Includes ...
- Page 10 Make sure the windshield is clean and dry before attempting to mount the PLCMDVR7G. Attach and tighten the extending arm onto the PLCMDVR7G before applying the unit to your windshield. Use, a strong double‐stick adhesive pad, or glass glue, to secure the ...
- Page 11 Wiring & Installation The PLCMDVR7G features a built‐in, retractable and pull‐ out camera. Manually release the camera from the mirror housing and adjust to the desired viewing angle. *For additional installation support visit www.pyleaudio.com PLCMDVR7G www.PyleAudio.com ...
- Page 12 Drive until you are in a clear area to Under bridge or tunnel receive signal receiving bad signal User input too many Unit powers off instructions at once and Restart device while in use memory was overloaded Device panel flashes Power cable is not properly on and off Check power cable connected continuously This normal when system reroutes No voice guidance, Device is rerouting Keep driving until GPS catches up lag in navigation or Road changed other than what wrong picture navigation displays Continue driving until you receive a better signal *For additional support please contact Pyle technical support, www.pyleaudio.com PLCMDVR7G www.PyleAudio.com ...
