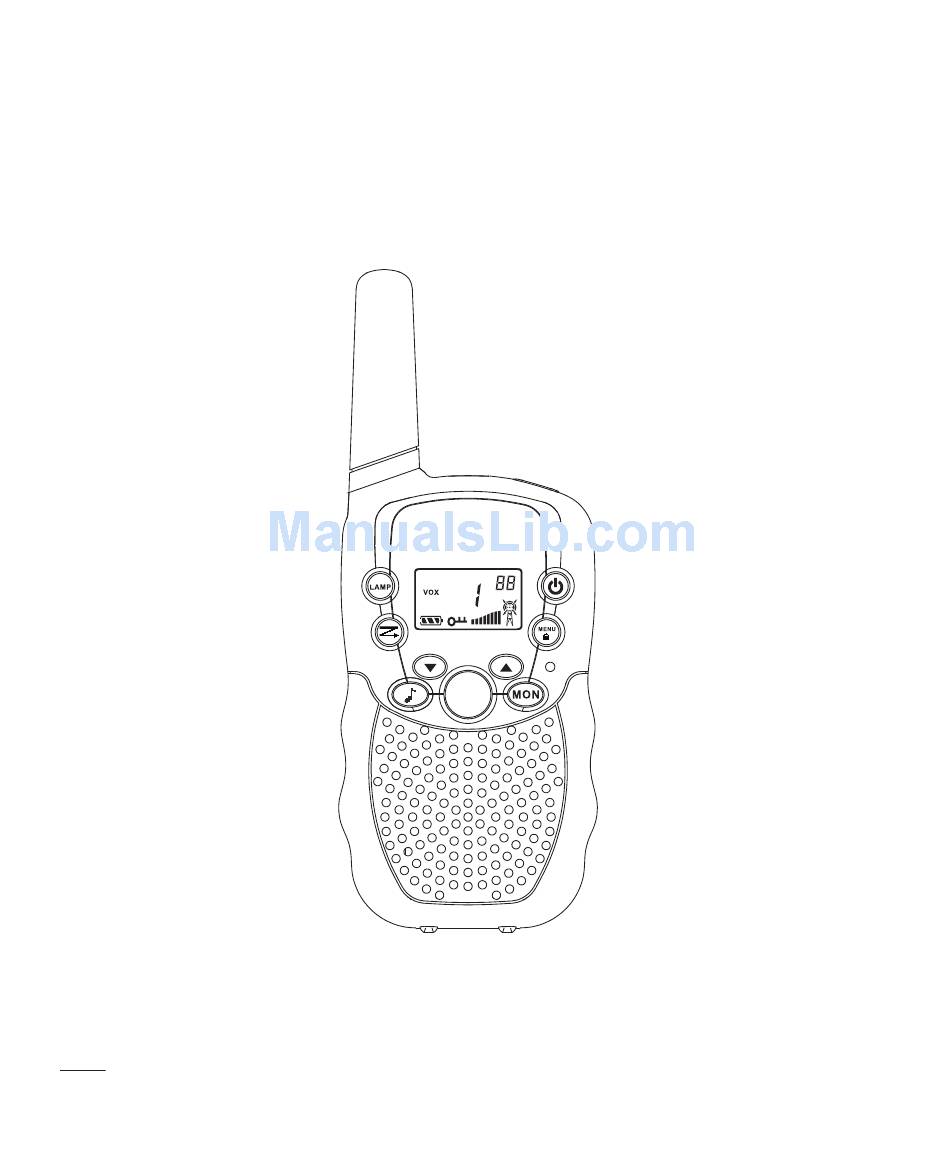

- Page 1 T wintalker SCAN T A L K USER INSTRUCTIONS Shenzhen ChangTaiWei Electronic CO.,LTD...
- Page 2 PIC 01 1.Antenna 18.Channel/Menu item 19.CTCSS / Menu option 17.Scanning 6.Power Button 16.Vox SCAN 20.Lamp Button 2.TX/RX Icon 14.Battery Level 11.MENU Button 21.Scan Button 3.Volume 13.Keypad Lock 10.Microphone TALK 4.Up Button 7.Down Button 5.Monitor Button 12.Call Button 15.Talk Button 9.Speaker 8.Speaker /Mic 22.Lamp /Charge Jack...
- Page 3 PIC 02...
-
Page 4: Specific Recommendations
EN~ Instructions for use This set includes 2 walkie-talkie units: these are communication devices which operate on mobile radio frequencies. They come with 8 channels as well as a back-lit LCD screen, enabling you to communicate over several kilometres free-of-charge (up to 3 km in open areas) NOTE: Please read these user instructions carefully before using the equipment and retain for future consultation! SPECIFIC RECOMMENDATIONS... - Page 5 ITEM DESCRIPTION (Pic 01,02) 1. Antenna 2. RX icon -Displayed when receiving TX icon -Displayed when transmitting 3. Volume level indicator 4. Adjustor button Up ( ) 5. Continued reception( 6. On /off button( 7. Adjustor button Down ( ) 8.
- Page 6 (not supplied), ensuring that the poles are correctly aligned. Then close the lid. USING THE TWINTALKER 1. Turning the device on/off: To turn the devices on or off, hold down the on/off button (6) for 3 seconds a BEEP sound will be played to confirm.
- Page 7 6.CTCSS (Continious Tone Coded Squelch System) License free radio's operating on the 446 MHz frequency band, like the Twintalker , have 8 available radio channels. If there are many radio's users in your neighborhood, there is a chance that...
- Page 8 some of these users are operating on the same radio channel. To prevent that you receive signals from other users, sub-channels have been integrated. Two radio's will only be able to communicate with each other when they are operating on the same radio channel and when they have selected exactly the same sub-channel.There are two kind of sub- channels : •...
- Page 9 9. VOX Selection The Radio’s is capable of voice activated (VOX) transmission. In VOX mode, the radio will transmit a signal when it is activated by your voice or other sound around you. VOX operation is not recommended if you plan to use your radio in a noisy or windy environment.
- Page 10 11. Call Tones A call tone alerts others that you want to start talking. 11.1Setting the Call Tone The Twintalker has 10 call tones. • Press the MENU- button(11) four times, “CA” is displayed and the current call tone is flashing.
- Page 11 The LCD backlight will light up for 5 seconds. 16. Earpiece connection The Twintalker can be used with the included earpiece. The connector is located on the upper side of the unit(8) . Insert the earpiece plug into the connector (2,5mm jack).
-
Page 12: Built-In Flash Light
18.BUILT-IN FLASH LIGHT As an added feature,your Radio’s has a built-in flashlight that can be used in sending light signals or for your lighting needs 19 Technical specifications Channels CTCSS 99 Sub-code 462.5625-467.7250MHz Frequency Range Up to 3 Km (Open field) Battery 4xAAA Transmission Powe...
