Summary of Contents for AdvanceTec AdvanceCommunicator ATT3001A
-
Page 1: User Manual

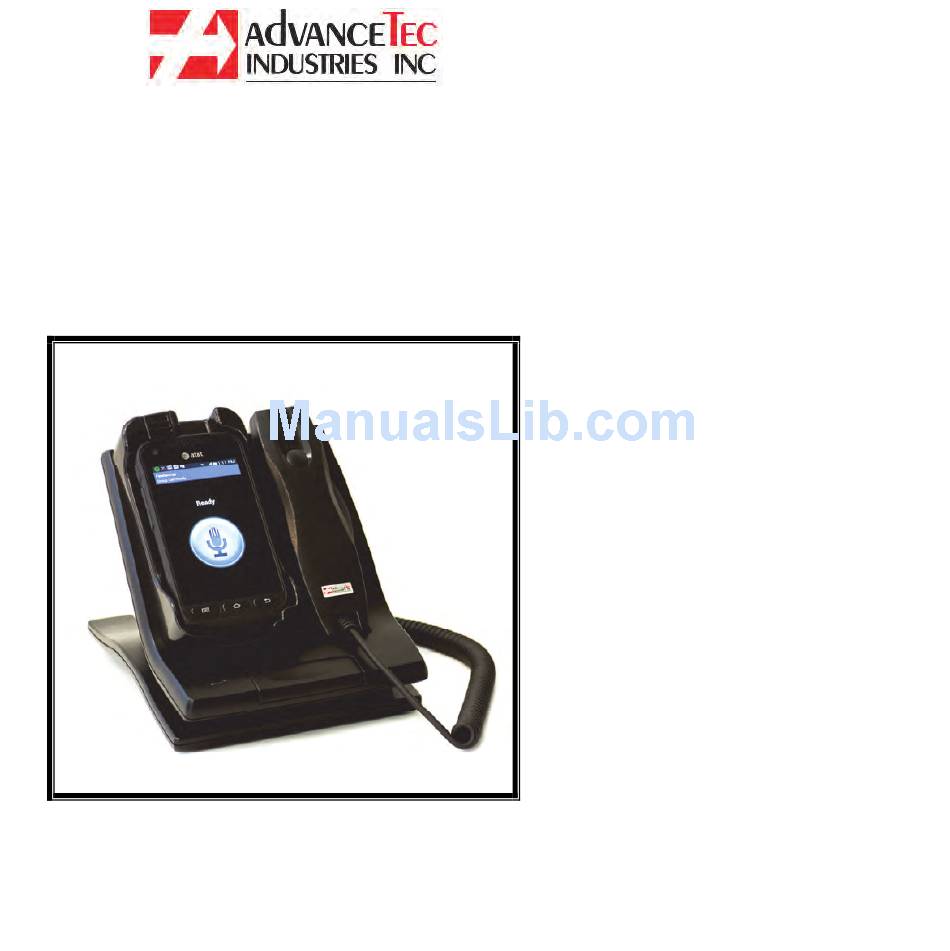

User Manual Samsung Rugby Pro AdvanceCommunicator™ Part # ATT3001A The AdvanceTec AdvanceCommunicator™ is designed to adapt the Samsung Rugby Pro into a Desktop Communications Base Station device. Rev A 0715 ... - Page 2 INDEX Page Details 2 – 3………………. Setting up the AdvanceCommunicator ™ …….…………….……… Inserting into/removing phone from cradle ‐ 4 ….………….……… Making and receiving calls in Hands‐free mode 4 ………………..………… Making and receiving call via Handset …………………..……… Use of AdvanceCommunicator™ with dispatch calls 4 …………………..………. Volume control 4 …………………………….Recording of calls 5 ……………….…….……. Summary of LED indica tors 5 ……………………………Charging of the batt ery OPTIONAL ACCESSORIES 5 – 6 ……………………….Palm Mic. Part # ATT8428A 6 …………………….……… Head Set Part # ATT8421A 7 …………………….………Y‐Connector Part # ATT8405A ………………..…………... Foot Pedal Part # ATT8400A...
- Page 3 Setting up the AdvanceCommunicator™ 1. Place the AdvanceCommunicator™ in a convenient position withi easy reach of an AC power outlet. 2. Attach the plug at the end of the coil cord of the handset into the corresponding RJ45 handset receptacle on the back of the AdvanceCommunicator™. 3. Plug the power supply into the wall power outlet and the round barrel plug at the end of the cord of the power supply into the corresponding power receptacle the back the...
- Page 4 Release button to remove phone Audio Plug 2 Pin connector Ridge of cradle USB Plug Microphone 2. To remove the handset from the Cradle, press the release button on the top of the cradle. The Handset will snap forward allowing the phone to be removed out of the cradle. Making and Receiving calls in Hands Free Mode. 1. Turn on the phone. 2. To make a call in Hands‐free mode, dial the desired number on the phone keypad and press SEND/GREEN BUTTON. Speak towards the Microphone situated on the bottom right corner of the AdvanceCommunicator™ 3. The voice of the person you are calling will be heard via the built‐ in speaker in the AdvanceCommunicator™ 4. To receive a call in Hands‐free mode, press the SEND/GREEN Button on the phone or press briefly on the EPTT/Space bar and speak towards the Microphone. The caller’s voice will be heard via the built‐in speaker in the AdvanceCommunicator™...
- Page 5 Making and Receiving calls via the Handset. 1. To make a call using the AdvanceCommunicator™ Handset, dial the desired number on the phone’s keypad and press the SEND/GREEN button. Use the handset as you would with a regular desktop phone. 2. To receive a call with the Handset, lift the Handset and press the SEND/GREEN button on the phone’s keypad. Use the handset as you would with a regular desktop phone. . To end a call while using the handset, place the handset back into he cradle and press the END/RED button on the phone. Use of the AdvanceCommunicator™ with Dispatch calls 1. To respond t a di patch ca l in Hands‐free mode, press and hold o s down the EPTT/Space Bar and speak towards the Microphone.
- Page 6 Summary of LE D Indi cators Flashing RED: Phone not connected to the Base Steady RED: Phone is connected to the Base w ith power OFF teady GREEN: Phone connected with power ON Charging the battery With the phone turned off, the AdvanceCommunicator™ will charge he battery to 60% in approximately 1 hour. The charge time will be onger if h t e portable op rational duri g cha ge time. NOTE: Batteries of the phone will charge within the temperature window of ‐10 C to +40 C (50 F to 104 F). If the battery is outside this temperature window, no charge current will be supplied to the battery.
- Page 7 2. Headset ‐ Part # ATT8421A RJ45 connector 1. To use the Headset with the AdvanceCommunicator™ unplug the privacy handse t supplied w ith the u nit d r emov e it fr om i cradle) and plug the RJ45 connector of t he H dse t into corresponding RJ45 receptacle back the AdvanceCommunicator™ 2. Once connected, audio will be transferred to the Headset. . PTT calls can be made with the PTT/Space Bar or the PTT button n the cable on the Headset. 3. Foot Pedal ‐ Part # ATT 8400A (with Part # ATT8405A) 1. To use the Foot Pedal with the AdvanceCommunicator™ unplug the privacy handset supplied with the unit (and remove it from its cradle) 2. Plug the RJ45 connector of the Y Adapter Cable (Part # AT8405A...
- Page 8 6. Plug the Headset and Foot Pedal into the corresponding RJ45 receptacles of the Y Adapter Connector. NOTE: If neither the he dset nor Foot Pedal work, swap around he plugs into the Y Adapter Connector. 7. Once connected, the Headset and Foot Pedal will function as set out above. 1150 NW 163rd Drive, Miami, FL 33169 T: 305-623-3939 F: 305-623-3996 Toll free USA 1-800-881-8211 www.advancetec.com www.advancemobileGPS.com...
