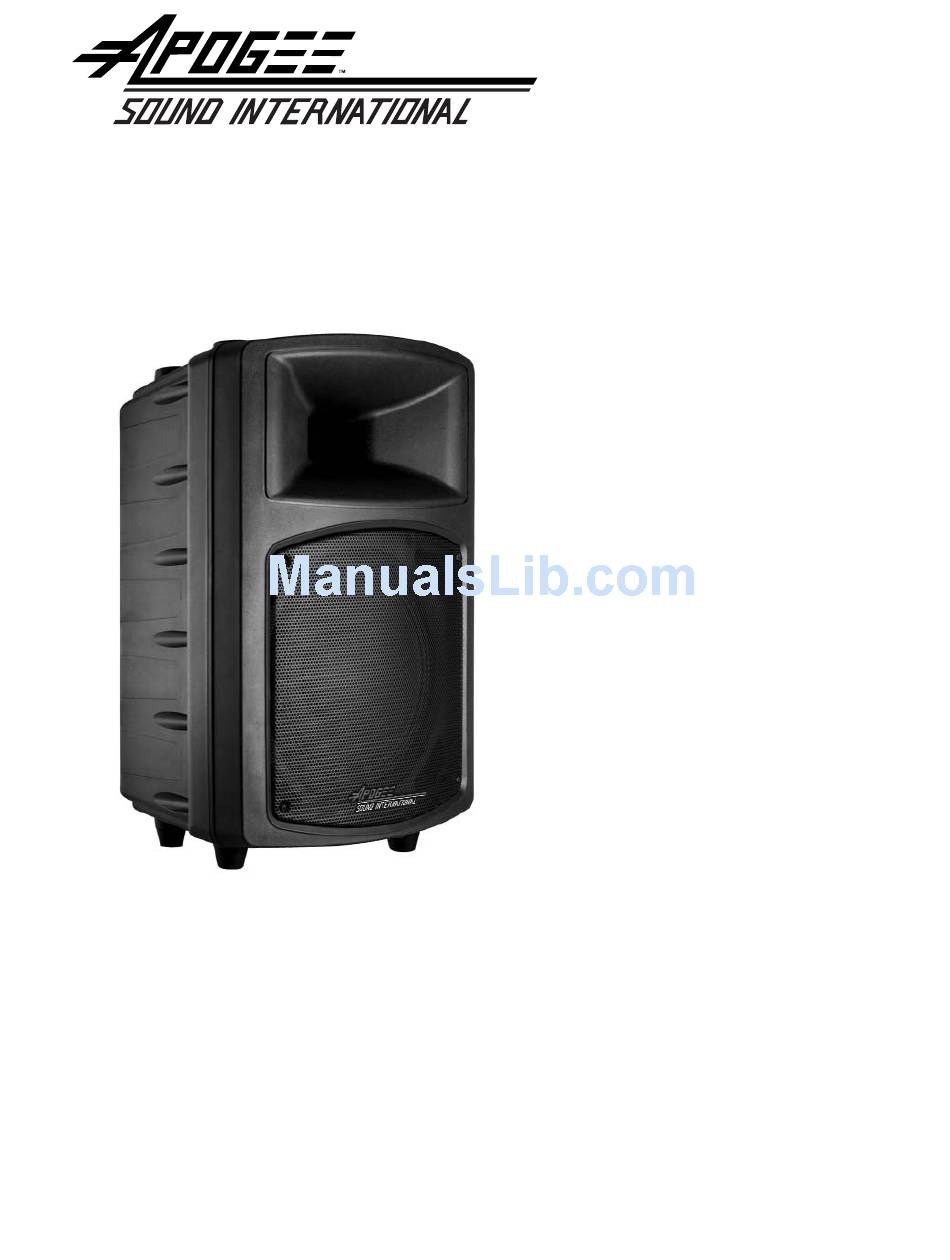

- Page 1 AMT -12 AMT -15 Professional Loudspeakers Installation and Use Manual © 2008 Bogen Communications, Inc. Specifications subject to change without notice. 54-2183-01B 0812...
-
Page 2: Table Of Contents
Table of Contents Introduction Speaker Mounting Powering the Loudspeaker Input Panel Daisy-Chaining Speakers Speaker Block Diagram Connector Wiring Diagram Specifications Limited Warranty Notice Every effort was made to ensure that the information in this guide was complete and accurate at the time of printing. -
Page 3: Introduction
Both the AMT-12 and AMT-15 may be mounted on stands using the integrated 35mm (1-3/8") stand mount on the bottom of the enclosure. Because of the light weight of the AMT loudspeakers, plus the convenient integral handle, one person can set up multiple speakers on stands easily and quickly. -
Page 4: Powering The Loudspeaker
400 Feet 8 AWG Input Panel The AMT-12 and AMT-15 use Speakon-type connectors. Each AMT speaker has two parallel connectors, one can be used for the input and the other for a loop-thru connection to another speaker if desired. AMT-12 Panel... -
Page 5: Daisy-Chaining Speakers
Daisy-Chaining Speakers In this example, pins 1+ and 1- on the Input (Left) connector receive full-range audio from the amplifier or from a previous speaker in a chain. The Loop-Thru (Right) connector uses the 1+ and 1- pins to send full-range audio to the Input connector of another speaker in a chain. -
Page 6: Specifications
AMT -Series Loudspeaker Specifications SPECIFICATIONS AMT -12 Frequency Response (-10 dB) 60 Hz to 20 kHz 12" High-Sensitivity Design LF Driver 1.77" Aluminum-Alloy Diaphragm Compression Driver HF Driver 96 dBspl Sensitivity (1W/1M) Impedance Ratings 8 ohms Nominal Power Input (Max.) 200W at 8 ohms (program) Dispersion 60°... -
Page 7: Limited Warranty
Limited Warranty; Exclusion of Certain Damages Apogee Sound AMT-12 and AMT-15 Loudspeakers are warranted to be free from defects in material or work- manship for three (3) years from the date of sale to the original purchaser. Any part of the product covered by this... - Page 8 50 Spring Street, Ramsey, New Jersey 07446, USA 201-934-8500 FAX: 201-934-9832 www.apogeesound.com...
