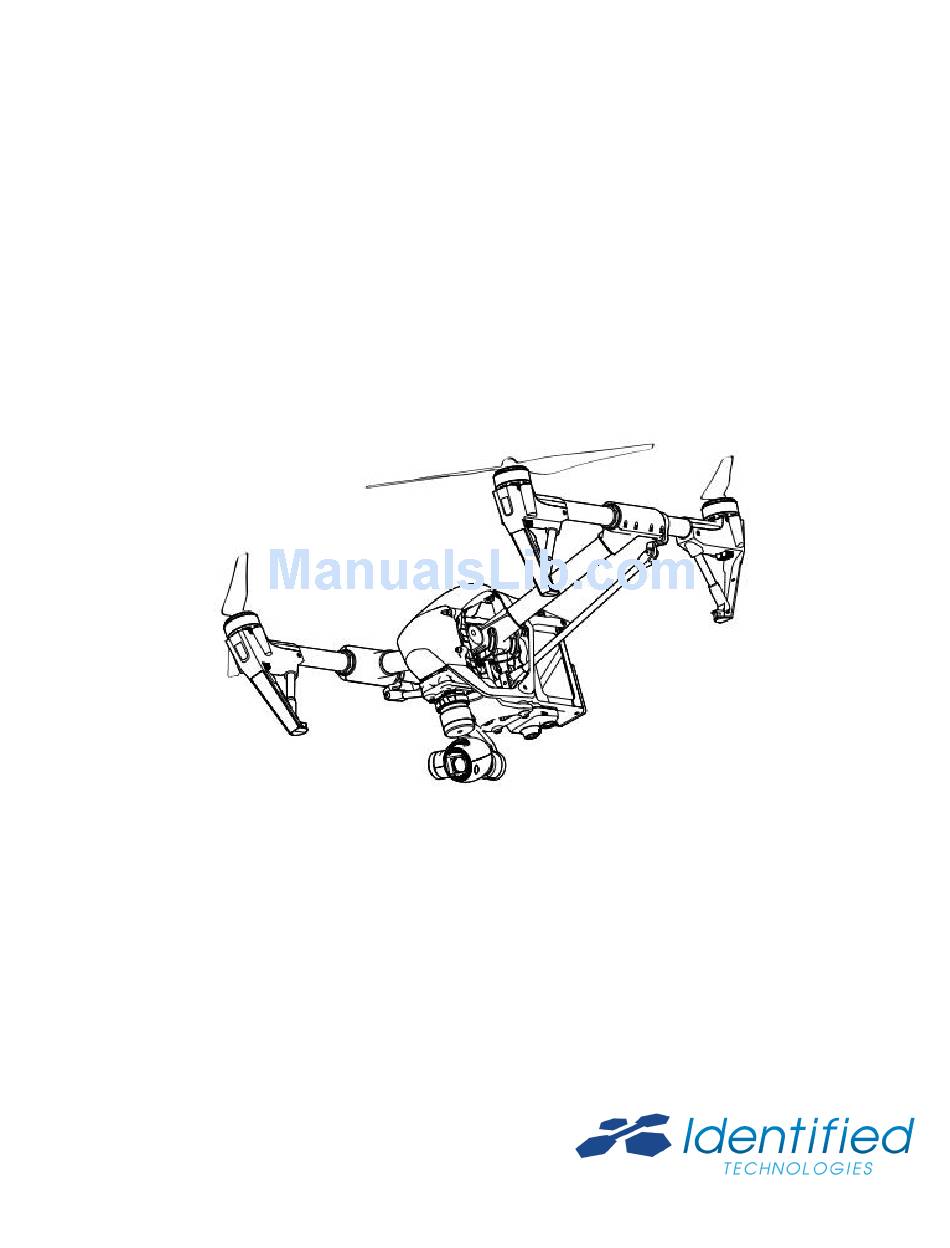

Flight IQ - Inspire
User Manual
2016.01
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLIGHT IQ INSPIRE and is the answer not in the manual?

Questions and answers

Summary of Contents for IDENTIFIED TECHNOLOGIES FLIGHT IQ INSPIRE

  • Page 1 Flight IQ - Inspire User Manual 2016.01...

  • Page 2: Table Of Contents

    Contents Using this Manual - Legends - Watch the Video Tutorials Product Profile - Highlights - Unlocking Travel Mode - Case Inspection - Attaching and Detatching Propellers - Aircraft Diagram - Remote Controller Diagram Aircraft - Flight Modes - Flight Status Indicator - Return to Home (RTH) - DJI Intelligent Flight Battery 11-15...

  • Page 3: Using This Manual

    Using this Manual Legends Warning Important Hints & Tips Watch the Video Tutorials Please watch the tutorial video below to learn how to use Inspire 1 correctly and safely: www.dji.com/product/inspire-1/video Product Profile Highlights Camera and Gimbal: Up to 4k video recording and 12-megapixel photo capture. Reserved mounting space for ND filters for better exposure control.

  • Page 4: Case Inspection

     Battery must be fully charged before using it for the first time.  Be sure to remove the gimbal from the aircraft before switching from Landing Mode to Travel Mode.  Place the aircraft on the smooth and reflective surface (e.g. table or tile) before switching between the travel modes to landing mode.

  • Page 5: Aircraft Diagram

    Ensure propellers are attached to its corresponding motors, otherwise the aircraft cannot take  off. Manually tighten each of the propellers on the corresponding motors to ensure it is attached  firmly. When turning Inspire on inside, DO NOT ATTACH THE PROPELLERS. ...

  • Page 6: Remote Controller Diagram

    Remote Controller Diagram...
  • Page 7 Preparing Remote Controller Tilt the Mobile Device Holder to the desired position then adjust the antenna as shown. 1. Press the button on the side of the Mobile Device Holder to release the clamp, adjust it to fit, then attach your mobile device. 2.

  • Page 8: Aircraft

    Aircraft Flight Modes Three flight modes are available. The details of each flight mode are found in the section below: P mode (Positioning): P mode works best when GPS signal is strong. There are three different states of P mode, which will be automatically selected by the Inspire: ...

  • Page 9: Return To Home (Rth)

    Aircraft Status Indicator shows the system status of the flight controller. Refer to the table below for more information about the Aircraft Status Indicator: Return to Home (RTH) The Return to Home (RTH) brings the aircraft back to the last recorded Home Point. The Home point is the location at which your aircraft takes off when the GPS signal is strong.
  • Page 10 Low Battery RTH The low battery level failsafe is triggered when the DJI Intelligent Flight Battery is depleted to a point that may affect the safe return of the aircraft. Users are advised to return home or land the aircraft immediately when these warnings are shown.

  • Page 11: Dji Intelligent Flight Battery

     When the critical battery level warning activates and the aircraft is descending to land automatically, you may push the throttle upward to hover the aircraft and navigate it to a more appropriate location for landing.  Color zones and markers on the battery level indicator reflect estimated remaining flight time and are adjusted automatically, per the aircraft’s status.
  • Page 12 DJI Intelligent Flight Battery Functions 1. Battery Level Display: LEDs display the current battery level. 2. Battery Life Display: LEDs display the current battery power cycle. 3. Auto-discharging Function: The battery automatically discharges to below 65% of total power when it is idle (press the power button to check battery level will cause battery to exit idle state) for more than 10 days to prevent swelling.
  • Page 13 Low Temperature Notice: 1. The performance of the intelligent Flight Battery is significantly reduced when flying in a low temperature environments (those with air temperatures below 5°C). Ensure that the battery is fully charged and the cell voltage is at 4.43 V before each flight. 2.
  • Page 14 Battery Life The battery life indicates how many more times the battery can be discharged and recharged before it must be replaced. When the battery is powered off, press and hold the Power Button for 5 seconds to check the battery life. The Battery Level Indicators will light up and/or blink as described below for 2 seconds: Charging the Intelligent Flight Battery 1.
  • Page 15 Charging Protection LED Display The table below shows battery protection mechanisms and corresponding LED patterns. After any of the above-mentioned protection issues are resolved, press the button to turn off the Battery Level Indicator. Unplug the Intelligent Flight Battery from the charger and plug it back in to resume charging.

  • Page 16: Remote Controller

    Remote Controller Remote Controller Operations Powering On and Off the Remote Controller The Inspire remote controller is powered by a 2S rechargeable battery with a capacity of 6000mAh. The battery level is indicated by the Battery Level LEDs on the front panel. Follow the steps below to power on your remote controller: 1.
  • Page 17 Transformation Switch / RTH Button The Transformation Switch / RTH Button combination serves two functions. Toggle the switch up or down to raise or lower the landing gear. Or, press the button to activate the Return to Home (RTH) procedure. Transformation Switch This switch has two positions.
  • Page 18 Connecting Tablet Tilt the Mobile Device Holder to the desired position. Press the button on the side of the Mobile Device Holder to release the clamp, and then place your mobile device into the clamp. Adjust the clamp to secure your mobile device. Then connect your tablet to the remote controller with a USB cable.

  • Page 19: Remote Controller Status Led

    Remote Controller Status LED The Status LED reflects connection status between Remote Controller and aircraft The RTH LED shows the Return to Home status of the aircraft. The table below contains details on these indicators.  The Remote Status Indicator will blink red and sound an alert when the battery level is critically low.

  • Page 20: Linking The Remote Controller

    Camera Camera Profile Camera Micro-SD Card Slot To store your photos, plug in the micro-SD card into the slot shown below before powering on the Inspire. You will have a GB SD card (Inspire supports up to a 64GB micro-SD card. ...

  • Page 21: Flight Iq App

    After opening the Flight IQ App: 1. Select the flight you want to upload 2. Tap the Identified Technologies Logo on right side of the screen 3. Connect the chord from the Tablet to the Remote Control 4. Adjust the Camera Setting (on the left menu) to Sunny or Cloudy 5.

  • Page 22: Flight

    Flight Flight Environment Requirements 1. Do not use the aircraft in severe weather conditions. These include wind speed exceeding 10m/s, snow, rain, and smog. 2. Only fly in open areas. Tall buildings and steel structures may affect the accuracy of the on- board compass and GPS signal.

  • Page 23: Calibrating The Compass

    Calibrating the Compass Make sure you calibrate the compass in every new flight location. The compass is very sensitive to electromagnetic interference, which can cause abnormal compass data leading to poor flight performance or even failure. Regular calibration is required for optimum performance. ...
  • Page 24 3. Hold the aircraft vertically with nose pointing downward, and rotate is 360 degrees around the center axis. Recalibrate the compass if the Aircraft Status Indicator shows solid red.  If the Aircraft Status Indicator blinks red and yellow after the calibration, move your aircraft to a different location to carry out compass calibration.

  • Page 25: Starting/Stopping The Motors

    Starting/Stopping the Motors Starting Motors The Combination Stick Command (CSC) listed below are used to start the motors instead of simply pushing the stick up. Ensure that you perform the CSC in one motion. Stopping Motors There are two methods to stop the motors. Method 1: When the Inspire has landed, push the throttle down, then conduct CSC.
  • Page 26 Control where the Drone Lands Using the Navigation Sticks Once the drone has started descending, you can change its landing position by using the left control stick to navigate left and right. Doing this, though, does not give you control over the altitude or speed of descent.
