MAGUIRE PRODUCTS INC.
Weigh Scale Blender
®
For the Maguire Touchscreen Controller

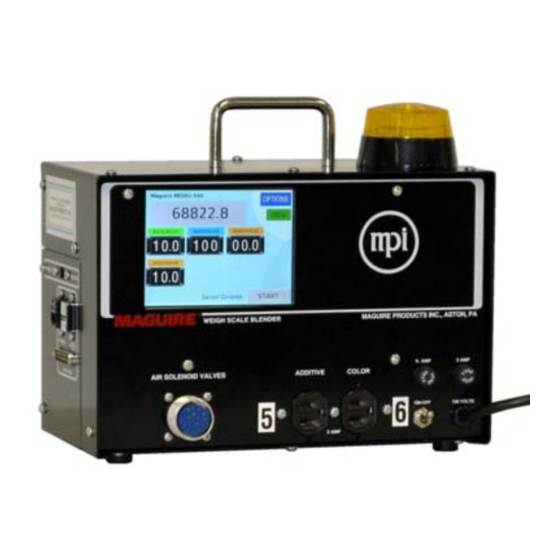

Touch Screen Controller
WEIGH SCALE BLENDER
®
TWELVE COMPONENT SOFTWARE
INSTALLATION • OPERATION • MAINTENANCE
Copyright © Maguire Products, Inc. 2014
