Page 1: Remote Control

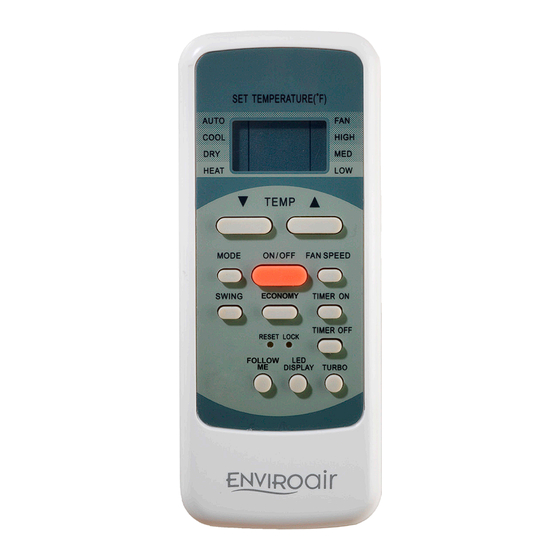

Ductless Split Systems Air Handler (Indoor) Models - FWCA, ZWHA & MWHA [Condenser (Outdoor) Models - FCA, ZHA & MHA] Installation, Operation and Maintenance Manual ECR International, Inc. 2201 Dwyer Avenue, Utica NY 13501 web site: www.ecrinternational.com An ISO 9001-2008 Certified Company... -
Page 2: Table Of Contents
CONTENTS Handling the remote controller ........Remote controller specification........Features of remote controller buttons ....... Indicators on display panel........... AUTO operation............COOL/HEAT/FAN operation........DRY operation............. TIMER operation............ECONOMY button function........RESET and LOCK buttons function......DIRECTION/SWING button function......Cautions.............. -
Page 3: Handling The Remote Controller
Handling the remote controller Location of the remote controller. Keep the remote controller where its signals can reach the receiver of the indoor unit. (a distance of 8m is allowed). CAUTIONS The air conditioner will not operate if curtains, doors or other materials block the signals from the remote controller to the indoor unit. -
Page 4: Remote Controller Specification
Remote Controller Specification Model RG51I39/BGCEFU, RG51I39/BGEFU Rated Voltage 3.0V(Dry batteries LR03 2) Lowest Voltage of CPU 2.0V Emitting Signal Transmission Distance Environment 23 F~140 F Performance Features 1. Operating Mode: AUTO COOL HEAT(Cooling only model without) and FAN . 2. Timer Setting Function in 24 hours. 3. - Page 5 TEMP Button : Push this button to decrease the indoor temperature setting in 1 F increments to 62 F TEMP Button : Push this button to increase the indoor temperature setting in 1 F increments to 86 F. NOTE: Press and hold buttons together for 3 seconds will alternate the temperature display between the C &...
- Page 6 ECONOMY Button: Press this button to go into the Energy-Saving operation mode. Press it again to cancel. This function is only can be used on COOL, HEAT and AUTO mode and maintain the most comfortable temperature for you. opera tion NOTE: While the unit is running under ECONOMY mode, it would be canceled if you press the MODE,FAN...
-
Page 7: Indicators On Display Panel
Indicators on display panel Mode display Displays the current selected mode. Including AUTO, COOL, DRY , HEAT (cooling & heating models only) and FAN. Transmission Indicator This transmission indicator will light when remote controller transmits signals to the indoor unit. Temp./Timer display The temperature setting (from 62 F to 86 F) or timer setting (0~24h) will... -
Page 8: Auto Operation
Auto operation When you set the air conditioner in AUTO mode, it will automatically select cooling, heating (Cooling & Heating models only), or fan only operation depending on what temperature you have selected and the SET TEMPERATURE( F) room temperature. AUTO HIGH COOL... -
Page 9: Cool/Heat/Fan Operation
COOL/HEAT/FAN operation Ensure unit is plugged and power is available. 1. Press the MODE button to select COOL, HEAT (Cooling & Heating models only), or FAN mode. SET TEMPERATURE( F) Push the TEMP button to set the AUTO HIGH COOL desired temperature within a range of HEAT 62 F ~ 86 F. -
Page 10: Timer Operation
TIMER operation To press the TIMER ON button can set the auto-on time of the unit. To press the TIMER OFF button can set the auto-off time of the unit. SET TEMPERATURE( F) AUTO To set the Auto-on time. HIGH COOL HEAT 1. - Page 11 CAUTION The effective operation time set by the remote controller for the timer function is limited to the following settings: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13, 14, 15,16,17, 18, 19, 20, 21, 22, 23 and 24.
- Page 12 TIMER OFF (Auto-off Operation) The TIMER OFF feature is useful when TIMER OFF you want the unit to turn off automatically after you go to bed. The air conditioner will stop automatically at the set time. Example: To stop the air conditioner in 10 hours. Stop 1.
-
Page 13: Economy Button Function
TIMER ON TIMER OFF (Off Start Stop operation) This feature is useful when you want to start TIMER ON OFF the air conditioner before you wake up and stop it after you leave the house. Example: To start the air conditioner 2 hours after setting, and stop it 5 hours after setting. -
Page 14: Reset And Lock Buttons Function
RESET and LOCK buttons funciton 1. When you press the recessed LOCK button, all current settings are locked in and remote controller does not accept any operation SET TEMPERATURE( F) AUTO except that of the LOCK. HIGH COOL Use the LOCK mode when you want to pre- HEAT vent settings from being changed accidentally. -
Page 15: Cautions
Cautions 1. When replacing batteries, do not use old batteries or different type batteries. Otherwise it may cause the remote controller to malfunction. 2. If you do not use the remote controller for a few weeks or more, remove the batteries. Otherwise, battery leakage may damage the remote controller. - Page 16 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.
