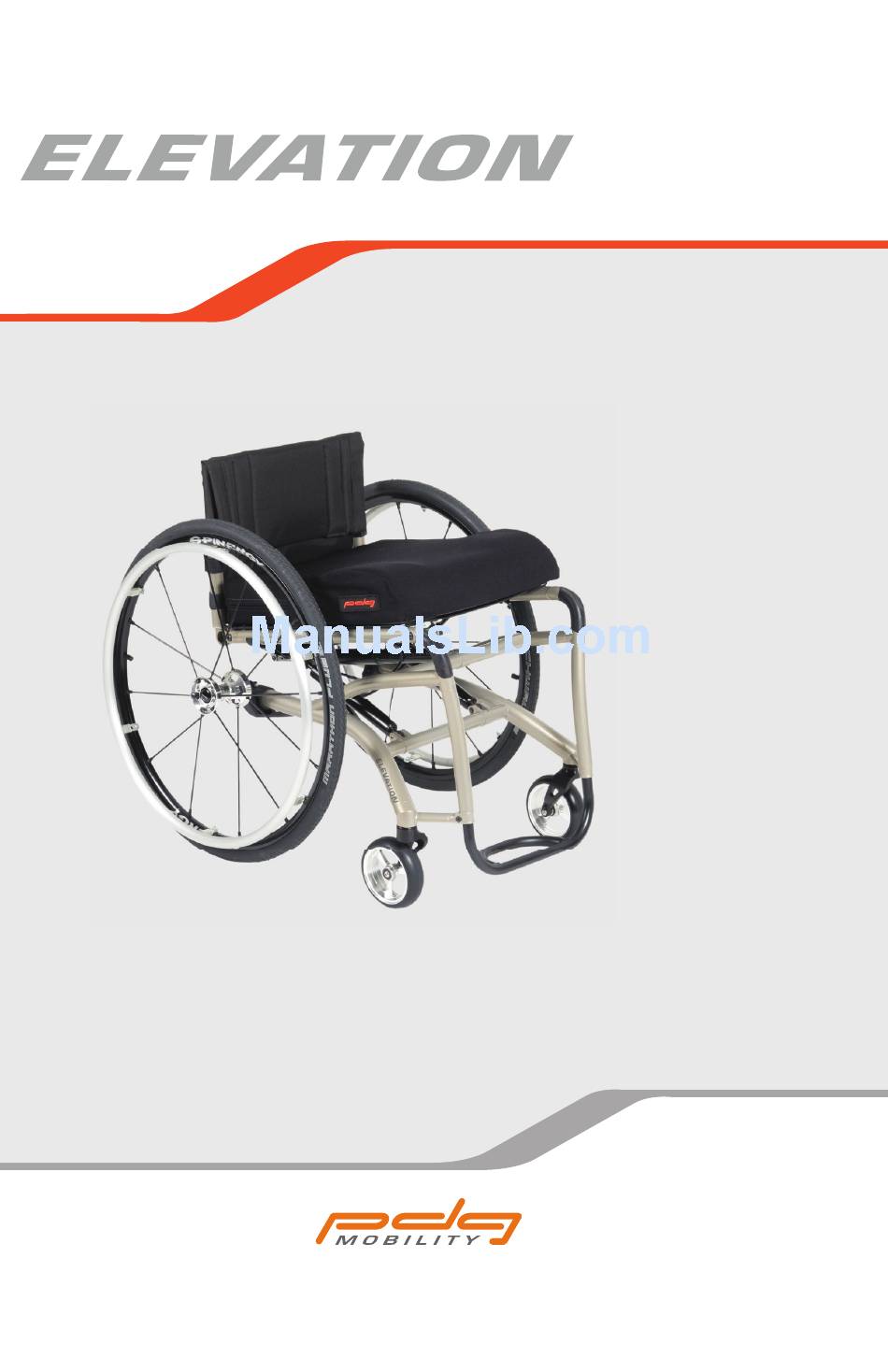

Elevation DYNAMIC INUQUE Owner's Operation And Maintenance Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

DEALER This manual must be given to

the user of the wheelchair.

USER Before using this wheelchair,

read this entire manual and save for

future reference.

Owner 's Operation and Maintenance Manual

ultralight

dynamic • unique

ATTENDANT/ ASSISTANTS Before

assisting the user of this wheelchair,

you must read this manual and save for

future reference.

For more information regarding PDG

products, parts & service, please visit

www.pdgmobility.com

W H E E LC H A I R S F O R F U N C T I O N A N D I N D E P E N D E N C E

W W W. P D G M O B I L I T Y. C O M

Class 1 Medical

Rev. 0

Table of Contents

Need help?

Do you have a question about the DYNAMIC INUQUE and is the answer not in the manual?

Questions and answers

Summary of Contents for Elevation DYNAMIC INUQUE

Page 1 Owner ’s Operation and Maintenance Manual ultralight dynamic • unique DEALER This manual must be given to ATTENDANT/ ASSISTANTS Before the user of the wheelchair. assisting the user of this wheelchair, you must read this manual and save for USER Before using this wheelchair, future reference.
Page 2: Table Of Contents
Its seat height and backrest recline angle adjustment capabilities allow the user to self-adjust their sitting posture to best suit their current activity. The Elevation is capable of up to 10 inches of on-the-fly seat height/dump adjustment and 30° of back recline.
Page 3: Special Notes
page SPECIAL NOTES WARNING/CAUTION — notices as used in this manual apply to hazards or unsafe practices which could result in personal injury or property damage. NOTE — THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. An updated version of this owner’s manual may be available at www.PDGMobility.com INDICATIONS FOR USE —...
Page 4 The use of an anti-tip devices is recommended. 6 Adjustment of Elevation to a higher seat position may result in changes to your body that you may be unaccustomed to and may find discomforting. Such changes may be dangerous and may lead to injury or death.
Page 5: Tire Pressure
Weight and Age Limitations The PDG Elevation wheelchair has a weight limitation of 250 pounds unless otherwise specifi ed by PDG. Further, Elevation is not to be used by persons under the age of 12 years. Safety/Handling of Wheelchairs “Safety and Handling”...
Page 6: Tilting - Curbs
page A Note to Wheelchair Assistants When assistance to the wheelchair user is required, remember to use good body mechanics. Keep your back straight and bend your knees whenever tilting the wheelchair or traversing curbs, or other impediments. Be aware of any removable (detachable) parts. These must NEVER be used for hand-held or lifting supports, as they may be inadvertently released, resulting in possible injury to the user and/or assistant(s).
Page 7: Escalators
page ESCALATORS DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury may occur. TRANSFERRING TO AND FROM OTHER SEATS Warning — BEFORE attempting to transfer in or out of the wheelchair, every precaution should be taken to reduce gap distance.
Page 8: Reaching, Leaning And Bending Forward
page REACHING, LEANING AND BENDING FORWARD Bending Forward Position the front casters so that they are extended as far as possible and engage wheel locks. DO NOT LEAN SO THAT YOUR SHOULDERS ARE FORWARD OF THE REAR WHEELS. Bending Backward Warning —Reach back only as far as your arm will extend without changing your sitting position.
Page 9: Components & Options Warnings
page 12 COMPONENTS & OPTIONS WARNINGS Postural Support Device or Lap Belts Warning — The lap belt, which is required equipment, is intended for use ONLY as a positioning aid for simple positioning needs, such as posterior pelvic tilt. This belt will not be sufficient for persons with more involved positioning needs. Only your health care advisor can determine the proper positioning products for your situation.
Page 10: Pneumatic Tires
page You have to climb or descend a curb, or overcome an obstacle, and can safely do so without them. At these times, make sure anti-tip tubes are up, out of the way. Fasteners Warning — Many of the screws, bolts and nuts on this chair are special highstrength fasteners. Use of improper fasteners may cause your chair to fail.
Page 11: Upholstery Fabric
page Wheel Size Tire Size Tube Size Pressure Nominal Maximum 24” 25-540 25-540 25” 20-559 20-559 26” 25-590 25-590 Table 12.1 Standard tires and tubes and their corresponding pressures. Quick-Release Axles Warning Do not use this chair UNLESS you are sure that both quick-release rear axles are locked. An unlocked axle may come off during use and cause a fall.
Page 12: Standard Features
Remove all loose packing from the carton. Carefully remove all components from the carton. Note — Unless the PDG Elevation is to be used immediately, retain cartons and packing materials for storing the wheelchair until the device is put into use.
Page 13: Out Of The Box Instructions
15 OUT OF THE BOX INSTRUCTIONS Inspection Examine exterior of the PDG Elevation for nicks, dents, scratches or other damages. Inspect all components. If damage is evident, notify your dealer immediately. The Elevation wheelchair will arrive assembled unless otherwise noted or requested.
Page 14 page Table 16.1 Inspection Checklist ITEM Initially Inspect/ Inspect/ Inspect/ Adjust Adjust Adjust/ Weekly Monthly Every 6 Months GENERAL Wheelchair rolls straight (no excessive drag or pull to one side). Ensure all hardware is tight. WHEEL LOCKS Do not interfere with tires when rolling. Pivot points free of ware and looseness.
Page 15: Troubleshooting
page 17 TROUBLESHOOTING Problems Solution Chair veers right Chair veers left Contact dealer for servicing. Sluggish turn or performance If pneumatic, check tires for correct/equal Casters flutter pressure. 3 of 4 wheels contacting ground surface Sluggish turn or performance Casters flutter Contact dealer for servicing.
Page 16: Set Up & Adjustments
Suggested Maintenance Procedures Before using your PDG Elevation, make sure all nuts and bolts are tight. Check all parts for damage or wear and replace. Check all parts for proper adjustment. 2. Keep quick-release axles, free of dirt and lint to ensure positive locking and proper operation. Refer to Rear-Wheel Axle Nut Adjustment in this manual.
Page 17: Seat Height
Repeat steps 3 and 4 until the play has be eliminated and the detent balls are fully extended. Seat Height The minimum seat height adjustment setting of the Elevation is preset at the factory for the user to achieve the most commonly used range of seat heights. However, minor adjustments may be required to optimize an occupant’s unique requirements and comfort.
Page 18 Fit rear wheels and check anti-tip performance. Warning — Camber tube adjustment may increase the tendency of Elevation to tip over either forwards or backwards. The use of anti-tip devices are strongly recommended to avoid accident or injury. Warning — Adjusting the camber bar position will impact anti-tip effectiveness. Anti-tip tubes MUST be re-adjusted following a camber bar adjustment.
Page 19 page Seat Tilt and Wheel Position Set-Up Guides The following figures provide the default set-up positions for the upper frame crossbar and wheel position of each seat depth. Upper Frame Crossbar Position Maximum Seat Tilt Angle Seat Depth Tall Medium Short Seat Depth Tall...
Page 20: Camber Angle
Camber Angle Your Elevation comes with a fixed camber angle. To change camber angle, please contact your dealer to obtain an alternative camber tube assembly with the desired camber angle. Rev. 0...
Page 21: Front Casters
page Front Casters The size of the front casters depends on the occupant’s preference. Casters and forks are matched to the size of the rear wheels and should only be changed or adjusted by a dealer. Figure 19.6 provides reference information for dealer set-up for various caster, fork, and rear wheel combinations.
Page 22: Calf Strap
Figure 19.9 Padded calf strap. Seat Sling Your Elevation comes standard with a nylon fabric seat sling that is adjusted taut by firmly tightening the hook-and-loop straps on the underside of the seat. (See Figures 19.10 and 19.11 for set-up information.) Warning –...
Page 23: Seat Cushion
A seat cushion can be attached to the seat with hook-and-loop fasteners. If the seat cushion does not provide complete comfort and/or any skin or other physical condition develops with usage, see your Physician immediately. Note — It is recommended that a seat cushion be used with your Elevation. Back Upholstery Hooks...
Page 24: Backrest Height
3mm Allen key Footrest Anti-Tip Tubes (Optional) Figure 19.15 Footrest height adjustment. Your Elevation may be purchased with anti-tip tubes designed to prevent the chair from tipping over backward in most normal conditions. Receiver To install the anti-tip tubes: Press and hold the release button on the anti-tip tube.
Page 25 In addition, when the seat height of Elevation is raised, the side guards pull inwards to improve the user’s stability.
Page 26 Gas Spring Assembly The gas springs on Elevation are selected and positioned at the factory for the weight of the user and allow for ease of seat height adjustment. By pushing lightly on the wheels and/or wheelchair frame, the occupant can sit higher, and by pulling lightly down one can sit lower with minimal effort.
Page 27 Warning — Raise and lower seat slowly to avoid any potential risk of tipping and resultant injury. Please consult your Elevation Dealer or other authorized representative for detailed instructions on raising seat height. Rev. 0...
Page 28 Real-Time Backrest Recline: Operating Instructions Your Elevation has a unique backrest design that allows real time adjustment. The backrest can be adjusted to suit the occupants comfort by simply activating the adjustment lever located at the front of the wheelchair, below the seat. Activation of the adjustment lever will allow for movement of the backrest forward or back.
Page 29: Contacting Your Supplier To Obtain Service
page 20 CONTACTING YOUR SUPPLIER TO OBTAIN SERVICE PDG has trained customer service representatives in many locations. To find your nearest Customer Service Center, visit our web site at www.pdgmobility.com and click on CONTACTS. If you are uncertain about which CONTACT is most appropriate for your needs, contact PDG directly using telephone, fax, or e-mail contact information.
Page 30: Iso Test Information Disclosure
520 mm (20.5 in) 572 mm (22.5 in) Minimum turning radius 515 mm (20.3 in) 515 mm (20.3 in) The Elevation wheelchair conforms to the test methods for static, impact and fatigue strengths as required by ISO 7176-8. Rev. 0...
Page 31: Limited Warranty
page 23 LIMITED WARRANTY PLEASE NOTE — THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975. This warranty is extended only to the original purchaser/user of our products. This warranty gives you specific legal rights and you may also have other legal rights, which vary from state to state.
Page 32 PDG PRODUCT DESIGN GROUP INC. Ph: (604) 323-9220 Fax: (604) 323-9097 info@pdgmobility.com www.pdgmobility.com © PDG Product Design Group Inc. November 2015 Rev. 0...
