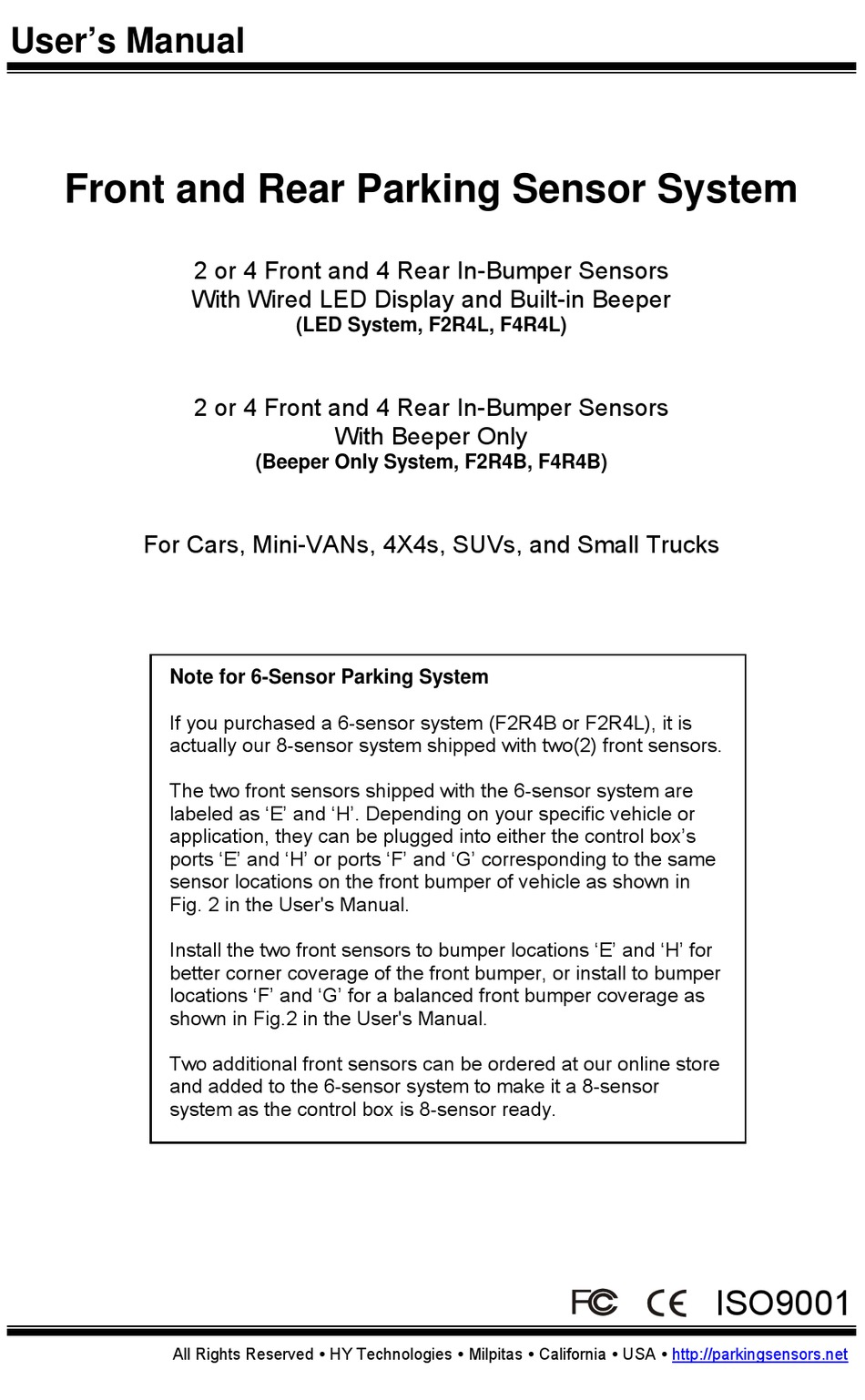

User's Manual
Front and Rear Parking Sensor System
For Cars, Mini-VANs, 4X4s, SUVs, and Small Trucks
Note for 6-Sensor Parking System
If you purchased a 6-sensor system (F2R4B or F2R4L), it is
actually our 8-sensor system shipped with two(2) front sensors.
The two front sensors shipped with the 6-sensor system are
labeled as 'E' and 'H'. Depending on your specific vehicle or
application, they can be plugged into either the control box's
ports 'E' and 'H' or ports 'F' and 'G' corresponding to the same
sensor locations on the front bumper of vehicle as shown in
Fig. 2 in the User's Manual.
Install the two front sensors to bumper locations 'E' and 'H' for
better corner coverage of the front bumper, or install to bumper
locations 'F' and 'G' for a balanced front bumper coverage as
shown in Fig.2 in the User's Manual.
Two additional front sensors can be ordered at our online store
and added to the 6-sensor system to make it a 8-sensor
system as the control box is 8-sensor ready.
All Rights Reserved HY Technologies Milpitas California USA
2 or 4 Front and 4 Rear In-Bumper Sensors
With Wired LED Display and Built-in Beeper
(LED System, F2R4L, F4R4L)
2 or 4 Front and 4 Rear In-Bumper Sensors
With Beeper Only
(Beeper Only System, F2R4B, F4R4B)
ISO9001
http://parkingsensors.net
Advertisement
Summary of Contents for HY Technologies F2R4L
- Page 1 Two additional front sensors can be ordered at our online store and added to the 6-sensor system to make it a 8-sensor system as the control box is 8-sensor ready. ISO9001 All Rights Reserved HY Technologies Milpitas California USA http://parkingsensors.net...
- Page 2 ● Measuring Error: ± 0.1 ft (or 0.1m) 3.9" x 2.8" x 1.0" (10.0cm x 7.2cm x 2.5cm) ● Sensor Detection Angle: 60° ● LED System (F2R4L, F4R4L) ● Sensor Diameter: 0.83 in/21mm Dimensions of the LED Display: WxDxH = ●...
- Page 3 Beeper On/Off Switch on Back of Display Fig. 5 Control Box, Beeper, Sensors, and Wiring Fig. 4 Control Box, Display, Sensors, and Wiring All Rights Reserved HY Technologies Milpitas California USA http://parkingsensors.net - 2 -...
- Page 4 ♦ Controlled by +12V from the brake light, the front sensors are activated when parking/driving forward with foot-braking. ♦ For LED System (F2R4L, F4R4L), it comes with a wired LED display which shows the distance of an obstacle in front or rear of the vehicle (displayed as 0.0 if obstacle is within 1 ft or 0.3m).
- Page 5 Note: Some lights (turn signal/brake/reverse/stop lights) may emit interferences that can affect the signals the control box receives therefore cause the system to give false alert. After installation, if you experience false alert caused by turn signal light, or brake/reverse/stop lights, try to put the control box as far as possible away (at least 1 ft) from the taillight assembly (or turn signal/brake/reverse/stop lights).
- Page 6 that you have the sensors professionally painted by an auto body shop. Note: although the sensors can be spray-painted for exact color match to your vehicle, sensors painted void warranty on them. a) Start with the front sensors, and then the rear sensors. Refer to Fig. 1 and 2 for the recommended mounting height and position of the front and rear sensors.
- Page 7 Using the Display (for LED System, F2R4L , F4R4L) The display has a built-in beeper (audible alert) with On/Off Switch. There are seven (7) LED Lights (3 Green, 2 Yellow, 2 Red) on each side of the two-digit distance display (Fig. 4). The color LED lights indicate both orientation of obstacle and Safe/Warning/Stop zone (Chart.
- Page 8 (especially for a metal bumper). for details. behind or in front 2. Carefully enlarging sensor holes a little with a small round file. All Rights Reserved HY Technologies Milpitas California USA http://parkingsensors.net - 7 -...
- Page 9 For more installation related questions and Frequently Asked Questions (FAQs) with http://parkingsensors.net answers, and product photos, visit our Web site at All Rights Reserved HY Technologies Milpitas California USA http://parkingsensors.net - 8 -...
- Page 10 Warnings ● Detection Range of the System The parking sensor system detects obstacle by emitting ultrasonic wave and receiving reflected ultrasonic wave from an obstacle. Different materials have different reflection and absorption of the ultrasonic wave, and the actual detection distance varies depending on what materials an obstacle is composed of.
- Page 11 To order spare and replacement parts for your system, visit our Web site as listed below, then click on the link Replacement Parts. All Rights Reserved HY Technologies Milpitas California USA http://parkingsensors.net - 10 -...
- Page 12 The specifications and features of the system, Terms & Conditions, Return Policy, and Warranty included in this User's Manual are subject to change without prior notice. All Rights Reserved HY Technologies Milpitas California USA http://parkingsensors.net...
