USER MANUAL — T812 Pan & Tilt Camera
Troglotech T812 Pan & Tilt Camera User Manual
Troglotech Ltd
Unit 1, 3 Penns Road
Petersfield
Hampshire
GU32 2EW
Phone +44(0)1730 711240
Phone +44(0)1730 711240
Fax +44 (0)1730 711240
Email info@troglotech.com
Web www.troglotech.com
Page 1
Advertisement
Related Manuals for Troglotech T812
Summary of Contents for Troglotech T812

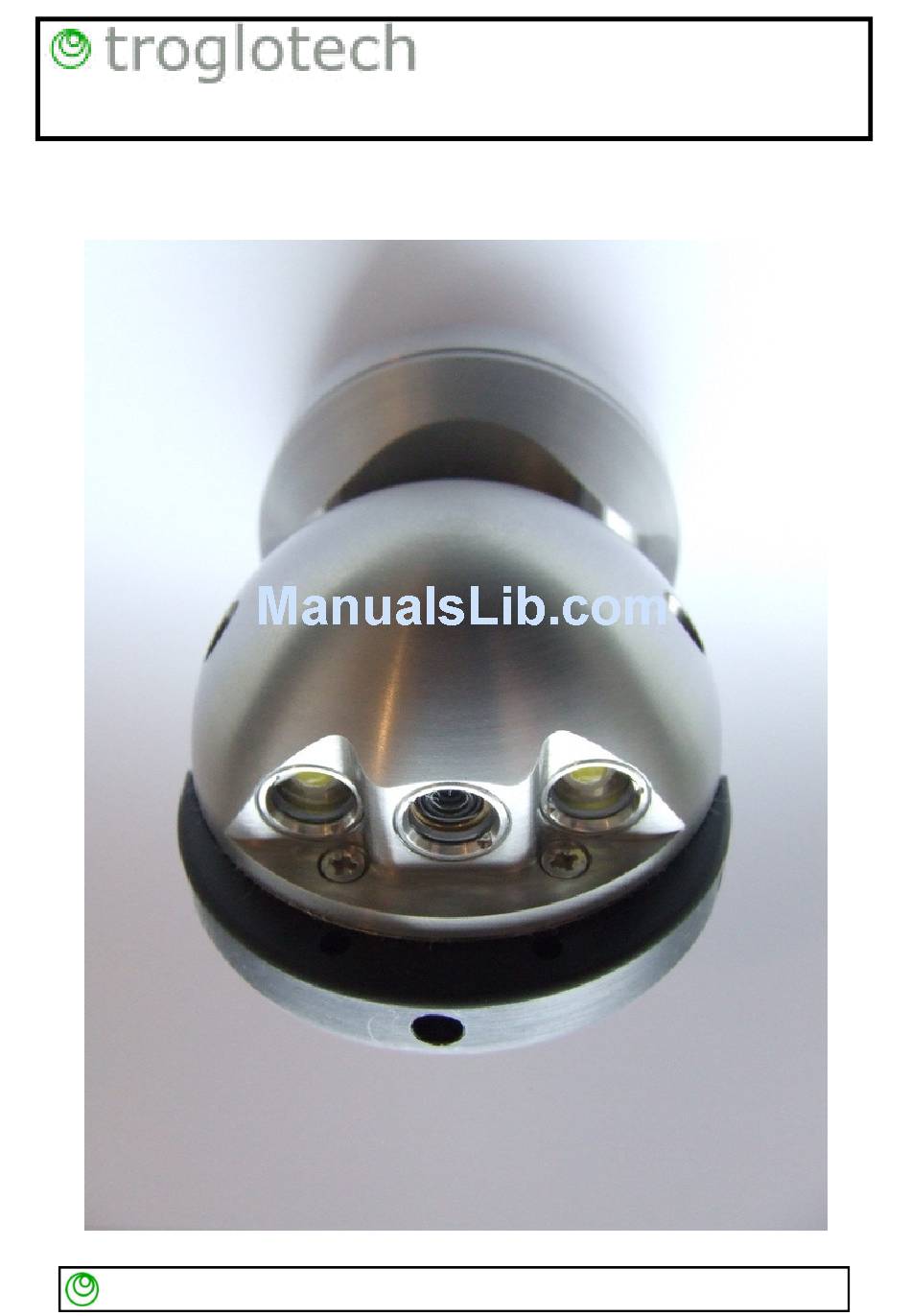

- Page 1 Phone +44(0)1730 711240 Unit 1, 3 Penns Road Phone +44(0)1730 711240 Petersfield Fax +44 (0)1730 711240 Hampshire Email info@troglotech.com GU32 2EW Web www.troglotech.com USER MANUAL — T812 Pan & Tilt Camera Troglotech T812 Pan & Tilt Camera User Manual Page 1...
- Page 2 QUICK START GUIDE 1) Fit Skid Set to the T812 Camera 2) Fit the rear Skid Set body 3) Fit the T812 camera to the T804 4) Switch the T804 ON termination 6) Use the controls ringed above to 5) Wait until the ‘ready’ symbol...
- Page 3 Borehole Mode allows the T812 to be operated when vertical - in this situation the Human Perspective View is not required - a single key-press switches off HPV and allows the picture to be rotated using the ZOOM keys - this makes inspection of Boreholes more intuitive.
- Page 4 OPERATION GUIDE Standard Operation When the T812 is fitted to the Troglotech T804 push-rod system and the system switched ON, the T812 camera will perform a short calibration routine. During the calibration routine the Tilt mechanism will turn and the picture will rotate on the T804 screen as the internal picture sensor rotates.
- Page 5 ‘centre’ button to set the focus to 6” - infinity and the camera pointing straight ahead. Borehole mode Pressing the button shown to the right puts the T812 camera into Borehole mode. This switches OFF the Human Perspective View and allows the operator to rotate the video picture using the ZOOM keys.
- Page 6 OPERATION GUIDE Your T812 camera is supplied with a C-Spanner which is used to separate the camera into the Camera Head and Rod Adaptor. When used on the T804 Pushrod system, the camera is always used as a single unit. When fitted on the Troglotech Tractor System (not yet released), only the Camera Head is required.
- Page 7 Ensure the rear pogo area of the camera is free from moisture and debris. Clean if required. Screw camera onto T804 camera termi- nation, ensure that the collar is flush with the camera. Troglotech T812 Pan & Tilt Camera User Manual Page 7...
- Page 8 Unscrew camera from T804 termination and internal adaptor tube. Slide the T804 camera termination and the internal adaptor tube into the skid. Fit 3 x Allen bolts to secure internal adaptor sleeve. Troglotech T812 Pan & Tilt Camera User Manual Page 8...
- Page 9 For pipes between 150mm- 200mm, use the small wheel set. The system is now ready for surveying. Troglotech T812 Pan & Tilt Camera User Manual Page 9...
- Page 10 FITTING BRUSH SKID SET Fitting Brush Skids The T812 must always be used with the full skid set, whether or not the brushes are fitted. Using the T812 without skids may damage the camera. The Troglotech skids can be adjusted from 3” (no brushes fitted), through 4” to 6”...
-
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Troglotech T812 Pan & Tilt Camera User Manual Page 11... -
Page 12: Technical Specification
TECHNICAL SPECIFICATION Troglotech T812 Pan & Tilt Camera User Manual Page 12...
