Quick Start Guide

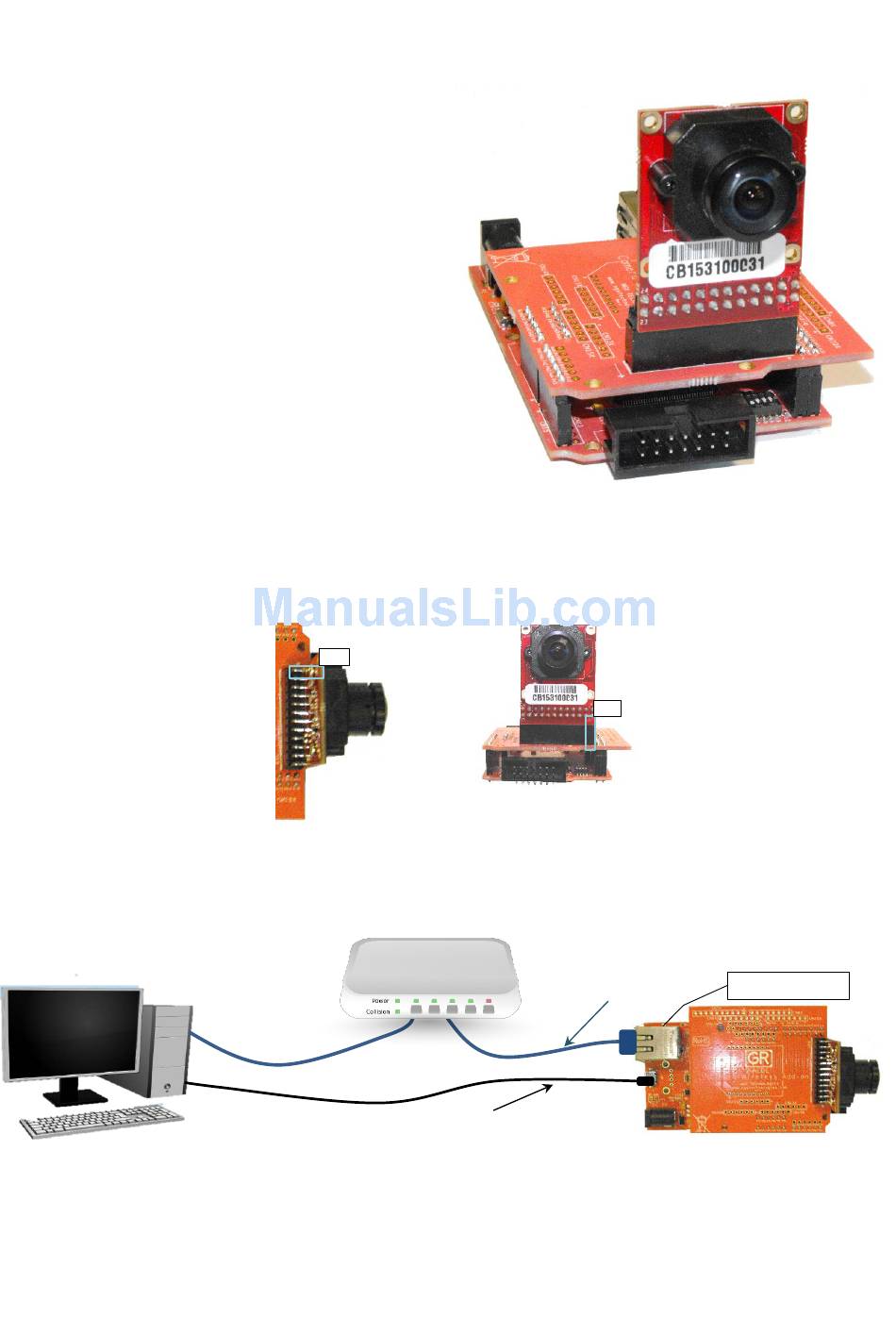

Cam it! - RX64M Camera Solution Kit
Introduction
The Cam it! - RX64M Camera Solution Kit
demonstrates the Renesas RX64M interfaced with a
color CMOS Camera module. Firmware provides
human detection, image correction and movement
detection. The user interface is a webpage displaying
JPEG encoded images, served over a wired Ethernet
connection.
The Cam it! - RX64M Camera Solution Kit is supplied
with pre-programmed firmware. This QSG covers the
setup and the operation of this kit. Please refer to
R20AN0385EG Cam it! - RX64M Camera Solution Kit
Application Note for details of setting up the
development environment and using an E1 debugger.
Fitting the Camera
Insert the camera module in to J23 of the main assembly. Ensure Pin 1 of the Camera Module is aligned with Pin 1 of
the main assembly:
Pin 1
Pin 1
Wiring Diagram
Ethernet Hub / Switch
Development PC
IP: 192.168.1.3
RJ45 Ethernet Cable
USB A to USB Micro-B Cable
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Renesas Cam it! RX64M
-
Page 1: Quick Start Guide
Cam it! - RX64M Camera Solution Kit Introduction The Cam it! - RX64M Camera Solution Kit demonstrates the Renesas RX64M interfaced with a color CMOS Camera module. Firmware provides human detection, image correction and movement detection. The user interface is a webpage displaying JPEG encoded images, served over a wired Ethernet connection. - Page 2 Connecting the Cam it! Kit Network Connection: The Cam it! Kit is supplied with a straight through RJ45 Ethernet cable. This can be connected to the development PC via an Ethernet Hub/Switch, or connected directly to the development PC if it supports Auto-MDIX (automatic crossover).
- Page 3 Launch a web browser such as Internet Explorer, Chrome or Firefox. In the address bar enter: http://192.168.1.3 A list of demonstration pages available on the Renesas Embedded Web Server will be shown, similar to the image below: Click on ‘demo_top.htm’ to open the main demonstration page.
- Page 4 At the end of the demo_top page is a series of four blue buttons, each of which will launch a different feature of the demonstration. Normal Capture Images captured by the Cam-it! Camera Module are JPEG encoded and streamed to the Web Browser. The JPEG Quality can be set in this page, this is also applied in the Human &...
- Page 5 Next Step The demonstration application can be found at the Renesas website: http://www.renesas.eu/rxcam-it The Cam it! Application Note R20AN0385EG provides further details of the development environment and functionality of the Cam it! – RX64M Camera Solution Kit. Support Online technical support and information is available at http://www.renesas.com...
