16" HD LED TV with DVB-T/CI
LTV 2016HD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTV 2016HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Trevi LTV 2016HD

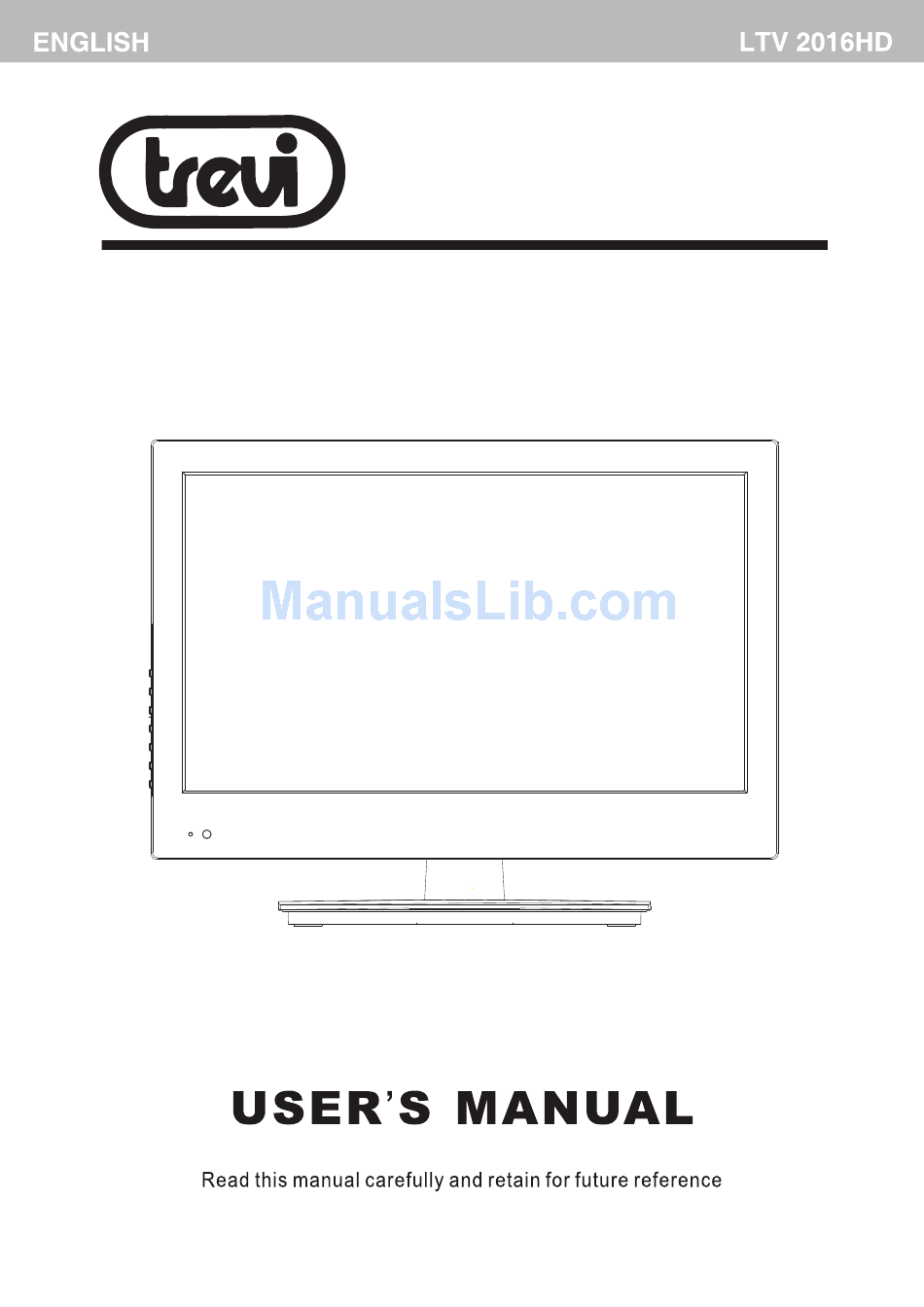

  • Page 1 16” HD LED TV with DVB-T/CI LTV 2016HD...

  • Page 2: Table Of Contents

    PREFACE SAFETY PRECAUTIONS IN THE CARTON FRONT AND BACK CONNECTIONS OF THE TV Power Cord Connection Antennas Connection AV Connection YPbPr Connection BASIC INSTALLATION REMOTE CONTROL Remote control setup Select Input Source DTV Menu Picture Menu OSD menu Sound Menu Channel Menu Lock Menu...
  • Page 3 If you're having problems Your TV's specification Wall mounting assembly instruction...

  • Page 4: Safety Precautions

    1. PREFACE Thank you for buying this TV ! Please read this manual throughly before operating the TV. Make sure the TV was not damaged in transit. Should the TV is damaged, do not install it and contact your dealer. Check that you have all the accessories according to the model. 2.
  • Page 5 Keep the TV dry and away from humidity. Keep the TV away from heat sources Unplug the before cleaning it. Do not use solvent or liquid to clean the TV. Only clean the TV with a soft and dry cloth. In case of troubleshooting, do not use spare parts other than those suggested by the manufacturer.

  • Page 6: In The Carton

    3. IN THE CARTON AUDIO SLEEP ASPECT Remote Control TV SET User Manual User Manual Switch Adaptor...
  • Page 7 4.FRONT AND BACK CONNECTIONS OF LED TV VOL+ VOL- MENU SOURCE STANDBY Head Video DC IN YPbPr SCART phone Audio 1.DC IN:Main power input. .Coax:Connect the SPDIF a suitable amplifier. 2.Headphone:Connect the earphone. 1 .RF: Connect the antenna. 3.PC AUDIO: Connect the Audio output jack of PC. 4.VGA: Connect the PC-RGB output jack of PC.

  • Page 8: Power Cord Connection

    5. BASIC INSTALL TION Power Cord Connection - Connect the power cord and AC adaptor correctly as shown. - Press the STANDBY switch of your TV to switch the unit on. The power indicator on the front panel lights up in green or blue. AC Adaptor POWER Cord Antennas Connection...
  • Page 9 Connect the VIDEO and AUDIO output jack of the DVD or VCR to the AV IN jacks on the set using the RCA cable (Yellow [video], White and RED [left & Right audio]). Select the AV input source using the SOURCE button on the remote control. Head YPbPr Video...
  • Page 10 Connect the RGB output of the PC to the VGA jack on the set. Connect the AUDIO output of the PC to the PC AUDIO jack on the set. Select the PC input source using SOURCE button on the remote control. Head YPbPr Video...
  • Page 11 SCART Connection Connect the SCART connector on the external video device to the SCART connector on the LED TV using a SCART cable. Head YPbPr Video DC IN SCART phone Audio MEDIA Connection USB: Connect to portable usb device. Coax HDMI...

  • Page 12: Remote Control

    6. REMOTE CONTROL Remote control instructions Remote control instruction in TV mode STANDBY Press "STANDBY" button to turn standby mode on or off. MUTE Press to mute the sound. Press again or press V+ to AUDIO SLEEP unmute the TV. SOURCE Press to cycle through the input source.
  • Page 13 Remote control instructions Remote control instruction in TELETEXT mode AUDIO SLEEP NUMBER BUTTONS Press 0-9 to select a teletext page. TEXT Press to switch between TV and Teletext mode. SUBTITLE To display subtitle. HOLD Freeze the current page. SIZE Change the picture size. REVEAL Reveal or hide the hidden words.
  • Page 14 Remote control instructions Remote control instruction in DTV mode NUMBER BUTTONS Press 0-9 to select a channel. TV MENU Brings up the main DTV menu to the screen. AUDIO SLEEP DISPLAY Press to display the source and channel’s information. THUMBSTICK(▲/▼/◄/►/OK ) Allows you to navigate the on-screen menus and adjust the system settings to your preference.

  • Page 15: Remote Control Setup

    Remote control setup 1. Open the cover. 2. Your remote requires 2X AAA Batteries. When inserting the batteries, make sure correct polarity marks"+"and "-" on the batteries match the diagram as shown within the battery compartment. 3. Replace the battery cover. To prevent battery leakage which may result in bodily injury or damage to the remote: 1.

  • Page 16: Select Input Source

    Select Input Source SOURCE SCART YPbPr HDMI SOURCE:Exit Basic Operation Press SOURCE button on the remote control to display the input source list Press ▼ / ▲ button to select the input source you want to watch. Press OK button to enter the input source. Press EXIT button to quit.

  • Page 17: Picture Menu

    Picture Menu Press MENU button to display the main menu. Press ◄ / ► button to select PICTURE in the main menu,it will highlight the first option. Picture Picture Mode Standard Brightness Contrast Sharpness Saturation Color Temp Standard Aspect Ratio Full Move EXIT : Exit...
  • Page 18 Advanced Settings Advanced Settings Medium MPEG NR Medium Dynamic Contrast Medium Move EXIT : Exit MENU:Return Adjust NR(Noise Reduction) Press ▼ / ▲ button to select NR(Noise Reduction),then press ◄ / ► button to select.(Available options: Off,Weak, Medium,Strong). MPEG NR(Noise Reduction) Press ▼...

  • Page 19: Sound Menu

    Sound Menu Press MENU button to display the main menu. Press ◄ / ► button to select Sound in the main menu,it will highlight the first option. SOUND Sound Mode Standard Treble Bass Balance Surround Sound EQ Setting SPDIF Move EXIT : Exit MENU:Return Adjust...
  • Page 20 EQ Setting Press ▼ / ▲ button to select EQ Setting, then press ►button to enter submenu. EQ Setting Press ▼ / ▲ button to select ,then press ◄ / ► button to select On or Off. SPDIF Press ▼ / ▲ button to select SPDIF ,then press ◄...

  • Page 21: Channel Menu

    Channel Menu Press MENU button to display the main menu. Press ◄ / ► button to select CHANNEL in the main menu,it will highlight the first option. Channel Auto Scan Manual Scan Channel Edit Common Interface Signal Information Move MENU:Return EXIT : Exit Select 1.
  • Page 22 Manual Scan Press ▼ / ▲ button to select Manual Scan , then press ►button to enter submenu. Manual Scan Digital Manual Scan Analog Manual Scan Move MENU:Return EXIT : Exit Select Digital Manual Scan Press ▼ / ▲ button to select Digital Manual Scan, then press ►...
  • Page 23 Channel Edit Press ▼ / ▲ button to select Channel Edit , then press ►button to enter submenu. Channel Edit 001 BBC ONE BBC TWO SBS ONE BBC CHOICE BBC TEXT BBC NEWS 24 SBS HD Delete Skip Move EXIT : Exit OK: Select MENU:Return Move...

  • Page 24: Lock Menu

    Lock Menu Press MENU button to display the main menu. Press ◄ / ► button to select LOCK in the main menu,it will highlight the first option. LOCK System Enter Password Enable Channel Locks Lock Keypad Hotel mode New Password Clear Lock Move Adjust...
  • Page 25 Lock Keypad Set to prevent it from being used by young child ren,or other unexpected usage. Press ▼ / ▲ button to select Lock Keypad , then press◄ / ► button to selec On or Offt. Hotel Mode Press ▼ / ▲ button to select Hotel Mode , then press ►button to enter submenu.

  • Page 26: Setup Menu

    Setup Menu Press MENU button to display the main menu. Press ◄ / ► button to select SETUP in the main menu, it will highlight the first option. Steup OSD Language English Audio Language Subtitle Teletext Time Settings First Time Setup Reset Software Update(USB) Move...
  • Page 27 Subtitle Press ▼ / ▲ button to select Subtitle, then press button to enter submenu. Subtitle Italiano Teletext Adjust Teletext settings. Only availa ble under DTV and ATV source. Press ▼ / ▲ button to select Teletext, then press /► button to enter submenu. Teletext Teletext Italiano...
  • Page 28 First Time Setup Press ▼ / ▲ button to select First time Setup, then press button to enter (Default Password:0000) First Time Setup OSD Language English Country Italy Auto Scan DTV+ATV Start Move EXIT : Exit Adjust MENU:Return Reset Press ▼ / ▲ button to select Reset, then press button to enter If you are sure to reset,press Yes to reset Software Update(USB)
  • Page 30 Media Menu 1/43 12.jpg OK Slide Show/SingleView Previous/Next Rotate Quick Menu EXIT Back...
  • Page 31 Music USB1/seasons in the sun.mp3 Move CH+/- FileList OK Select Quick Menu EXIT Return...
  • Page 32 Text USB1/TEXE/10 Most Unique Fall Date Ideas TXT.txt 10 Most Unique Fall Date Ideas 10 Most Unique Fall Date Ideas TXT.txt FRENCH TXT.txt If you are been dating your boyfriend for over a year,it might be difficult to spice up your date nights.Romantic dinners and strolling down the streets hand in hand are great,but your boyfriend and you may want to try something more exciting.

  • Page 33: If You're Having Problems

    If you're having problems If you are having problems with your TV, carry out the following checks first. If you are still having problems, unplug your TV and contact the service centre. Problems and how to fix them There is no sound and no picture coming from my TV. -Check that you have connected the TV power cord properly and switched the wall socket on.
  • Page 34 If you're having problems Note: This page only refer to Video Graphics adaptor (VGA) problems. Problems and how to fix them The signal is out of range. -Change the resolution,horizontal or vertical frequency of your source(PC etc.). -Check whether the signal cable is connected from the PC to your TV properly. -Check the signal input source is connected properly.

  • Page 35: Your Tv'

    Your TV's specification 16 inch Panel 0.252( H)x 0.252 1366 x 768 16: 9 16.7M 500:1 200 cd m 5 ms 90( H)/50(V) 50,000 hours Power consumption 24 W 2x3 W This manual is only for your reference, any change to the design and specification will not be advised.
  • Page 36 Place the device face down on a protective surface.Place the stand on the neck of the Wall-mounting the device 75mm 75mm If you are mounting the device,place consult a qualified installer for further insturctions on...
