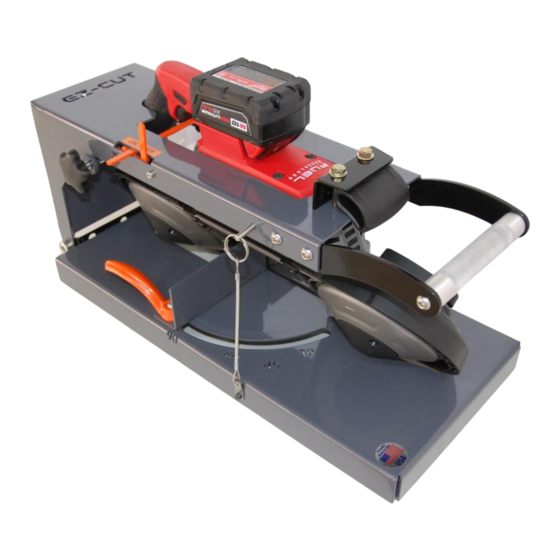

Trick-tools EZ-CUt User Manual

Cut jig
Hide thumbs

Advertisement

Quick Links

Download this manual

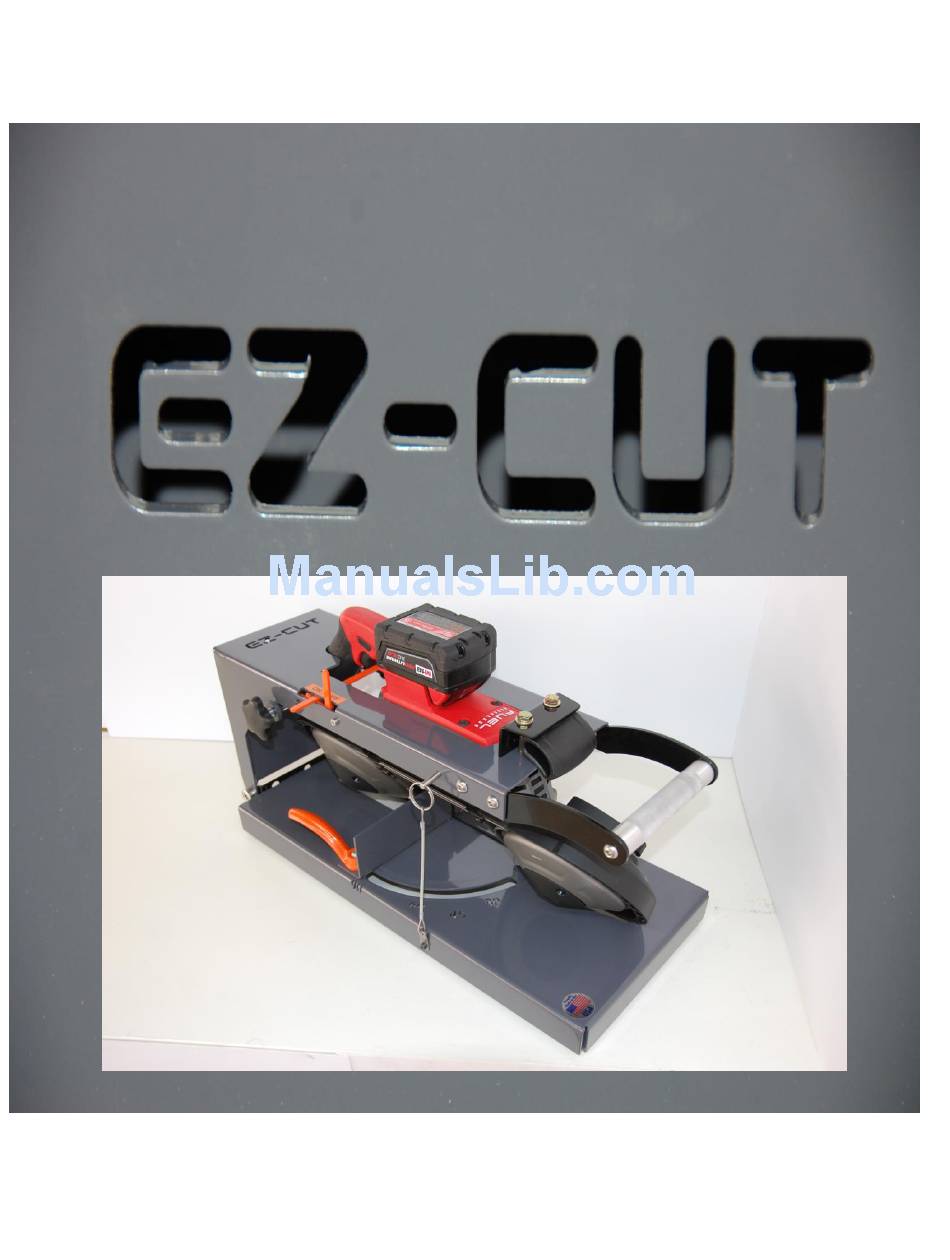

THE EZ – CUT JIG
USER MANUAL
TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE
0

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZ-CUt and is the answer not in the manual?

Questions and answers

Summary of Contents for Trick-tools EZ-CUt

  • Page 1 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE...
  • Page 2 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE TOOLS NEEDED TO ATTACH YOUR MILWAUKEE BAND SAW TO THE EZ – CUT JIG  ¾” OPEN END WRENCH ...
  • Page 3 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE 1. INSTALLING YOUR SAW INTO THE EZ – CUT JIG:  Open THE EZ – CUT JIG to the fully opened positon. positon ...
  • Page 4 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE  Remove trigger arm assembly using 3/32 Allen Key and 11/32 ...Locknut  Set trigger arm assembly aside...
  • Page 5 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE  Handle the band saw by putting your hand under the motor and tilt the band saw so that the top handle of the band saw will insert through the top side of THE EZ –...
  • Page 6 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE  Snuggly tighten the two handle clamps on both sides of THE EZ – CUT JIG. ...
  • Page 7 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE  (Top Lock Nuts pictured here)  Re-install trigger arm assembly (that was set aside on page 3) by sliding the arm through the trigger slot.
  • Page 8 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE  Fasten the round end of the arm underneath the top plate with 1/8” shoulder bolt and nut (Pictured here without 1/8“...
  • Page 9 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE  When tightening be sure the trigger arm assembly moves freely. (Pictured here in the OFF position) ...
  • Page 10 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE 1. INSTALLING THE BLADE INTO THE SAW:  To install the blade while the band saw is connected to THE EZ – CUT JIG, leave the band saw in the upright position and flip the blade lever back.
  • Page 11 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE 2. TABLE ADJUSTMENT FOR ACCURATE CUTTING: NOTE: Once the blade is installed, you can adjust the table to the blade for accurate cutting. ...
  • Page 12 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE  Square the blade in the slot. ..opening  Tighten the three 3/4” flange bolts.
  • Page 13 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE  Adjust the handle clamps left and/or right to fine tune the blade.  Handle clamps are located on both left and right sides of THE EZ –...
  • Page 14 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE 3. HOW TO USE THE EZ – CUT JIG CAUTION: TRIGGER ARM MUST BE IN OFF POSITON BEFORE STARTING. ...
  • Page 15 CAUTION: IT IS RECOMMENDED THAT USER AQUIRES THE FEEL OF HOW THE BAND SAW AND THE EZ – CUT JIG WORK TOGETHER, BEFORE ATTTEMPTING ANY CUTTING. JSR Manufacturing Incorporated is not responsible for any injury caused by misuse of the EZ-CUT JIG. 4. CUTTING WITH THE EZ – CUT JIG ...

  • Page 16: Adjusting The Fence

    THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE CAUTION: The EZ- CUT JIG does not have a built in clamping device to hold the piece being cut in place.so firmly hold the object that is being cut, with hand that is not guiding the band saw ...
  • Page 17 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE  Lift the bottom table of THE EZ – CUT JIG to an upright position. ...
  • Page 18 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE  . Then tighten the adjustable fence assembly.  When finished, lower THE EZ – CUT JIG table; and user is now ready for an angle cut.
  • Page 19 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE  Angle cut pictured here. 8. USING THE EZ – CUT JIG AS AN UPRIGHT BANDSAW ...
  • Page 20 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE  Slide THE EZ – CUT JIG to the edge of the work table and lower the bottom table of THE EZ - CUT JIG by swinging it down until it becomes vertical and completely out of the way.
  • Page 21 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE  Adjust the shoe (the table on the band saw that slides forward and back) while pressing the shoe release button on the back side of the shoe.
  • Page 22 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE  User can also use the speed control dial on the right side of the saw and the LED light switch on the top handle of the saw.

  • Page 23: Features And Advantages

    THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE FEATURES AND ADVANTAGES:  A CONVENIENT CORD STORAGE IN BACK SIDE OF THE TOP (FOR CORDED BANDSAW) ...
  • Page 24 THE EZ – CUT JIG USER MANUAL TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE ALSO AVAILABLE IS THE “STAND-ALONE EZ - CUT JIG” THE “SLIDE-IN EZ – CUT JIG TABLE” JSR Manufacturing, Incorporated is not responsible for any injury while using the EZ –...
