Summary of Contents for Douglas WIR-3110

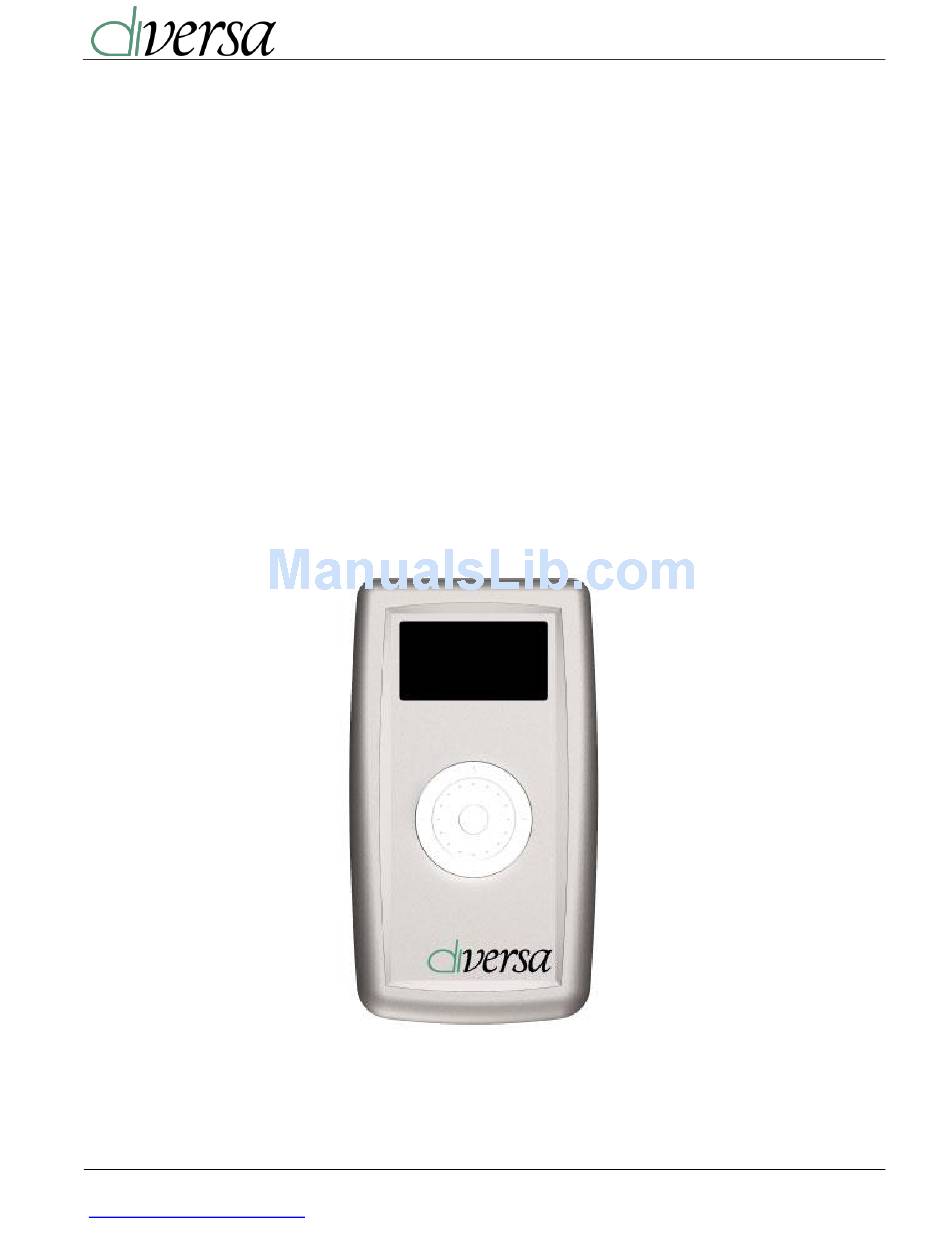

- Page 1 WIR-3110 Infrared Setting Unit User Manual for Diversa Dual Technology Sensors Douglas Lighting Controls Page 1 July 20, 2015 R1.0 www.douglaslightingcontrols.com...
- Page 2 1. INTRODUCTION 1.1. GENERAL DESCRIPTION The WIR-3110 Infrared setting unit interfaces with the Diversa Occupancy sensors. The Diversa Occupancy sensors use IR technology to allow touchless programming. Douglas Lighting Controls Page 2 August 25, 2015 www.DouglasLightingControls.com Tech Support: 1-877-873-2797...
- Page 3 IR settings. Hardware Version IR Lock: If “Locked” the Setting DIP for Firmware Version configuration is ignored and only the IR settings are used. Douglas Lighting Controls Page 3 August 25, 2015 www.DouglasLightingControls.com Tech Support: 1-877-873-2797...
- Page 4 30 seconds after initial turn on. Accurate Detection Intelligence Indicating LED: (ADI) Voice Sensitivity: If preferred, this allows you to Disabled disable the motion and ADI-Voice indicating LEDs. Medium High Douglas Lighting Controls Page 4 August 25, 2015 www.DouglasLightingControls.com Tech Support: 1-877-873-2797...
- Page 5 0-10V output to be controlled adequate natural light is by the photocell or at the fixed dim present. level; see menu 9. Douglas Lighting Controls Page 5 August 25, 2015 www.DouglasLightingControls.com Tech Support: 1-877-873-2797...
- Page 6 1) Sequences (2-Pole): Alternating Primary (2-Pole): When enabled, the primary pole will alternate for even lamp wear, every Once configured using WIR-3110 with time occupancy is detected (does each press of the override button the not apply to override button).
- Page 7 Use this menu to configure override button functionality. Pole 1 - Override: Pole 2 - Override: - ON/OFF - ON/OFF - ON Only - ON Only - OFF Only - OFF Only Douglas Lighting Controls Page 7 August 25, 2015 www.DouglasLightingControls.com Tech Support: 1-877-873-2797...
- Page 8 ON or turn them off level. Then send a “Photo Capture” depending on the “Photo Mode”. to read the light level. Douglas Lighting Controls Page 8 August 25, 2015 www.DouglasLightingControls.com Tech Support: 1-877-873-2797...
- Page 9 *If Photo is disabled on Menu 4, the following features are not applicable: Switch Inhibit Photo Type Douglas Lighting Controls Page 9 August 25, 2015 www.DouglasLightingControls.com Tech Support: 1-877-873-2797...
- Page 10 (Timeout: 5 sec, RESET: Smart-Sense: 5 sec) and ADI-Voice All Settings enabled. This will drop out to normal Photo Settings mode after 30 minutes Audio Settings None Douglas Lighting Controls Page 10 August 25, 2015 www.DouglasLightingControls.com Tech Support: 1-877-873-2797...
