BUILT-IN
DISHWASHER
DW 7721J
USER'S GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW 7721J and is the answer not in the manual?

Questions and answers

Related Manuals for Glen DW 7721J

Summary of Contents for Glen DW 7721J

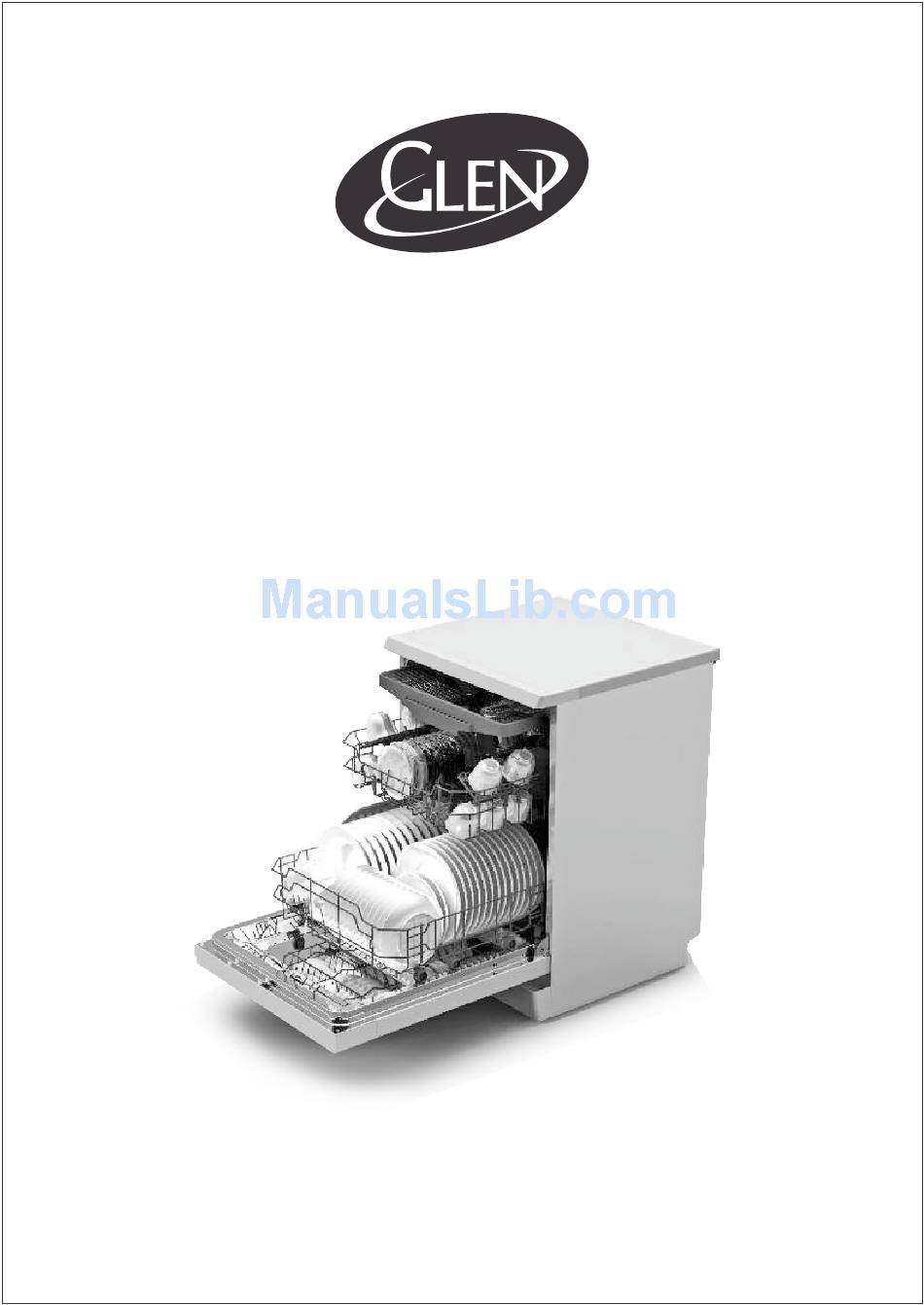

  • Page 1 ® BUILT-IN DISHWASHER DW 7721J USER’S GUIDE...

  • Page 2: Table Of Contents

    Dea r Cu stomer, Please carefully read th is m anu al before using the dishwa sher, it w ill h elp y ou t o us e an d mainta in the dishwa sher pro perly. Control Panel...........3 K eep it as a refer in the late r da ys. Dishwasher Features........
  • Page 3 When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments;...
  • Page 4 This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug.
  • Page 5 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. Check that the detergent powder is empty after completion of the wash cycle. Do not wash plastic items unless they are marked dishwasher safe or the equivalent.
  • Page 6 Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material POM polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g.

  • Page 7: Control Panel

    For detailed operating method read the corresponding conte nt on the instruction manual. Switch on the appliance Open the door,press the On/Off button to switch on the appliance . With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only. (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided).
  • Page 8 To get the best perform ance from your dishwasher, read all operating instructions before using it for the first tim e. 1.On/O ff Button: To turn on/off the power sup ply. 8.Display screen: to show the reminding t ime 2.Program Button : To P ress the button to select a and the state(running state, delay time etc ) w ash Program.

  • Page 9: Adjusting Salt Consumption

    Before using you r dishwasher for the first time : Set the water softener Add 1.5Kg dishw asher salt an d then full fill the salt con tainer with w ater Fill the rinse aid dispenser Fill in detergent The water softener must be set m anually, using the water hard ness dial. The water softener is des igned to rem ove minerals and salts from the water, which would have a detrim ental or adverse effect on the operation of the app liance.

  • Page 10: Rinse Aid Dispenser

    Always u se the salt intended for use with dishwasher. The salt co ntain er is located beneath the lowe r basket and sh ould be filled as explained in t he foll owing: Attention! Only use salt spe cif ically desi gne d for t he use i n d ishw ashers! Every other type of salt n ot speci fically d esig ned fo r the u se in a d ishwa sher, espe cially tab le salt, will damage the w ater sof tene r.

  • Page 11: Adjusting Rinse Aid Dispenser

    When to Refill the Rinse Aid Dispenser If there is no rinse-aid warning ligh t in the c ontrol panel, you can est imate the am ount from the colour " " of the optical level indicator C located ne xt to the cap. When th e rinse-aid c ontainer is full, the whole indicator will be dark .As the rinse -aid diminishes, the size of the dark dot de creases.

  • Page 12: Concentrated Detergent

    Detergents There are 3 sorts of d etergents 1.With phosphate and with ch lorine 2.With phosphate and without chlorine 3.Withou t phosphate and without chlorine Normally new pulverised detergent is with out phosphate. T hus the water softener fu nction of phospha te is not given.

  • Page 13: Fill In Detergent

    Fill in Detergent Fill the detergent dispenser w ith detergen t. The marking indicates the dosing levels , as illustrate d on the righ t: The pla ce o f main wash cycle de terg ent placed. The pla ce o f pre-wa sh cycle deterge nt placed. Plea se o bserve the m anufact urers do sing and storage Recomm endations as stated on the detergent pac kagi ng.
  • Page 14 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program w ith as low a temperature as possible. To prevent damage, do not take gla ss a nd c utlery out of the dishwasher immediately after the programme has ended.

  • Page 15: Folding Spikes Of Lower Basket

    The u pper basket is designed to hold m ore delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and di fficult to clea n ite ms are to be placed into the lo wer tea cups and saucers, as well as plates, sm all bowls basket: su ch a s pots, pans, lids, se rving dishes and and shallow pans (as long as they are not too dirty).
  • Page 16 Means : need to fill rinse into the Rinse-Aid Dispenser. ℃ Pre -wash (45 Auto sensing wash, lightly, ℃ Autowa sh(4 5-55 ) 5/ 30g normally or heavily soiled Auto Rin se 0.9-1.3 11-15 (1or2 pi eces) crockery, with or with out ℃...

  • Page 17: Unloading The Dishwasher

    ” When you press the Start/Pause button to pause during washing, the LED display window“ will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start. Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the w ash water.

  • Page 18: Filter Assembly

    The filter prevents larger remnants of food or other objects from getting inside th e pump The residues may block the filter, in this case they must be rem oved . The filter system consists of a coarse filter,a flat (Main filter) A nd a microfilter(Fine filter).

  • Page 19: Cleaning The Filter

    Remarks: - Inspect the filters for blo cking a fter e very time the dishwa sher has been used. - By unscrew ing the coarse filter, you can rem ove the filter system . Re move any foo d remna nts and clean the filters under running water.

  • Page 20: Moving The Appliance

    After Every Wash When not in Use for a L ongTime It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly op en so that sock et, turn off the wa ter supp ly and leave the door of m oisture and odours are not tra pped inside.

  • Page 21: Aesthetic Panel's Dimensions And Installation

    Please carefully read the installation instruction. ● Illustrations of cabinet dimensions and installation position of the dishwasher Preparations should be made before moving the dishwasher to the installation place. Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1).
  • Page 22 magical pas ter A and magical paster B b e disjoinedon ,magical paster A on the aesthetic wooden panel a nd fe lted magical paster B of the outer door of dishwasher(see f igure 4a). After po sitio ning of the panel , fix the panel onto t he outer door by s crew s an d bo lts(See figure 4b) 【...

  • Page 23: Tension Adjustment Of The Door Spring

    ● Tension adjustment of the door spring The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable (see figure 5).

  • Page 24: Dishwasher Installation Steps

    Dishwasher installation steps ● Ins tall t he furnit ure door to the outer door of the dishwasher using the brac kets prov ided. Re fer to the template for posi tioning of the brackets. Adjust the tension of the door spr ings by using an Allen key turning in a cloc kwis e motion to tighten the left and right door springs.
  • Page 25 Dishwasher must be level for proper dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the three levelling legs individually. When level the dishwasher, please pay attention not to let the dishwasher tip over.

  • Page 26: Positioning The Appliance

    Connect the cold water supply hose to a threaded 3/4(inch) conn ector and make sure that it is fastened tightly in place. If the water p ipes are new or have not been use d for an e xtended period of time, let the water run to make sure that the water is clear.
  • Page 27 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is closed securely. turned on Make sure the power cord is properly plugged into the wall socket.
  • Page 28 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed.
  • Page 29 Height : 815mm Width : 598 mm Depth : 570mm with th e door closed Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 14 place settings...
  • Page 31 SERIAL NO.: BILL NO. & DATE: NAME OF OWNER: ADDRESS: ® Imported & Marketed by / in case of Customer complaints Glen Appliances Pvt. Ltd. I-34, DLF Ind. Area, Phase-I, Faridabad, India. Phone 0129-2254191 E-mail : service@glenindia.com, info@glenindia.com Website : www.glenindia.com...
