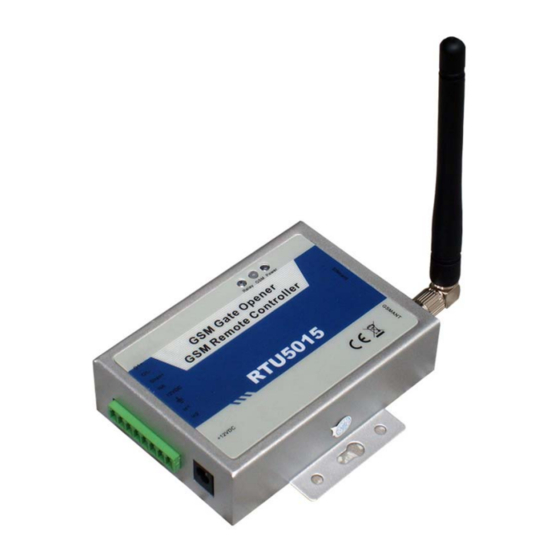

GSM Gate Opener
GSM Remote Switch
RTU5015
User Manual
Ver 1.3 Date Issued: 2010-08-18
Page 1 of 1 Ver 1.3
File No.:RTU501513
Advertisement
Table of Contents
Summary of Contents for Agrox RTU5015
- Page 1 Open gate or garage door with a FREE call from your mobile phone! Remote switching machines with a FREE call from your mobile phone! GSM Gate Opener GSM Remote Switch RTU5015 User Manual Ver 1.3 Date Issued: 2010-08-18 Page 1 of 1 Ver 1.3...
-
Page 2: Table Of Contents
Table of contents Brief introduction -----------------------------------------------------------------------3 Safety Directions -----------------------------------------------------------------------3 Standard Packing list ------------------------------------------------------------------4 Physical Layout -------------------------------------------------------------------------4 Features ----------------------------------------------------------------------------------5 Settings -----------------------------------------------------------------------------------5 Installation -------------------------------------------------------------------------------9 Technical specifications -----------------------------------------------------------11 Important information -----------------------------------------------------------------11 Maintenance----------------------------------------------------------------------------11 Quality Warranty ----------------------------------------------------------------------12 Upgrade Version: Ver1.3 Date: 2010-08-18: 1. -
Page 3: Brief Introduction
Moreover, the RTU5015 with 2 digital inputs for digital inputs, when any one of the inputs triggered, will start the siren or switch on the light, in the meanwhile, the RTU5015 will send SMS Alert the to owners immediately. This is very useful if you need protect your assets with low cost solution. -
Page 4: Standard Packing List
Led will change to Red color(not flash) for 3minutes(In this 3 minutes, you can send RESET to reset the RTU5015.) When registered GSM Network successful, will change to Green color(not flash). When calling in, the relay works, will change to Red color. -
Page 5: Features
2. All the settings are through SMS commands, please edit the below SMS commands in your cell phone, then send to the RTU5015 Unit. 3. You can program the GSM Gate Opener with SMS commands using your phone. It is safe to do so because in addition to the fact that other people may not know the number of the SIM inserted Page 5 of 5 Ver 1.3... - Page 6 10. Please write down the Authorized number list in a paper for review in further. 11. If you want to reset the RTU5015 to factory default, then please send RESET to it within 3 minutes after switch on the RTU5015. (The GSM Led in RED status, if the GSM LED change to GREEN, then the RTU5015 can not respond this command.)
- Page 7 RTU5015 unit. Tips: 1. the authorized number means the one who can dial the RTU5015 unit to open it. 2.We strongly recommend that the serial number of 01 and 02 are cellphone number, because of the alarm message only send to the first and second position numbers;...
- Page 8 6.9 Setup only authorized number can access it (Default) pwd#AU# Tips: With the above command you allow only people that are in the authorized number list can access the RTU5015. This is the standard and recommended option. Inquiry this setting pwd#AC?# Relpy:...
-
Page 9: Installation
OFF. You can disable it by the following command: pwd#N#. Default is no return SMS confirmation when relay action. This is very useful when you use the RTU5015 to control the equipments remotely. To check the settings, you can use the command:... - Page 10 Before installing the control unit and sensors and sirens, please help to test the system firstly, including wired sensor, power supply, gsm signal, etc. 7.1 Insert SIMcard into Control Unit In the backside of the control unit, please install the GSM SIM card. 7.2 Connecting the Wired Sensors Please help to see below wiring diagram, then fixed the related wired sensors, the sensors connect to the related digital inputs, and the siren should connect to the Siren and Com connection port.
-
Page 11: Technical Specifications
7.4 Install the Mainframe The mainframe should be installed in the position that person can not get it, and there’re with a power source as well as enough GSM signal coverage. 8. Technical specifications Rated Voltage: 12VDC 1 A Working temperature: -10℃～+60℃... -
Page 12: Quality Warranty
1) In case of failure, please contact the distributor or manufacturer. 2) If the remote control works, but the Control Unit fails to send SMS texts, switch the power of Control Unit off and switch it on after one minute. Test this system after another minute, or check the settings are correct and the GSM Signals are strong enough.
