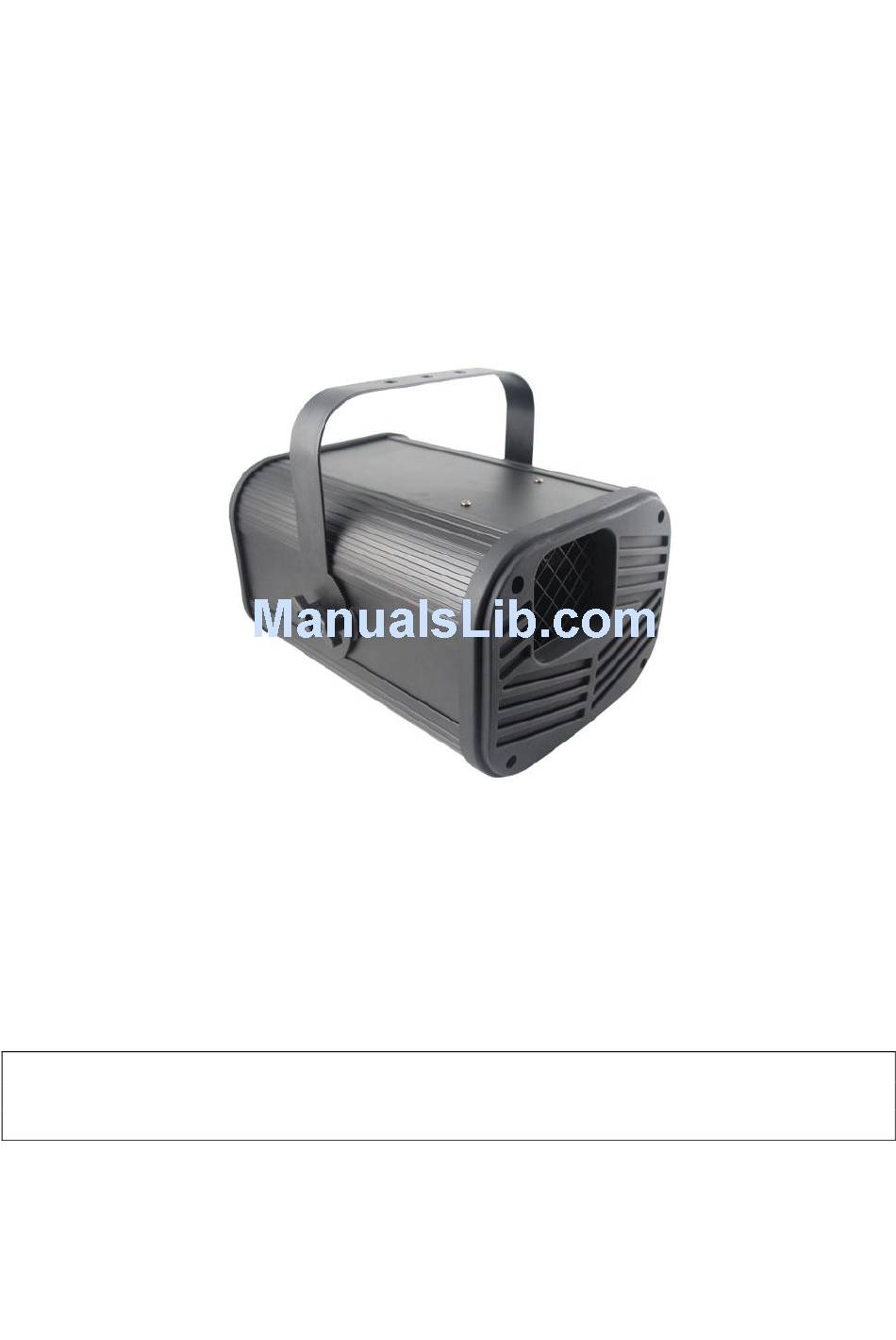

SNIPER 2R SCANNING LIGHT (3IN1)

SL-3130

User Manual

Thank you for choosing our sniper 2R scanning light (3in1). For the sake of your safety, Please

read and follow these instructions carefully and keep this manual in a safe place for future

reference.

Table of Contents

Need help?

Do you have a question about the SNIPER SL-3130 and is the answer not in the manual?

Questions and answers

Summary of Contents for Showlight SNIPER SL-3130

Page 1: User Manual
SNIPER 2R SCANNING LIGHT (3IN1) SL-3130 User Manual Thank you for choosing our sniper 2R scanning light (3in1). For the sake of your safety, Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
Page 2: Table Of Contents
Catalogue Chapter Page Safe Usage Of The Product ------------------------------------------------------------------------------------------3 Install The Equipment -------------------------------------------------------------------------------------------------4 Fitting The Lamp --------------------------------------------------------------------------------------------------------4 Power Code Connection ----------------------------------------------------------------------------------------------4 DMX Connection ---------------------------------------------------------------------------------------------------- --5 DMX Terminator ----------------------------------------------------------------------------------------------------- --5 Function Set ----------------------------------------------------------------------------------------------------------- -- 6 Lamps starting address code calculation methods -------------------------------------------------------------6 Operation Menu ---------------------------------------------------------------------------------------------------------6...
Page 3: Safe Usage Of The Product
SAFE USAGE OF THE PRODUCT When unpacking and before disposing of the carton, check there is no transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The product is for indoor use only, IP20.
Page 4: Install The Equipment
Install The Equipment: Use 1pcs clamp and 1safety cord(need to purchase).Use clamp fix with light hook which in the packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm the light which you fixed is strong enough for hanging the light.
Page 5: Dmx Connection
DMX Connection: Connection between the controller and a projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and sockets.
Page 6: Function Set
Function Set: LCD Display MENU DOWN UP ENTER Use button switch and LCD display, can set the address code and function code easily. Check or modify lighting function settings, Press the MENU or ENTER button. LCD display panel will display main menus. Function operation menu all have corresponding submenu . Each menu all represent the specific functions of lamps, specific see below "operation menu"...
Page 7 A001 DMX Address DMX address set A512 17Ch Channel Mode Channel choose 21Ch Sound Show Mode Sound，Auto-mode Auto Master Slave Mode Master-Slave choose Slave Black Out Standby choose Sound State Sound control ON/OFF Sound control sensitivity (0 Sound Sense 0--100 closed, 100 of the most sensitive) Pan Inverse Pan reverse...
Page 8: Maintenance
Auto Test Test mode When no connect Temperature ---°C Sensor Temp. -20--200° Normal display temperature inside the machine Fixture Time 0--999 Machine running time Firmware V1.01 Software version number Version Factory Factory reset Defaults System Reset Motor reset Maintenance: To prolong the life of the projector, some maintenance work has to be done to ensure the optical system in good condition.
Page 9: Trouble Shooting
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics. A soft cloth and typical glass cleaning products should be used for cleaning. It is recommended to clean the external optics at least once every 15 days and clean the internal optics at least once every 60 / 90 days.
Page 10 0---2 Open 3---4 Open + Color1 5---6 Color1 7---9 Color1 + Color2 10---11 Color2 12---13 Color2 + Color3 14---15 Color3 16---18 Color3 + Color4 19---20 Color4 21---22 Color4 + Color5 23---24 Color5 25---27 Color5 + Color6 28---29 Color6 30---31 Color6 + Color7 32---33 Color7 34---36...
Page 11 68---74 Gobo9 75---82 Gobo10 83---89 Gobo11 90---97 Gobo12 98---104 Gobo13 105---112 Gobo14 113---119 Gobo15 120---126 Gobo16 127---133 Gobo17 134---194 Clockwise Gobo Rotation From Fast To Slow 195---255 CounterClockwise Gobo Rotation From Slow To Fast 0---8 9---16 Pattern Macro 1 17---25 Pattern Macro 2 26---33 Pattern Macro 3...
Page 12 121---134 Stop se/CounterClockwis CounterClockwise Pattern Rotation From Slow To 135---245 Fast 246---255 Stop 0---9 Stop 10---120 Horizontal Pattern Rotation From Fast To Slow PATTERN CH11 121---134 Stop ROTATION[Horizon tal /Vertical] 135---245 Vertical Pattern Rotation From Slow To Fast 246---255 Stop 0---127 Pattern Zoom Manual CH12...
Page 13 160---169 Enable Blackout While Color Change 170---179 Disable Blackout While Color Change 180---189 Enable Blackout While Gobo Change 190---199 Disable Blackout While Gobo Change 200---219 System Reset 220---255 No Function 17CH Mode Channel Value Function description Function 0---127 Pan Movement 128---255 Pan Shaking Movement Slow To Fast 0---127...
Page 14 68---128 Color Wheel Index - Color1 To Color15 129---190 Clockwise Color Rotation From Fast To Slow 191---193 Stop 194---255 CounterClockwise Color Rotation From Slow To Fast 0---7 Open 8---14 Gobo1 15---22 Gobo2 23---29 Gobo3 30---37 Gobo4 38---44 Gobo5 45---52 Gobo6 53---59 Gobo7 60---67...
Page 15 162---169 Pattern Macro 19 170---178 Pattern Macro 20 179---186 Pattern Macro 21 187---195 Pattern Macro 22 196---203 Pattern Macro 23 204---212 Pattern Macro 24 213---220 Pattern Macro 25 221---229 Pattern Macro 26 230---237 Pattern Macro 27 238---246 Pattern Macro 28 247---255 Pattern Macro 29 0---9...
Page 16: Technical Parameters
0---7 No Function CH16 SHUTTER 8---255 Shutter From Slow To Fast 0---39 No Function 40---59 Lamp On 60---79 Lamp Off 80---89 All Motors Reset 90---99 Pan/Tilt Motors Reset 100---109 Color Motor Reset 110---119 Gobo Motor Reset 120---129 Shutter & Dimmer Motors Reset FUNCTION[Active CH17 130---139...
