Summary of Contents for Shaefer lcd 240-2 series

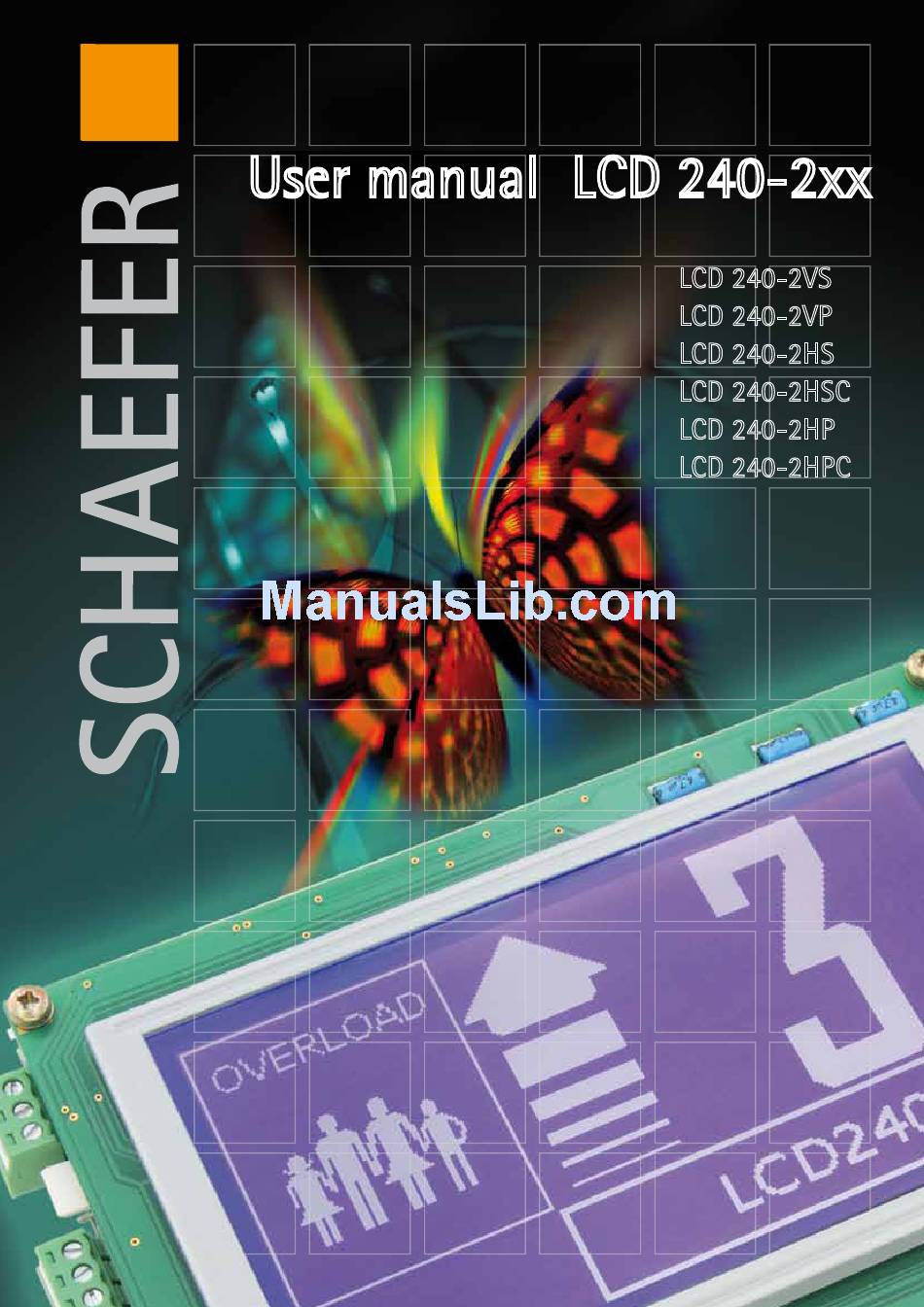

- Page 1 Kapitelbezeichnung Kapitelbezeichnung X.X Unterpunkt User manual LCD 240-2xx LCD 240-2VS LCD 240-2VP LCD 240-2HS LCD 240-2HSC LCD 240-2HP LCD 240-2HPC...
- Page 2 Kapitelbezeichnung Kapitelbezeichnung X.X Unterpunkt SCHAEFER GmbH Winterlinger Str. 4 72488 Sigmaringen Germany Phone +49 7571 722-0 Fax +49 7571 722-99 info@ws-schaefer.de www.ws-schaefer.de Support If you have any questions regarding this product please contact: Phone +49 7571 722-51 Fax +49 7571 722-99 Copyright Duplication (copy, print, microfilm or any other form) as well as electronic spreading of this document...
-
Page 3: Table Of Contents
Index User manual LCD 240-2xx Index Introduction ............. 4 Display items, symbols and fields .......... 4 Electrical connections ......... 5 Electrical adjustment ........6 Configuration ........... 6 Setup menu ............7 Assembly dimension ........8 Available versions of LCD240 ....9 LCD 240 vertical series ........ -
Page 4: Introduction
Intorduction Display items, symbols and fields LCD 240-2xx Introduction Display items, symbols and fields Note Available features depend on Display is divided to four sub-areas. Names of these urchased device version. All here fields are as follows: described features are not available in all device versions. -
Page 5: Electrical Connections
Electrical connections LCD 240-2xx Electrical connections When the automatic arrow function is selected Supply voltage (12V…24V DC) is applied to J1 connec- (“AUTO”), the microcontroller continuously observes tor. The device is controlled through a 14-pin connec- the car position status input. In case of any change it tor (J2). -
Page 6: Electrical Adjustment
Electrical adjustment Configuration LCD 240-2xx Electrical adjustment Configuration LCD display contrast can be adjusted by trimming Device can be configured in two different ways: By potentiometer R57. Default contrast setting is means of devices own setup menu or with “LCD240- made in factory. -
Page 7: Setup Menu
Setup Menu LCD 240-2xx Setup Menu If there are more than two possible values, FW steps With the aid of the setup menu the user can make changes to certain properties of the device. Three to the next value and BW to the previous one. Value push buttons are assigned to browsing of the menu. -
Page 8: Assembly Dimension
Assembly dimension LCD 240-2xx Assembly dimension ±0.1 Schweißbolzen M3 x 10 2(3) ±0.1 Schweißbolzen M3 x 8... -
Page 9: Available Versions Of Lcd240
Available versions of LCD 240 8.1 LCD 240 vertikal series | 8.2 LCD 240 horizontal series Available versions of LCD 240 8.2 LCD 240 horizontal series 8.1 LCD 240 vertikal series Product Description name Product Description name LCD 240- Basic version with VEBUS X X X interface... -
Page 10: Tecnical Information
Technical information 9.1 Functional specifications | 9.2 Display module specifications Technical infomation 9.1 Functional specifications 9.2 Display module specifications Available features depend on purchased device Display resolution: 240 x 128 pixels / version. All here described features are not 128 x 240 pixel(H x V)) ... -
Page 11: Electrical Connections
Technical information 9.3 Electrical connections | 9.4 Configuration 9.3 Electrical connections 9.4 Configuration Power supply input Setup menu Operating voltage range, 12…30 VDC Device configuration is made by means of (max. 5% ripple voltage) displayed menu and 3 push buttons ... -
Page 12: Other Devices Wired In Parallel
Other devices wired in parallel Other devices wired in parallel If other devices (e.g. SYN42, SM84; DMD) are wired If more than 6 signal lines are used, a second uncou- in parallel to the LCD 240, an uncoupling PCB has to pling PCB is needed. be inserted into the signal lines. common anode signal lines (floors, direction, ..) - Page 13 Other devices wired in parallel common cathode signal lines (floors, direction, ..) LCD 240 -2 HP -2 HPC -2 VP VEBUS A1 uncoupling PCB SYN42 ,SM84...
-
Page 14: Vebus A1
VEBUS A1 - Parallel to serial converter 11.1 Description | 11.2 Features VEBUS A1 - Parallel to serial converter 11.1 Description VEBUS A1 is a general purpose converter card for different bus interfaces. It is intended for lift appli- cations. It converts typical binary parallel control to RS-485 compatible serial control. -
Page 15: System Block Diagramm
VEBUS A1 – Parallel to serial converter 11.3 System block diagram LCD 240 11.3 System block diagram Schacht Kabine VEBUS A1 Dual/Gray Spannungsversorgung Aufzugssteuerung... -
Page 16: Connection
VEBUS A1 - Parallel zu serial converter 11.4 connection 11.4 connection OUTPUT Prog. PULL DOWN INPUT 12 ... 30 V DC PARALLEL INPUT... -
Page 17: Electrical Connections
VEBUS A1 – Parallel to serial converter 11.4 connection 11.4.1 Electrical adjustment Power supply input Operating voltage range, 12…30 VDC (max. 5% ripple voltage) Current consumption, 33 mA @ 24 VDC (no load) Parallel control interface (J1) ... -
Page 18: Function
VEBUS A1 – Parallel to serial converter 11.5 Function | 11.6 Electrical adjustment | 11.7 Size a. environment 11.5 Function Device reads its parallel input every 100 ms. If there is a change in the parallel input, device immediately sends the serial control packet to V EBUS interface. Device also sends the serial control packet every 500 ms, if there are no changes in the parallel input. - Page 19 Memo...
