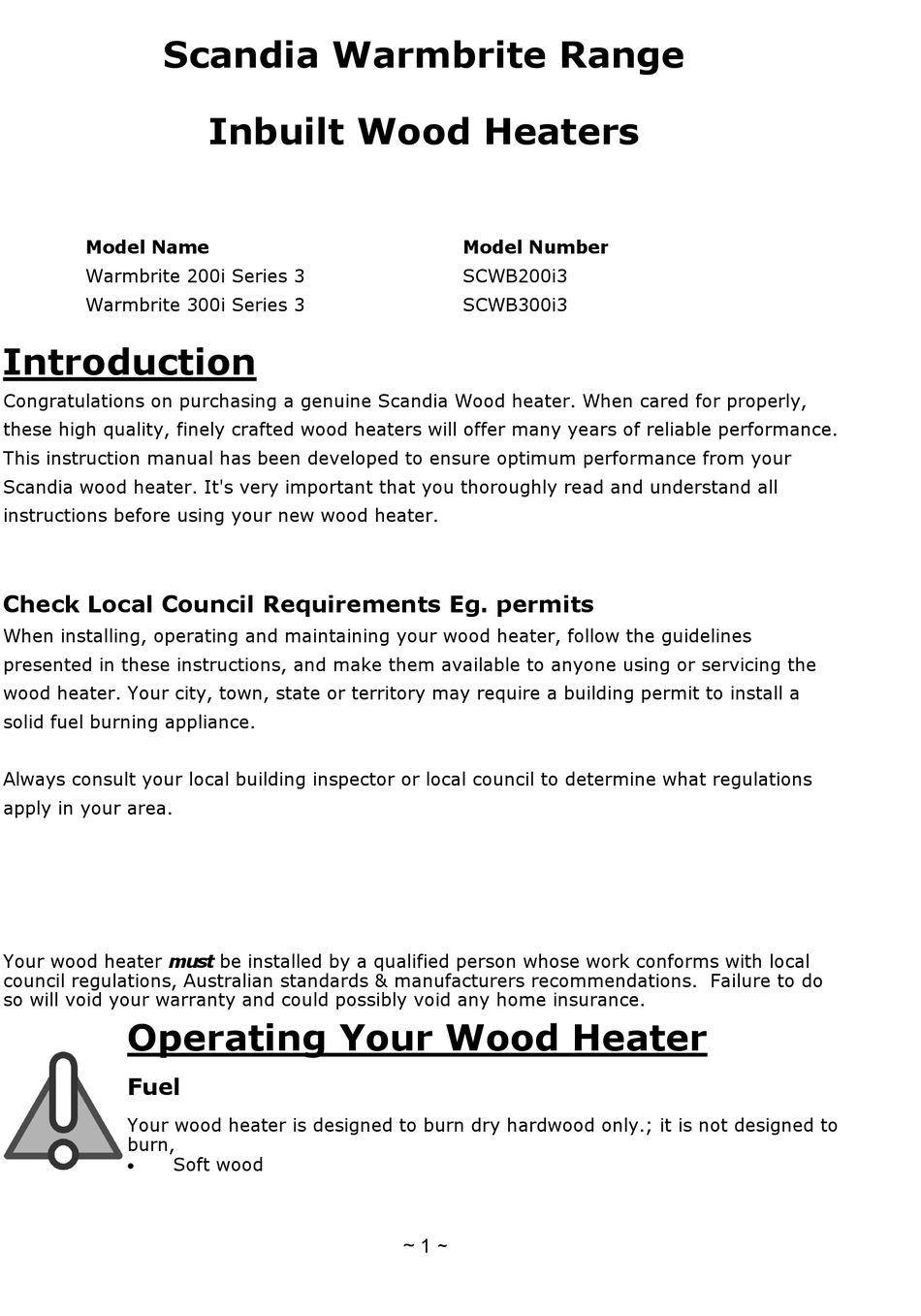

Scandia Warmbrite Range
Model Name
Warmbrite 200i Series 3
Warmbrite 300i Series 3
Introduction
Congratulations on purchasing a genuine Scandia Wood heater. When cared for properly,
these high quality, finely crafted wood heaters will offer many years of reliable performance.
This instruction manual has been developed to ensure optimum performance from your
Scandia wood heater. It's very important that you thoroughly read and understand all
instructions before using your new wood heater.
Check Local Council Requirements Eg. permits
When installing, operating and maintaining your wood heater, follow the guidelines
presented in these instructions, and make them available to anyone using or servicing the
wood heater. Your city, town, state or territory may require a building permit to install a
solid fuel burning appliance.
Always consult your local building inspector or local council to determine what regulations
apply in your area.
Your wood heater must be installed by a qualified person whose work conforms with local
council regulations, Australian standards & manufacturers recommendations. Failure to do
so will void your warranty and could possibly void any home insurance.
Operating Your Wood Heater
Fuel
Your wood heater is designed to burn dry hardwood only.; it is not designed to
burn,
Inbuilt Wood Heaters
Soft wood
Model Number
SCWB200i3
SCWB300i3
~
1 ~
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for scandia Warmbrite 300i Series 3
Summary of Contents for scandia Warmbrite 300i Series 3
- Page 1 This instruction manual has been developed to ensure optimum performance from your Scandia wood heater. It's very important that you thoroughly read and understand all instructions before using your new wood heater.
-
Page 2: Wood Heater Safety
Wood Heater Safety When properly maintained and operated your wood heater should give you many years of service, however there are important safety aspects of these products that you need to be aware of when operating a wood heater. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 3: Unit Dimensions
Unit Dimensions *Please note facia extensions are available to fill in D section. SCWB200i3 SCWB300i3 A – Rear side of facia width 674mm 795mm B – Firebox casing width 575mm 672mm C – Rear of firebox casing to centre of spigot 165mm 168mm D –... -
Page 4: Before Installing Your Wood Heater
Before Installing your wood heater You need to consider the following to ensure the safe operation of your wood heater. Provision of adequate air to support efficient combustion of the fuel. A well sealed flue/chimney system, hereinafter referred to as the “flue system”. The protection of combustible materials in proximity of the wood heater. -
Page 5: Installation
Fireplace Zero clearance box sizes and clearances For more detailed installation instructions please see manual which comes with zero clearance box. Only use zero clearance box specially designed for Scandia Warmbrite heaters. 862mm 692mm 660mm 580mm 914mm PTO for other measurements... - Page 6 310mm 310mm H – Mantle upright maximum thickness 40mm 40mm The following clearances are only applicable when installed with a Scandia Zero Clearance Box I – Internal noggin above case from floor protector 800mm 800mm J – Case to side wall...
- Page 7 Facia Assembly Vent cover plate Draft control spring handle Remove vent cover by slightly loosening screws on each side (shown above with white triangle) then pull forward. Remove firebox door by opening and lifting off hinges. Situate main heater box in position and connect flue. Place facia on heater and fasten screws where the black squares indicate above.
- Page 8 Paper or cardboard, other than small amounts used to light stove. Treated or painted wood Synthetic fuel or logs that are not approved for solid fuel stoves Household rubbish Liquid fuels Plastics Burning these or other products for which the wood heater was not designed may damage the wood heater and cause a fire hazard or release toxic fumes.
-
Page 9: Wood Heater Maintenance
Overnight burning Your wood heater is designed to support overnight burning. Best results are achieved when you establish a good fuel bed in the wood heater and allow it to burn for about 30 minutes before closing the air slide control fully. When you return to your wood heater, fully open the air slide control until you have a good fire and then set to normal operating levels. -
Page 10: Troubleshooting
If the glass does crack when the wood heater is lit, let the fire die out. Do not open the door until the wood heater has fully cooled. Replace the glass with the specified replacement part before re-using the wood heater. Door Adjustments Horizontal adjustment - When looking at the heater and the door appears to be on an angle horizontally the door can be adjusted. - Page 11 Scandia Limited Warranty This limited warranty (Warranty) is given by Scandia Heating (Aust) Pty Ltd (ACN 005 868 093) (Scandia or we) to the original retail purchaser (You) of the w ood heater to which this Warranty applies. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
- Page 12 a defect in material or workmanship appears in the following parts within the corresponding warranty period after the date of the original purchase, such as to make the wood heater unfit for normal home use; and You comply with the requirements below regarding making a claim, ...
- Page 13 (including labour costs). Scandia will only be responsible for transport of the wood heater from the original place of purchase to Scandia’s premises (and back), and replacement or repair in accordance with this Warranty. Contact details...
