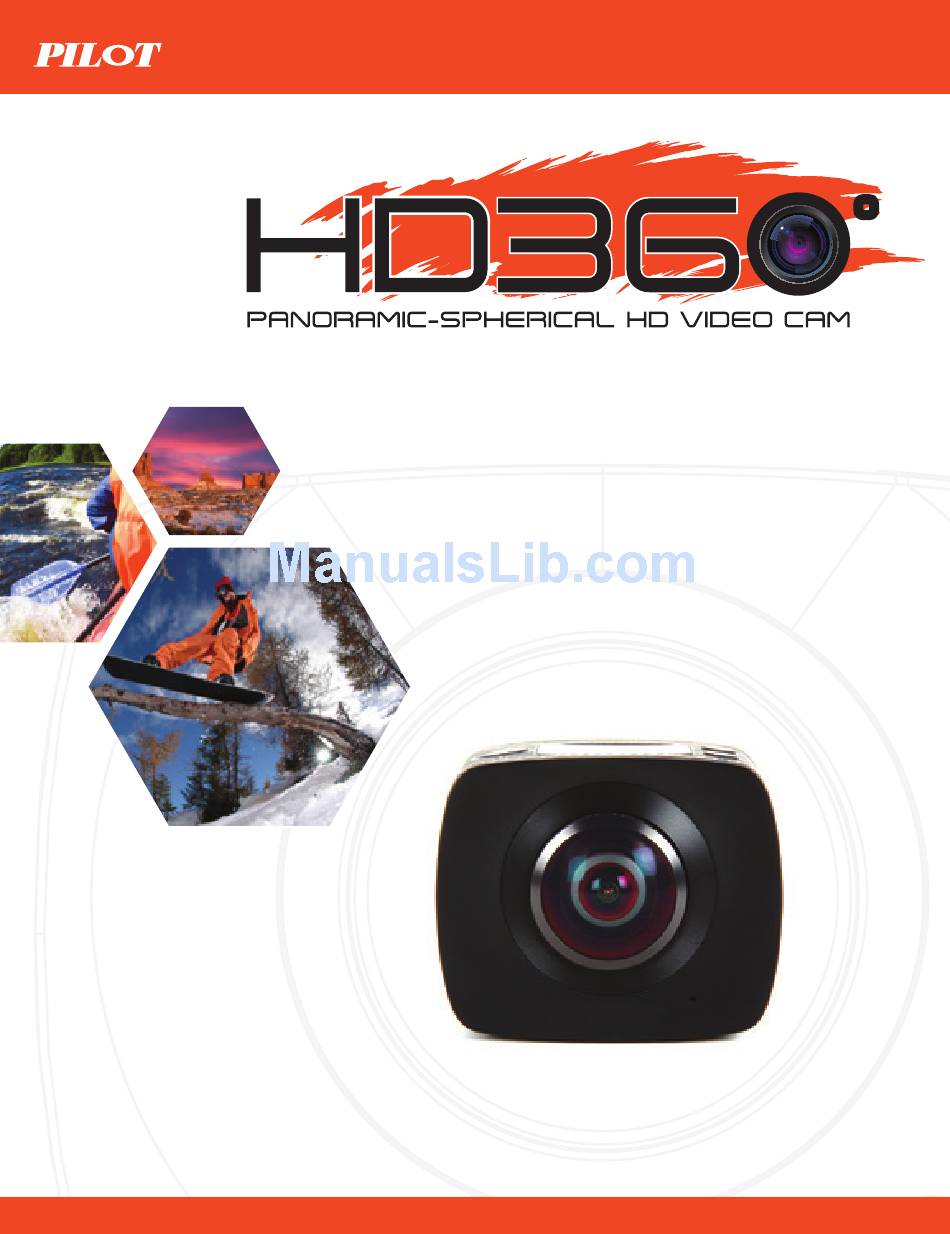

Page 1: User Guide

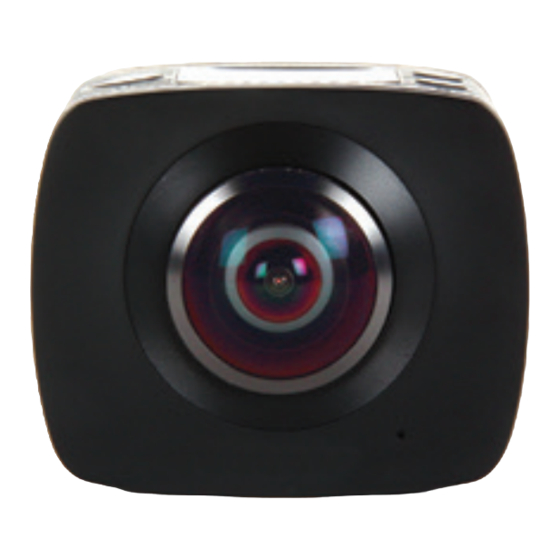

USER GUIDE EXPERIENCE. CAPTURE. SHARE. - Page 2 SEE YOUR ENTIRE WORLD. Overview HD360°Camera is a digital panoramic camera with two lenses. It enables you to capture spherically panoramic video and photographic content, creating an experience of brand new panoramic world. Important Before using this product, please carefully read entire manual.
-
Page 3: About The Camera
About the Camera 1. LCD display 2. Power button/Mode button 3. WIFI indicator (red) 4. Power indicator (red) Charging indicator (blue) 5. Wifi button/MENU button 6. Busy indicator (red) 7. Shutter button/OK button 8. Lens×2 9. Tripod connector 10. Interface cover (USB/TF) 11. - Page 4 SEE YOUR ENTIRE WORLD. Accessories Thank you for purchasing this product! USB Charging Cable Suction Cup Mount Bike / Bar Mount Universal Mount RF Wrist Remote...
-
Page 6: Quick Start Guide
SEE YOUR ENTIRE WORLD. Quick Start Guide 1. Install SD card: Insert the Micro SD card into the slot as indicated, shown at the bottom (Figure 4a). Important: A high-speed Micro SD card between Class 6~Class 10 is required, otherwise, this product may not work properly. Always turn off the camera before inserting or removing the Micro SD card. - Page 7 Quick Start Guide 2. Power-On/Off Power-On: Press and hold Power button for about two seconds and release, until it beeps. The display screen will be lighted, as shown below (Figure 5a), indicating the product is ready to work (the default work mode after Power-On is Shooting mode).
- Page 8 SEE YOUR ENTIRE WORLD. Quick Start Guide Power-Off After shooting stops, press and hold Power button for about 3 seconds and release. The Display will display “GOODBYE” and turns off. If there is no operation on the camera for 3 minutes under Power-Save mode (default), the camera will automatically power off.
- Page 9 Quick Start Guide 4. Recording or shooting This camera has a Recording mode and a Shooting mode. After Power-On, press MODE (Power button) to switch between different modes, and the corresponding mode icon will be displayed on the screen (Figure 7a). Figure 7a Stop recording: During recording, press Shutter button to stop.
-
Page 10: Menu Setting
SEE YOUR ENTIRE WORLD. Quick Start Guide Shooting: In Shooting mode, press Shooting button to take photos. After shooting, the display screen will show the estimated number of photos you can take. 5. Menu setting To operate Menu, press and hold WIFI button for about two seconds to enter menu setting (as shown below;... - Page 11 Quick Start Guide Menu operation: In Menu mode, press WIFI button to move cursor. Press Shutter button to confirm. Press and hold WIFI button to go back to previous menu or exit Menu mode. Explanation of menu functions: Power Save: Set Power-Save mode. You may set the camera to enter Power-Save mode after a certain period of time.
- Page 12 SEE YOUR ENTIRE WORLD. Quick Start Guide 6. How to use accessories properly It is strongly recommended to use the accessories originally provided by the manufacturer. It helps create a better product use experience and better shooting/recording effect. Tripod: Screw the tripod nut attached into the screw hole on the bottom of the camera.
- Page 13 Quick Start Guide 7. Use of wrist remote (included) a. Power button b. Shooting button c. Recording button C. Recording button A. Power button B. Shooting button...
- Page 14 SEE YOUR ENTIRE WORLD. Play panoramic video or picture Note: In order to view videos or images properly, you must use downloadable app or PC software, otherwise your videos or images will not be viewable. 1. Use mobile phone or panel computer to play Follow these steps to play panoramic videos or pictures on mobile phone or tablet.
- Page 15 Play panoramic video or picture Connect mobile phone and camera Turn on camera WIFI: Press camera WIFI button. The display screen will show “WI-FI ON”, and then “CL360CAM_XXXXX”. Enter password is “1234567890”.
- Page 16 SEE YOUR ENTIRE WORLD. Connect mobile phone and camera Enable mobile device WIFI, select “CL360CAM_XXXXX” and connect. Once connected, the camera display screen will show Figure 14a. Figure 14a...
- Page 17 Connect mobile phone and camera Activate APP: Activate “SYVR360” APP on mobile phone or tablet, and click the upper right corner to “Search for Camera” (Figure 15a). Figure 15a...
- Page 18 SEE YOUR ENTIRE WORLD. Connect mobile phone and camera To Download Files: Select camera folder, select the file to be downloaded and click to download (Figure 16a). Figure 16a To Play Videos: Select the file on mobile phone and click to play (Figure 16b). Figure 16b...
- Page 19 Connect mobile phone and camera Important: It is recommended to follow the above steps in order to achieve the proper playback or viewing. Before connection, remember to make sure the SD card is properly inserted into camera. After connection, it will not affect 4G communication function of mobile phone or tablet.
- Page 20 SEE YOUR ENTIRE WORLD. Effect of panoramic playing The following effects are available when viewed on app: Planet mode Plane mode...
- Page 21 Effect of panoramic playing VR mode...
- Page 22 SEE YOUR ENTIRE WORLD. Use PC or notebook to play You may use your PC to acquire a better playing experience, or edit/share videos. It can be completed by following the steps below: Install player: Download and install “SYMAX360 player”. Download videos or images onto a PC: Use the USB data cable to connect the camera to PC.
- Page 23 Use PC or notebook to play Open “My computer” to select “VIDEO” OR “JPG” folder under “Removable Disk”. Select file to be downloaded and download it into location specified on PC.
- Page 24 SEE YOUR ENTIRE WORLD. Use PC or notebook to play Run player: Open downloaded video or image and stored on PC in the player.
- Page 25 Use PC or notebook to play Playback video with player Click on the icon , choose the video which you want to play.
- Page 26 SEE YOUR ENTIRE WORLD. Use PC or notebook to play When playing the video, move the mouse to top right coner, you will see these different modes: Plane / Planet / Invert. Click to see different effects. Edit and share video: Videos and images which are recorded by this device can be edited and shared via YouTube, Facebook and other popular social websites which are 360-video capable.
- Page 27 Use PC or notebook to play Important: On current video websites, the videos uploaded by users have been compressed automatically. This may lead to different video play effects between website and local videos.
- Page 28 SEE YOUR ENTIRE WORLD. Technical Specificatons Image Sensor 4.0M (CMOS)×2 Functional Mode Recording and Shooting Lens F2.0 f=1.1mm Video Resolution 1920 x 960 (30fps) Image Resolution 3008 x 1504 File Format Video H.264 (MOV); Image JPG Storage Medium Micro SD card (up to 32GB) Usb Interface High-speed USB 2.0 interface Power Supply...
- Page 29 Warning The product is equipped with a built-in battery. Keep away from fire, or it may explode. The product may radiate heat due to extended use or exposure to direct sunlight. This is normal. If the camera stops working or fails to respond to any operation during use, use a pin to press and hold Reset button for about three seconds to restart.
- Page 30 SEE YOUR ENTIRE WORLD.
