Page 1: Quick Installation Guide

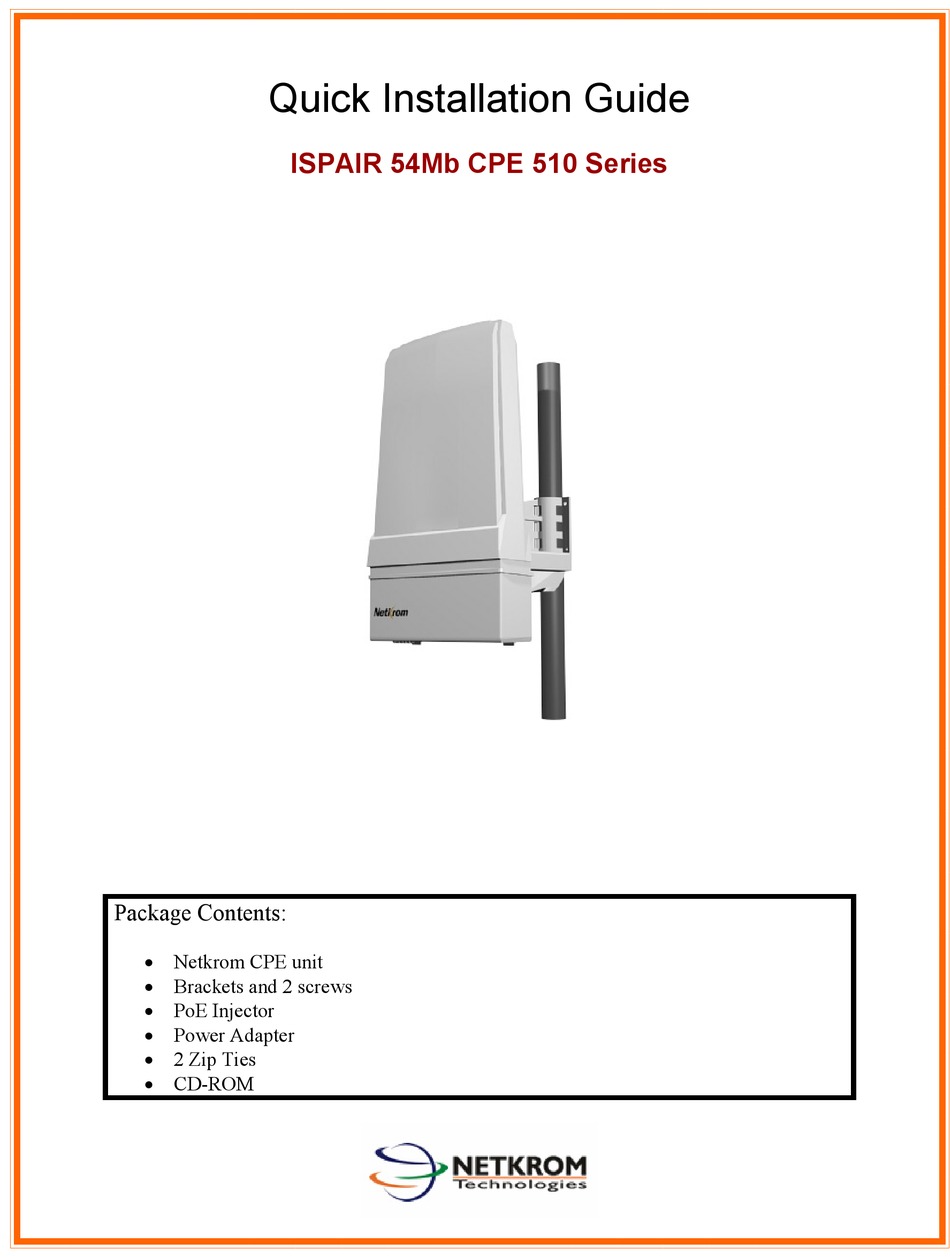

Quick Installation Guide ISPAIR 54Mb CPE 510 Series Package Contents: Netkrom CPE unit Brackets and 2 screws PoE Injector Power Adapter 2 Zip Ties CD-ROM... - Page 2 Warnings Do not work on the system or connect or disconnect cables during periods of lightning activity. NETKROM shall not be liable for incidental or consequential damages resulting from the furnishing, performance, or use of this manual. Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come into contact with such circuits.
-
Page 3: Package Contents
Package contents ISP-CPE510 Take a moment to ensure you have all of the following parts in your Outdoor Waterproof Unit installation kit before you begin installing the product. If any parts are missing, please contact your local vendor or contact us, please see the contact information in Section... -
Page 4: Setup Requirements
Setup Requirements Before starting, please verify that the following is available: CAT5/5e or FTP Outdoor Ethernet cable (from the CPE to PoE Injector) At least one computer is installed with the NNMS and a wired or wireless network interface adapter ... -
Page 5: Ispair Cpe 510 Installation
ISPAIR CPE 510 Installation... - Page 6 Category 5 cable is up to 260 feet or 80 meters. Step 2 Connect the power adapter included in the Netkrom PoE kit to the main electrical supply and the power plug into the socket of the PoE injector. Now, turn on your power supply. Notice that the POWER LED has lighted up.
- Page 7 Mounting ISPAIR CPE 510 on a Wall Netkrom CPE device can be mounted on a wall as shown in following: 1.- Hold the catches upward as shown in the figure. 2.- While still holding the catches, push the cover outwards.
- Page 8 Mounting ISPAIR CPE 510 in a Pole 1.- Hold the catches upward as shown in the figure. 2.- While still holding the catches, push the cover outwards. 3.- Use metal straps to secure the bracket to the pole. Place the straps through the slots in the bracket and then around the pole.
-
Page 9: N E T K R O M N Ms
NETKROM Network Management System (NMS) is a java based graphical user interface application, running on any operating system, providing ability to manage the wireless device remotely over the IP network. Its main purpose is to serve as a network tool for administrating and monitoring the wireless device. The NMS allows the user to setup all important hardware and software parameters of the device according to the user's requirements. - Page 10 Step 4 Please select the folder the NMS application will be installed and press the next button. Step 5 Finally, the installation process has finished Step 6 Now you can run the Netkrom NMS on your system.
- Page 11 Now you need to establish connection between your PC and the ISPAIR CPE 510. You need to use the Netkrom NMS application to configure the radio, by default the ISPAIR CPE 510 has the IP address 192.168.1.3. Therefore, your PC must be in the same network segment as the ISPAIR CPE 510 is to get Ethernet connectivity.
-
Page 12: Getting Started
Find below typical and basic configurations using our units. For advanced features please refer to the user manual. Getting Started In order to start configuring your ISPAIR CPE 510 you need to create a new node: Right click anywhere in the topology map, and then click the Insert new node button. - Page 13 Wireless Bridge Setup By default the ISPAIR CPE 510 is a router, if you want the ISPAIR CPE 510 to work as bridge please read this chapter. As soon as you manage to connect to your ISPAIR CPE 510 you can start configuring it. Check the picture of the NMS user interface.
- Page 14 Now you need to insert the interface into the Bridge interface, select interface eth0 and click in the Insert Interface button. Now you need to select the bridge interface, select br0 and click in the submit button. In the interfaces field you can see the eth0 interface underneath the br0 interface.
-
Page 15: Ap Client Mode
AP Client Mode The ISPAIR CPE 510 is basically used as a Client unit under a Point to Multipoint Application. This type of application is usually used by WISPs (Wireless Internet Service Provider). Configure the Client device to operate in Access Point Client Mode and perform a Site Survey. - Page 16 Connect with the desired Access Point. Select the desired ESSID from the Site Survey Pop- up Menu. Click the Connect button As soon as the devices get connected, the connection status bar informs you about the link quality and the Signal Level . Repeat the Client Mode steps to add more Clients to the Point-to-MultiPoint connection.
-
Page 17: Bridge Mode
Static IP Routing (No Bridge Mode) To configure Static IP Routing, select the Static Routing tab, located under Network tab. In the Static Routing tab you can select the Routes tab or the Rules tab. If you want to add static routes just click on the add symbol as shown. - Page 18 The ISPAIR CPE510 supports a Basic Web Interface. For advanced features please refer to the User Manual using the Netkrom NMS. Getting Started At the Address bar, type http://192.168.1.3 and press Enter. At the login popup window, fill the blanks as...
- Page 19 1. – Configuring AP mode: Please go to page 51 of User Manual. 2. – Configuring VLANs: Please go to page 40 of User Manual. 3. - Advanced Routing Configuration: Please go to page 43 of User Manual. 4. - Advanced Wireless Configuration: Please go to page 49 of User Manual.
-
Page 20: Contact Information
