Summary of Contents for Simmons DA350

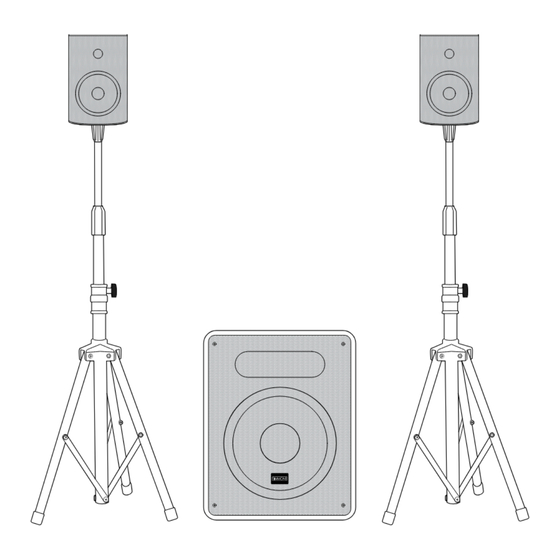

- Page 1 DA350 Electronic Drum Monitor System own er’ s m an ual www.simmonsdrums.net www.SimmonsDrums.net...
-
Page 2: Safety Instructions
Please keep this instruction manual for future reference and for the duration 14. Refer all servicing to qualified service personnel. Servicing is required of owning the DA350 Electronic Drum Monitor System. Please carefully when the apparatus has been damaged in any way, such as power- read and understand the instructions inside this owner’s manual before... -
Page 3: Table Of Contents
www.simmonsdrums.net safety instructions To prevent electric shock, do not use a polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. RISK OF RISQUE DE CHOC ELECTRIC SHOCK ELECTRIQUE NE RISK OF RISQUE DE CHOC DO NOT OPEN... -
Page 4: Features
DA350 Electronic Drum Monitor System OWNER’S MANUAL Congratulations! …on your purchase of a Simmons DA350 Electronic Drum Monitor System. By following these guidelines and suggestions, your new Simmons amplifier will provide you with many years of great sound and reliable service. FEATURES •... -
Page 5: Drum Monitor System Maintenance
• Turn the power switch off when the DA350 is not in use. • The AC cable should be unplugged from the AC outlet if the DA350 will not be used for an extended period. • Avoid plugging the AC adapter into an AC outlet that is also powering high- consumption appliances such as electric heaters or televisions. -
Page 6: System Configurations
DA350 Electronic Drum Monitor System OWNER’S MANUAL System Configurations The DA350 Electronic Drum Monitor System can be set up for optimal sound in any studio, stage or practice room. 2.1 STEREO SETUP Place the subwoofer/amp module in the center of your setup, just in front of your kick drum. -
Page 7: What's In The Boxes
www.simmonsdrums.net What’s in the boxes Box #1 The main sub speaker/amp/mixer Speaker mounts and satellite speakers Speaker cables AC cable Box #2 Carrying case (for the stands and mounts) Speaker stands... -
Page 8: Setting Up The System
DA350 Electronic Drum Monitor System OWNER’S MANUAL Setting up the System You will need to place the flat sections with the pole receptacle onto the top of the speaker pole. 2. Extend the speaker stand legs and place each stand on either side of your electronic drum set. -
Page 9: Panel Controls
This allows you to adjust the stereo balance of the speaker system. Power LED The Power LED is green to indicate that the DA350’s power cable is connected to an electrical outlet, and the Power Switch is turned on. EQ Controls The LOW EQ will provide +/- 15dB of boost or cut below 100Hz. - Page 10 If it’s not listed, push and release the PAIR/play/pause button on your DA350. • Once you do see “Simmons DA350” on the list, select it, and your source device and your DA350 will pair, while the DA350 plays a chime and lights the Bluetooth LED blue.
- Page 11 Use to switch to different voltages. Normally set at the factory at 100-120 voltage. Fuse Holder Disconnect the DA350 from mains before replacing fuse. Only use fuse of the same rating and power. The correct fuse is specified on the rear panel.
-
Page 12: Troubleshooting
DA350 Electronic Drum Monitor System OWNER’S MANUAL Troubleshooting 1. Mixer and Amplifier Will Not Turn On. Is the included power cord correctly connected to a power outlet? 2. Amplifier Turns Off Suddenly. Is the vent on the top panel of the mixer blocked? Since inadequate venting will cause the mixer to overheat, turn off the mixer and uncover the vents to allow the mixer &... -
Page 13: Block Diagram
www.simmonsdrums.net Block Diagram LEFT MAIN BUS LEFT MAIN RIGHT MAIN BUS RIGHT MAIN LEFT Monitor LEFT Monitor RIGHT Monitor RIGHT Monitor... -
Page 14: Specifications
DA350 Electronic Drum Monitor System OWNER’S MANUAL Specifications Inputs 2 stereo pairs - 1/4” TRS (ch 1 & 2), 1/8” TRS, 2-RCA inputs (ch 3), Bluetooth Outputs Monitor - Out 2 1/4” TRS line outputs - 2 1/4” speaker outputs (powered) -
Page 15: Warranty
Simmons products. This guarantee gives you specific legal rights. You may have other legal rights which vary from state to state. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. - Page 16 DA350 Electronic Drum Monitor System OWNER’S MANUAL Simmons P.O. Box 5111 Thousand Oaks, CA 91359-5111 All trademarks and registered trademarks mentioned herein are recognized as the property of their respective holders. 1610-16117902...
