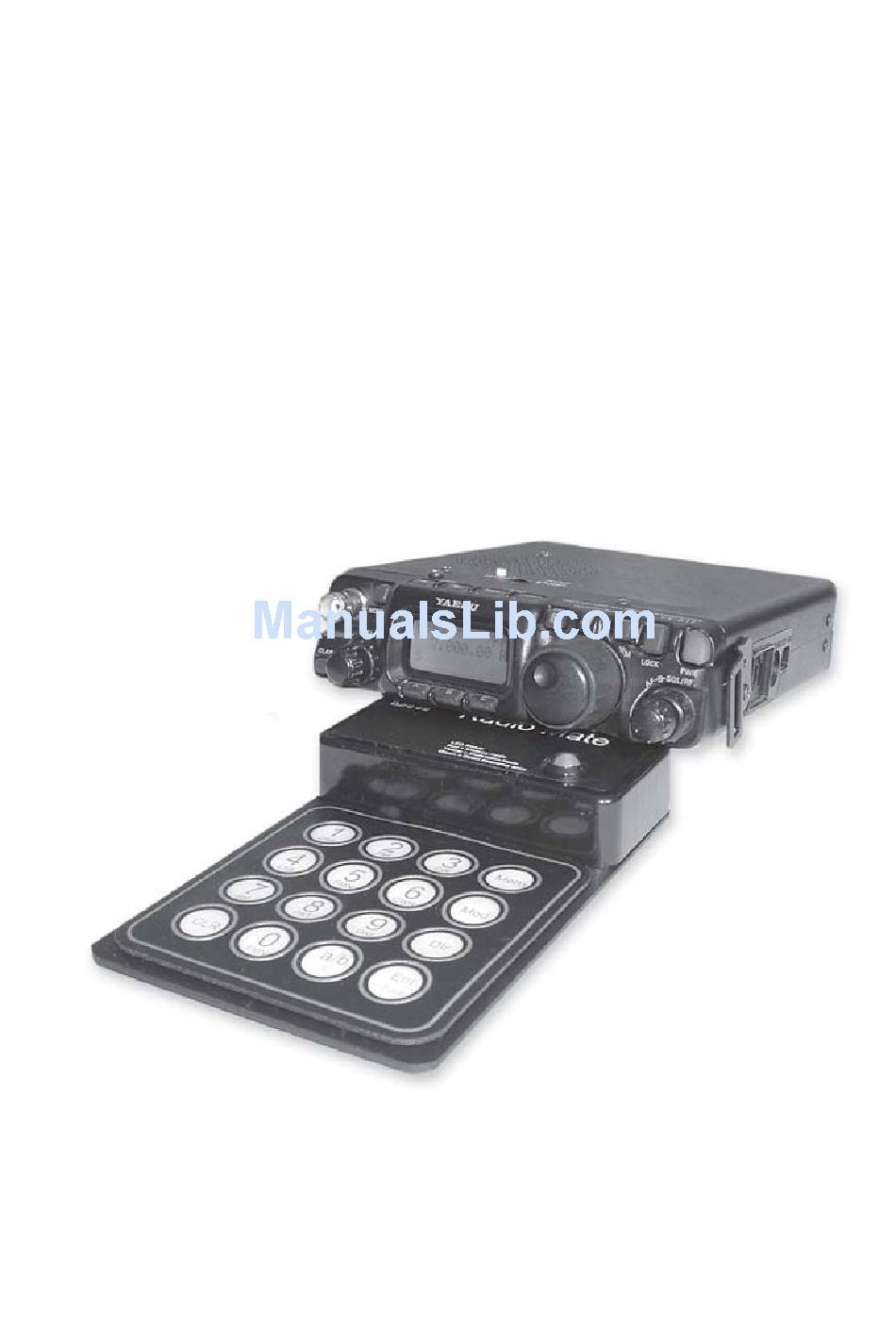

BHI radio mate Operating Instructions Manual

Compact keypad for yaesu ft-817, ft-857 and ft-897
Hide thumbs Also See for radio mate:

Advertisement

Quick Links

bhi
bhi
bhi
bhi
bhi
Yaesu FT-817, FT-857 and FT-897
Radio Mate Operating Instructions.
Radio Mate
Compact Keypad for
Operating Instructions
1090-107D
Issue C
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the radio mate and is the answer not in the manual?

Questions and answers

Related Manuals for BHI radio mate

Summary of Contents for BHI radio mate

  • Page 1 Radio Mate Compact Keypad for Yaesu FT-817, FT-857 and FT-897 Operating Instructions 1090-107D Issue C Page 1 Radio Mate Operating Instructions.
  • Page 2 Furthermore, bhi Ltd. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of bhi Ltd.

  • Page 3: Table Of Contents

    Table of contents Setup Memory function Modulation Direct frequency entry Tune Other bhi products Appendix A Blank frequency tables Page 3 Radio Mate Operating Instructions.

  • Page 4: Setup

    Plug Radio mate into cat socket (being very careful not to bend the pins) Turn on the radio. Turn on the Radio Mate. The LED on the Radio Mate will glow red and a beep should be heard approx 3 seconds after power up.

  • Page 5: Memory Function

    10 memories, one beep indicating bank 1, and 2 beeps for bank 2. Note: The Radio Mate is pre-programmed with the 20 useful frequencies. There are blank forms on page 10 to record your own frequencies.

  • Page 6: Modulation

    The operating frequency can be entered directly using the numeric keypad. To enter the direct frequency input mode - press Dir, the LED will illuminate GREEN. To illustrate the use of the mode is illustrated by the examples on the following pages. Page 6 Radio Mate Operating Instructions.
  • Page 7 14 Ent new reading 14.010 To change from 14.010 to 3.500 you need to remove the 10 from the 14 this is done by using a leading zero enter 03.500 new reading 3.500 Page 7 Radio Mate Operating Instructions.

  • Page 8: Vfo

    VFO A=B long press of the . key Split VFO mode by pressing the Clr key. 6. Tune function. Pressing and holding the Ent key puts the Radio Mate into the tune mode. When in this mode, all the current modes of operation are read from the radio and stored in the keypad.
  • Page 9 All the DSP functions are con- trolled by a single button. The unit is ompact and can be mounted out of the way. Supplied with hook and loop fastener, fused power cable and audio lead. Page 9 Radio Mate Operating Instructions.
  • Page 10 NEDSP1061- KBD Fit the bhi DSP noise cancellation in your Transceiver. Features 4 filter levels with visual and audio indication Single button operation labels and mounting hardware Generic module to fit most transceivers/receivers. Specific instructions cover installation into the following:...
  • Page 11 FT817 cables. 6 pin Mini DIN - Data cable Order code: 6pin 8 pin Mini DIN - Accessory cable Order code: 8pin Cigar lighter power lead Order code: FT817VEPL Fused power lead Order code: FT817FPL Page 11 Radio Mate Operating Instructions.
  • Page 12 1042 Switch Box Allows connection of up to 6 pieces of equipment to one bhi noise elimination speaker or any other extension speaker. (Includes 2 free ALD001 3.5mm audio leads) Audio Adapters and Accessories. Power adapters: 1030-UKPA 12V DC UK power adapter...
  • Page 13 CD player Club badge • without all the jet Restaurants • engine noise. Also Receptions • supplied with carry Gifts • bag. Stag and Hen nights • • etc... • What will yours say? Page 13 Radio Mate Operating Instructions.

  • Page 14: Appendix A Blank Frequency Tables

    Appendix A - Blank frequency tables Page 14 Radio Mate Operating Instructions.
  • Page 15 Page 15 Radio Mate Operating Instructions.
  • Page 16 Radio Mate Contact information: bhi Ltd P.O. Box 136 Bexhill on Sea East Sussex TN39 3WD tel: +44 (0) 870 240 72 58 fax: +44 (0) 870 240 72 59 sales@bhi-ltd.co.uk www.bhi-ltd.co.uk Page 16 Radio Mate Operating Instructions.
