Summary of Contents for Wacker Neuson WL 750

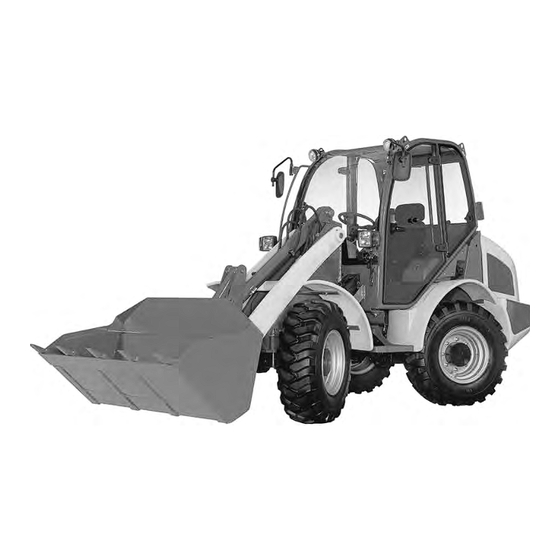

- Page 1 1000184973 US 0909 Wheel loaders WL 750 WL 850 OPERATOR'S MANUAL www.wackerneuson.com...
- Page 2 This ensures operational safety and readi- ness of your machine, and maintains its value. Your Wacker Neuson dealer will be pleased to answer any further questions regarding the machine or the Operator's Manual. Abbreviations/symbols This symbol requires you to perform the activity described Subdivision within lists or an activity.
-
Page 3: Machine Overview
Introduction Machine overview Fig. 1: Machine outside views Description Description Pos. Pos. Service flap (fuses, relays, recirculated air filter) Door handle Rearview mirror Headlight with turn indicator Handle Access Working lights Wheel chock Eye hook for removing the cab only Loader unit (may not be used for crane-lifting the machine.) Tilt cylinder... - Page 4 Introduction Models and trade names: overview Wheel loader model Trade name 346-03 WL 750 346-04 WL 850 Brief description of the wheel loader The wheel loader is a self-propelled work machine according to German traffic regulations. Get informed on and follow the legal regulations of your country.
-
Page 5: Hydrostatic Drive
Introduction Hydrostatic drive The diesel engine permanently drives a hydraulic pump (variable displacement pump), whose oil flow is sent to a hydraulic motor flanged on the gearbox. The force of the hydrau- lic motor is transmitted to the rear axle via the transfer gearbox. At the same time, the front axle is driven by the cardan shaft, ensuring permanent 4 wheel drive. - Page 6 Wheel Part no. Dimensions attachment loader (model) 1000102344 1750 mm (68.89”) with teeth WL 750 1000102345 1750 mm (68.89”) without teeth Loosening, picking up, transporting and 1000160648 1750 mm (68.89”) without teeth Standard bucket – loading loose or solid material (material density ≤...
- Page 7 Only in connection with restrictor unit order no. 1000114139 Only in connection with load diagrams for model WL 750 (order no. 1000138363) and for model WL 850 (order no. 1000143064) Get informed on the legal regulations of your country which may require specific permits, certifications, registrations etc. for use on public roads!
-
Page 8: Ec Declaration Of Conformity
Introduction EC declaration of conformity, model 346-03 (WL 750) EC Declaration of Conformity Manufacturer Kramer-Werke GmbH Wacker-Neuson-Str. 1 D-88630 Pfullendorf Product Product Wheel Loader Model Version 346-03 Serial number 346 03 _ _ _ _ _ Output kW Measured sound power level dB(A) 99.8... - Page 9 Introduction EC declaration of conformity, model 346-04 (WL 850) EC Declaration of Conformity Manufacturer Kramer-Werke GmbH Wacker-Neuson-Str. 1 D-88630 Pfullendorf Product Product Wheel Loader Model Version 346-04 Serial number 346 04 _ _ _ _ _ Output kW Measured sound power level dB(A) 99.8 Guaranteed sound power level dB(A) Conformity assessment procedure...
-
Page 10: Type Labels And Component Numbers
Introduction Type labels and component numbers Serial number The serial number is stamped on the machine frame A (next to the cab attachment, on the right in traveling direction). It is also located on the type label B (fig. 2). The type label B is located on the machine frame, at the front right in traveling direction (on one side of the loader unit bulkhead, fig. - Page 11 Introduction Hydraulic pump serial number The type label (arrow) is located on the hydraulic pump housing (next to where the pump is installed on the diesel engine) Fig. 5: Hydraulic pump serial number Hydraulic motor serial number The type label (arrow) is located on the hydraulic motor, on the right in traveling direction. Fig.
- Page 12 Introduction Labels overview 346-01 N = 1400kg N = 1900kg 1000149082 1-11 BA 34603_04 US – Edition 2.1 * 34603_04b110.fm...
-
Page 13: Signs And Symbols
Introduction 1.10 Signs and symbols Labels on the outside of the machine Label: cab eye hooks The eye hooks on the cab are for removing the cab only and may not be used for crane handling the machine – see chapter 3 “Crane handling the machine”... - Page 14 Introduction Labels inside the cab Description (example) ... when using pallet forks with fork arms: The framed numbers indicate the maximum authorized load on the fork arms for industrial and off-road applications respectively. The maximum load varies according to the distance from the load center.
- Page 15 Introduction Description Brake fluid label. Use only LHM brake fluids. – see chapter 5 “Maintenance of the brake system” on page 5-21 – see chapter 5 “Fluids and lubricants” on page 5-37 Location Fig. 17: Brake fluid label On the brake-fluid reservoir Description Caution! Read and understand the Operator's Manual before starting, operating, adjusting, main-...
- Page 16 Fig. 22: Safety alert: safety distance to persons Description Load diagram for load hook (option) 346-01 Example: Maximum load for model WL 750 • A Extended loader unit and curled quickhitch Max N => 1900 kg (4188.71 lb) • B Extended loader unit and quickhitch...
- Page 17 Introduction Description Burn hazard! Do not touch. Location: In the engine compartment on the right on the sheet-metal separation of the radiator, next to the muffler. Fig. 26: Label: hot surface Description Filler opening for hydraulic oil. Location: In the engine compartment on the left next to the engine cover attachment Fig.
