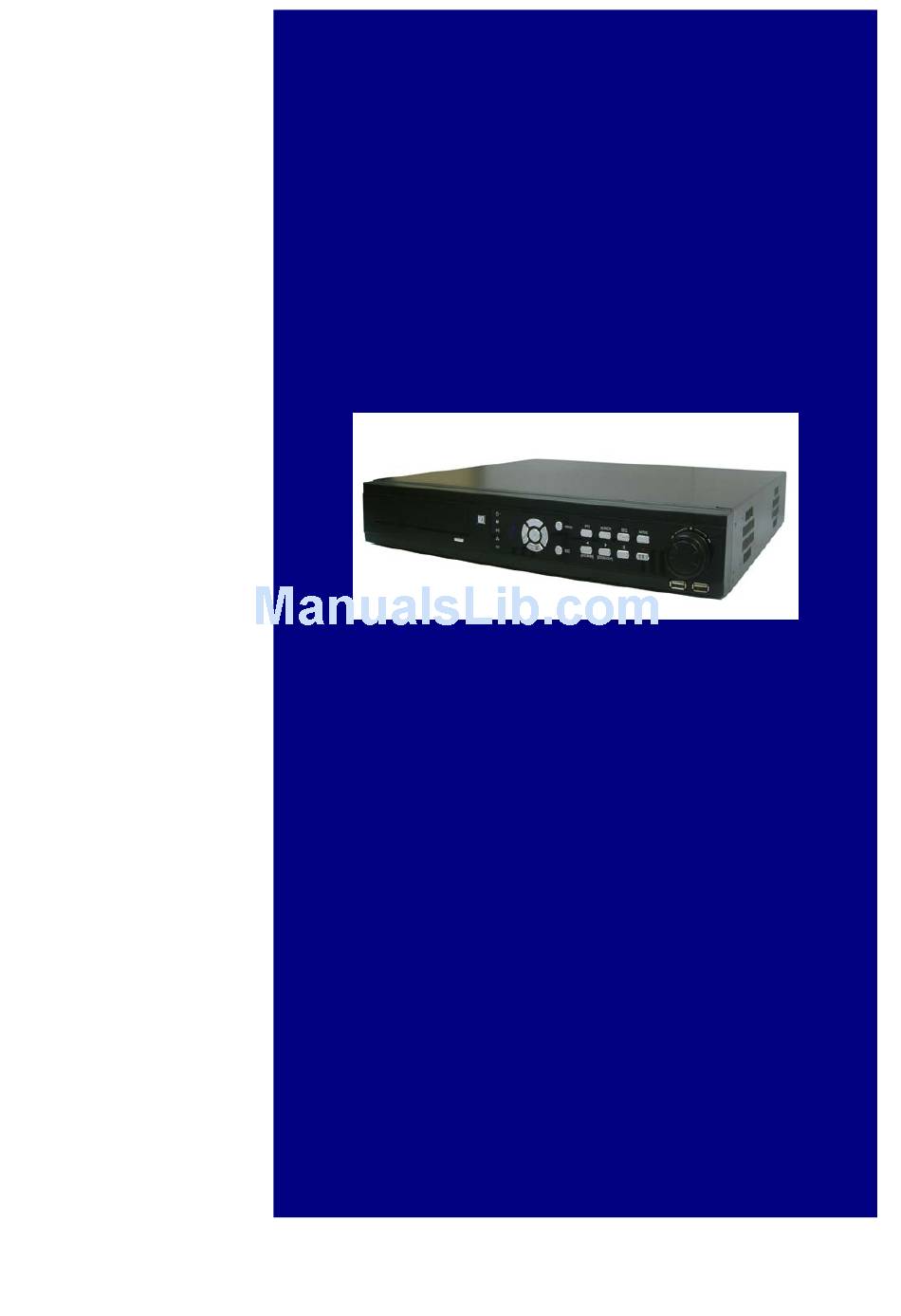

Accel T series User Manual

Live/search/backup
Hide thumbs Also See for T series:
Table of Contents

Advertisement

Quick Links

Download this manual
L
i
v
e
/
S
L
i
v
e
/
S
U
S
E
U
S
E
T
T
D
i
g
i
t
a
l
V
D
i
g
i
t
a
l
V
e
a
r
c
h
/
e
a
r
c
h
/
R
M
A
N
U
R
M
A
N
S
e
r
i
e
s
S
e
r
i
e
s
i
d
e
o
R
i
d
e
o
R
B
a
c
k
u
p
B
a
c
k
u
p
A
L
U
A
L
e
c
o
r
d
e
r
e
c
o
r
d
e
r

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T series and is the answer not in the manual?

Questions and answers

Related Manuals for Accel T series

Summary of Contents for Accel T series

  • Page 2: Table Of Contents

    T Series About This Manual ........................4 Front Panel..........................5 Remote Control ........................11 Mouse ............................12 Live Surveillance ........................13 Surveillance Screen ..........................13 Main Menu............................. 16 Screen Operations ..........................17 Digital PTZ............................. 18 Freeze ..............................19 Dynamic PTZ............................20 Video Search (and Replay) ......................22 Search Options............................
  • Page 3 T Series Backup Process ............................ 38 Replaying Backed Up Video ......................... 40 Replaying with MS Media Player ...................... 40 Replaying with Simple Video Viewer ....................41 Replaying with Remote Client Program.................... 43 UserManual_Version 200807...

  • Page 4: About This Manual

    T Series About This Manual This manual describes system from system usage perspective. Descriptions include • Front panel buttons • Remote controller buttons • Mouse buttons • Live surveillance - screen components, functions and features for live monitoring • Search – screen components, functions and features for searching and replaying recorded data.

  • Page 5: Front Panel

    T Series Front Panel Power Button Turn on the system CD-R/W or DVD-R/W Backup media device USB2.0 Ports - Mouse connection - Backup USB stick/Drive UserManual_Version 200807...
  • Page 6 T Series LED Light Group Power Red - Stand-by Red Flickering – Booting Green - Operation ON – operational OFF – not recognized Alarm ON or BLINKING – one or more sensors are active Network Connection ON – connected OFF – not connected to network Recording ON –...
  • Page 7 T Series Selection or Enter Enter In live multiple division display mode: selects one channel. Center button In setup menu: used to select an menu item. In data entry mode: finishes data entry MENU button MENU Enter to Menu Mode In live display mode: enters into system setup display.
  • Page 8 T Series displayed in groups (e.g. images of first 9 cameras are displayed and followed by next 7 camera images. Then followed by first 9, alternating.). MODE button MODE Changes screen display division Following screen divisions are possible. Single 4 division...
  • Page 9 T Series ◄ Play backward / Zoom In Button ◄ / Zoom In Replay mode: Backward x1 times replay speed PTZ Mode: Used for the screen Zoom in ► Play forward / Zoom Out Button ► / Zoom Out Replay mode: Forward x1 times replay speed...
  • Page 10 T Series Infra-Red (IR) Receiver IR (Infra Red) remote controller receiver Remote control must be pointing at this receiver to work properly. UserManual_Version 200807...

  • Page 11: Remote Control

    T Series Remote Control Power button Input Controller ID Controller ID Set Controller ID Setting Select function Left Down Right Zoom In Back MENU Zoom Out Run Sequence Pause Play forward Search Screen Mode Record Play backward Play fast forward...

  • Page 12: Mouse

    T Series Mouse UserManual_Version 200807...

  • Page 13: Live Surveillance

    T Series Live Surveillance Surveillance Screen When DVR system starts, real-time video surveillance screen is shown after logo screen. Basic surveillance screen Surveillance camera name: Camera name ( ) can be changed at Main Menu Device Camera Camera Title Recording status : Red dot ( ) shows continuously when recording status is continuous mode.
  • Page 14 T Series Recording Speed: Frames per Second ( ) or number of images per second This display can be enabled or disabled at: Main Menu Device Display Dynamic PTZ: The PTZ icon ( ) appears when a camera is defined as a PTZ camera.
  • Page 15 T Series System temperature status: (Blue) : The system temperature is within specified range. (Red) : The system temperature is higher than specified range. Range can be set up at: Main Menu Device Alarm System Temperature Indicator HDD storage space utilization status: (Blue): sufficient recording space.

  • Page 16: Main Menu

    T Series Main Menu Main Menu Activation Main menu is shown at the left bottom of the screen when pressing the right button of the mouse. Not all user have access to all menu items. For users, access to menu item are granted by administrative user.

  • Page 17: Screen Operations

    T Series Screen Operations 1. Full screen display To view one camera images using full screen. Using Mouse Using Remote Using Keypad Double click left button on the screen Use cursor key move to the division displaying the division of camera, which will be viewed camera images.

  • Page 18: Digital Ptz

    T Series Digital PTZ Digital PTZ is a PTZ emulation function. On activation of digital PTZ, image is enlarged digitally (2X) so the image details can be seen. Due to enlargement, whole image cannot be fit in the (physical) display screen.

  • Page 19: Freeze

    T Series Freeze Freeze function “pauses” live video. This feature is useful when you want to stop the live motion to examine video image. This function pauses live display only. Recording and other process continues in background. To “Freeze” live image Select a camera Select “Freeze”...

  • Page 20: Dynamic Ptz

    T Series Dynamic PTZ Dynamic PTZ functions are used to control the pan, tilt and zoom functions of the PTZ cameras. To activate “Dynamic PTZ” Select a PTZ camera. A camera must be a PTZ camera and must be registered as a PTZ camera.
  • Page 21 T Series Press the right button – the PTZ camera will ZOOM OUT. FOCUS [+] Move mouse to center (lower) left of the screen – Focus[+] will appear Press left button – the PTZ camera will FOCUS NEAR [+] FOCUS [-] Move mouse to center (lower) right of the screen –...

  • Page 22: Video Search (And Replay)

    T Series Video Search (and Replay) Search refers to finding recorded video of interest and replaying it. There are three ways to locate the recorded video: 1. using date and time – referred to as Calendar Search 2. using motions –...

  • Page 23: Search Options

    T Series Search Options Search menu is displayed when “Search” is selected from the Main menu. Select “Calendar Search”, “Motion Search”, or “Event Search” to enter appropriate search feature. Search mode can be accessed directly by double clicking motion icon ( ) in the live screen if record setup is schedule and motion or motion + sensor are setup for the recording mode.

  • Page 24: Calendar Search

    T Series Calendar Search When “Calendar Search” is selected, the following screen appears. Select date ◀, ▶ buttons to select a month Gray: indicates that the date has no recorded data Red: indicates the selected date. Blue: indicates that the date has recorded data.
  • Page 25 T Series Click on a Green Bar to select minute. Selected date and time is displayed. Select button to start Calendar Search. Note on “Daylight Savings Time” With daylight savings time on, time bar ( ) will show the following.

  • Page 26: Motion Search

    T Series Motion Search When “Motion Search” is selected, the following screen appears. Select date ◀, ▶ buttons to select a month Gray: indicates that the date has no recorded data Red: indicates the selected date. Blue: indicates that the date has recorded data.
  • Page 27 T Series Selected minute is indicated by a box. Yellow bars indicates recorded data. Click on a Yellow Bar to select minute. Selected date and time is displayed. Select button to start Motion Search. Select “Statistics” to see the number of motions detected for each camera.

  • Page 28: Event Search

    T Series Event Search When “Event Search” is selected, the following screen appears. Select date ◀, ▶ buttons to select a month Gray: indicates that the date has no recorded data Red: indicates the selected date. Blue: indicates that the date has recorded data.
  • Page 29 T Series Red bars indicates recorded data. Click on a Red Bar to select minute. Selected date and time is displayed. Select button to start Event Search. Select “Statistics” to see the number of event occurred for each camera. The...

  • Page 30: Search Screen

    T Series Search Screen When “OK” is selected with a search option, the search screen appears. Date and time of recorded video. Replay speed display: “+” indicates forward “-“ indicates backward To control the speed: Click on a play button( Play buttons are used to play video forward or backward at a varying speed.

  • Page 31: Selecting Camera

    T Series On the front panel On the remote control Current system date and time. Selecting camera To select one camera and view using full screen 1. Using the mouse Double click on a screen division. 2. Using the font pannel...

  • Page 32: Selecting Speed

    T Series Use cursor button to move the screen division selection (selected screen is highlighted in red) Double click the select (“enter”) button Selecting Speed 1. Using the mouse Backward, fast ( first click = 4X, second click = 16X, … )

  • Page 33: Search Menu

    T Series Search Menu Search menu is appeared when selecting the right button of the mouse in the search screen. Move to search main screen Close search mode and go to live view mode Go to Backup mode Bring selected camera to full screen display mode and...

  • Page 34: System Log Search

    T Series System Log Search Event is logged when A sensor or relay is triggered Video loss occurred System event has occurred These information may be useful in trouble shooting problems. The maximum number of logs kept in the system is 20,000 entries. If and when the maximum number is reached, the oldest log entry is over-written.

  • Page 35: Sensor Log

    T Series Sensor Log Each time sensor is turned on or off, the date, time and sensor number is recorded, as shown below. User can navigate through the list using up ( ) and down ( ) cursor. Camera (Video) Loss Log...

  • Page 36: System Log

    T Series System Log System events such as, a user entering setup mode, or system is turned on or off, the date, time, user and event type are recorded, as shown below: UserManual_Version 200807...

  • Page 37: Backup

    T Series Backup “Backup” refers to copying of recorded data to removable media (e.g. CD/DVD or USB Stick). Data can be backed up in VDB or AVI format. “Backed up” AVI data can be replayed using video playing software, such as MS Windows Media Player.. VDB formatted data can be replayed using remote client software or “Simple Video Viewer”, which is automatically copy to backup media.

  • Page 38: Backup Process

    T Series Backup Process Backup Screen Select camera for backup Select starting and end date and time. Select “From” to set start date and time Select “To” to set end date and time Select date Month selection: using arrow button(◀, ▶)
  • Page 39 T Series Upper timeline shows the hours of a day Click on hour time and selection will be highlighted with yellow box Lower timeline shows minutes within selected hour. Click on minute and selected minutes will be highlighted in yellow bar.

  • Page 40: Replaying Backed Up Video

    T Series Replaying Backed Up Video Replaying with MS Media Player If video is backed up data is stored in avi format, the backed up data will have *.avi file extension. By opening the file on a PC, Media Player will start.

  • Page 41: Replaying With Simple Video Viewer

    T Series Replaying with Simple Video Viewer When data is backed up in “VDB” format, a simple video viewer is included. To view backed up video using the simple video viewer, Start the “SimpleViewer.exe” Follow the following steps. Version 200806...
  • Page 42 T Series Simple Video Viewer Open file – activate browser window. This step is executed automatically on program start. Select directory containing the backed up files. • Data directory is directory above the “Simple Viewer” folder. • When data is available “FolderHeaderFile.FOH” will appear.

  • Page 43: Replaying With Remote Client Program

    T Series Replaying with Remote Client Program To replay using remote client program, Insert backed up media in PC start the remote client Remote Client Screen Select search tab. This will activate time bar tab to left. Select directory icon, This will start windows explorer.
  • Page 44 T Series Select “Folder Search” Select “…” to start a browser Select backup device with backup file Select “OK” Version 200806...
  • Page 45 T Series Select “FolderHeaderFile.FOH” Select “OK” Press the play button ( ) to replay the video. Version 200806...
