iBall NIRANTAR 1006B User Manual

1kva - 3kva online ups
Hide thumbs
Table of Contents

Advertisement

Quick Links

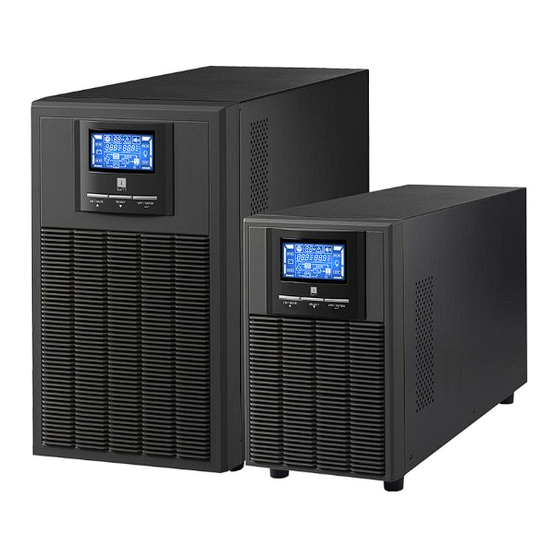

1KVA - 3KVA Online UPS
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NIRANTAR 1006B and is the answer not in the manual?

Questions and answers

Related Manuals for iBall NIRANTAR 1006B

Summary of Contents for iBall NIRANTAR 1006B

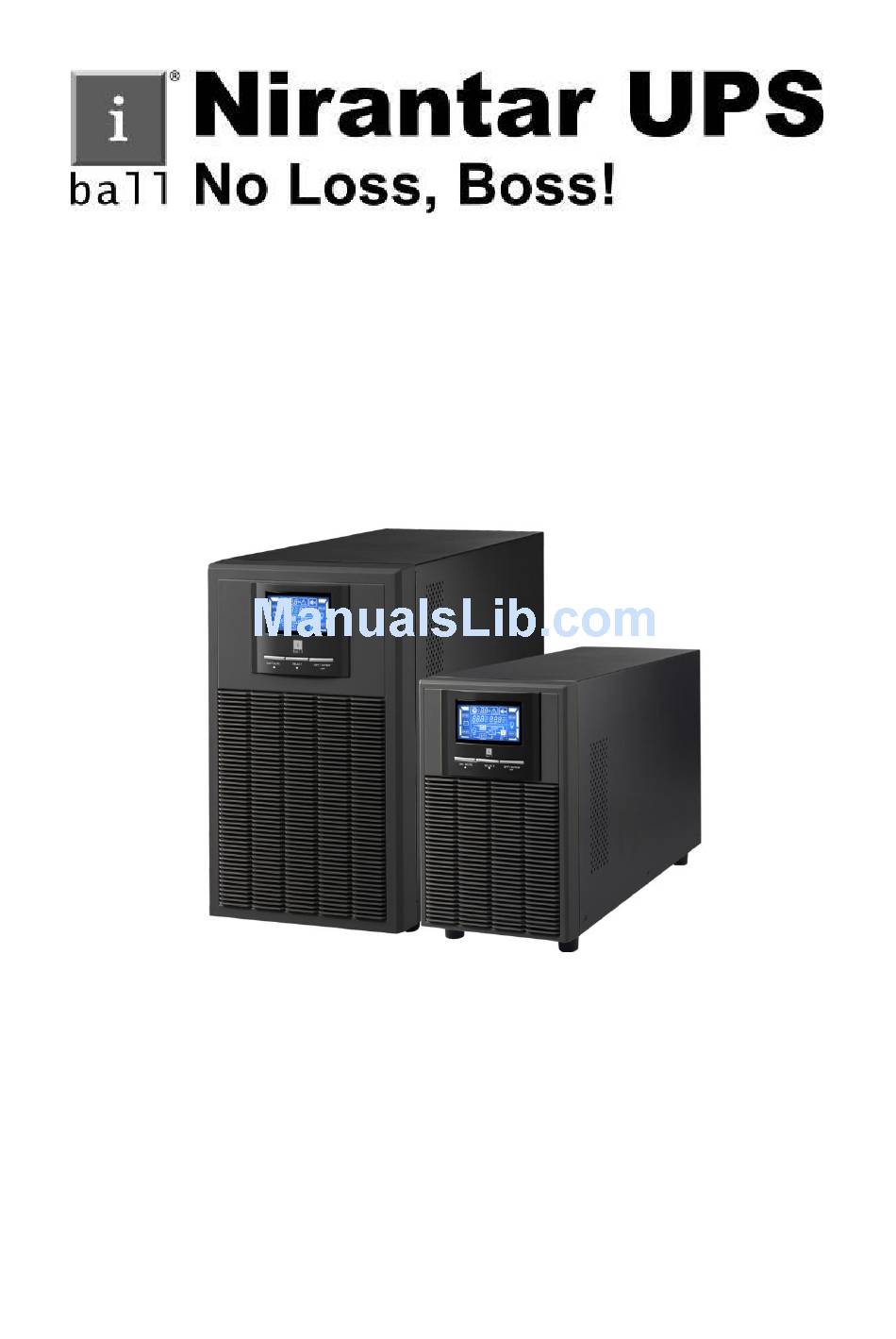

  • Page 1 1KVA - 3KVA Online UPS User Manual...

  • Page 2: Table Of Contents

    Table of Contents 1. Important Safety Warning ....................... 1 1-1. Transportation ......................... 1 1-2. Preparation ........................1 1-3. Installation ........................1 1-4. Operation ........................1 1-5. Maintenance, service and faults ..................2 2. Installation and Setup ......................3 2-1. Rear panel view ......................3 2-2.

  • Page 3: Important Safety Warning

    1. Important Safety Warning Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully 1-1.

  • Page 4: Maintenance, Service And Faults

    1-5. Maintenance, service and faults  The UPS system operates with hazardous voltages. Repairs may be carried out only by qualified maintenance personnel.  Caution - risk of electric shock. Even after the unit is disconnected from the mains (building wiring outlet), components inside the UPS system are still connected to the battery and electrically live and dangerous.

  • Page 5: Installation And Setup

    1012E Without Battery 1KVA 3001E Without Battery 3KVA 2-1. Rear panel view iBall Nirantar Online iBall Nirantar Online UPS – 1006B / 1012E UPS – 3001E 1. AC Input 2. Input Circuit Breaker 3. USB Communication Port 4. RS-232 Communication Port 5.
  • Page 6 You may insert provided CD into CD-ROM to install the monitoring software. If not, please click on below link to download and install monitoring software from the internet: http://www.iBall.co.in/File/Product/Drivers/iBall%20ViewPower%20For%20Windows.rar 1. Follow the on-screen instructions to install the software. 2. When your computer restarts, the monitoring software will appear as an orange plug icon located in the system tray, near the clock.

  • Page 7: Operations

    3. Operations 3-1. Button operation Button Function  Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds to turn on the UPS.  Mute the alarm: When the UPS is on battery mode, press and hold this button for at least 5 seconds to disable or enable the alarm system.
  • Page 8 Display Function Remaining backup time information Indicates the remaining backup time in pie chart. Indicates the remaining backup time in numbers. H: hours, M: minute, S: second Fault information Indicates that the warning and fault occurs. Indicates the warning and fault codes, and the codes are listed in details in 3-5 section.

  • Page 9: Audible Alarm

    3-3. Audible Alarm Battery Mode Beeping every 4 seconds Low Battery Beeping every second Overload Beeping twice every second Fault Continuously Beeping Bypass Mode Beeping every 10 seconds 3-4. LCD display wordings index Abbreviation Display content Meaning Enable Disable Escape High loss Low loss Battery...
  • Page 10 01: Output voltage setting Interface Setting Parameter 3: Output voltage For 200/208/220/230/240 VAC models, you may choose the following output voltage: 200: presents output voltage is 200Vac 208: presents output voltage is 208Vac 220: presents output voltage is 220Vac 230: presents output voltage is 230Vac (Default) 240: presents output voltage is 240Vac For 100/110/115/120/127 VAC models, you may choose the following output voltage:...
  • Page 11 05: ECO voltage range setting Interface Setting Parameter 2 & 3: Set the acceptable high voltage point and low voltage point for ECO mode by pressing Down key or Up key. HLS: High loss voltage in ECO mode in parameter 2. For 200/208/220/230/240 VAC models, the setting range in parameter 3 is from +7V to +24V of the nominal voltage.
  • Page 12 00: Exit setting Battery Group Number Setting For proper backup time details, please set Battery group number details as per below method 1. Open iBall View Power software, if you have not installed, then download and Install from provided link below www.iBall.co.in/File/Product/Drivers/iBall%20ViewPower%20For%20Windows.rar 2.
  • Page 13 6. Click the “UPS Setting” option and select “Parameters Setting”. (Please see images below) 7. The parameters setting windows will be shown as below.

  • Page 14: Operating Mode Description

    Input the group number to the box of marked in above image, and click the right side “Apply” button Note: Please follow below steps to calculate Battery group number to insert into “Number in marked box. a. Battery group number = External battery AH / Standard UPS battery AH 100AH For example，If you have connected batteries...

  • Page 15: Faults Reference Code

    Battery mode When the input voltage is beyond the acceptable range or power failure and alarm is Beeping every 4 second, UPS will backup power from battery. Bypass mode When input voltage is within acceptable range but UPS is overload, UPS will enter bypass mode or bypass mode can be set by front panel.

  • Page 16: Troubleshooting

    4. Troubleshooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy Check if input power cord The AC input power is not firmly connected to the connected well. No indication and alarm even mains.

  • Page 17: Storage And Maintenance

    UPS Backup is proper, but steps. Battery Group number setting is remaining time Indication on wrong Contact iBall Support team display is not proper / Nearest iBall Service Centre. Fault code is shown as 05 on Consult your dealer. If the LCD display.

  • Page 18: Specifications

    6. Specifications iBall Nirantar Online UPS MODEL 1006B 1012E 3001E (1KVA - W Battery) (1KVA - W/O Battery) (3KVA - W/O Battery) INPUT Capacity 1000 VA / 800 W 3000 VA / 2400 W 160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5 %...
  • Page 19 Battery Mode Beeping every 4 seconds Low Battery Beeping every second Overload Beeping twice every second Fault Continuously Beeping PHYSICAL Dimension, D X W X H (mm) 397 X 145 X 220 419 X 190 X 318 Net Weight (kgs) ENVIRONMENT Humidity 20-90 % RH @ 0- 40°C (non-condensing)
  • Page 20 Note:  Warranty: All iBall products are governed by iBall Warranty terms. Refer www.iBall.co.in for details.  Product specifications are subject to change without notice,  all trademarks, logos, brands & product names are properties of their respective owners,  For any technical help on iBall products, please contact support@iball.co.in...

This manual is also suitable for:

Nirantar 3001eNirantar 1012e
