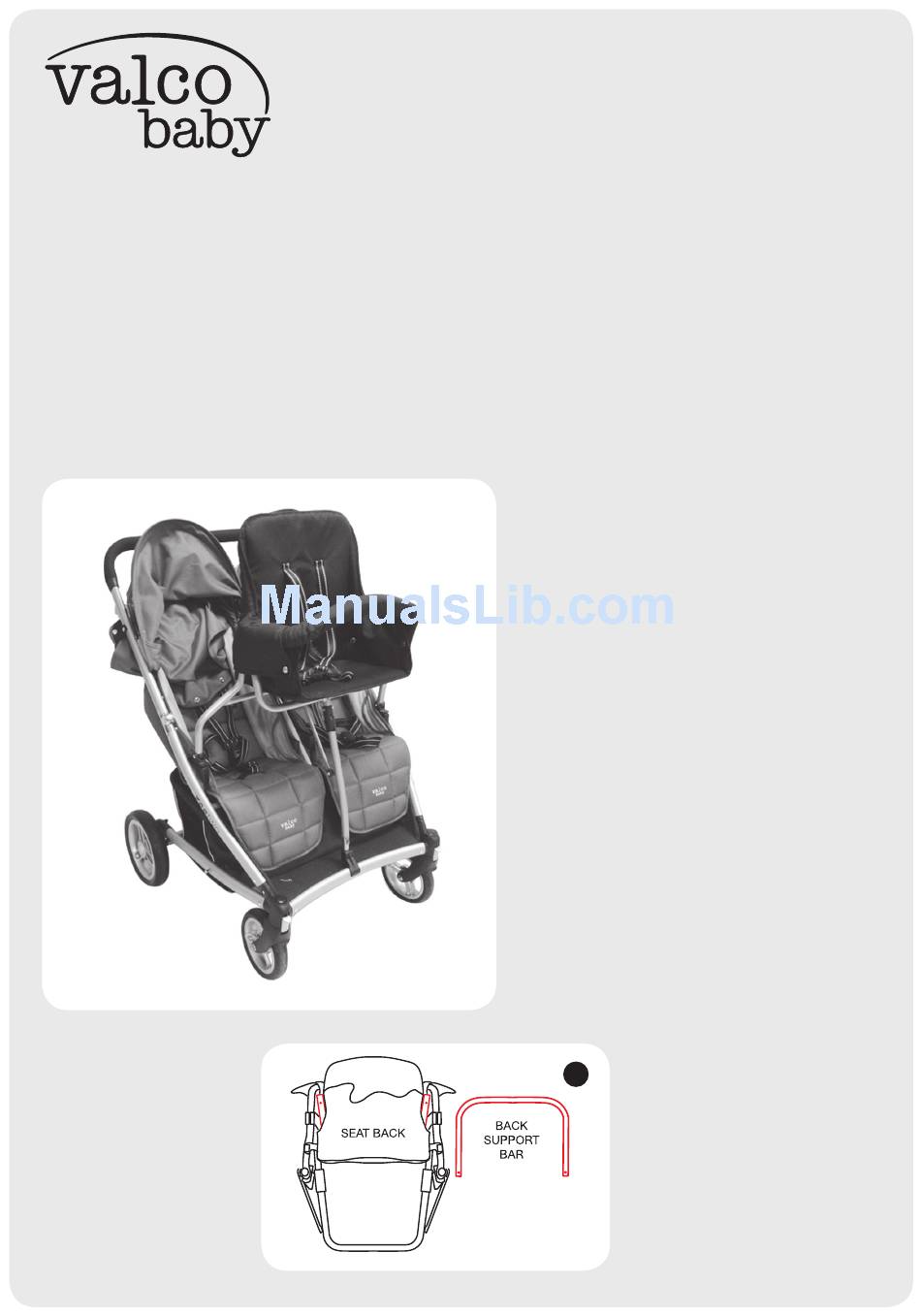

PRODUCT REFERENCE GUIDE
Thank you for purchasing a quality VALCO BABY product. Please read and follow the instructions outlined in
this guide carefully. Familiarise yourself with the construction and safety features; be sure that you understand
all the warnings and safety guidelines before use.
Important: Please read the following instructions carefully before assembling this product. Retain this
guide in a safe place for future reference.
FURTHER INFORMATION
In North America only
www.valcobaby.com
1800 610 7850
© Copyright VE 2013240113
Illustration only
Actual product may vary.
JOEY
TODDLER SEAT FOR
Due to our policy of continuous product
development, this product is constantly
evolving. It is possible that some features or
procedures outlined here have changed since
this document was written. If you are unsure
of any procedure shown here, please contact
us via the web at info@valco.com.au to obtain
the most up to date information before use.
Include the batch number, which can be found
on a sticker on the frame.
All pictures and diagrams herein are provided
for illustration purposes only.
Actual product, colour or fabric may vary.
VALCO BABY reserves the right to modify or
alter any specification or colour without notice
or obligation to modify any product previously
purchased
Suitable for Zee Two
USA Model No: ZTT0649
Weight limit: 20kgs
YOUR JOEY SEAT REQUIRES SOME
ASSEMBLY BEFORE USE:
A
FIGURE A
1. Remove Joey toddler
seat from the carton and
dispose of any packaging
thoughtfully.
2. The Joey comes in two parts,
the main seat section and a
back support bar.
ZEE TWO
Advertisement
Table of Contents
Related Manuals for Valco baby ZTT0649
Summary of Contents for Valco baby ZTT0649
- Page 1 ZEE TWO PRODUCT REFERENCE GUIDE Thank you for purchasing a quality VALCO BABY product. Please read and follow the instructions outlined in this guide carefully. Familiarise yourself with the construction and safety features; be sure that you understand all the warnings and safety guidelines before use.
- Page 2 FIGURE B 3. Align the back support bar with the corresponding tubes of the seat back. Be sure the buttons on the support bar face the same side as the corresponding holes on the seat tube. 4. Insert the back support bar into the tube. Depress each button while pushing down on the bar, inserting it further into the seat tubes until the buttons pop into the button holes on the housing.
- Page 3 TO REMOVE THE SEAT FIGURE F 13.To remove the seat: Feeling the side of the nylon housing that sits below the frame at each side (facing inward), locate the release button in the side housing FIGURE G 14. Press the release button inward while simultaneously lifting upward on the housing.
- Page 4 As rADiAtors, etC. whiCh MAy Be in the iMMeDiAte ViCinity oF your stroller. • it MAy Be unsAFe to use Any ACCessories other thAn VAlCo BABy ApproVeD ones. • this proDuCt is intenDeD For DoMestiC use only. it is not intenDeD For CoMMerCiAl USE.
