160775

Automotive components since 1963

SUPER 7" 4+1

REAR VIEW CAMERA

AND MULTIMEDIA KIT

USER MANUAL

Vedpak 98UK_Version 5_010909

Table of Contents

Need help?

Do you have a question about the 160775 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cargo 160775

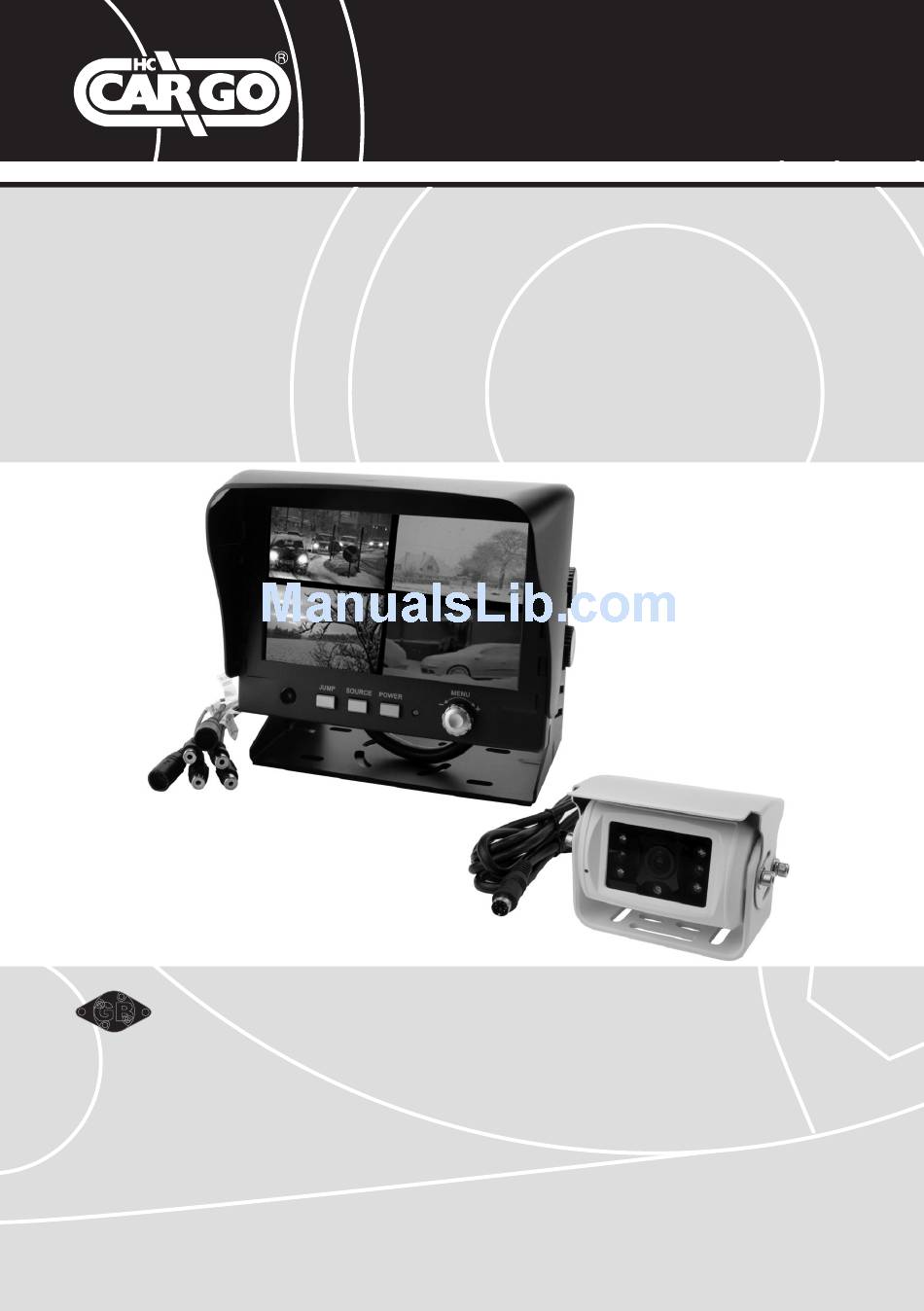

Page 1 160775 Automotive components since 1963 SUPER 7" 4+1 REAR VIEW CAMERA AND MULTIMEDIA KIT USER MANUAL Vedpak 98UK_Version 5_010909...
Page 2 160775 Vedpak 98UK_Version 5_010909...
Page 3: Table Of Contents
160775 CONTENT: Features ....................4 Installation of monitor ................4 Signal cable description ..............4 Control cable description ..............5 Front panel control ................6 OSD menu - Screen menu ..............7 Display ....................8 Mirror function ..................9 Camera ....................9 Factory default settings ...............
Page 4: Features
160775 FEATURES: Advanced OSD Menu for easy use Supports up to 4 CCD Camera inputs (6 pin Mini DIN). Extra RCA input for multimedia (VCD, DVD, Game device). Provide 2 Video / 1 Audio signal output. Support Single / Dual / Triple / Quad Screen (Cam out) Signal Trigger for Rear / Left / Right / AV.
Page 5: Controlcable Description
160775 CONTROLCABLE DESCRIPTION: Cable configuration Don’t connect the red wire (power wire) of this product directly to the battery. Connect the red wire of this product to the ACC of the ignition key switch. Failure to do so may result in permanent damage of the product.
Page 6: Front Panel Control
160775 FRONT PANEL CONTROL: POWER: Press the POWER button to activate the monitor or to keep the monitor under stand by mode. SOURCE: Press this button to select image sequence CAM ACAM BCAM CCAM R CAM A+B CAM C+R ...
Page 7: Osd Menu - Screen Menu
160775 OSD MENU: DISPLAY OSD DISPLAY CAMERA RECALL EXIT Press the MENU button to enter the OSD Menu. Turn the MENU button left or right to select the setting you wish to proceed. The colour of the content will turn yellow to identify your selection.
Page 8: Display
160775 Saturation Provide adjustment for the light intensity level of TFT display. Setting value from 0 ~ 100. Default value is 50. Provide adjustment for the lightness and colorfulness level of TFT display. Setting value from 0 ~ 100. Default value is 50.
Page 9: Mirror Function
160775 OSD Lock This function provides protection when an unauthorized person tries to access the OSD settings. JUMP and Source key press simultaneously for over 5 seconds to unlock. Default value is OFF. Users must turn on LCD in order to run unlock process. All function buttons are still working during OSD Menu lock up period.
Page 10 160775 Dir Image The screen image setting of this panel during left / right turn: TRIPLE: When you are making a right turn or left turn, the screen of panel will display triple images for left hand side, right hand side and rear view when you are making a right turn or left turn.
Page 11: Factory Default Settings
160775 Jump By pressing this button, the driver will be able to obtain the image selected under this setting. QUAD Obtain image from all camera input in quad picture while pressing the JUMP button and press again to return the default screen.
Page 12: Exit Osd
160775 Information This menu set up contains Recall & Exit function. Recall Recall factory default. Exit Exit OSD menu. Notice: Firmware version has shown on last column. Vedpak 98UK_Version 5_010909...
Page 13: Installation Of Camera
4. This device has the function of night viewing. In the dark, the IR will be enabled and the image is more clearly. CONNECTION OF CAMERA 5 Connection of camera 5 is done using the adapter Cargo 160603. Yellow RCA jack to VIDEO IN.
Page 14: Setting Of Distance Gauges
160775 VEHICLE INSTALLATION: Install camera R (for rear view). Use a measuring tool to mark out the distance behind the vehicle. Adjust the viewing angle of the camera so that the distance gauge shown from the TFT match to the distance behind the vehicle.
Page 15: Monitor Specifications
160775 MONITOR SPECIFICATIONS: Screen size 7" (Diagonal) 16:9. Active area 154.08 x 86.58 mm. Pixel configuration 0.107 x 0.370. Resolution 1440 x 234. Viewing angle 60°. Power source DC 9.6 V. ~ DC 32 V. Contrast ratio 300:1. Brightness 450 cd/cm².
Page 16 160775 Camera Mirror (M) / Normal (N) adjustment For mirror function - Turn arrow to M. For normal function - Turn arrow to N. Camera Harness: Pin No. Part description Audio Power Video Mirror Function of the Audio Cam A...
Page 17: Camera Specifications
160775 CAMERA SPECIFICATIONS Pick-up Device ............... 1/3" interline transfer CCD Total Pixels..............NTSC:537(H) x 505(V) PAL:537(H) x 597(V) Effective Pixels .............. NTSC:510(H) x 492(V) PAL:500(H) x 582(V) Resolution ..............W/ 420 TV lines Sync, System ..............Internal Scanning System ............2:1 Interlace S/N Ratio ...............
Page 18: Accessories
20 mtr. 160663 Trailer cable Kit. W/ 3.5 mtr. coiled cable. 160603 Connection cable from 6 PIN MINI DIN to RCA. Switch w/ location and function light. Symbolplates for Cargo 180206 and 180207. ON/OFF. 181462 Green. 180206 12 V. 181463 Red.
Page 19: Vedpak 98Uk_Version 5
160775 Vedpak 98UK_Version 5_010909...
Page 20 160775 Automotive components since 1963 Vedpak 98UK_Version 5_010909...
