Instar IN-Route P52 Installation Manual

Hide thumbs Also See for IN-Route P52:

Advertisement

Quick Links

Download this manual

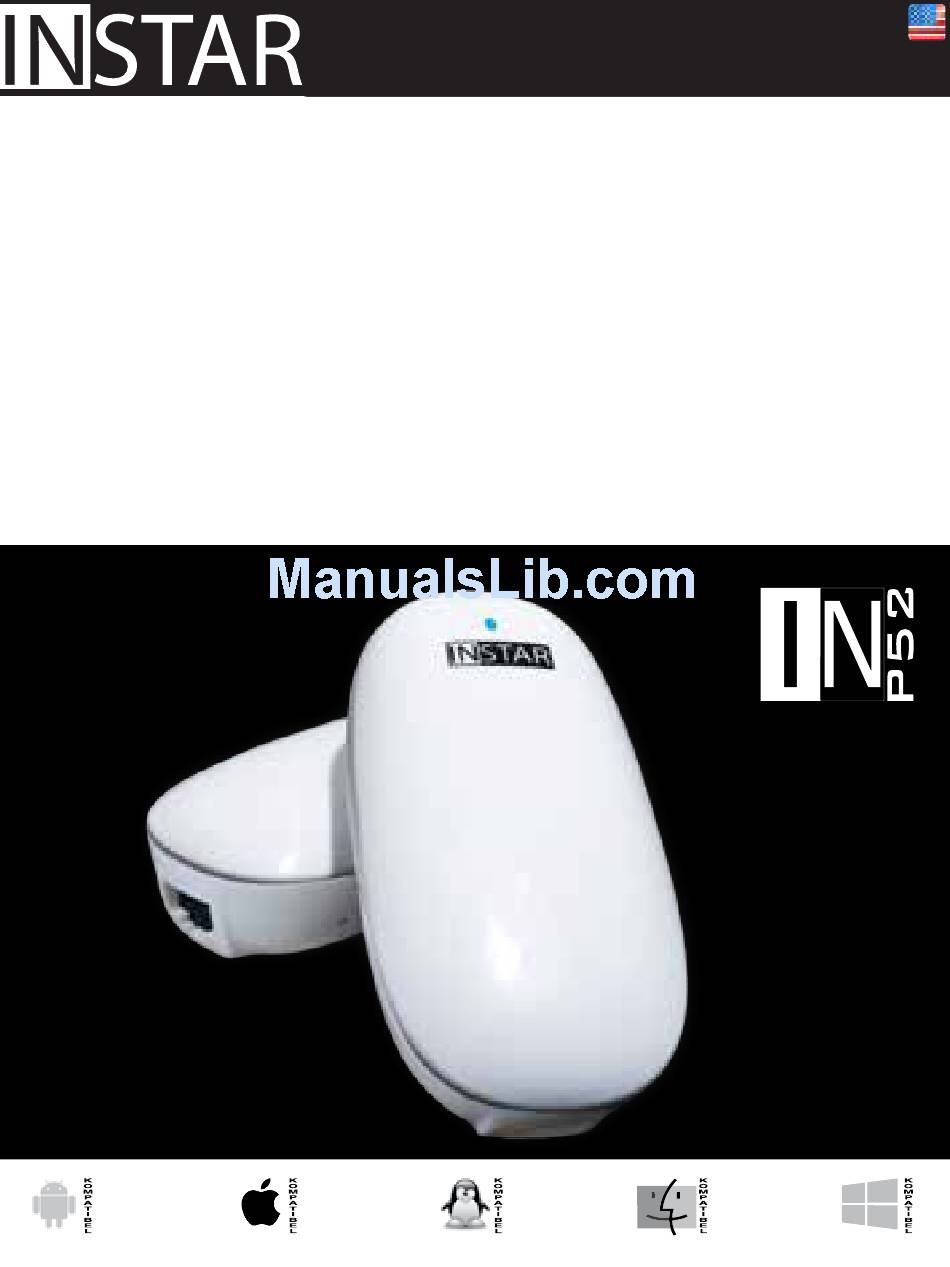

Installation Guide
Quick
IN-Route P52
/ IEEE 802.11 b/g/n mobile Wifi router (WPA & WPA2 encryption)
/ Internal powerbank to recharge your USB device (5200 mAh capacity)
/ NAS function for USB mass storage devices and wireless sharing
/ 3 in 1 DSL Router, 3G Router and Wifi repeater
/ The portable wireless solution designed for travelers
Route
- 1 -
Android
iPhone
LINUX
Mac OS
Windows

Advertisement

loading
Need help?

Need help?

Do you have a question about the IN-Route P52 and is the answer not in the manual?

Questions and answers

Related Manuals for Instar IN-Route P52

Summary of Contents for Instar IN-Route P52

  • Page 1 Installation Guide Quick IN-Route P52 / IEEE 802.11 b/g/n mobile Wifi router (WPA & WPA2 encryption) / Internal powerbank to recharge your USB device (5200 mAh capacity) / NAS function for USB mass storage devices and wireless sharing / 3 in 1 DSL Router, 3G Router and Wifi repeater...
  • Page 2 Route...

  • Page 3: Table Of Contents

    INSTAR Quick-Installation Guide IN-Route P52 Wireless Router / NAS / Power Bank The following topics will be shortly explained in this Quick-Installation Guide: SAFETY WARNINGS.................2 INTRODUCTION................3 INSTALLATION.................7 ROUTER MODES (Access Point, Bridge or Router)......12 NAS (Network Attached Storage)..........16 POWERBANK (5200mAh)..............17 SPECIFICATION................18...

  • Page 4: Safety Warnings

    Never install the device near explosive or flammable substances. Don’t use the device for any other purpose that it isn’t made for. INSTAR does not give any warranty if you use any third party firmware. CE-Conformity This device suites the basic requirements of the European regulations for electro- magnetic compliance (2004/108/EC) and the low voltage regulations (2006/95/EC ).

  • Page 5: Introduction 2

    INTRODUCTION 2 Blue Power Indicator The blue LED indicates that the device is powered on and ready for operation. Network Indicator The green LED will start flashing when the router Turquoise operates in AP or Bridge Mode - turning the constant blue light turquoise.
  • Page 6 What is the IN-Route P52? The INSTAR IN-Route P52 is designed to be your travel companion. Whether you stay in a hotel that only offers a LAN cable to access the internet with your tablet, wether you are on the road and just ran out of batteries on your smartphone or you just want to share the content of your USB thumbdrive with your friends - the IN-Route P52 is the solution to your problem.
  • Page 7 Used as a wired AP or wireless bridge between your wireless devices and the internet: Plug in your USB storage to share files with other net- work devices: Recharge your mobile devices on the road: - 05 -...
  • Page 8 USB charging cable (above) in the charging port (see #2) to connect your IN-Route P52 with a USB power source e.g. the USB port of your laptop.

  • Page 9: Installation 3

    Open your default browser and type in the IN-Route´s IP into the address bar - the default address is 192.168.169.1. This will load the router´s web user interface. Please refer to the complete user manual on wiki.instar.com for a detailed de- scription of the web user interface. - 07 -...
  • Page 10 Modes of Operation & Troubleshooting Use the Wired AP mode when you are at home or a public place - hotel, restaurant, etc. and have access to a LAN cable. Set up the needed router mode first! Then plug in the cable to the router.
  • Page 11 - giving the status LED a tur- quoise colour. The router is now in operation and you should see the Wifi network with the default name (SSID) IN-Route P52. Use your browser to login to the router´s user interface with the de- fault password 12345678.
  • Page 12 The router is set to automatically assign a IP addresses to new wireless devices by default (DHCP). If your PC is configured with a static IP address or the routers default was changed, please refer to the following guide to change your PC´s con- figuration your PC accordingly.
  • Page 13 Now open your default internet browser and type in the default IP address 192.168.169.1 to access the routers web user interface and log in with admin / instar . Please refer to the next chapter for more details. - 11 -...

  • Page 14: Router Modes (Access Point, Bridge Or Router)

    Use your laptop or mobile device to search the routers wireless network and connect using the default password: Default Network Name (SSID) : IN-Route P52 Default Wifi Password : 12345678 Now open your default internet browser and type in the default IP address to access the routers web user interface.
  • Page 15 Use your laptop or mobile device to search the routers wireless network and connect using the default password: Default Network Name (SSID) : IN-Route P52 Default Wifi Passphrase : 12345678 Now open your default internet browser and type in the default IP address to access the routers web user interface.
  • Page 16 Use your laptop or mobile device to search the routers wireless network and connect using the default password: Default Network Name (SSID) : IN-Route P52 Default Wifi Password : 12345678 Now open your default internet browser and type in the default IP address to access the routers web user interface.
  • Page 17 Use your laptop or mobile device to search the routers wireless network and connect using the default password: Default Network Name (SSID) : IN-Route P52 Default Wifi Password : 12345678 Now open your default internet browser and type in the default IP address to access the routers web user interface.

  • Page 18: Nas (Network Attached Storage)

    Use your laptop or mobile device to search the routers wireless network and connect using the default password: Default Network Name (SSID) : IN-Route P52 Default Wifi Password : 12345678 Now open your default internet browser and type in the default IP address to access the routers web user interface.

  • Page 19: Powerbank (5200Mah)

    POWER BANK (5200 mAh) More and more mobile devices are compatible to USB charging devices like the IN-Route P52. Carrying your own small powerbank with you can often double your mobiles battery life. Plug the USB charging cable that came with your mobile device into the IN- Route´s USB port (see #9, page 3).

  • Page 20: Specification

    4 SPECIFICATION Hardware Chipset (SoC) Ralink RT5350F Router-on-a-Chip CPU Core 360 MHz MIPS® 24K™ with 32 KB I-Cache/16 KB D-Cache Memory EM63A165 256Mbit (32MB) SDRAM Flash Storage W25Q32BV 32Mbit (4MB) WiFi Embedded 1T1R 2.4G CMOS RF Embedded 802.11n 1T1R MAC/BBP 2 dBi Signal Strength / Channel Width: 20MHz (72Mbps) / 40MHz (150Mbps) WiFi Standards...

  • Page 21: Warranty & Disposal 6

    WARRANTY & DISPOSAL 6 WARRANTY INSTAR offers a 2-year warranty on its products. During this time you can send in your device for a free repair. This excludes devices with custom made firmware or any other software that has not been approved by INSTAR. The warranty is only valid for the original hardware parts of the device.
