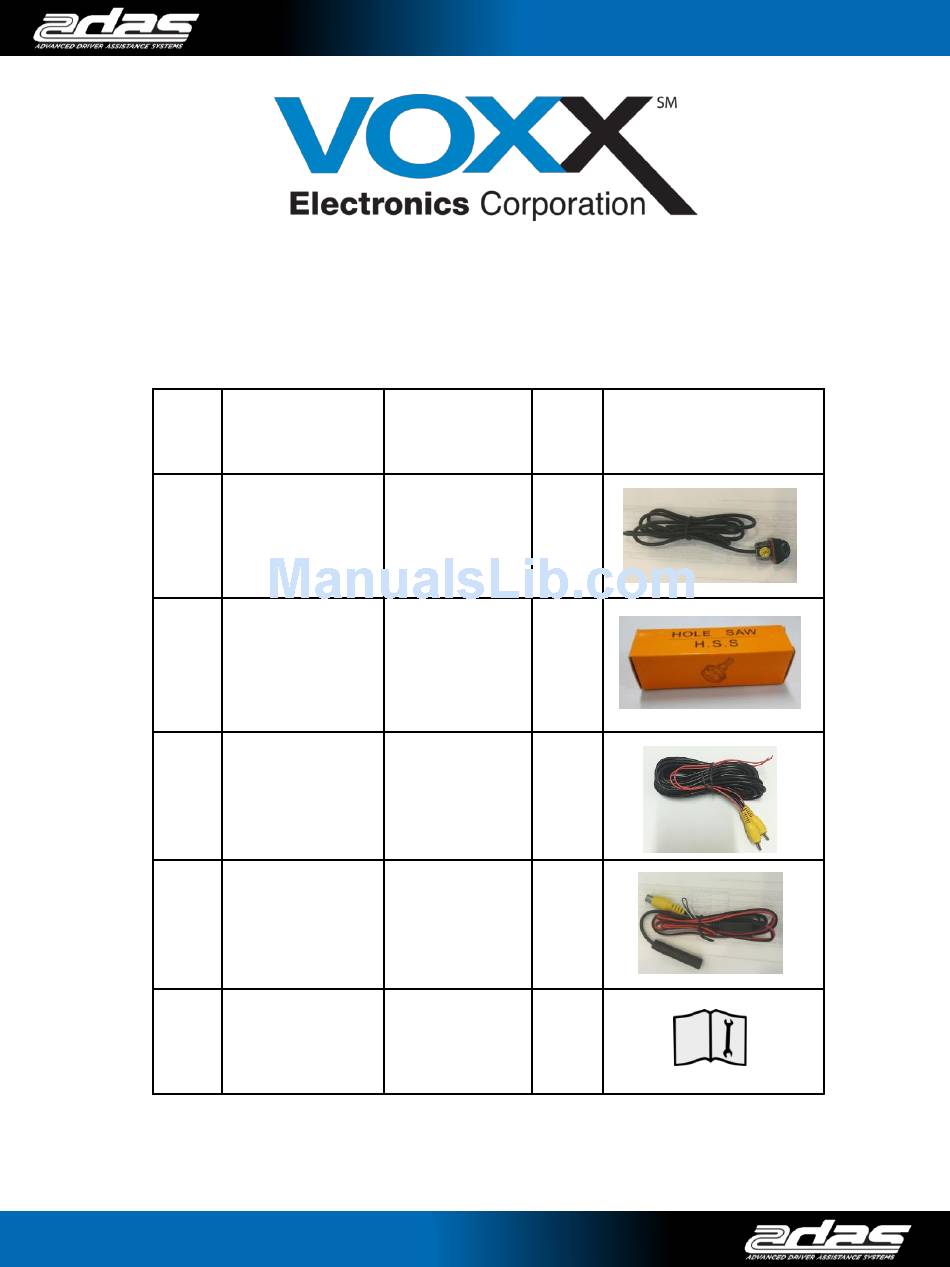

ACA501 – License Plate Mount Camera
Installation Set-up Guide
NO.
Part #
1
4360613
2
4060048
3
4120335
4
4120336
5
4280690
ITEM
QTY
1
Camera
1
Hole Saw
Video RCA
1
Cable for
Cameras
1
Power Cable
1
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACA501 and is the answer not in the manual?

Questions and answers

Summary of Contents for Voxx ACA501

  • Page 1 ACA501 – License Plate Mount Camera Installation Set-up Guide Part # ITEM PICTURE 4360613 Camera 4060048 Hole Saw Video RCA 4120335 Cable for Cameras 4120336 Power Cable 4280690 Manual...
  • Page 2 System Layout Monitor Camera...
  • Page 3 Harness & Device Wire Diagram Monitor Black Ground Wire +12v Reverse Wire Cut WHITE LOOP for a forward or normal image view Cut BLUE LOOP to shut parking lines off...
  • Page 4: Product Description

    Warnings The product is intended to assist in safe driving and to allow the driver to have a broader rear view while the vehicle is in reverse. You, as the driver, are solely responsible for the safe operation of your vehicle and the safety of your passengers according to local traffic regulations.
  • Page 5: Camera Installation

    2. For the ACA501 Camera, we include a 22mm hole saw. Use this drill bit to drill through your mounting surface for the camera. Make sure that there is not a metal lip or double metal in this area as it could damage the hole saw blade.
  • Page 6 Reverse/Normal Image Adjustment The camera comes standard with a reversed image (mirrored), designed for mounting at the rear of the vehicle. If you need to change to a forward or normal image view, cut the white jumper wire loop on the camera cable to change the camera image to normal (not mirrored).
  • Page 7 Notes...
  • Page 8 For customer or technical support please call Voxx Support: 1-800-645-4994 9 AM – 6 PM (EST - Eastern) Monday – Friday VOXX Electronics Corporation, 150 Marcus Blvd., Hauppauge, New York 11788 Patented www.voxxintl.com/company/patents...
