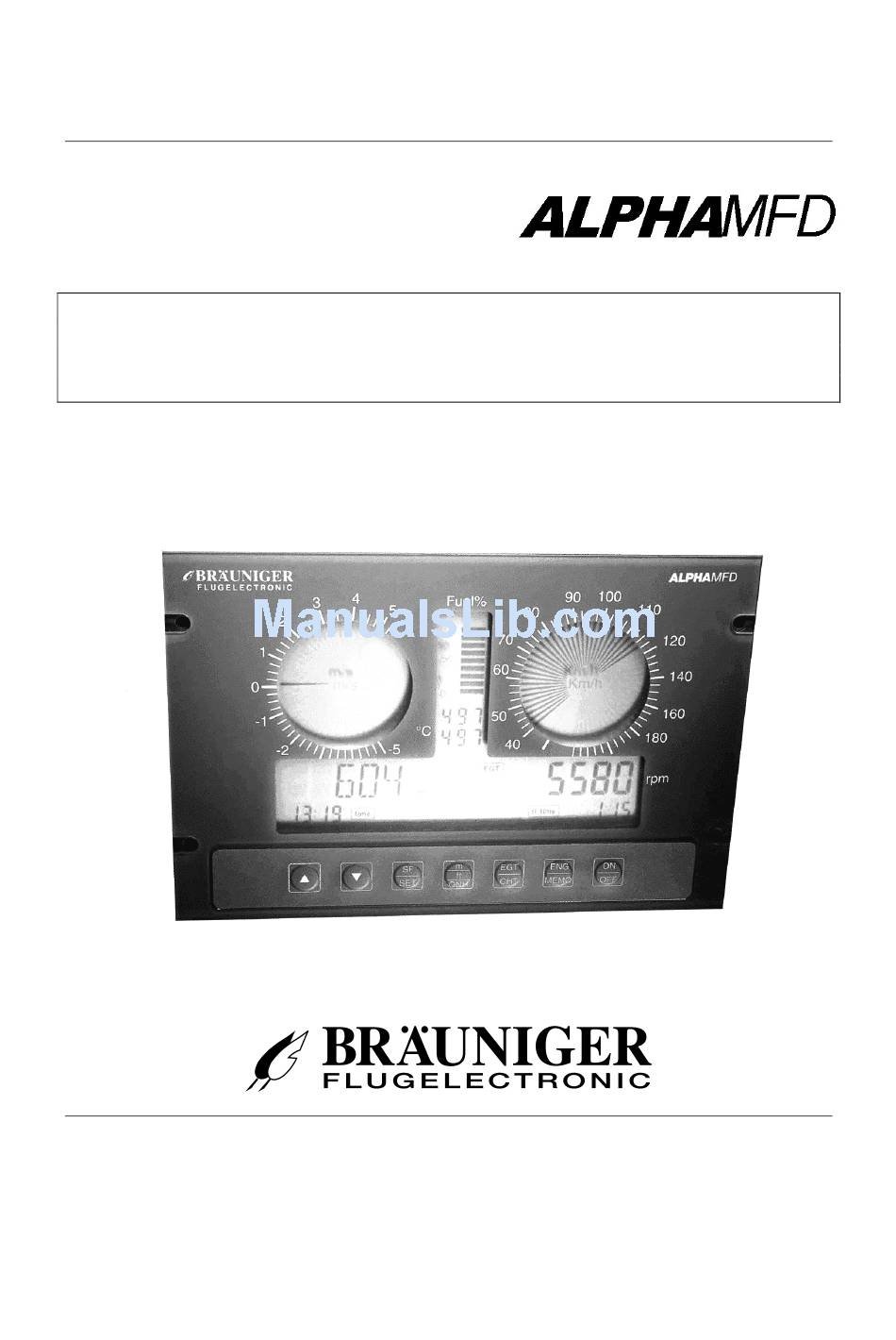

Operating and
Installation Manual
Hardware Rev 401, Software Ver 4.04 24.11.2007
Technical specifications subject to change without notice!
This operating manual must be given to customer with every ALPHA
Dr. Karl Slevogt Str. 5 D-82362 Weilheim / Germany
purchase!
BRÄUNIGER Flugelectronic GmbH
Ph +49-881-64750, Fax +49-881-4561
info@brauniger.com, www.brauniger.com

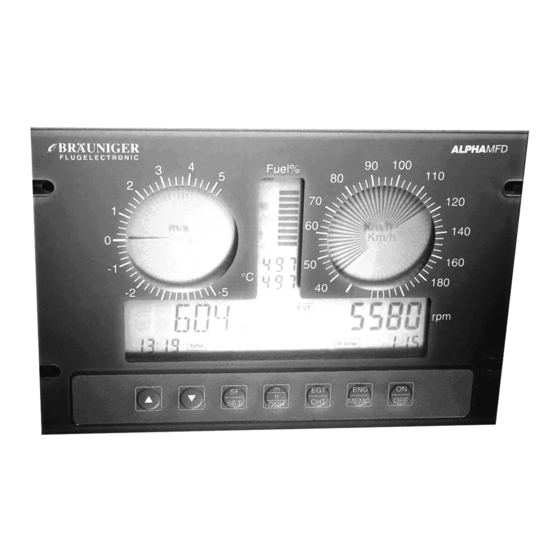

ALPHA
ALPHAMFD
ALPHA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALPHAMFD and is the answer not in the manual?

Questions and answers

Related Manuals for Brauniger ALPHAMFD

Summary of Contents for Brauniger ALPHAMFD

  • Page 1 Hardware Rev 401, Software Ver 4.04 24.11.2007 Technical specifications subject to change without notice! This operating manual must be given to customer with every ALPHA ALPHA ALPHA ALPHAMFD purchase! BRÄUNIGER Flugelectronic GmbH Dr. Karl Slevogt Str. 5 D-82362 Weilheim / Germany Ph +49-881-64750, Fax +49-881-4561...

  • Page 2: Table Of Contents

    Introduction ................. 4 Mounting and Connections........... 5 Warning ....................5 Mounting into Cockpit................5 Electrical Connections ................6 2.3.1 Switch-Off unused Temperature Ports........... 7 2.3.2 Connection Plan MFD (Hardware Rev 401) ........ 9 ALPHA 2.3.3 Connection Board (Hardware Rev 401)..........10 Mounting Fuel Flow Sender ...............10 2.4.1 General Notes ..................10...
  • Page 3 SET-Mode Settings ...................35 Information for certain Engines ......... 37 Rotax 582....................37 Rotax 912/912 S/914................37 Rotax 503....................37 Notes on using the ALPHAMFD on flex-wing Ultralights......38 10 Periodical Check ..............38 11 Technical Data ………………………………………………………41 ……..…………………………………………………………….41 Backlight function 12 Warranty ................41...

  • Page 4: Introduction

    The innovative LC-display is easy to read in any light conditions, all read-outs are designed following ergonomic rules. Because of the logical and clearly structured menus, the ALPHAMFD is very easy to operate. You basically only have to switch on the instrument and off you go. However we strongly recommend you read the operation manual carefully to make the best out of the many functions the ALPHAMFD offers.

  • Page 5: Mounting And Connections

    Service Centre. 2.2 Mounting into Cockpit It is very easy to mount the ALPHAMFD in your cockpit. You only need a little skill, no special tools are required. Dimensions of ALPHAMFD: Front 220 x 145 mm...

  • Page 6: Electrical Connections

    WARNING: All wires should be protected by small metal terminals to ensure a lasting and safe connection to the ALPHAMFD. All cables and the Pitot tube should be secured against pull. There is a special mounting bracket on the rear of the ALPHA ALPHAMFD for securing against pull.

  • Page 7: Switch-Off Unused Temperature Ports

    2.3.1 Switch-Off unused Temperature Ports The ALPHA ALPHA ALPHAMFD has six different ports where temperature senders can be connected ALPHA (Two Type Pt100 and four Type K). Because with some engine configurations some ports are not used, they can be switched off.
  • Page 8 Switching-off ports is done in SET-Modes 31 through 37. SET Mode Temperature or fuel Display Text Options Number Ports Pt100 WaterTemp Use Water Temp Port YES / NO Pt 100 Oil temp Use Oil Temp Port YES / NO EGT 1 Use EGT 1 Port YES / NO EGT 2...

  • Page 9: Connection Plan Alpha Mfd (Hardware Rev 401)

    2.3.2 Connection Plan ALPHA (Hardware Rev 401) Senders Cable Connection ALPHA ALPHAMFD ALPHA ALPHA on engine Red/blue Water (+) Pt100 Water Temp Pt100 white blue Oil Temp (+) Pt100 Oil Temp yellow Oil/Water (-) Pt100 white (common for Pt100 and flow)

  • Page 10: Connection Board (Hardware Rev 401)

    ALPHAMFD and precise function can not be guaranteed. The fuel flow senders transmits pluses according to the actual fuel consumption to the ALPHA ALPHA ALPHAMFD. These pulses are added up to a fuel capacity ALPHA indicator. The sender can be used with all kinds of fuel.

  • Page 11: Important Safety Notes

    BRÄUNIGER fuel flow sender is looped in the fuel line between filter and engine. Make sure all connections of fuel line are leak proof and secure. Secure all line connections with suitable parts, e.g. hose clamps. The fuel flow sender is designed in such a way, that even when the sensor wheel is blocked, there is always enough fuel throughput to keep the engine running.

  • Page 12: Drawing: Fuel Flow Sender Mounting

    2.4.4 Drawing: Fuel Flow Sender Mounting To engine Fuel Flow Sender Fuel Filter Min 60° From Optimal 90° Tank Fuel Flow Sender Mounted on Rotax 912 S as described in Section 5.3.6...

  • Page 13: Pitot Tube And Static Port

    Next the instrument goes into CHECK-Mode. An internal self-test is executed and all senders are checked for correct signals. If the ALPHAMFD discovers a fault, it displays an ERROR-code. A list of all possible ERROR-codes is listed in section 7.1.10 .

  • Page 14: Calibration Of Air Speed (Cas)

    Speed calibration. Stall and Vne for the user. It is also highly recommended to calibrate the speed zero point every 2-3 months to preserve accuracy. 4.1.2 Speed Indication “Stretching Schemes” / Units Air Speed The ALPHA ALPHAMFD is available in 6 different versions: ALPHA ALPHA Version Speed-Units...

  • Page 15: Stall-Alarm

    Because it is very important to comprehend the different speed ranges at a single glance, self adhesive coloured marker rings in white, green, yellow and red are included with every ALPHAMFD. These rings can be mounted to the speed indicator corresponding to the speeds of the individual aircraft (Vno, Vne, Vso, Vs1, etc.) 4.1.3 Stall-Alarm...

  • Page 16: Vne-Alarm

    In some air spaces pilots are required to fly by flight levels. All aircraft set their altimeter to the ICAO standard air pressure of 1013,2 hPa. The ALPHA ALPHAMFD has a special function to set this very easily. By pressing the ALPHA ALPHA >ARROW UP<...

  • Page 17: Vsi (Vertical Speed Indicator)

    0.25 m/s. Values between +/- 10 m/s are displayed (or the equivalent in ft/min) The ALPHAMFD has two different ways of indication values on the round analogue scales. They can be chosen according to personal preferences in SET-Mode 17.

  • Page 18: Sector Display

    The flight time is measured as soon as the speed exceeds 50 km/h IAS. This moment is also registered as take-off time and can later be called up in the MEMO-Mode. The flight time is stopped as soon as the ALPHAMFD registers speeds of less than 50 km/h IAS.

  • Page 19: Real-Time

    It is possible to set a factor "multiplied by 4, 2, or 1 or "divided by 6, 4, 3, 2". The generators of Rotax 582 and 503 engines give 6 pulses per revolution, so the ALPHAMFD must be set to "divided by 6" for use with these engines. ALPHA ALPHA...

  • Page 20: Capacitive Rpm Measurement At Ignition Cable (Not Available For Hardware Rev 401)

    Additionally, the total running time of the engine of all flights (Engine Hour Meter) is displayed in SET-Mode 4. This value can not be changed and does not get lost when disconnecting the power of the ALPHAMFD. The value is shown in full hours. WARNING! Never disconnect the ALPHAMFD from its power supply before switching it off.

  • Page 21: Fuel Flow Meter

    The fuel flow sender transmits pulses to the ALPHA ALPHAMFD according to the actual fuel ALPHA ALPHA consumption. The ALPHA ALPHAMFD converts these pulses to the fuel flow and fuel state ALPHA ALPHA indication. WARNING! After filling up the aircraft, the actual contents of the tank must be input into the ALPHA ALPHAMFD (see section 5.3.8).

  • Page 22: Precision Of Fuel Flow

    5.3.5 Measuring with two flow senders (engines with fuel flow back system) Because the back-flow can be a significant portion of the fuel pumped to the engine, the ALPHA ALPHAMFD can be used with a second fuel flow sender. The ALPHA ALPHAMFD ALPHA...

  • Page 23: Display Of Fuel Flow

    WARNING: We recommend using the measuring method with only one fuel flow sender for engines with a fuel flow back system. The indicated values are not only more precise than when using two senders, you only have to buy and mount one sender. Recommended way of measuring: Measuring fuel flow with ONE Fuel Flow Sender for engines with fuel flow back system Motor...

  • Page 24: Display Of Fuel State

    (EGT), the cylinder head temperature (CHT) and oil and water temperature can be displayed. Of course the four Type K ports of the ALPHA ALPHAMFD can also be used differently, e.g. ALPHA ALPHA for monitoring the EGT of 4 cylinders. This mode can be set in SET-Mode 28. In this...

  • Page 25: Water Temperature

    ALPHA has 4 Type K ports and 2 Pt100 ports. The ALPHA ALPHAMFD constantly monitors all senders for faults, e.g. cable breaks. If an ALPHA ALPHA error is found, the audio alarm is sounded through the Intercom and the respective display starts flashing.

  • Page 26: Display Of Temperatures

    5.8 Oil Pressure and Low Oil Pressure Warning The ALPHA ALPHAMFD can monitor oil pressure in two different ways, depending on the ALPHA ALPHA type of the oil pressure sender being used: You have to set the type of oil pressure sender in SET-Mode 29.

  • Page 27: Analogue Oil Pressure Sender

    The oil pressure is displayed with 3 digits and a resolution of 0.2 bar (or 2 PSI). The oil pressure unit can be set in SET-Mode 26, bar or PSI is possible. The ALPHA ALPHAMFD is designed to be used with the VDO Oil Pressure sender. It ALPHA ALPHA will not indicate correct values with other types of oil pressure senders.

  • Page 28: Voltmeter

    If you switch off your engine, the main power supply can be interrupted and the ALPHAMFD will switch to emergency power supply. In this case, the ALPHAMFD will switch off automatically after 3 minutes. This will only happen, if the ALPHAMFD measures no air speed during these 5 minutes. If air speed...

  • Page 29: Flight Data Recorder

    ALPHAMFD will NOT switch off automatically. This is a power saving feature so the back-up battery is not drained early when the aircraft is parking. WARNING! For safety reasons the back-up battery should be replaced once a...

  • Page 30: Other Functions

    7.1 Acoustic and Optical Warnings Acoustic Alarms: The ALPHAMFD has a special port for connecting to the Intercom (see section 2.3.3). The alarm, when sounded, consists of several short beeps. The beeps are repeated every 30 seconds until the pilot switches the alarm off by pressing >ON/OFF<.

  • Page 31: Engine Temperatures Too High

    RPM display starts flashing. The actual RPM are still displayed. 7.1.9 ERORR-Messages during Power on Self-Test (BIT) The ALPHAMFD performs an automatic Self-Test when powering up. All senders are checked for plausible and correct data and the instrument checks itself.

  • Page 32: List Of Error-Codes

    If the ALPHAMFD detects a problem, an ERROR-Code will be displayed. 7.1.10 List of ERROR-Codes ERROR-Code Cause What to do ERROR 1-16 Internal error Send instrument to manufacturer ERROR 17 – NO EGT1 Defect at sender EGT 1 or no...

  • Page 33: Theft Prevention And Password

    SET-Mode 40). Every customer receives an alphanumeric password with his ALPHAMFD. The theft prevention function is not activated by default. It can be activated in SET-Mode 30. For this you have to enter the password. Serial number and corresponding password are printed on the back cover of this operating manual and on your original invoice.

  • Page 34: Selection Of Units

    ALPHAMFD is a safe long-term investment. 8 SET-Mode In order to use the many functions of the ALPHAMFD and to be able to adjust it to one's personal needs and preferences, some functions can be individually adjusted. The SET-Mode is activated by pressing the >FUNC/SET< key for several seconds.

  • Page 35: Restore Factory Settings

    >ENTER/MEMO<. Also if you want to leave the SET-Mode, press >FUNC/SET<. WARNING! For safety reasons the you cannot switch to SET-Mode if the ALPHAMFD measures an Air Speed of 50 km/h and above. 8.1 Restore Factory Settings In SET-Mode 40 the ALPHA...
  • Page 36 Year SET YEAR 2000 2000 Change Temperature Units UNITS °C °F Depending on TEMPERATURE version Change Altitude Units UNITS ALTITUDE METER Depending on FEET version Change Air Pressure Units UNITS AIR Depending on PRESSURE INHG version Change Fuel Units UNITS FUEL LITERS Depending on USGAL...

  • Page 37: Information For Certain Engines

    9 Information for certain Engines 9.1 Rotax 582 BRÄUNIGER Connection on Sensor-Type Connection on Flag in Display engine Art. No. ALPHAMFD ALPHA ALPHA ALPHA Exhaust Cyl 1 Typ K F0307 EGT 1 M8x1 thread Exhaust Cyl 2 Typ K F0307...

  • Page 38: Notes On Using The Alphamfd On Flex-Wing Ultralights

    Although the ALPHAMFD works completely maintenance free, we recommend sending it every 3 years to the manufacturer for checking and calibration. Thus the precise operation of your ALPHAMFD is maintained for a long period of time. Additionally it can be upgraded to the latest software version.

  • Page 39: Technical Data

    In 10% increments from 100% = full to 10% = reserve User has to enter maximum fuel tank capacity (in litres or US-gallons) Fuel Flow Meter from 5 to 49,9 litres/h, display in litres/h or US-gallons/h Air Speed ALPHAMFD Version A ALPHA ALPHA ALPHA Display Range: 40 –...
  • Page 40 Time Real Time with Date Engine Hour Meter (cannot be changed by user) Flight time or engine running time per flight Display: 4-digit digital Display, Max. 9980 RPM Sample Rate: 1 sample / sec Factors: Multiplied by 4, 2, 1 and divided by 2; 3; 4 and 6 Resolution: 20 RPM Engine Temperatures...

  • Page 41: Backlight Function

    To avoid damages by high voltage causing by defective voltage regulators the Alpha- MFD has since 2002 an integrated voltage protection circuit. In case of a defect voltage regulator the external fuse will fail and the ALPHAMFD is – supplied by the 9 volt back-up battery battery display is blinking now.
  • Page 42 Prior to operating the ALPHA ALPHA ALPHA ALPHAMFD, the operating manual must be carefully read. If something is unclear you must not operate the ALPHA ALPHAMFD. Please understand, that ALPHA ALPHA the instrument didn’t have any redundant function except the 9V back up battery...
