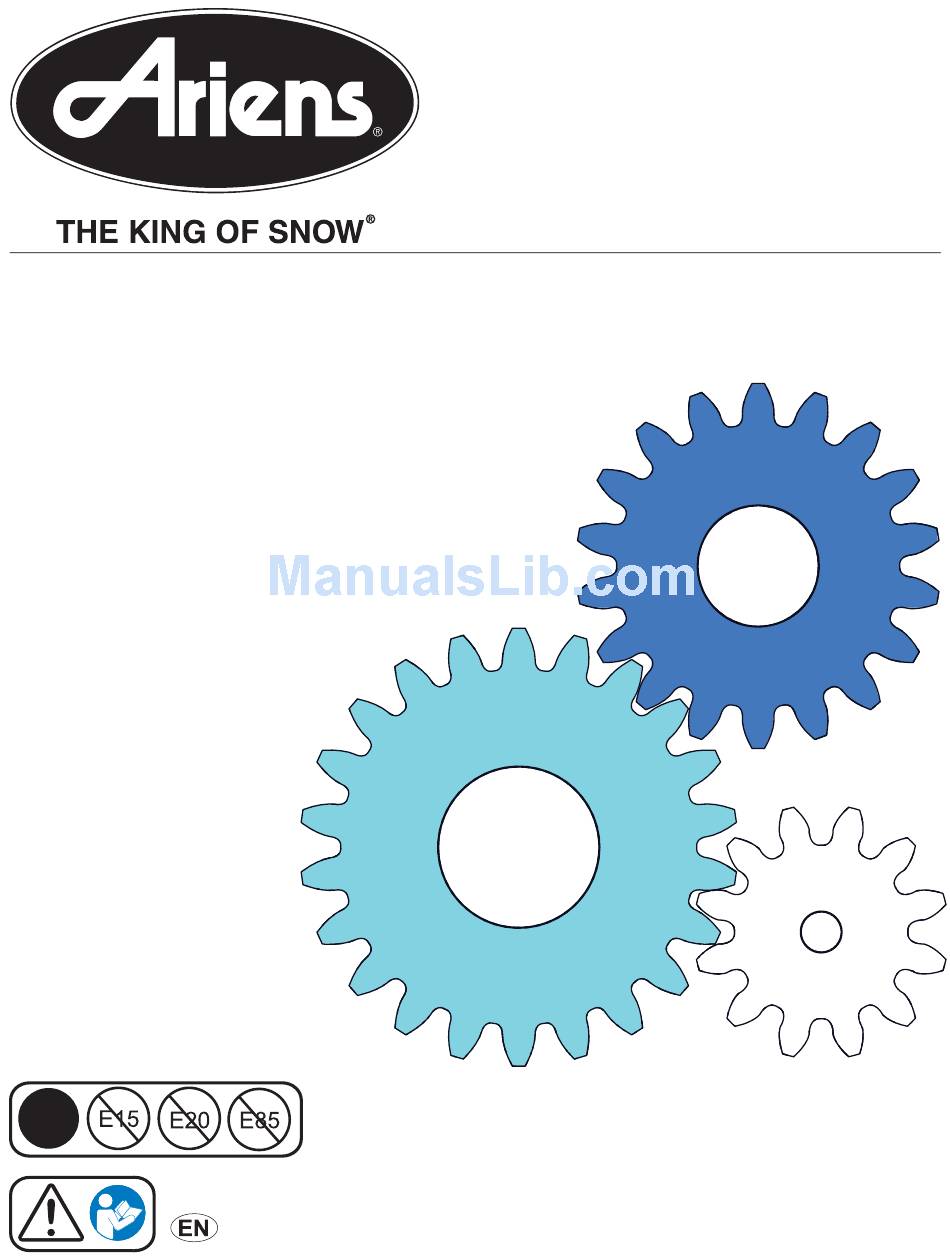

Aries 921024 – Deluxe 24 2015 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

®
Sno-Thro
Service Guide
Deluxe Series
Models
921024 – Deluxe 24
(SN 150000 +)
921030 – Deluxe 28
(SN 150000 +)
921032 – Deluxe 30
(SN 150000 +)
921044 – Deluxe 28
(SN 000101 +)
921319 – Deluxe 24 CE
(SN 120,000 +)
921320 – Deluxe 30 CE
(SN 120,000 +)
921321 – Deluxe 28 CE
(SN 120,000 +)
E10
ENGLISH
04855200 • 8/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 921024 – Deluxe 24 2015 and is the answer not in the manual?

Questions and answers

Chet
January 28, 2025

How to drain gas

0
1 comments:
Mr. Anderson
February 10, 2025

To drain gas from an Aries Deluxe 24 2015:

1. Move the unit to an open, well-ventilated area, away from flames or sparks.
2. Close the fuel valve.
3. Remove the fuel tank cap.
4. Siphon the fuel into a clean, approved gasoline container.
5. Reinstall and tighten the fuel tank cap.

Ensure the engine is cool before starting and clean up any spilled fuel.

This answer is automatically generated

0

Summary of Contents for Aries 921024 – Deluxe 24 2015

  • Page 1 ® Sno-Thro Service Guide Deluxe Series Models 921024 – Deluxe 24 (SN 150000 +) 921030 – Deluxe 28 (SN 150000 +) 921032 – Deluxe 30 (SN 150000 +) 921044 – Deluxe 28 (SN 000101 +) 921319 – Deluxe 24 CE (SN 120,000 +) 921320 –...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ......3 DIFFERENTIAL GEAR REPLACEMENT . . . 31 PRACTICES &...
  • Page 3 WELCOME Before operating or servicing the unit, carefully and completely read the Operator’s Manual and engine manual provided with the unit at time of purchase. They contain important safety instructions and information about unit controls. Have Questions or Need Assistance? ariensstore.com (Dealer Locator) ariens.custhelp.com (Self-Support) A parts manual and an operator’s manual for your unit are...

  • Page 4: Safety

    SIGNAL WORDS SAFETY The safety alert symbol above and signal words below are Read these safety rules and follow them closely. Failure to used on decals and in this manual. Read and understand follow these rules could lead to loss of control of unit, all safety messages.

  • Page 5: Safety Decals

    SAFETY DECALS Stop engine, remove key, and read manual The safety decals on your machine are visual reminders of before making any repairs or adjustments. the important safety information in this manual. All messages on your unit must be fully understood and carefully followed.

  • Page 6: Safety Rules

    SAFETY RULES Handle fuel with care; it is highly flammable. • Use an approved fuel container. The following safety instructions are based on the B71.3 specifications of the American National Standards Institute • Never add fuel to a running engine or hot engine. in effect at the time of production.

  • Page 7: Clearing A Clogged Discharge Chute

    After striking a foreign object, stop the engine, remove the Never operate the snow thrower without good visibility or wire from the spark plug, disconnect the cord on electric light. Always be sure of your footing, and keep a firm hold motors, thoroughly inspect the snow thrower for any on the handles.

  • Page 8: Slope Operation

    Always refer to operator's manual for important details if Never fill fuel containers inside a vehicle or on a truck or the snow thrower is to be stored for an extended period. trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.

  • Page 9: Draining Fuel System

    DRAINING FUEL SYSTEM SERVICE POSITION Move unit to an open, well-ventilated area with no WARNING: AVOID INJURY. Before placing unit flames or sparks. in service position, close fuel valve and drain fuel Remove cap from fuel tank and siphon fuel into a from tank and fuel system.

  • Page 10: Bottom Cover Removal

    BOTTOM COVER REMOVAL NOTICE: Save all hardware for reinstallation. WARNING: AVOID INJURY. Before placing unit in service position, close fuel valve and drain fuel from tank and fuel system. See Draining Fuel System on page 8. Make sure unit is secure and will not tip.

  • Page 11: Separate Auger Housing From Frame

    SEPARATE AUGER HOUSING FROM FRAME NOTICE: Save all hardware for reinstallation. Stop engine, remove key and wait for all moving parts to stop and for hot parts to cool. Disconnect spark plug wire from engine. See Figure 6. Remove hardware retaining chute gear cover to chute pedestal and remove cover.
  • Page 12 See Figure 9. Loosen, but DO NOT remove hardware securing belt cover to unit, and remove belt cover. 1. Attachment Drive Belt 2. Attachment Sheave 3. Belt Finger 4. Hex Bolt 1. Belt Cover 5. Locking Washer 2. Tapping Screw 6.

  • Page 13: Attachment Drive Belt Replacement

    ATTACHMENT DRIVE BELT See Figure 12. 13. Remove hardware securing auger housing to frame. REPLACEMENT 14. Tip auger housing apart from frame on mount rod and Remove Attachment Drive Belts separate housing from unit. NOTICE: Save all hardware for reinstallation. Stop engine, remove key and wait for all moving parts to stop and for hot parts to cool.
  • Page 14 Install Attachment Drive Belts Install belts onto attachment drive pulley See Figure 14. With a helper, engage attachment clutch lever so attachment brake will not obstruct attachment drive pulley in step 3. Tilt auger housing rear up and lower into frame so housing mount brackets sit on mount rod.

  • Page 15: Traction Drive Belt Replacement

    TRACTION DRIVE BELT Install Traction Drive Belt REPLACEMENT See Figure 17. Install belt onto traction drive pulley. Remove Traction Drive Belt Install belt onto traction sheave. NOTICE: Save all hardware for reinstallation. Move swing gate so swing gate tab aligns with stop Stop engine, remove key and wait for all moving parts hole in frame.

  • Page 16: Attachment Brake Replacement

    11. Adjust traction drive clutch. Refer to Operator’s ATTACHMENT BRAKE REPLACEMENT Manual for adjustment procedure. Remove Attachment Brake 12. Reconnect spark plug wire. NOTICE: Save all hardware for reinstallation. IMPORTANT: Check all adjustments after first use. Stop engine, remove key and wait for all moving parts to stop and for hot parts to cool.
  • Page 17 See Figures 19 and 20. Reinstall attachment drive belts. See Install Attachment Drive Belts on page 13. Engage and disengage attachment clutch to verify brake roller on attachment idler does not interfere with WARNING: AVOID INJURY. Before placing unit brake pad. in service position, close fuel valve and drain fuel IMPORTANT: Make sure brake roller does not bind.

  • Page 18: Friction Disc Replacement

    FRICTION DISC REPLACEMENT Remove Friction Disc NOTICE: Save all hardware for reinstallation. WARNING: AVOID INJURY. Before placing unit in service position, close fuel valve and drain fuel from tank and fuel system. See Draining Fuel System on page 8. Make sure unit is secure and will not tip.
  • Page 19 See Figure 25. 11. Remove hardware securing friction disc to drive carrier and remove friction disc. 1. Friction Disc 2. Drive Carrier 3. Tapping Screw 1. Shift Fork Figure 25 2. Flat Steel Washer 3. Shift Fork Bracket Install Friction Disc 4.

  • Page 20: Auger Replacement

    Reinstall bearing flange and secure with three tapping AUGER REPLACEMENT screws. Remove Auger Reinstall spring clip into hex shaft. NOTICE: Save all hardware for reinstallation. Reinstall adjustment pivot pin onto speed selector arm Stop engine, remove key and wait for all moving parts and secure with hairpin.
  • Page 21 See Figure 29. See Figure 31. Remove hardware securing support bushings to auger 10. Remove support bushing and flange bushing from housing. auger shaft end. Remove hardware securing support brackets to auger 11. Remove shear bolt from auger shaft. housing. 12.
  • Page 22 Align holes in bushings on auger ends with holes in housing and partially thread all six tapping screws. Tighten tapping screws. Secure support brackets to auger housing with two round head square neck bolts and two top locking flange nuts. See Figure 34.

  • Page 23: Auger Gearcase Replacement

    AUGER GEARCASE REPLACEMENT See Figure 36. Remove two roll pins securing impeller to impeller Remove Gearcase Assembly shaft and remove impeller. Use of penetrating oil or NOTICE: Save all hardware for reinstallation. heat may be necessary to remove impeller. Stop engine, remove key and wait for all moving parts to stop and for hot parts to cool.

  • Page 24: Impeller Replacement

    IMPELLER REPLACEMENT Install Impeller Install impeller onto impeller shaft. Remove Impeller Align holes in impeller with holes in impeller shaft and NOTICE: Save all hardware for reinstallation. reinstall roll pins. Stop engine, remove key and wait for all moving parts See Figure 33.

  • Page 25: Engine Replacement

    ENGINE REPLACEMENT See Figure 38. Remove attachment drive belt from attachment Remove Engine sheave. NOTICE: Save all hardware for reinstallation. Remove hardware securing attachment sheave to Drain gasoline from fuel system and tank. See crankshaft. Draining Fuel System on page 8. Remove hardware securing engine to frame.
  • Page 26 Align attachment sheave key with crankshaft keyway and reinstall attachment sheave onto crankshaft. Secure with locking washer and hex bolt and tighten hardware. Reinstall attachment drive belts onto attachment sheave. Reinstall belt finger and secure with two flat steel washers, two locking washers and two hex bolts as shown in Figure 15.

  • Page 27: Traction Drive Cable Replacement

    TRACTION DRIVE CABLE See Figure 42. Disconnect lower traction drive cable from upper REPLACEMENT traction drive cable. Remove Traction Drive Cable Loosen, but DO NOT remove shoulder bolt retaining NOTICE: Save all hardware for reinstallation. cable pulley to cable pulley bracket. Remove cable from cable pulley and remove cable WARNING: AVOID INJURY.

  • Page 28: Axle Bushing Replacement (Left Side)

    AXLE BUSHING REPLACEMENT Install Axle Bushing (LEFT SIDE) Pre-tap new bushing with original tapping screws. Install bushing onto axle. Remove Left Axle Bushing Secure bushing to frame with three tapping screws NOTICE: Save all hardware for reinstallation. from inside frame and tighten hardware. Reinstall flat steel washer and key onto axle.

  • Page 29: Axle Bushing Replacement (Right Side)

    AXLE BUSHING REPLACEMENT See Figure 45. Remove spring clip from left side of pinion shaft. (RIGHT SIDE) Remove Axle Bushing NOTICE: Save all hardware for reinstallation. WARNING: AVOID INJURY. Before placing unit in service position, close fuel valve and drain fuel from tank and fuel system.
  • Page 30 See Figure 47. 11. Remove key and flat steel washer from axle. 12. Remove hardware securing bushing to frame and remove bushing. 1. Long Axle 2. Differential Gear 1. Key 3. Sleeve Bushing 2. Flat Steel Washer 4. Short Axle 3.

  • Page 31: Flange Bushing Replacement

    FLANGE BUSHING REPLACEMENT Install Flange Bushings Insert flange bushings into pinion sprocket Remove Flange Bushing Reinstall pinion sprocket into chain. NOTICE: Save all hardware for reinstallation. Position sleeve bushing between pinion sprocket and frame. WARNING: AVOID INJURY. Before placing unit in service position, close fuel valve and drain fuel Insert pinion shaft through pinion sprocket, sleeve from tank and fuel system.

  • Page 32: Bearing Flange Replacement

    BEARING FLANGE REPLACEMENT DIFFERENTIAL GEAR REPLACEMENT Remove Bearing Flange Remove Differential Gear NOTICE: Save all hardware for reinstallation. NOTICE: Save all hardware for reinstallation. WARNING: AVOID INJURY. Before placing unit WARNING: AVOID INJURY. Before placing unit in service position, close fuel valve and drain fuel in service position, close fuel valve and drain fuel from tank and fuel system.

  • Page 33: Chute Gear Replacement

    CHUTE GEAR REPLACEMENT Remove Pinion Gear NOTICE: Save all hardware for reinstallation unless specified otherwise. Stop engine, remove key and wait for all moving parts to stop and for hot parts to cool. Disconnect spark plug wire from engine. See Figure 53. Remove hardware retaining chute gear cover to chute pedestal and remove cover.
  • Page 34 Reinstall chute gear cover and secure with tapping screw. Reconnect spark plug wire. Remove Chute Rotation Gear NOTICE: Save all hardware for reinstallation. Stop engine, remove key and wait for all moving parts to stop and for hot parts to cool. Disconnect spark plug wire from engine.

  • Page 35: Scraper Blade Replacement

    Install Chute Rotation Gear SCRAPER BLADE REPLACEMENT Position discharge chute facing forward. Remove Scraper Blade See Figure 57. NOTICE: Save all hardware for reinstallation. Position chute rotation gear on chute mount so edge is square with chute mount bracket. WARNING: AVOID INJURY. Before tipping unit onto handlebars, close fuel valve and drain fuel Align hole in chute gear with holes in chute mount, flat from tank and fuel system.

  • Page 36: Service Parts

    See Figure 59. SERVICE PARTS Slowly tip unit back so it rests on handlebars. Description Part No. Remove remaining hardware securing scraper blade Spark Plug 21547400 to auger housing and remove scraper blade. Attachment Drive Belt 07200514 (921024, 030, 319) Attachment Drive Belt 07200536 (921032, 320, 321)

  • Page 37: Service Record
