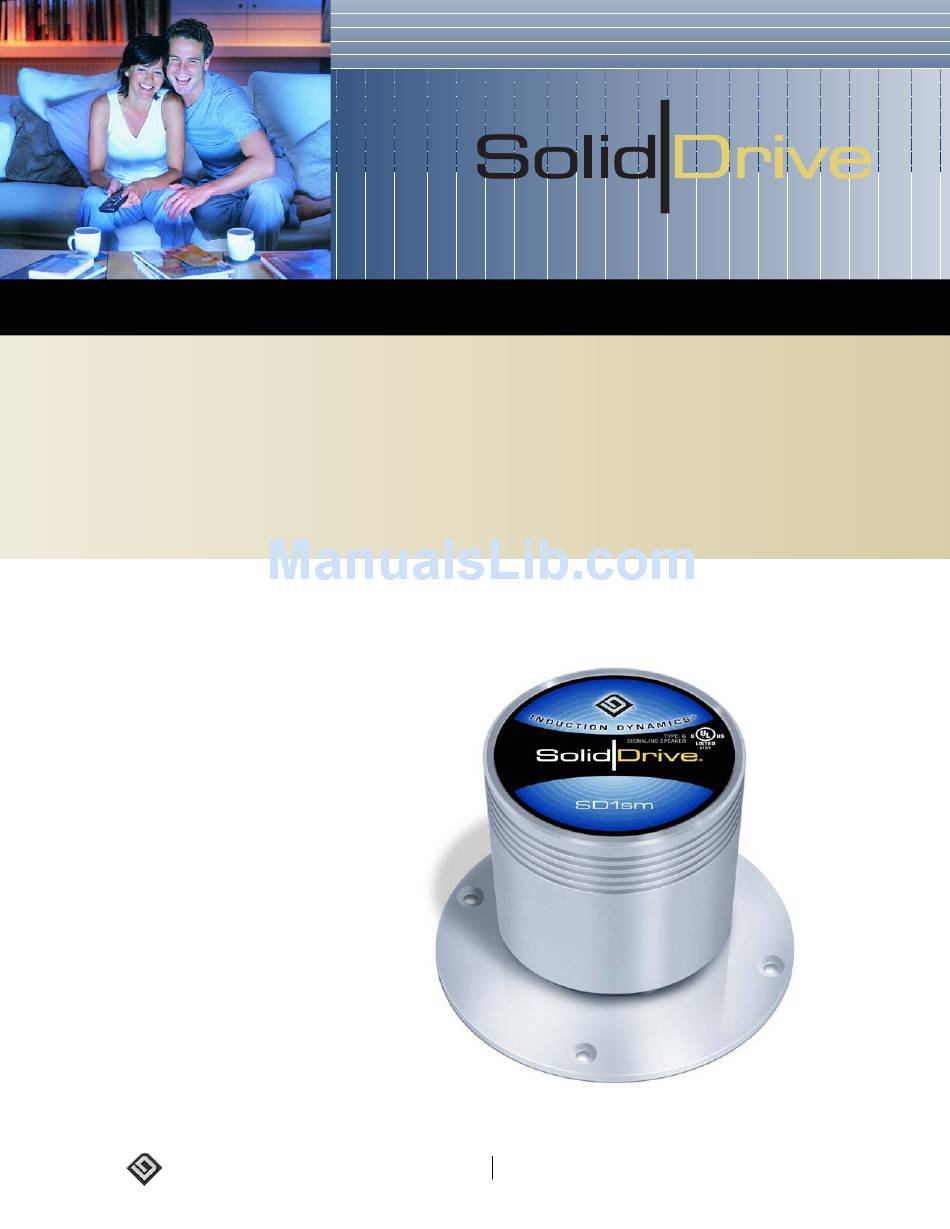

INSTALLATION & USE GUIDE

for SolidDrive SD1sm into wood, laminate,

and composite surfaces

I N D U C T I O N

D Y N A M I C S

Experience

Audio Perfection

Induction Dynamics extensive

line of audio products makes

it easy to create the ultimate

audio system, regardless of

installation requirements.

Induction Dynamics builds

these products with only the

most select components and

materials; and utilizes numerous

unique and proven technologies.

I N D U C T I O N

D Y N A M I C S

A u d i o P e r f e c t i o n R e a l i z e d

Need help?

Do you have a question about the SD1 and is the answer not in the manual?

Page 1 INSTALLATION & USE GUIDE for SolidDrive SD1sm into wood, laminate, and composite surfaces ® I N D U C T I O N D Y N A M I C S ® Experience Audio Perfection Induction Dynamics extensive line of audio products makes...
Page 2 For surfaces made of wood, laminates, and composites the SolidDrive SD1sm should be screwed directly to the surface. Figure 1. Mounting the SolidDrive SD1sm to a table Getting Started with SolidDrive What’s included with the SolidDrive SD1sm for installation on wooden surfaces...
Page 3 SolidDrive SD1sm audio cable. The polarity of the wiring is clearly indicated (Figure 2). Figure 3. SolidDrive SD1sm’s wired in series for high output installations NOTE: When installed in Canada, this product must be installed in accordance with the Canadian Electrical Code, C22.1, Part1.
Page 4 SolidDrive SD1sm Specifications ® Type Full Range Transducer Impedance 8 Ohm Frequency Response (Hz) 70 Hz to 15 kHz Recommended Amplifier Power 10 – 100 Watts Dimensions 2.28" Diameter x 2.08" Height Mounting Plate 3.5'' Diameter Weight 1.2 lb. / .54 kg...
