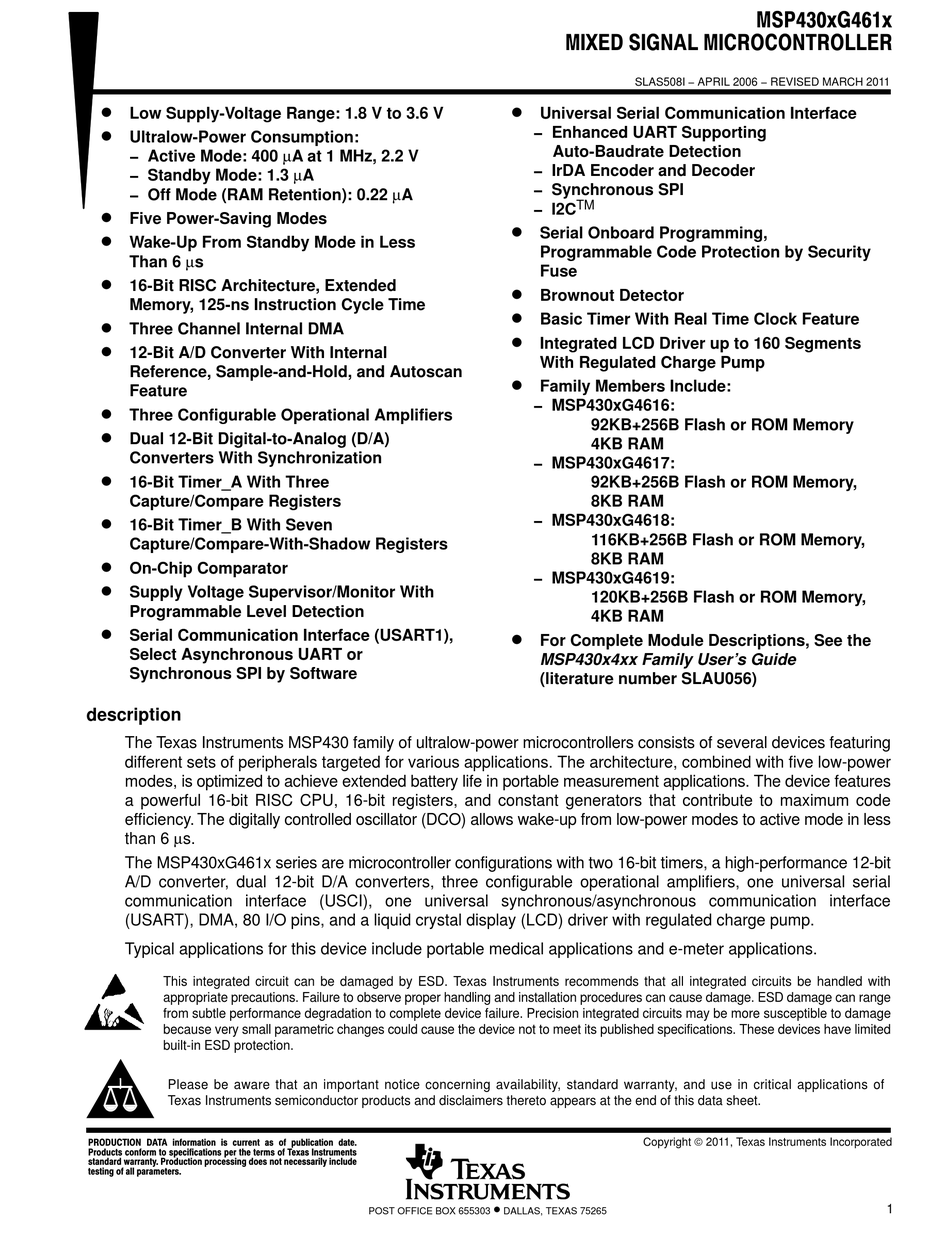

D
Low Supply-Voltage Range: 1.8 V to 3.6 V
D
Ultralow-Power Consumption:
− Active Mode: 400 μA at 1 MHz, 2.2 V
− Standby Mode: 1.3 μA
− Off Mode (RAM Retention): 0.22 μA
D
Five Power-Saving Modes
D
Wake-Up From Standby Mode in Less
Than 6 μs
D
16-Bit RISC Architecture, Extended
Memory, 125-ns Instruction Cycle Time
D
Three Channel Internal DMA
D
12-Bit A/D Converter With Internal
Reference, Sample-and-Hold, and Autoscan
Feature
D
Three Configurable Operational Amplifiers
D
Dual 12-Bit Digital-to-Analog (D/A)
Converters With Synchronization
D
16-Bit Timer_A With Three
Capture/Compare Registers
D
16-Bit Timer_B With Seven
Capture/Compare-With-Shadow Registers
D
On-Chip Comparator
D
Supply Voltage Supervisor/Monitor With
Programmable Level Detection
D
Serial Communication Interface (USART1),
Select Asynchronous UART or
Synchronous SPI by Software
description
The Texas Instruments MSP430 family of ultralow-power microcontrollers consists of several devices featuring
different sets of peripherals targeted for various applications. The architecture, combined with five low-power
modes, is optimized to achieve extended battery life in portable measurement applications. The device features
a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code
efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less
than 6 μs.
The MSP430xG461x series are microcontroller configurations with two 16-bit timers, a high-performance 12-bit
A/D converter, dual 12-bit D/A converters, three configurable operational amplifiers, one universal serial
communication interface (USCI), one universal synchronous/asynchronous communication interface
(USART), DMA, 80 I/O pins, and a liquid crystal display (LCD) driver with regulated charge pump.
Typical applications for this device include portable medical applications and e-meter applications.
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range
from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage
because very small parametric changes could cause the device not to meet its published specifications. These devices have limited
built-in ESD protection.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
D
Universal Serial Communication Interface
− Enhanced UART Supporting
− IrDA Encoder and Decoder
− Synchronous SPI
− I2C
D
Serial Onboard Programming,
Programmable Code Protection by Security
Fuse
D
Brownout Detector
D
Basic Timer With Real Time Clock Feature
D
Integrated LCD Driver up to 160 Segments
With Regulated Charge Pump
D
Family Members Include:
− MSP430xG4616:
− MSP430xG4617:
− MSP430xG4618:
− MSP430xG4619:
D
For Complete Module Descriptions, See the
MSP430x4xx Family User's Guide
(literature number SLAU056)
•
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
MIXED SIGNAL MICROCONTROLLER
SLAS508I − APRIL 2006 − REVISED MARCH 2011
Auto-Baudrate Detection
TM
92KB+256B Flash or ROM Memory
4KB RAM
92KB+256B Flash or ROM Memory,
8KB RAM
116KB+256B Flash or ROM Memory,
8KB RAM
120KB+256B Flash or ROM Memory,
4KB RAM
Copyright © 2011, Texas Instruments Incorporated
MSP430xG461x
1
