Summary of Contents for HD-LINK IW04B-N
Page 1

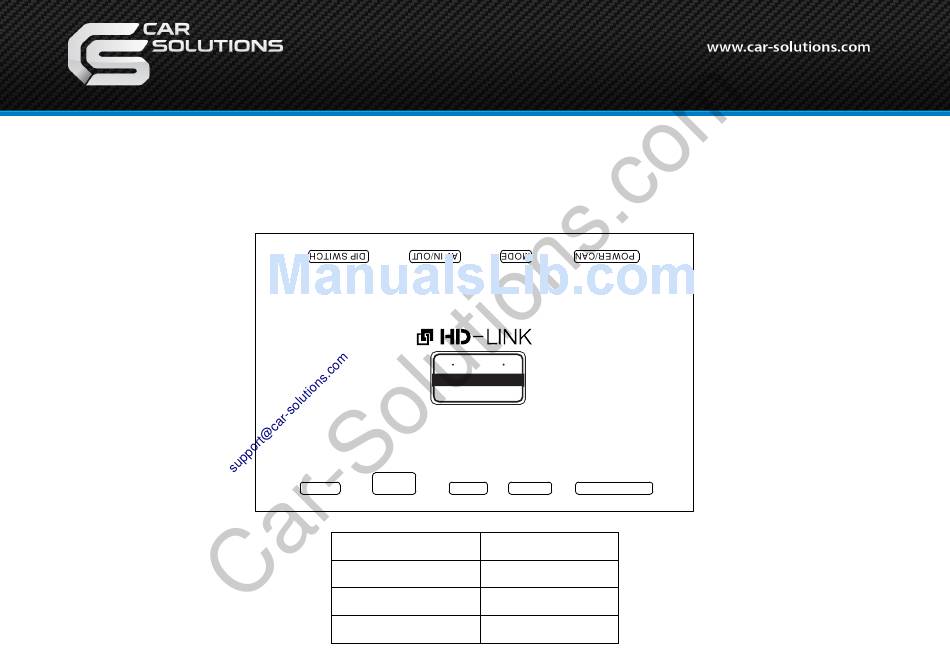

IW04B -N iw04b- n digit a l mul t i int erface f or bmw 5V USB HDMI IN POWER NAVI IN UART I/F LVDS IN/OU T Model Name IW04B-N Latest Firmware Date 2016 -04-12 Manual Version Rev. 2.1 Language English...
Page 2
Navigation(GPS) box-related • When you connect the power wires(B+, ACC) to the navigation(GPS) box, the ‘NAVI (12V) OUT' wire supported by IW04B-N should be spliced with an ACC wire of navigation box. • After installation is done, select an applicable navigation(GPS) box model in the 'Navigation model selection menu' of setting mode.
Page 3
Dimens ion Width: 97 mm Height: 21 mm Length: 142 mm ⓓ ⓐ ⓑ ⓒ E xterior ⓐ DIP SWITCH ⓑ AV IN / OUT ⓒ MODE ⓓ POWER / CAN ⓔ HDMI IN iw04b- n digit a l mul t i int erface ⓕ...
C omponents Power / CAN Cable LVDS Cable AV IN / OUT Cable 5-pin Micro USB Cable Optional P arts (s old s eparately at the K AP ) Mode Switch HDMI Extender (For stick type HDMI device)
F ull Ins tallation Diagram ※ CAN HIGH / LOW Pin Specification IR OUT NAVI 12V Power Output (ACC 12V OUT) ※ Optional External Devices GND Output(GROUND) Mode Switch (optional) RV-CAM Video Input External Rear View 12V Power Output & GND Output(RV-CAM Power) Camera Reverse Signal Detection(optional) Monitor Main-Harness...
HDM I C onnec tion Diagram HDMI Device HDMI Device 5V USB 5V USB HDMI IN HDMI IN POWER POWER HDMI HDMI HDMI HDMI HDMI (5V-1A Power output for HDMI Device) (5V-1A Power output for HDMI Device) (Male) (Female) (HDMI Extender) (HDMI Cable) ‘Stick Type’...
Page 7
Navigation C onnec tion Diagram Navigation(GPS) Box Navigation(GPS) Box NAVI IN UART I/F LVDS IN / OUT NAVI IN UART I/F LVDS IN / OUT HDMI HDMI Touch screen panel Touch screen panel (USB cable connecting is for ‘N-Link’ only.) iNAVI - CUBE N-Link or KG-W14H...
UART I/F POWER Monitor(OEM) (Provided LVDS Cable) 'Genuine(OEM) LVDS connector' should be connected to IW04B-N LVDS IN / OUT port ‘Provided LVDS connector' should be connected to the monitor instead to the genuine connector. Cable (OEM LVDS Cable) Head Unit...
Page 9
B ody C onnec tor s pec ific ations POWER / CAN MODE AV IN / OUT DIP SWITCH ON 1 Length : 20 cm Length : 100 cm Length: 150 cm BATTERY POWER INPUT RV-CAM VIDEO INPUT GND(RV-CAM VIDEO) GND INPUT RV-CAM POWER OUT GND OUTPUT(RV-CAM)
X5 series 2009 -2013 X6 series 2010 - 2013 E71, E72 The IW04B-N supports the BMW original screen equipped with ‘4-pin LVDS round connector’ only. Please check the specification of original LVDS connector on the sidelines of a production year.
Page 11
Return to the OEM mode in any modes. MENU If you visit car service center, you can lock System the all functions of IW04B-N. Locking / Press the button 10 seconds long. It is only possible to use the OEM functions...
Page 12
Rear View PIP (External Rear View Camera) *Parking line color change to green color 1. Rear, AV1 PIP MODE Push the button right 2 seconds long You can use this function only for 3 modes. (Full, PIP Mode1, PIP Mode2)
S ettings For BMW Button Function Operation Enter into the OPTION Press the button 5 seconds long. setting menu Back to previous BACK Press the button short. menu Select the menu Selection Press the button short. and setting values. Move the menu- Turn the dial Move the pointer and setting pointer and adjust...
설정 메뉴 2. HDM I mode s ettings - Mode selection: HDMI ↔ NAVI - Image display = Adjust the values of brightness and contrast Red-Green-Blue colors of HDMI display. - Screen position & size Entry Disabled / Not applicable. 3.
S ettings 4. R ear view c amera s ettings - Parking guide lines = Adjust position of parking guide lines and select the lines ‘ON or OFF’. - Parking distance control = Adjust the position of parking distance control sensors to ‘LEFT or RIGHT’...
S ettings 6. Automatic ac tivation func tion(AV1) - Shift gear from reverse to drive - Shift gear from parking to drive * When you shift gear ‘from reverse to drive’ or ‘from parking to drive’, it just works automatically during the activation time you selected. 7.
- Factory default = Reset all setting values to factory default setting. 9. S ys tem information - Mode name : IW04B-N - Firmware date : 2016 – 01 – 14 (Latest firmware date) - = You can check the current firmware version date.
S ettings 10. Information of Dip s witc h s ettings * You can check the current positions of dip switch settings. ex 1) ex 2) Actual DIP switch values. (→) Actual DIP switch values. (→) Appears on the setting menu. (↓) Appears on the setting menu.
