Summary of Contents for GMTechtronics GMT-RC01

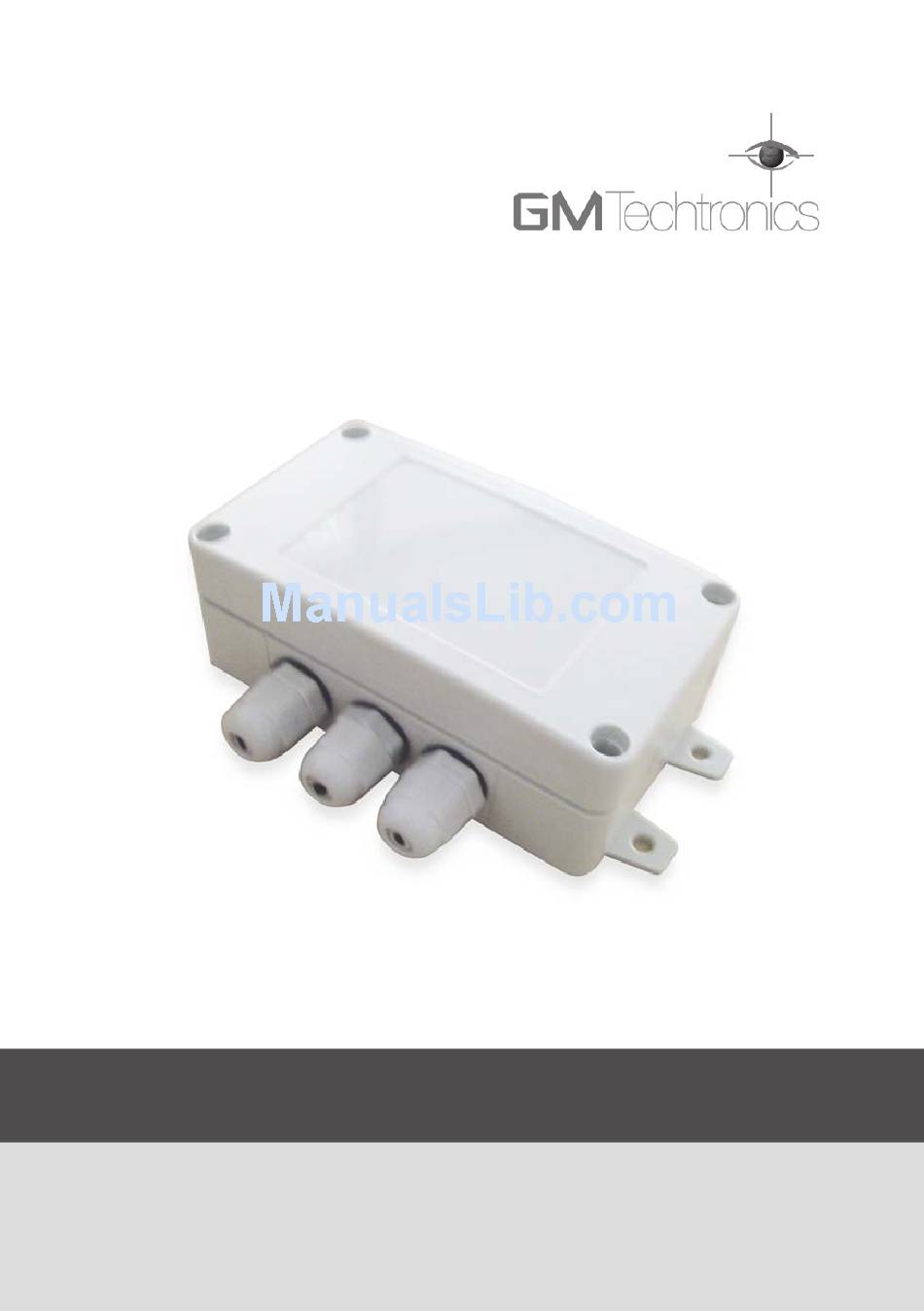

- Page 1 SINGLE CHANNEL GSM SWITCH GMT-RC01...
-
Page 2: Table Of Contents
2.4 How to programme Open Access by Sending Messages from Any Phone Number , ..7 2.5 User Numbers ........................8 2.6 Configuring Output Impulse Duration ................9 2.7 Activating call back acknowledgement ................9 3. Device Programming via GMT-RC01 Config Tool ............10 3.1 GMT-RC01ConfigTool configuration software ..............10 4. Appendix ...........................11 4.1 Technical Support ......................11... -
Page 3: Safety Instructions
Techtronics Limited“. „GM Techtronics Limited“ reserves the right to update or modify this document and/or related products without a warning. Hereby, „GM Techtronics Limited“ declares that this Single Channel GSM Switch GMT-RC01 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. -
Page 4: General Information
1. General Information 1.1 Function GMT-RC01 is a microcontroller based device used to control automatic gates, road barriers or to remotely turn on an elec- tronic device over the GSM network. Examples of using the system: • Controlling road barriers in yards, blocks of flats or offices •... -
Page 5: Connector And Led Indicators Functionality
3. Connect the relay output to the equipment you wish to control (relay is open circuit going closed on activation) 1A / 24V 50Hz ~0,5A 4. Power up the device 5. The device will start in less than a minute. LED indicator will flash indicating connection to GSM network. (please refer to above guide) USER MANUAL GMT-RC01 V1.0... -
Page 6: Device Programming Via Sms
XXXX means password. Don’t leave any space at the beginning or the end of the message. To set GMT-RC01 system parameters easily and quickly you can use our software on any PC, and connect using the en- closed USB lead. You can read more in chapter 3.1. -
Page 7: How To Programme Open Access By Sending Messages From Any Phone Number
XXXX_ALLNUM:OFF 2.5 User Numbers The system GMT-RC01 allows up to 200 different mobile numbers which will have access to controlling the gates by a phone call. The gates can also be controlled by administrators. All numbers must be entered starting with international country code, e. g. national code for UK is 44, the plus sign is not necessary. -
Page 8: Configuring Output Impulse Duration
XXXX_YYYY.MN.DD_HO:MI E.g XXXX_2011.07.12_10:30 2.9 Programming periodic test text The GMT-RC01 can any time be inquired regarding the signal strength and the unit status. Send the following message: XXXX_INFO The unit can also send this message automatically at sets periods. This will enable PAYG Sim cards to remain active and not... -
Page 9: Device Programming Via Gmt-Rc01 Config Tool
E.g. XXXX_INFO:30.23 means a status message will be sent every 30 days at 23:00 2.10 Activating the output via SMS The output relay of the GMT-RC01 can be switched on or off via SMS. This is done by sending the following texts: This will switch the relay ON... - Page 10 Technical Support: 08448246693 E-Mail: info@gmtechtronics.co.uk...
