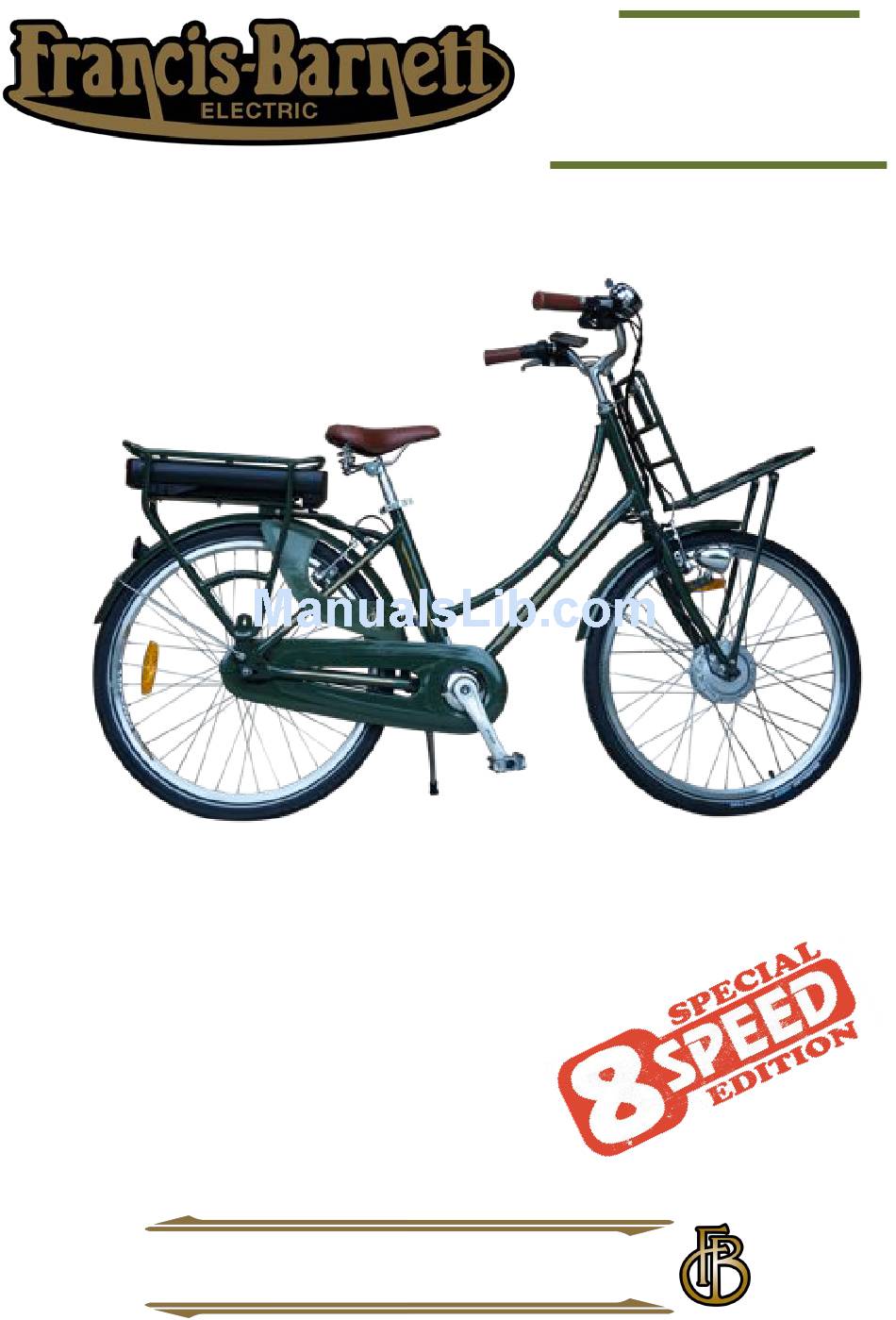

Page 1 Owner Manual FBST Classic Electric Bicycle...
Page 2 DATATAG ETCH NUMBER:- IMPORTANT PLEASE READ THIS MANUAL FULLY BEFORE USE For your safety and to ensure a long and trouble free life of your Francis-Barnett Electric bicycle, check the operation of brakes, lights, bell and gears, and check tyre pressures are correct.
Page 3: Table Of Contents
Thank you for purchasing a Francis-Barnett Electric Bicycle With care and correct usage your bicycle will give many years of service. Important PLEASE CHARGE THE BATTERY BEFORE FIRST USING THE BICYCLE Even though the battery indicator will show charge this cannot be relied upon until the battery has had the initial full charge.
Page 4: Parts Identification
PARTS IDENTIFICATION DISPLAY We continually strive to ensure that we provide you with POWER the best possible products, therefore SWITCH SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Rear Brake Lever Battery Security Lock Motor Cutout Switch Battery LCD (Display) Rear LED Light Bell 8 Spd Alfine Hub Front Brake Lever...
Page 5 LOWER PART OF SEAT TUBE OTHER SIDE RIGHT SIDE VIEW OF BATTERY OTHER SIDE LOWER PART OF SEAT TUBE...
Page 6: Battery Care & Charging
BATTERY CARE & CHARGING Your Francis-Barnett Electric Bicycle uses a Lithium battery for it's power and the following points will directly affect battery life and performance. Storage Batteries do not like to be stored in very hot or very cold conditions or to be subject to conditions of high moisture.
Page 7 Using the Charger Two types of battery charger are used by Francis-Barnett. (Only one will be supplied). Both have a charge light which will display RED when charging and change to GREEN when the battery is charged. The alternative type charger also has a second light which shows RED when mains power is applied.
Page 8: Using The Power Assistance
Usage Your Francis-Barnett Electric Bicycle can be used as a normal pedal cycle by simply not switching on the battery. (or using in Zero Assist - see below) Display Information Areas FUNCTION CYCLE ASSIST TYPE COMPUTER LEVEL Buttons MODE DOWN...
Page 9 ELECTRIC BICYCLE FUNCTIONS Switching On To use under electric power, switch on at the power switch on the side of the battery, then press the MODE button on the handlebar LCD display. Control Buttons By means of the three buttons, MODE, UP and DOWN, on the handlebar mounted display unit, the various functions of the power controller and Cycle Computer can be utilised.
Page 10 Battery Meter The LCD shows the charge remaining in the battery in the lower right of the display. The indicators will gradually go out as the battery power is used up. Refer to the table below for details. BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY SYMBOL CHARGE FLASHING...
Page 11 Speed Display The top right large digits will normally display the current speed of the bicycle. For the UK market this is set to show miles per hour (MPH). The display is accurate to about 10% when the wheel size is correctly calibrated and the tyre inflated as per the manufacturers recommendations.
Page 12 Pedal Assistance There are 5 levels of pedal assistance available from the motor. Using the UP and DOWN buttons you can select from Level 2 (ECO), to Level 6 (BOOST). The motor will then be activated upon pedalling. There is a rotation sensor located near the crank which senses when the pedals are being used.
Page 13 No Assistance - Normal Pedal Bicycle If the assistance level is set to ZERO, then the motor will not be turned on. Your Francis-Barnett Electric Bicycle will now act and feel like a normal bicycle. This is useful when you are feeling fit at the start of a journey or using your bike for exercise purposes.
Page 14 PUS flashes whilst in Walk Assist mode. BS EN15194 Compliance The Francis-Barnett Electric range is compliant with BS EN15194. For the British market, the addition of a throttle control has rendered this not compliant in some countries. ● You are recommended to seek advice from the relevant...
Page 15: Programmable Functions
Programmable Functions As delivered the Francis-Barnett Electric range is set up to use straight away in the most popular configuration, but there are a number of functions which can be tailored to suit the individual rider. These are user set as per the following sections.
Page 16 Backlight Contrast The backlight of the display can be set to one of three values. level 3 is the brightest, level 2 medium and level 1 is the lowest setting. Adjust to suit for night time riding. To change the level use the UP and DOWN buttons.
Page 17 This menu is for setting the size of the wheel and tyre combination so that the speed display is accurate. The 26" x 1.75" tyres fitted to the Francis-Barnett Electric Bicycles as supplied require a setting of 26 in Replacement tyres rarely require a change of setting.
Page 18 DEALER SETTINGS - DO NOT ADJUST BATTERY DISPLAY VOLTAGE If you see any of the screens shown on the right then you have inadvertantly entered a dealer configuration menu. You must not edit any of these settings as they will affect how your display shows battery levels, and changes may invalidate your warranty.
Page 19: Troubleshooting
The changes you made in the TO EXIT three screens will be saved SETTINGS and the display will return to normal operating mode THIS ACTION CAN BE PERFORMED FROM ANY OF THE SETTINGS SCREENS TROUBLESHOOTING Diagnostic Error Messages The display can also show diagnostic information in the event of a malfunction.
Page 20: Cycle Computer Functions
CYCLE COMPUTER The Francis-Barnett Electric range has useful Cycle Computer functions built in. There is a built in sensor and pickup located in the rear hub which activates the speed and distance readings. Initial Display (SPEED) When first turned on...
Page 21 Average Speed since Current Speed in MPH last reset Maximum Speed since Trip Time since last reset last reset Trip Distance in Miles Total Distance in Miles (Cannot be reset)
Page 22 Resetting the Trip To reset the TRIP Distance and Trip Time at the start of a journey, ensure that either TRIP or TRIP TIME is showing on the display and simply press and hold the MODE (M) and DOWN (-) buttons simultaneously, and hold for 2 seconds.
Page 23: Standard Bicycle Functions
STANDARD BICYCLE FUNCTIONS Gears The Francis-Barnett FBST Special Edition is provided with 8 speed Shimano Alfine gears. To change gear SQUEEZE to you use the right handlebar mounted gear change UP selector levers. Gear number 1 is low for hills and rough terrain and gear 8 is high for normal road use.
Page 24 The front rack may be removed if required. Make sure that any items carried are securely strapped and nothing is able to get caught in the wheels. All other operation of your Francis-Barnett Electric bicycle is as per a normal pedal cycle.
Page 25 Quick Release fittings for Seat Height Adjustment With the locking lever in the loose position, tighten the nut until finger tight. The final tightening is done by moving the lever to the locked position. To undo move the lever to the loose position to enable height adjustment.
Page 26: Datatag
Datatag is fitted as standard to your Francis-Barnett Electric bicycle We believe that there are many advantages to having the system fitted. Our customers often worry about the possibility of theft and Datatag has a proven track record as a deterrent. There are other benefits too, including cheaper insurance as major insurers offer reduced premiums for Datatagged bikes.
Page 27 A quick scan of the QR code displays the Make & Model of the bike but does not display any personal information. Police can obtain further information via their linked PNC systems. Datadots ® A superior microdot identification system developed for ease of use. The Datadots ®...
Page 28: Maintenance Schedule
MAINTAINANCE SCHEDULE Maintaining your bicycle ensures you’ll get the most out of every ride and out of the entire life of your Francis-Barnett Electric bicycle. How much of your bike’s maintenance you can do yourself will depend on your knowledge, skill, experience and whether you have the necessary tools for the job.
Page 29: Tyre Pressures
(or YEARLY if sooner) ● Hub motor and general inspection We recommend you arrange to have a thorough inspection of your bicycle by a Francis-Barnett Electric bicycle dealer. This includes opening up the hub motor to inspect and lubricate the gears. Tyre Pressures The tyres should be pumped up to within the range stated on the sidewall.
Page 30: Special Battery Features
SPECIAL BATTERY FEATURES Battery Fuse Battery Fuse If the battery will not operate or charge 20A Blade Type correctly, firstly switch off the battery (Automotive) and check the battery fuse (rated 20A) located on the underside of the battery Yellow beneath the pull off cover.
Page 31 Please consider the environment before disposing of any part of your Francis-Barnett Electric Bicycle. The Battery Pack contains Lithium and Special Consideration should be given to its safe disposal. Your Local Authority should have the necessary facilities in place. If you prefer you may take your original battery to BATRIBIKE for recycling.
Page 32: Warranty
● Warranty is non transferable and applies only to the original owner. ● The Frame of your new Francis-Barnett Electric Bicycle is guaranteed for 3 years from date of purchase. ● The Motor and Electronics are guaranteed for 2 years from date of purchase.
Page 33 Extended Battery Warranty Terms & Conditions A free upgrade to a 2 year battery warranty is offered for purchasers registering their Francis-Barnett Electric bicycle. This is in addition to the standard warranty listed in the manual. This offer is only valid if the Warranty Registration is completed and returned to BATRIBIKE within 28 days of purchase.
Page 34: Specifications
FBST - Special Edition 8 Speed Technical Specification...
Page 35: Certificate Of Compliance
Certificate of Compliance No. 0G150414.FUQ38 Certificate’s FALLOWGATE LIMITED Kellaway House, Marton Road, Sturton-By-Stow, Holder: Lincoln, Ln1 2ah, UK Manufacturer: Wuxi United Mobility Technology INC No.21 South Industrial Park (Houzhai), Wuxi, China Certification ECM Mark: Type European Conformity Approved Product: Electric Bicycle Model(s): Batribike Storm and Oxygen MTBX, Batribike Classic CB, Batribike Classic ST...
Page 36 Francis-Barnett Electric Bicycles are exclusive to:- Fallowgate Limited Kellaway House Marton Road Sturton-by-Stow Lincoln Fallowgate are LN1 2AH Members of the Phone: 01427 787774 Bicycle Association of Great Britain E-mail: support@batribike.com ----- USER MANUAL Francis-Barnett Electric - ISSUE 1 SE - ©2015 Fallowgate Limited -----...
