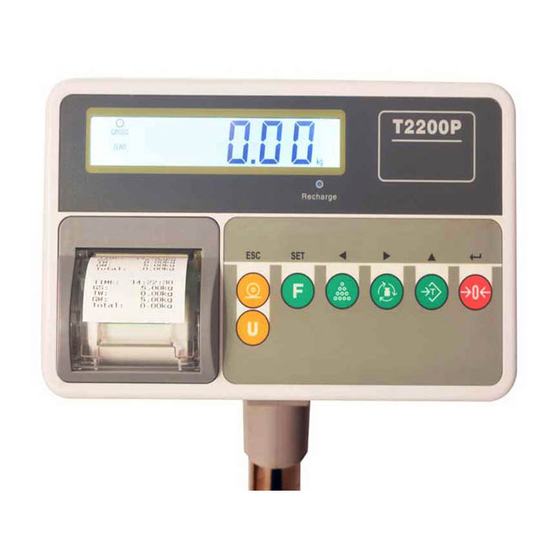

T2200P
series
Weighing Indicator
User's guide
UGT2200P-E1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T2200P series and is the answer not in the manual?

Questions and answers

Summary of Contents for Taiwan Scale T2200P series

  • Page 1 T2200P series Weighing Indicator User’s guide UGT2200P-E1.00...

  • Page 3: Table Of Contents

    T2200P serial weighing indicator user’s manual Table of Contents SECTION 1 INTRODUCTION………………………………………………………………1 SECTION 2 SPECIFICATIONS……………………………………………………..……2 SECTION 3 INSTALLATION……………………………………………………………….3 SECTION 4 KEY DESCRIPTIONS………………………………………………………4 SECTION 5 DISPLAYS…………………………………………………………………….5 SECTION 6 OPERATION…………………….……………………………………….…..6 6.1 Zeroing the display………………………………………………………………….6 6.2 Taring……………………………………………………………………………..…….6 6.3 Weighing a sample…….………………………………………………….………….6 6.4 Parts counting…………………………………………………………………………6 6.5 Check-weighing…………………………………………………………………….7 6.6 Accumulated total……………………………………………………………………….8 SECTION 7 PARAMETERS………………………………………………………………9...

  • Page 5: Section 1 Introduction

    T2200P serial weighing indicator user’s manual SECTION 1 INTRODUCTION The T2200P series of weighing indicator provides an accurate, fast and versatile series of general purpose weighing indicator with counting and check-weighing functions. There are 2 series of indicator within the range.

  • Page 6: Section 2 Specifications

    T2200P Weighing Indicator User’s Guide SECTION 2 SPECIFICATIONS Model T2200P Resolution 1/15,000 Interface RS-232 Output Optional Stabilisation Time 1 Seconds typical Operating Temperature 0°C - 40°C / 32°F - 104°F Power supply (external) 110/ 240 Vac, 50/60Hz Calibration Automatic External Display 6 digits 24mm LCD display, with LED backlight indicator Housing...

  • Page 7: Section 3 Installation

    T2200P serial weighing indicator user’s manual SECTION 3 INSTALLATION The weighing indicator should be sited in a location that will not degrade the accuracy. Avoid extremes of temperature. Do not place in direct sunlight or near air conditioning vents. Avoid unsuitable tables. The tables or floor must be rigid and not vibrate. Do not place near vibrating machinery.

  • Page 8: Section 4 Key Descriptions

    T2200P Weighing Indicator User’s Guide SECTION 4 KEY DESCRIPTIONS ZERO or Set the zero point for all subsequent weighing. The display shows zero. A secondary function , of "Enter" key when setting parameters or other functions. TARE or Tares the scale. Stores the current weight in memory as a tare value, subtracts the tare value from the weight and shows the results.

  • Page 9: Section 5 Displays

    T2200P serial weighing indicator user’s manual SECTION 5 DISPLAYS The LCD display will show a value and a unit to the right of the digits. In addition there are labels for TARE, GROSS weight, Zero Low Battery Symbol Parts Counting Units Stability Symbol g/pcs oz %...

  • Page 10: Section 6 Operation

    T2200P Weighing Indicator User’s Guide SECTION 6 OPERATION 6.1 Zeroing The Display You can press the ZERO key at any time to set the zero point from which all other weighing and counting is measured, within 4% of power up zero. This will usually only be necessary when the platform is empty.

  • Page 11: Check-Weighing

    T2200P serial weighing indicator user’s manual number should match the options for parts counting, 10, 20, 50, 100 or 200 pieces. 10" asking for a sample Press the SMPL key to begin. The scale will show "P size of 10 parts. Change the sample size by pressing the TARE key, the display will cycle through the options: 10,20, 50, 100, 200 and back to 10.

  • Page 12: Accumulated Total

    T2200P Weighing Indicator User’s Guide operate. To disable the Check-Weighing function enter zero into both limits by pressing the FUNC key when the current limits are shown then pressing ZERO to store the zero values. 6.6 Accumulated Total The scale can be set to accumulate manually by pressing the PRINT key. See the PARAMETERS Section for details of selecting the method using function "F5 PRT".

  • Page 13: Section 7 Parameters

    T2200P serial weighing indicator user’s manual SECTION 7 PARAMETERS The scale has 6 parameters that can be set by the user plus a method of entering the calibration section. To set parameters press the FUNC key. The display will show the first function, "F0 H-L". Pressing the TARE key will cycle through the other functions.
  • Page 14 T2200P Weighing Indicator User’s Guide FUNCTION MENU SETTINGS TABLE SUB-FU DEFAULT FUNCTION DESCRIPTION NCTION VALUE F4 off CLoCK Set clock off or on, CLK off CLK of / CLK on. When set clock on, scale will display clock after standby for 5 minutes. Set the backlight to be on, automatic or off, EL Au EL on / EL Au / EL off...
  • Page 15 T2200P serial weighing indicator user’s manual Print out format form 1 (for LP-50 printer) 0.666kg 0.222kg 0.222kg GS: 0.888kg TW: 0.222kg TOTAL: 0.222kg 0.666kg GW: 0.888kg 0.888kg TOTAL: 0.222kg DATE: 04/06/06 DATE: 04/06/06 DATE: 04/06/06 DATE: 04/06/06 0.666kg 0.222kg 0.222kg 0.888kg TW: 0.222Kg TOTAL: 0.444kg...

  • Page 16: Section 8 Rs-232 Output

    T2200P Weighing Indicator User’s Guide SECTION 8 RS-232 OUTPUT The T2200P Series of scales can be ordered with an optional RS-232 output. 9. 1 basic information Specifications: RS-232 output of weighing data ASCII code 8 data bits No Parity Connector: 25 pin d-subminiature socket...

  • Page 17: Continuously Output Protocol

    T2200P serial weighing indicator user’s manual 9. 3 continuously output protocol con1: weighing mode ， CR LF -HEADER1-- - HEADER2- --- WEIGHT DATA -- -WEIGHT UNIT- TERMINATOR con1: counting mode ： CR LF - QTY - -QTY UNIT- HEADER1: ST=STABLE， US=UNSTABLE HEADER2: NT=NET，...

  • Page 18: Section 9 Calibration

    T2200P Weighing Indicator User’s Guide SECTION 9 CALIBRATION The scale can be calibrated using the following procedure. For a more detailed method of calibrating the scale it will be necessary to enter the secure Programming Menu. See detail in section 12. The T2200P weighing indicator can calibrate using either metric or pound weights, depending on the weighing unit in use before calibration.

  • Page 19: Section 10 Error Code

    CODES - - - - - Over range Remove weight from the scale. If the problem persist contact your dealer or Taiwan scale for assistance. Err 1 Date Setting Error Enter date using correct format and reasonable values. Format: yy:mm:dd...

  • Page 20: Section 11 Technical Parametes

    T2200P Weighing Indicator User’s Guide SECTION 11 TECHNICAL PARAMETERS You can press SMPL, PRINT, TARE key to enter setting mode at PROG mode FUNCTION SUB-FUNCTION DESCRIPTION P1 REF AZN 0 This option is used to select the auto zero maintain Options : 0.5d, 1d, 2d, 4d 0-AUTO This option is used to select the auto zero range...
  • Page 21 T2200P serial weighing indicator user’s manual FUNCTION SUB-FUNCTION DESCRIPTION MODE This is a subtration scale (print out “-“ weight) Print format: GROSS: 0.888KG gross for gross weight NET: 0.222KG net for net weight TARE: 0.666KG tare for tare weight MODE As the mode 2, but print out format different NW: 0.222KG nw for net weight GW:0.888KG...
  • Page 22 − Hand push and pull gauge − Customize auto weighing systems TAIWAN SCALE and their distributors offer a full range of technical services such as on site and workshop repair, preventative maintenance and calibration facilities. TAIWAN SCALE operates an approved quality management system and is certified to ISO9001:2000.
