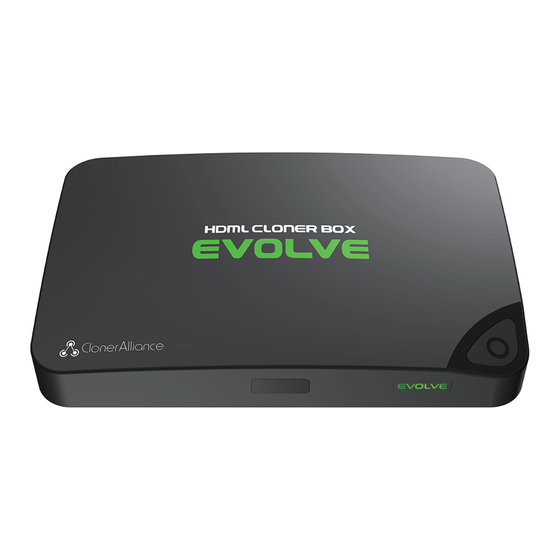

Before using HDML-Cloner Box Evolve, please ensure that you read and understand the safety precautions below: 1. Do not attempt to open the case of HDML-Cloner Box Evolve or modify it in any way, as this will void the warranty. -
Page 3: Table Of Contents
Contents Box Contents Product Diagram How to record videos to the USB flash drive/TF card Connect Record/Capture Bitrate Setup (No Video Split) How to record videos to PC Connect Install the driver software Install and register HDML-Cloner Pro Helper Menu Navigation Frequently Asked Questions Supported Resolutions Product Specifications... -
Page 4: Box Contents
Box Contents a. Power Adapter b. AV Cable c. Installation CD d. Micro-USB to USB Cable e. HDML-Cloner Box Evolve f. Remote Control g. User Manual h. HDMI Cable i. USB Flash Drive... -
Page 5: Product Diagram
1. IR: Receives the IR signal from the remote control. 2. LED light: Three colors are available: white, blue and green. When HDML-Cloner Box Evolve is turned on, the LED will illuminate white for a while, then blink blue/green alternately and finally illuminate solid blue or solid green. - Page 6 Storage TF Card 4. TF Card: Insert the TF card into this slot and record videos to this storage medium. 5. Storage: Insert the USB flash drive or mobile hard disk and record videos to this storage medium.
- Page 7 6. 5V/2A: Plug the power adapter into this socket and power on HDML-Cloner Box Evolve. 7. 1 IN: Connect an HDMI cable between a source video player and HDML-Cloner Box Evolve. 8. 2 IN: Connect an HDMI cable between another source video player and HDML-Cloner Box Evolve.
- Page 8 : Insert the headphone plug into this jack to output voice. : Insert the microphone plug into this jack to input voice.
- Page 9 : Turn on/Turn off the power of HDML-Cloner Box Evolve. : Capture a JPEG image. : Start recording. : Show the main menu. : Stop recording. : Adjust the volume of the source video. : Adjust the volume of the microphone voice.
-
Page 10: How To Record Videos To The Usb Flash Drive/Tf Card
1. Plug the power adapter into the power socket and plug the other end into the 5V/2A port of HDML-Cloner Box Evolve. 2. Connect the video source device to HDMI IN* on HDML-Cloner Box Evolve via an HDMI cable. * You can connect up to 3 video source devices by connecting them to HDMI1 IN, HDMI2 IN and AV/L/R IN respectively via cables and press the "Source"... -
Page 11: Record/Capture
Record/Capture 1. After all devices are connected properly, please power on HDML-Cloner Box Evolve, the video image from the video player will display on TV and the LED will illuminate solid blue or solid green. - Page 12 1. If the source video is 1080p, the LED will illuminate solid blue; if the source video is 720p, the LED will illuminate solid green. 2. HDML-Cloner Box Evolve supports the function of CEC wake-up. If the HDMI video source device is turned on, other devices connected to it via HDMI cables will be...
- Page 13 2. Press the Record/Stop button on the capture box or press the REC button on the remote control. Then the LED will blink blue/white or green/white alternately, which indicates the capture box is in the process of recording. 3. Press the Record/Stop button again on the capture box or press the STOP button on the remote control.
-
Page 14: Bitrate Setup (No Video Split)
Bitrate Setup (No Video Split) Press on the remote control and the bitrate selection menu will pop up. There are six options available, which are LIMITED: 4M, LIMITED: 10M, LIMITED: 16M, UNLIMITED: 4M, UNLIMITED: 10M and UNLIMITED: 16M. If you select a bitrate suffixed with LIMITED, the recorded video saved to the storage device in FAT32 or NTFS format will be split into several 2GB files. -
Page 15: How To Record Videos To Pc
1. Plug the power adapter into the power socket and plug the other end into the 5V/2A port of HDML-Cloner Box Evolve. 2. Connect the video source device to HDMI IN* on HDML-Cloner Box Evolve via an HDMI cable. You can connect up to 3 video source devices by connecting them to HDMI1 IN, HDMI2 IN and AV/L/R IN respectively via cables and press the "Source"... -
Page 16: Install The Driver Software
Install the driver software After all devices are connected properly, when you switch on the power of HDML-Cloner Box Evolve, the system will prompt "Found a new hardware" and install the driver automatically. Please make sure "Full HD Capture Device" is installed successfully and appears in the Device Manager (Right click My... -
Page 18: Install And Register Hdml-Cloner Pro Helper
PC all the time while capturing. With this excellent software and HDML-Cloner Box Evolve, you can capture videos from any video source and keep them in your collection quite easily. - Page 19 DA0XXX-XXXXXX-XXXXXX-XXXXXX-XXXXXX Fill in your proper Email address, real name and code (The code can be found on the back of HDML-Cloner Box Evolve, which is in the form of DA0XXX-XXXXXX-XXXXXX-XXXXXX-XXXXXX). Then click "OK" to finish the registration. For more details about recording videos to PC, please scan the QR code above to visit the Frequently...
-
Page 20: Menu Navigation
Menu Navigation Press on the remote control to browse the menu settings of HDML-Cloner Box Evolve. Under the TIME column, there are six options: System Time, OSD Language, Aspect Ratio, Software Update, Restore Factory Default and Version. - Page 21 System Time: Set the time of HDML-Cloner Box Evolve by year, month, day, hour, minute and second. OSD Language: Set the language to be displayed on the menu. Czech, English, Japanese, Simplified Chinese and Traditional Chinese are available. Aspect Ratio: Auto, 4:3, 16:9, Zoom 1, Zoom 2 and Just Scan are available.
-
Page 22: Frequently Asked Questions
1. Why did my capture box switch itself off automatically? After HDML-Cloner Box Evolve is connected, if your TV screen displays no signal, and this state lasts about 3 minutes, your capture box will be shut down automatically. 2. What do different colors of the LED light indicate? - Page 23 4. If I insert both the USB flash drive and TF card into my capture box, where will my video be saved? If you insert both the USB flash drive and TF card into HDML-Cloner Box Evolve, the video will be saved into the first connected storage device. Meanwhile, when the storage space of one device is full, the capture box will stop recording instead of recording to another storage device.
- Page 24 6. Does the remote control work when HDML-Cloner Box Evolve is connected to PC? When HDML-Cloner Box Evolve is connected to PC, the following red buttons on the remote control will not work.
- Page 25 7. What should I do if the following interface appears? Oh, something wrong! Don't worry! ... In this case, please visit http://www.cloner-alliance.com/support.html to get support. 8. Does HDML-Cloner Box Evolve support the function of CEC wake-up? Yes.
-
Page 26: Supported Resolutions
Supported Resolutions 3840x2160 (30p), 2560x1440 (60p) 1920x1080 (50p), 1920x1080 (60p) 1920x1080 (24p), 1920x1080 (25p), 1920x1080 (30p) Input/Output 1920x1080 (50i), 1920x1080 (60i), 1280x1024 (60p) 1280x720 (60p), 1280x768 (60p), 1280x800 (60p) 720x480 (60i), 720x480 (50i) 640x480 (60p), 720x480 (60p), 720x576 (50p) 1920x1080 (30p), 1280x720 (60p), 1280x720 (30p) Recording 640x480 (60p), 720x480 (60p), 720x576 (50p) -
Page 27: Product Specifications
Product Specifications Output format MP4 (H.264) Video standards (input) NTSC, PAL Supported disk formats FAT32, NTFS Input signals HDMI1, HDMI2, AV, Audio L/R, MIC Output signals HDMI (pass-through), USB, Micro USB, TF Bitrate Max: 16Mbps Maximum storage capacity Maximum 2TB for a USB flash drive; Maximum 32GB for a TF card CEC wake-up Support... -
Page 28: Contact Us
HDMI is a registered trademark of HDMI Licensing, LLC. USB is a registered trademark of USB Implementers Forum. HDMI, USB, DVD, Blu-ray, Xbox, PS3 and PS4 are registered trademarks of their respective companies. ClonerAlliance Inc. is not affiliated with those companies.
