Spitznas 2 2418 0010 Operation And Maintenance Manual

Hydraulic rotary hammer also for underwater application
Hide thumbs

Advertisement

Quick Links

Download this manual
M a s c h i n e n f a b r i k G m b H
Hydraulic
Rotary Hammer

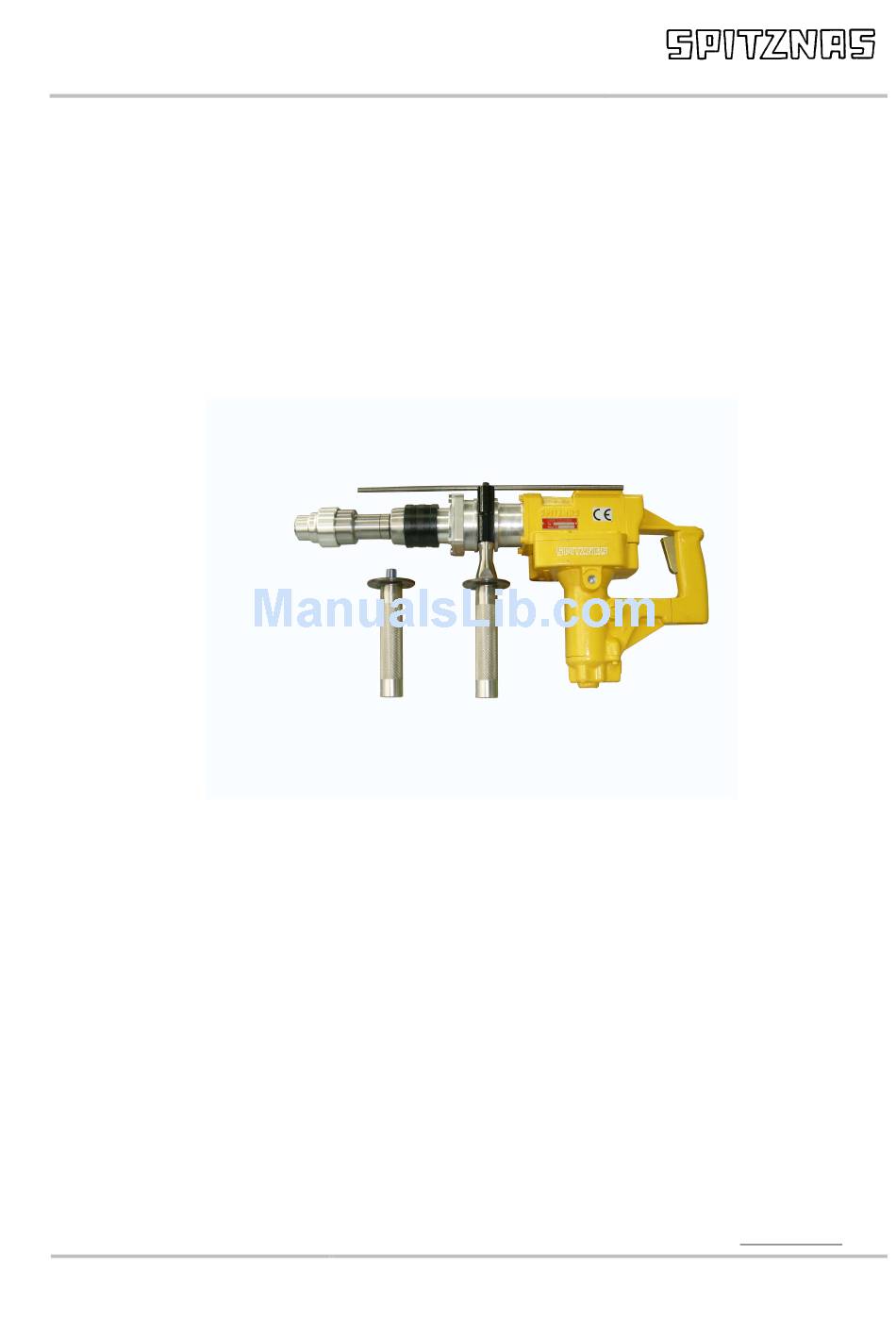

Type 2 2418 0010
also for underwater application
Illustration can differ from the original
Operation and
Maintenance Manual
Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605
29, www.spitznas.de
Translation of the original operation
224180010_BA_en_Version_06
Page 1 of 11
manual, compiled: 12.09.13

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2 2418 0010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Spitznas 2 2418 0010

  • Page 1 Type 2 2418 0010 also for underwater application Illustration can differ from the original Operation and Maintenance Manual Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation 224180010_BA_en_Version_06 Page 1 of 11...

  • Page 2: Technical Specifications

    Gears sealed dust tight with central and permanent lubrication (maintenance free) Adjustable side handle with depth gauge and water flushing Supplied kit: 1 carrying case, 1 dust guard Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation...

  • Page 3: Safety Instructions

    Switch off the machine if it stops - for any reason - to avoid the unexpected starting in uncontrolled condition. Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation...
  • Page 4 ATTENTION! Never use the hydraulic hose as a lifting handle! Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation...
  • Page 5 Maintenance Filter at hydr. Breakdown of the unknown unknown machine assembly Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation 224180010_BA_en_Version_06 Page 5 of 11 manual, compiled: 12.09.13...
  • Page 6 When working in a surrounding at 4° C, impact interruptions can occur. Therefore it is recommended to start the machine and warm it up first. Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de...
  • Page 7 Do not reverse the fluid flow from that marked on the tool ports. Flows, when reversed, will not be limited by the priority flow control valve Always use the open-center (OC) tool on open-center circuits. Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation...
  • Page 8 (400 SSU/ 82 centistokes) before use. Damage to the hydraulic system or the machine can result from use with fluid that is too viscous or too thick. Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de...
  • Page 9 In the bevel gear In the spur gear In the planetary gear Grease SPITZNAS reference no. 9 9902 0130 (400 g), 9 9902 0250 (100 g) Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de...
  • Page 10 For the operation of the hydraulic motor we recommend high-class hydraulic oil, e. g. HLP 46, depending on the case of operation (temperature). Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation...

  • Page 11: Troubleshooting

    Name of the authorized person for documentation: Mr. Simon Witt Address of the authorized person for documentation: see manufacturer’s address 42555 Velbert, 11.02.13 Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation...
