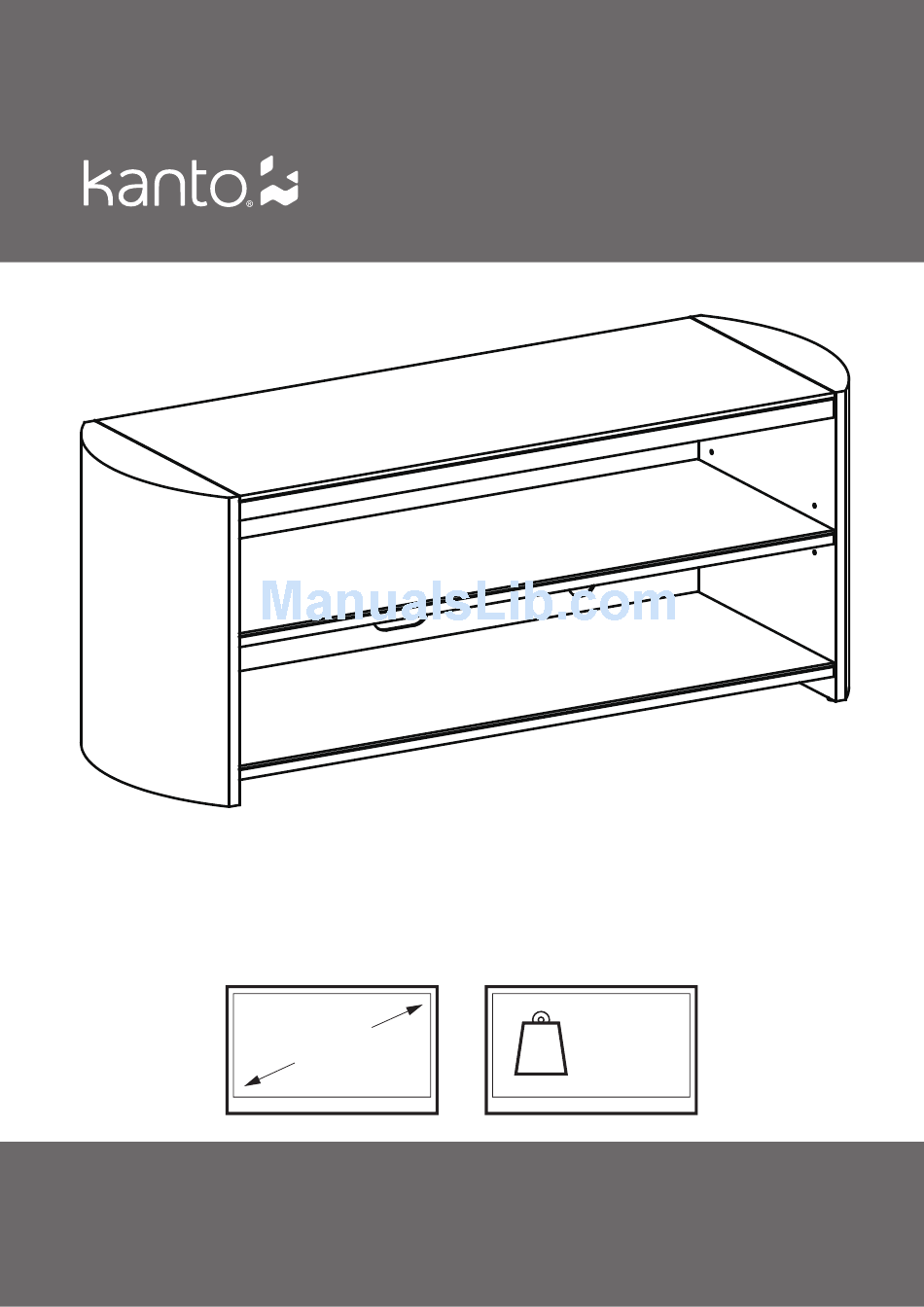

- Page 1 English User Manual OASIS 50” TV Stand 50” TV STAND FOR 37” TO 60” TELEVISIONS 260 lbs 37” - 60” (118 kg) ™ Supporting your digital lifestyle...
- Page 2 Setup - Step 1 ......4 Other Kanto Products ..... . 8 Setup - Step 2 .
- Page 3 Supplied Parts and Hardware A: M6 x 32mm B: M4 x 15mm C: 12mm D: 4mm Allen Hex Head Bolt Bolt Rubber Bumper front view rear view E: Rounded F: Backing Board G: Rear Support Wood Ends Frame H: Top Frame I: Middle Frame J: Bottom Frame K: Top Glass (8mm)
- Page 4 Step 1: Attach Metal Frames to Wood Ends Assemble the Oasis structure using the three metal frames, two wooden ends and 12 M6 bolts, as shown in Diagram A. Ensure that you orient the angled braces and the two holes on each frame towards the back of your Oasis.
- Page 5 Position the Backing Board (F) against the back of the To help your alignment when it’s time to attach the Back Oasis TV Stand, oriented as shown in Diagram B. Frame in Step 3, insert an M6 x 32 mm Bolt (A) through one of the two top center holes of the Backing Board Step 2.2 Start All Six Bolts.
- Page 6 Step 3: Attach Rear Support Frame and Rubber Bumpers The Rear Support Frame provides added strength to the Oasis stand, and will allow you to attach a Kanto Stand Mount (packaged separately) if you have purchased an Oasis Plus model, or added the Stand Mount later.
- Page 7 Step 4: Place the Glass To complete the assembly of your Oasis Stand, simply place the three pieces of glass on the frames from the front, as shown in Diagram E. The top glass (K) is 8mm thick, and the other two pieces (L) are 6mm thick. Your stand is now complete.
-
Page 8: Warranty
24 months parts and labour If equipment fails because of such defects and Kanto or an authorized dealer is notified within 24 months from the date of shipment with proof of original invoice. Kanto will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
