Summary of Contents for Westeel 2000

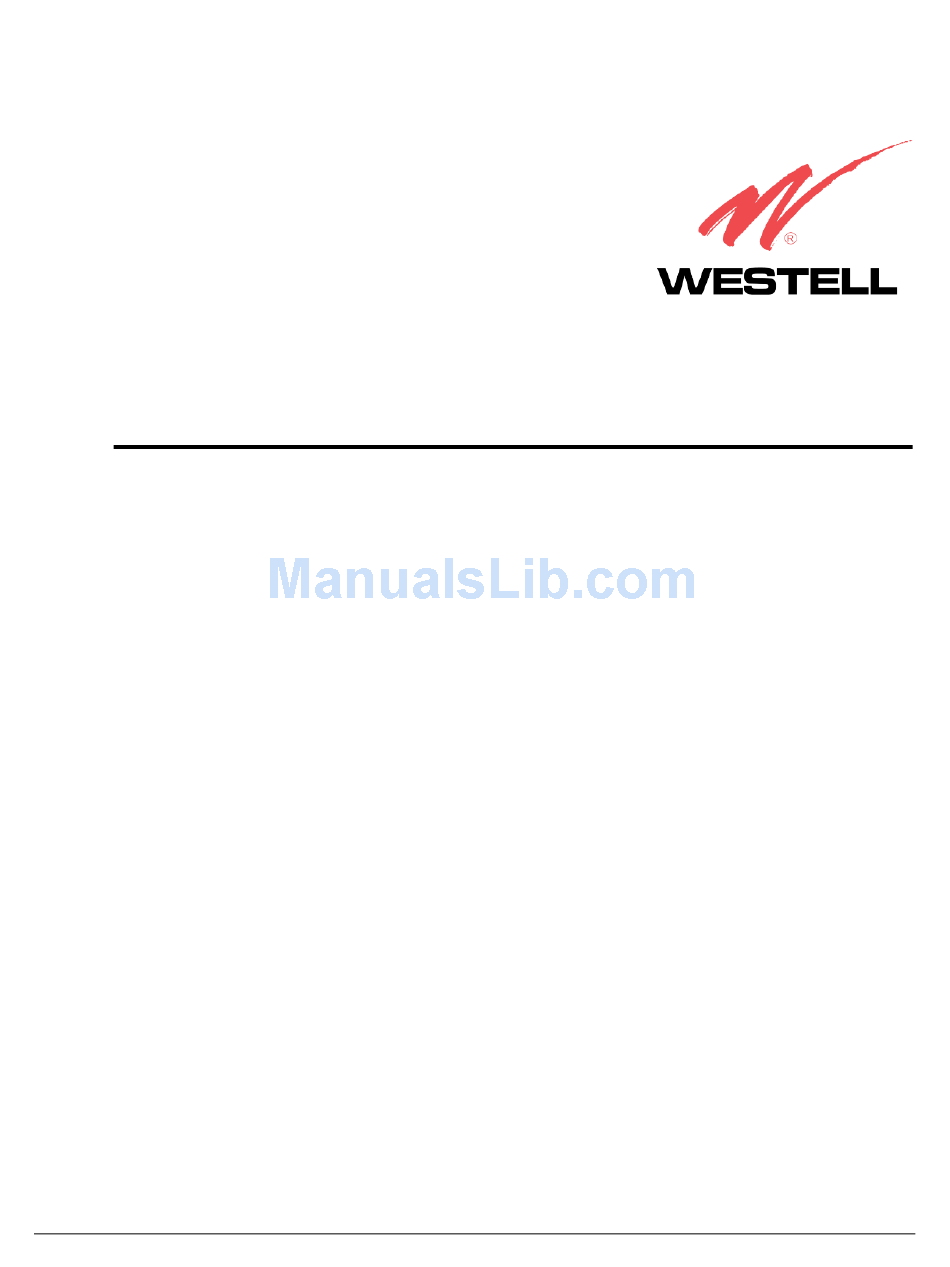

- Page 1 PEED ADSL M 2000) ODEM ODEL User Guide ©Copyright 2001 Westell, Inc. All rights reserved. 030-300187 Rev. A Printed in the United States of America December 2001...
-
Page 2: Table Of Contents
User Guide WireSpeed ADSL Modem CONTENTS PRODUCT DESCRIPTION............................1 SAFETY ..................................1 INSTALLATION ................................3 TROUBLESHOOTING..............................6 TECHNICAL SUPPORT INFORMATION........................ 7 PRODUCT SPECIFICATIONS ........................... 8 1. PRODUCT DESCRIPTION The Westell WireSpeed ADSL Modem uses an existing phone line to provide reliable, high-speed Internet access for your home or office. - Page 3 User Guide WireSpeed ADSL Modem FCC Compliance Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Installation
User Guide WireSpeed ADSL Modem Repairs to certified equipment should be coordinated by a representative, and designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure, for their own protection, that the electrical ground connections of the power utility, telephone lines, and internal, metallic water pipe system, if present, are connected together. - Page 5 User Guide WireSpeed ADSL Modem Connectors The following items are located on the rear panel of the ADSL Modem (see Figure 1). Tables 1 through 3 list the connector types and pinout designations. • DSL (LINE) connector (RJ-11) • Power connector (Barrel) •...
-
Page 6: Installation Instructions
User Guide WireSpeed ADSL Modem Installation Instructions 3.5.1 Getting Connected Refer to the diagram shown in Figure 2 and follow steps below to connect the ADSL modem. Note: Before you connect the modem via 10/100Base-T, you must have an available Ethernet card installed in your computer. -
Page 7: Troubleshooting
User Guide WireSpeed ADSL Modem 3.5.2 Installing Your ISP Software Follow the steps below to install the modem software. Install the software that was provided by your Service Provider per their instructions. Enter your user password and ID information that was provided by your Service Provider. 4. -
Page 8: Technical Support Information
User Guide WireSpeed ADSL Modem 5. TECHNICAL SUPPORT INFORMATION Westell Technical Support If technical assistance is required, contact Westell by using one of the following options: Phone: 1-630-375-4500 email: global_support@westell.com Visit Westell at www.westell.com to obtain additional information, view frequently asked questions, or enter on-line service requests. -
Page 9: Product Specifications
User Guide WireSpeed ADSL Modem 6. PRODUCT SPECIFICATIONS IMENSIONS Width: 6.3 in. (16.0 cm) Depth: 5.07 in. (12.8 cm) Height: 1.6 in. (4.0 cm) EIGHT Approx. 2.0 lbs. (.90 kg) NVIRONMENTAL Ambient Operating Temperature: +32 to +104°F (0 to +40°C) Relative Humidity: 5 to 95%, non-condensing OWER UPPLY... - Page 10 User Guide WireSpeed ADSL Modem PUBLICATION INFORMATION WireSpeed ADSL Modem User Guide Document Part No. 030-300187 Rev. A Created December 2001 ©2001, Westell, Inc. All rights reserved. Printed in USA. Westell, Inc. 750 North Commons Drive Aurora, IL 60504 USA Web site: www.westell.com Trademarks...
