Summary of Contents for Swiss Ecoline SD1000

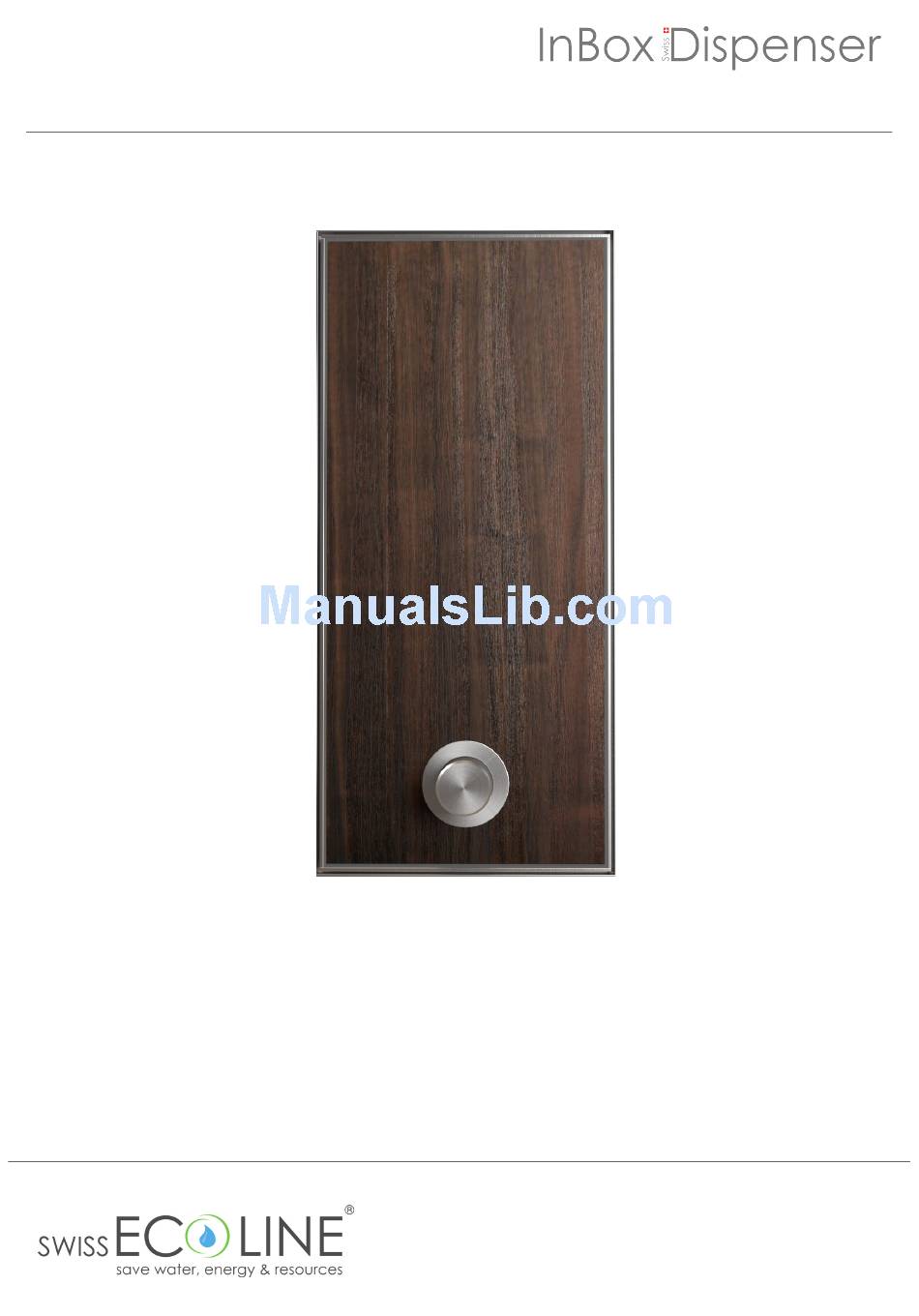

- Page 1 INSTALLATION INSTRUCTION SD1000 Felsenaustrasse 29 Zürichbergstrasse 80 CH- 7004 Chur CH- 8044 Zürich Tel: +41 81 254 36 20 Tel: +41 44 268 44 90 Chur • Zürich www.swissecoline.com email: info@swissecoline.com www.swissecoline.com...
-
Page 2: Table Of Contents
Installation instruction lid SD1000B ..........11 Installation instruction locking SD1000S ........12 Installation instruction bottle holder SD1301 ........13 Installation instruction pump unit SD1320 ........14 Installation and Removal SD1000 Installation ..................15 Removal ..................16 Care and Cleaning ................ 17 Chur •... -
Page 3: Introduction
INSTALLATION INSTRUCTION Introduction Purpose of this document In this document the single installation steps are described. Copyright notice This document is intellectual property of the manufacturer and may not be copied, duplicated or used for execution without their consent. Unauthorized use is punishab- le as per Art. -
Page 4: Delivery
INSTALLATION INSTRUCTION 2 Delivery • 1 pcs. installation box • 1 pcs. cover • 1 pcs. lid (only with the lid version) • 1 pcs. lid holder (only with the lid version) • 1 pcs. space rings (only with the lid version) • 1 pcs. bottle holder • 1 pcs. pump unit • 1 pcs. bottle 0.5 litres • 1 pcs. bottle cap • 1 pcs. bottle clap • 1 pcs. sealing (bottle cap) • 1 pcs. sealing (bottle claps) • 1 pcs. hose nozzle • 1 pcs. hose (125mm) • 1 pcs. spring NF31150.01 • 4 pcs. impellers • 4 pcs. cap nuts M4 (with the lid version, 6 pcs. cap nuts M4) Chur • Zürich www.swissecoline.com... -
Page 5: Installation
INSTALLATION INSTRUCTION 3 Installation Installation instruction installation box SD1200 Installation by the plumber As soon as the rendering mortar is applied, the installation box can be mounted Installation height according information and plans of the plumber Installation height as from finished floor – middle of box The installation box is screwed directly on the rendering mortar with the included 6-size dowels and the with the 4 countersunk bolts each 25 mm The box must be aligned in the vertical and horizontal in the middle of the structural box. The chamfered (polished) side down. - Page 6 INSTALLATION INSTRUCTION Chur • Zürich www.swissecoline.com...
-
Page 7: Installation Instruction Installation Box Sd1200 In Dry Systems
INSTALLATION INSTRUCTION Installation instruction installation box SD1200 in dry systems Installation by the plumber For the SD1000 the structural box is not used For the installation box the gypsum plasterboard is cutted, measurements as per drawing (use internal dimensions) Chur • Zürich www.swissecoline.com... - Page 8 INSTALLATION INSTRUCTION Insert installation box and screw it at the stiffening profile (steel profile, system holder) Installation height according to construction plans The box must be aligned in the middle of the cut-out of the wall in the vertical and horizontal Please note that the installation box anywhere rests properly Sealing of installation box according to detailed plan. The country-specific standards and regulations must be respected and have priority over our installation recommendations.
- Page 9 INSTALLATION INSTRUCTION installation frame dispenser silicone joint stiffening profile (steel) silicone sealing tape lightweight wall (columne, double planked) sealing priming tile adhesive tile Chur • Zürich www.swissecoline.com...
-
Page 10: Installation Instruction Cover Sd1300
INSTALLATION INSTRUCTION Installation instruction cover SD1300 Delivery by the plumber to the tile layer Tiles as per information of the customer The tiles must be drilled by using the enclosed template. The drill-hole is used for the installation of the pump units. Before the adhesive mortar - tile adhesive can be attached, the cover must be treated with a primer (adhesive base). The primer is determined according to information (data sheet) of the adhesive mortar which is used... - Page 11 INSTALLATION INSTRUCTION Chur • Zürich www.swissecoline.com -10-...
-
Page 12: Installation Instruction Lid Sd1000B
INSTALLATION INSTRUCTION Installation instruction lid SD1000B The lid holder has to be plugged to the front of the cover Screw the lid from the rear of the cover with the cap nuts M4 Now the cover can be tiled by the tile layer Before the adhesive mortar – tile adhesive can be attached, the cover must be treated with a primer (adhesive base). The primer is determined according to information (data sheet) of the adhesive mortar which is used for the installation of the tile. After the cover has been tiled, the lid can be installed The space rings are placed between the cover and the lid and afterwards the dispenser (pump unit) can be slipped and screwed with the nut from the rear of the cover... -
Page 13: Installation Instruction Locking Sd1000S
INSTALLATION INSTRUCTION Installation instruction locking SD1000S Delivery of cover to the tile layer for tiling Before the adhesive mortar - tile adhesive can be attached, the cover must be treated with a primer (adhesive base). The primer is determined according to information (data sheet) of the adhesive mortar which is used for the installation of tile. After the cover has been tiled the locking can be installed. Insert the locking through the top opening and screw it from the back to the cover. -
Page 14: Installation Instruction Bottle Holder Sd1301
INSTALLATION INSTRUCTION 3.7 Installation instruction bottle holder SD1301 The bottle holder has to be screwed to the cover by using the enclosed M4 cap nuts Insert the 0.5 litre bottle and fix it with the screwtop Align the hose nozzle to the right and tighten the bottle cap Please take care that the hose nozzle is tightened properly! Chur •... -
Page 15: Installation Instruction Pump Unit Sd1320
INSTALLATION INSTRUCTION 3.8 Installation instruction pump unit SD1320 pump unit The pump unit (5 pcs.) is fixed to the tiled cover by using the M30x1.5 screws The hole on the pump button is aligned downwards Then the M30x1.5 screw can be tightened The spring NF31150.01 is drawn over the hose and a part of it over the pump unit Now the hose can be put into the pump unit and to the hose nozzle Chur • Zürich www.swissecoline.com -14-... -
Page 16: Installation And Removal Sd1000
INSTALLATION INSTRUCTION 4 Installation and removal SD1000 bottle cap When installing or removing the complete dispenser unit the following points have to be observed. They are described in the following chapters. 4.1 Installation Before the dispenser unit can be installed, the bottle cap has to be removed Tilt the dispenser at an angle and lay it with the joint piece on the bolt of the installation box (see picture Pos. 1). -
Page 17: Removal
INSTALLATION INSTRUCTION Joint piece lies on the bolt Pos.1 cutout Pos. 2 4.2 Removal The dispenser unit is pulled out up to the cutout (see picture Pos. 2) Lift it slightly until the hinge can be pushed through the cutout Withdraw the dispenser unit until the joint piece stands on the bolt (see picture Pos. 1) Now till it slightly downwards and remove the dispenser unit Please note: When installing or removing the dispenser unit, please take care that this... -
Page 18: Care And Cleaning
INSTALLATION INSTRUCTION 5 Care and cleaning Lasting pleasure with your InBox Swiss Dispenser With this dispenser unit you have purchased a high-quality product: We want you to enjoy the design and high functionality permanently ! For this purpose, we support you with our care and cleaning recommendations.
