General Descriptions
Thank you for your purchase. This product features include:
*Microcomputer control
*Separate DMX addressing for each channel
*Each channel can be programmed with the DMX address, and the preheat

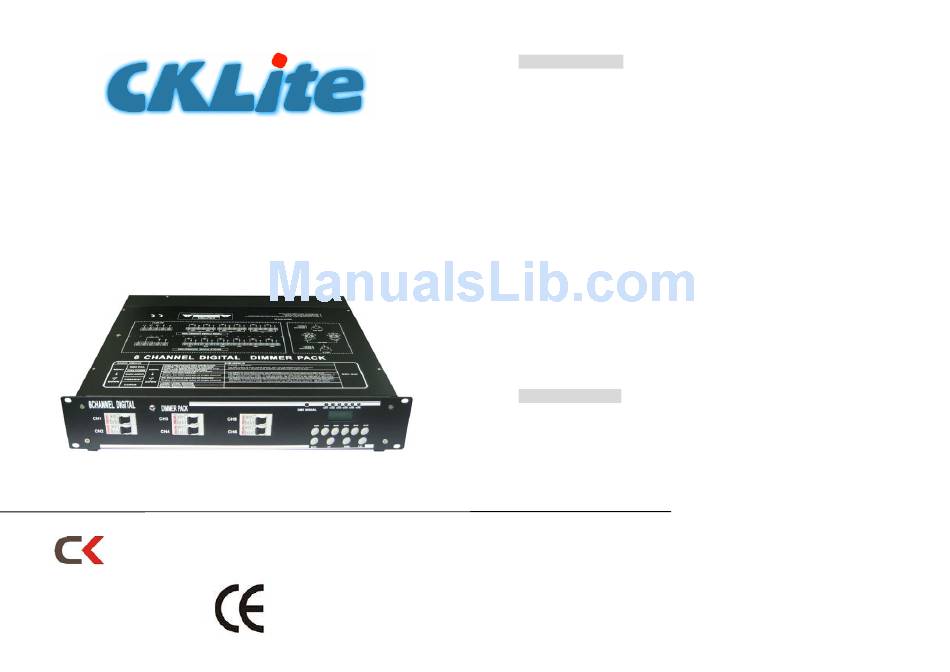

6CH DMX DIMMER PACK
of the lamps
*12 chase programs can be recalled as required, chase speed is adjustable.
Item No： CK-206
*Chase programs1-12/ DMX Hold/Analogue can be selectable in the event
USER MANUAL
that DMX failure.
*Phase correction activates linear dimming(0-100%).
*Control curve can be selectable from Linear/Switch/Square.
*Analogue input works without any adjustment.
*The short circuit protection for each channel with the use of 10A circuit
breaker.
*LCD shows clear menu and vivid dynamic images.
*Electronic protection against over temperature and short circuits.
*Power failure memory.
General Instructions
Please read through this operating instruction before installing or using your
new product. After you have finished reading the instructions, put them away
in a safe place for future reference.
www.cklight.com.cn
****************************************
©Copyright
Advertisement
Summary of Contents for Cklite CK-206
- Page 1 *Each channel can be programmed with the DMX address, and the preheat 6CH DMX DIMMER PACK of the lamps *12 chase programs can be recalled as required, chase speed is adjustable. Item No： CK-206 *Chase programs1-12/ DMX Hold/Analogue can be selectable in the event USER MANUAL that DMX failure.
- Page 2 WARNING! Overview 1.1 Front View This product must be earthed. To prevent fire or shock hazard, do not expose this product under high temperature or moisture area. Do not make any inflammable liquids, water or metal objects enter the unit. No user serviceable parts inside, do not attempt repairs.
- Page 3 2.1.2 Adjust whole intensity temporarily: Tap UP/DOWN button to select 1.Power Input: AC 220V~50/60Hz,60A max. desired intensity, each tap will change intensity once. Pressing the button for two seconds changes channel intensity quickly. 2.Terminal Output: Single phase: 10A/CH., Total 60A Three phase: 10A/CH., Total 20A per phase 2.2 Basic Menus: In Beginning Menu, tap MENU button to enter Basic 3.DMX Output: This connector sends DMX signal through to the next...
- Page 4 button to select Block/Single. [Block]: Complete dimmer(6 channels) has only one start address. Technical Specifications [Single]: The DMX address of each channel is selectable, several channels can select the same DMX addresses. Power Input ............AC220V~50-60Hz 3.Tap UP/DOWN button to scroll to Block/Single menu, and tap MENU to Channel Output(Single phase)......
