Sun Bandit ai24po Owner's Manual

24.1-inch lcd flat panel monitor

Advertisement

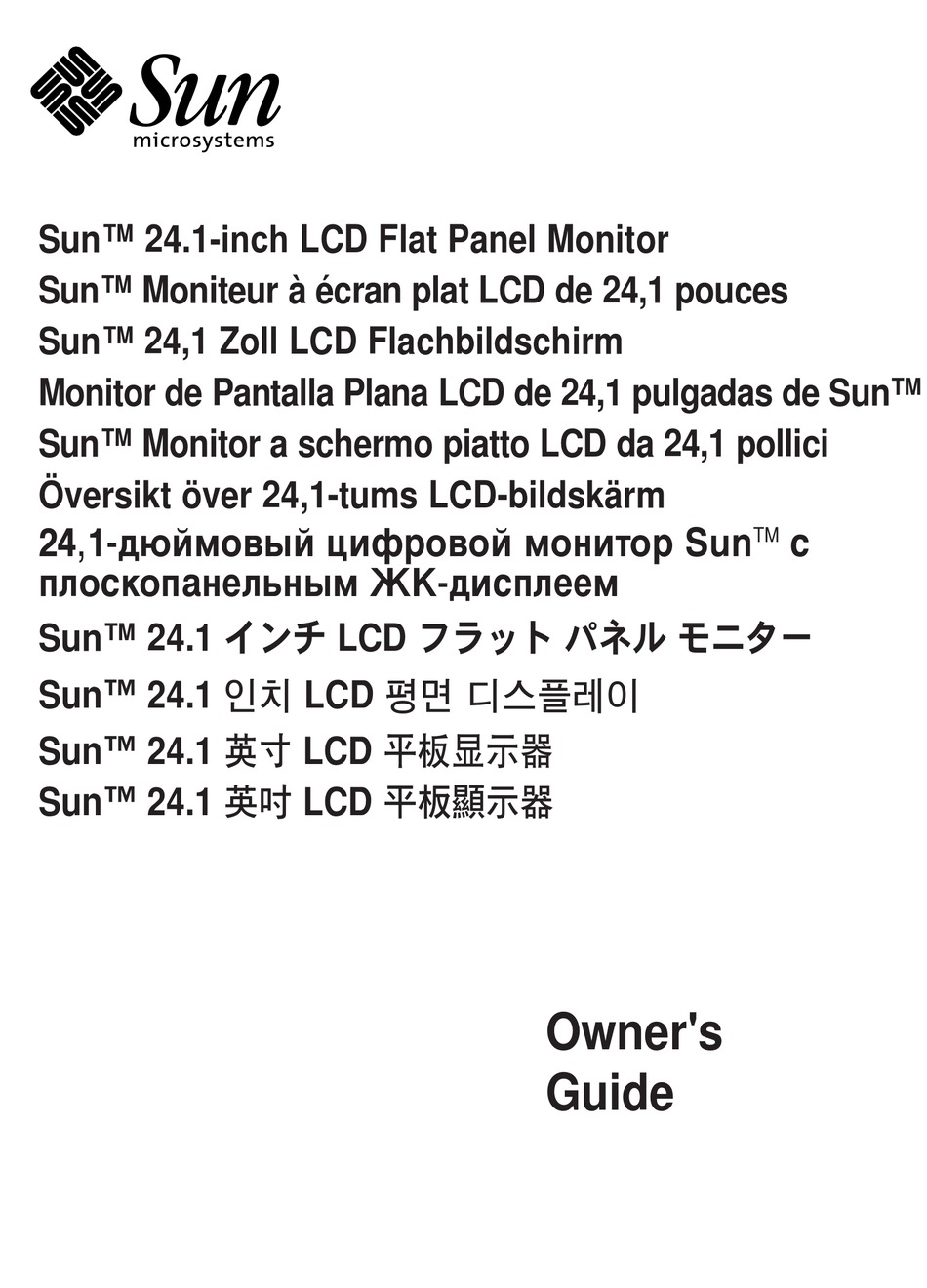

Sun™ 24.1-inch LCD Flat Panel Monitor
Sun™ Moniteur à écran plat LCD de 24,1 pouces
Sun™ 24,1 Zoll LCD Flachbildschirm
Monitor de Pantalla Plana LCD de 24,1 pulgadas de Sun™
Sun™ Monitor a schermo piatto LCD da 24,1 pollici
Översikt över 24,1-tums LCD-bildskärm
24,1-‰˛ÈÏÓ‚˚È ˆËÙÓ‚ÓÈ ÏÓÌËÚÓ Sun
ÔÎÓÒÍÓÔ‡ÌÂθÌ˚Ï ∆K-‰ËÒÔÎÂÂÏ
Sun™ 24.1 インチ LCD フラット パネル モニター
Sun™ 24.1 인치 LCD 평면 디스플레이
Sun™ 24.1 英吋 LCD 平板顯示器
Sun™ 24.1 英吋 LCD 平板顯示器
Owner's
Guide
TM
Ò

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ai24po and is the answer not in the manual?

Questions and answers

Summary of Contents for Sun Bandit ai24po

  • Page 1 Sun™ 24.1-inch LCD Flat Panel Monitor Sun™ Moniteur à écran plat LCD de 24,1 pouces Sun™ 24,1 Zoll LCD Flachbildschirm Monitor de Pantalla Plana LCD de 24,1 pulgadas de Sun™ Sun™ Monitor a schermo piatto LCD da 24,1 pollici Översikt över 24,1-tums LCD-bildskärm 24,1-‰˛ÈÏÓ‚˚È...
  • Page 2: Safety Instructions

    Safety Instructions Never use your monitor if the power cord has been damaged. Do not allow anything to rest on the power cord, and keep the cord away from areas where people can trip over it. Be sure to hold the plug, not the cord, when disconnecting it from an electric socket.
  • Page 3 Maintenance of Your 24.1-inch LCD Monitor WARNING: To avoid risk of electric shock, do not disassemble the monitor cabinet. The unit is not user-serviceable. User maintenance is restricted to cleaning as explained below: Unplug the monitor power supply from the power outlet before cleaning. •...
  • Page 4: Package Contents

    Preface  The Sun 24.1-inch LCD Monitor Owner’s Guide contains important information about the set up and use of your new monitor. • Provides setup and installation instructions. • Provides use and care information. • Describes controls and features. • Suggests troubleshooting steps you can take to resolve issues on your own.
  • Page 5: Where To Find Additional Information

    Where to Find Additional Information • Check the included CD ( ) for additional content. Note that 705-0087-10 some co-packaged products contain materials on their respective CDs. • The docs.sun.com website enables you to access Sun technical documentation on the Web. You can browse the docs.sun.com archive or search for a specific book title or subject at: •...
  • Page 6 Overview of Your 24.1-inch LCD Monitor Figure 1-1. Front panel Video source selector (1 ~ 2) and indicator lights Your Sun 24.1-inch LCD Monitor allows you to connect as many as four video sources (two computer and two auxiliary video) at one time. Use this button to select which source your monitor should display.
  • Page 7 Power button and indicator light Use this button to turn the monitor on and off. The power indicator light glows green during normal operation and amber if no signal is supplied. On-Screen Menu adjustment controls and direct-access controls Use these buttons to access the on-screen menu (OSM), the Brightness Direct-Access controls, and to make adjustments to the various OSM features.
  • Page 8 DC14V power adapter connector Connect the power adapter jack here. (power cord for adapter to wall outlet is supplied in the computer system country kit) USB hub/ports For your convenience, a powered USB hub is built into the monitor. This built-in USB hub includes one upstream and four downstream USB ports.
  • Page 9: Kensington Security Slot

    Camera Mounting Pad A retractable camera mounting pad (top center) is provided for convenient placement of a digital camera such as the Sun Microsystems 1394 Firewire camera, P/N 370-4161-01. (Note: 1394 cameras will not plug into this monitor.) Figure 1-4. Rear view Universal Mechanical Mount The unique adjustable pivoting mechanism allows for independent adjustment of height and tilt.
  • Page 10: Installation

    Installation Viewed from front/bottom Power cord supplied in computer country kit Figure 1-5. Connecting your monitor to a computer Note: 1920 X 1200 is the native, primary, and default (1:1) resolution of this monitor. Use of resolutions below 1920 X 1200 will result in: 1.) distorted image if expanded.
  • Page 11 When connecting your monitor to a digital workstation, connect the signal cable to the DIGITAL (DVI) connector ( ). Connect the other end of the cable to the digital video port on the back of your workstation. When connecting your monitor to an analog computer: •...
  • Page 12 Plug the power cords from your system and your monitor into a nearby outlet. Turn on your system and monitor. If your monitor displays an image from the computer, installation is complete. Optimize the picture as described in “Auto Adjustment” on page 8*.
  • Page 13: Getting Help

    Getting Help If your monitor does not display an image, check your cable connections and refer to “Troubleshooting” on page 24. If you experience difficulties with the quality of the displayed image, run ‘Auto adjustment’* again and refer to “Adjusting Your Monitor” on page 11. *Auto Adjustment is for ‘ANALOG (13W3)’...
  • Page 14 Push the MENU/SELECT button to toggle into the ‘Image Quality’ sub-menu. Use the down ( ) arrow button to select the ‘Auto Adjustment’ sub-menu. Press MENU/SELECT to activate the ‘No/Yes’ sub-menu. Use the down ( ) arrow button to select ‘Yes’. Press the MENU/SELECT button once to activate the Auto Adjustment feature.
  • Page 15 Monitor Self Test - Analog and Digital Your monitor provides a self test feature which allows you to check if your unit is functioning properly. If your monitor and computer are properly connected, but the monitor screen remains dark and the power indicator is blinking, use the following steps to perform the monitor self test.
  • Page 16: Adjusting Your Monitor

    Turn off your monitor and reconnect the video cable; then turn on both your system and monitor. If your monitor screen remains blank after using the above procedure, check your video controller and computer system. A blank screen at this step indicates your monitor is functioning properly.
  • Page 17 The PIP button activates the “picture-in-picture” feature. You can relocate, resize, and deactivate the secondary window using the PIP Menu (OSM). Your monitor also includes PBP (picture-by-picture), which allows you to split the screen vertically into two zones (left and right).
  • Page 18: Automatic Save

    Automatic Save Whenever you open the on-screen display and allow an adjustment window to remain on-screen for approximately twenty seconds (default) without pressing another button, this monitor automatically saves any adjustments you have made. If you have made no adjustments, the on-screen menu disappears and the monitor does not save anything7 Direct-Access Features The features described in this section can be accessed quickly, at the touch of...
  • Page 19: Onscreen Menu System

    Push and hold the MENU/SELECT button for 5 seconds to Lock or Unlock the controls. When locked, a “LOCKED” message is displayed in the bottom right of the menu window. On-Screen Menu System Figure 1-11. On-Screen Menu (OSM) Accessing the On-Screen Menu System With the menu off, push the MENU/SELECT button to open the OSM and display the main (Menu1) function menu.
  • Page 20 As you move from one icon to another, the function name changes, and the selection is highlighted blue, to indicate the function(s) represented by that icon. See tables 1-1 (Menu1 Adjustments) and 1-2 (Menu2 Adjustments) to view a complete list of all the features* and functions offered by this monitor.
  • Page 21 Table 1-1. Menu1 Adjustments Icon Settings and Description Sub-menus Image Quality Image Quality Image Quality Image Quality ANALOG (13W3) only • Exits this menu. Exit • Fine • Select this icon to compensate for variability Coarse from one video source to another, which can result in temporal instability.
  • Page 22 Table 1-1. Menu1 Adjustments (continued) Icon Settings and Description Sub-menus Level Adjust ANALOG (13W3) only See ‘Reset’ for additional information on handling these settings, and restoring defaults. Careful use of these adjustments, due to their effect on dynamic range (gamma) and color balance, is important to maintain optimal video quality.
  • Page 23 Table 1-1. Menu1 Adjustments (continued) Icon Settings and Description Sub-menus Image Size Image Size Image Size Image Size ‘Aspect ratio’ is the proportion of vertical to horizontal resolution. This ratio varies, depending on the video resolution of each input (video signal/source). ‘Image Size’ control provides options for matching the screen size to your task.
  • Page 24 Table 1-1. Menu1 Adjustments (continued) Icon Settings and Description Sub-menus Reset Reset Reset Reset ANALOG (13W3) only • Exits this menu. Exit Select this icon to return to the factory-set values for the selected group of functions. • Geometry Resetting ‘Geometry’changes the Position settings, Image Quality settings, and changes the Image Size to 1:1.
  • Page 25 Table 1-2. Menu2 Adjustments Icon Settings and Description Sub-menus Picture-In-Picture • Exits this menu. Exit • On/Off When active, this feature displays a secondary on-screen region that allows an additional video source to be viewed in a • Size (in pixels) smaller window.
  • Page 26 Table 1-2. Menu2 Adjustments (continued) Icon Settings and Description Sub-menus Menu Options Menu Options Menu Options Menu Options Exits this menu. Exit Exit Exit Exit Sets the transparency of the background of Halftone the OSM. Use the up and down arrow buttons to adjust.
  • Page 27 Table 1-2. Menu2 Adjustments (continued) Icon Settings and Description Sub-menus Video Control Video Control Video Control Video Control C-VIDEO Source 2 only Exit Exit Exit Exit Exits this menu. The color characteristics of composite video are often different from Workstation video. Use VIDEO CONTROL to adjust composite color, separate from Workstation video.
  • Page 28 PowerSaver This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The available modes are “On”, “Standby”, “Suspend”, and “Off”. This system operates with a VESA DPMS compliant video card installed in your computer.
  • Page 29: Troubleshooting

    Troubleshooting Before calling for service, check the information in this section to see if you can remedy any problems quickly on your own. Table 1-4. Troubleshooting problems Symptom Corrective Actions • No Picture Check to see that both the monitor and the computer are plugged in and turned on, and that correct input is selected.
  • Page 30 Table 1-4. Troubleshooting problems (continued) Symptom Corrective Actions • Picture or text is fuzzy, Not running in native mode can degrade degraded, or unstable. the image. See “Image Size” on page 18. • Perform monitor reset. See “Reset” on page 19. •...
  • Page 31: Specifications

    Specifications Table 1-5. Specifications LCD Panel 24.067” (61.11 cm) viewable monitor 0.270 Pixel pitch Synchronization Horizontal: 31 kHz to 80 kHz (automatic) Vertical: 56 Hz to 76 Hz (automatic) Maximum Resolution 1920 x 1200 Horizontal: 1920 pixels @ 82 kHz Vertical: 1200 lines @ 76 Hz Display colors: 16.7 million...
  • Page 32: Pin Assignments

    Pin Assignments Table 1-6. 13W3 connector Pin No. 13W3 Side of the Pin No. 13W3 Side of the Signal Cable Signal Cable Composite H.V Sync Green DDC Data Blue V-Sync DDC Clock GND-Sync Serial Data Return-+ Table 1-7. DVI-D connector (Combined Analog and Digital Connector Pin Assignments) Signal Signal...
  • Page 33: Display Resolution

    Display Resolution If the signal from the computer system is equal to a preset timing mode, screen resolution is adjusted automatically. If the signal from the system is not equal to a preset timing mode (there is no image on screen, and the LED on the front panel is amber), adjust the mode by referring to the setup poster (816-3263-10) supplied with your unit./See “Monitor Self Test - Analog and Digital”...
  • Page 34: Regulatory Information

    Regulatory Information FCC Information User Instructions If necessary, consult your dealer or an experienced radio/television technician The Federal Communications Commis- for additional suggestions. You may find sion Radio Frequency Interference State- the booklet called How to Identify and ment includes the following warning: Resolve Radio/TV Interference Prob- Note: This equipment has been tested lems helpful.
  • Page 35: Ic Compliance Notice

    computer convenience outlet is equal to or plug cap. For 240 Volt applications use only exceeds the LCD voltage rating. UL Listed Detachable power supply cord For 120 Volt applications, use only UL with NEMA configuration 6015P type (tan- Listed detachable power cord with NEMA dem blades) plug cap.
