Summary of Contents for Wintech WHB-15

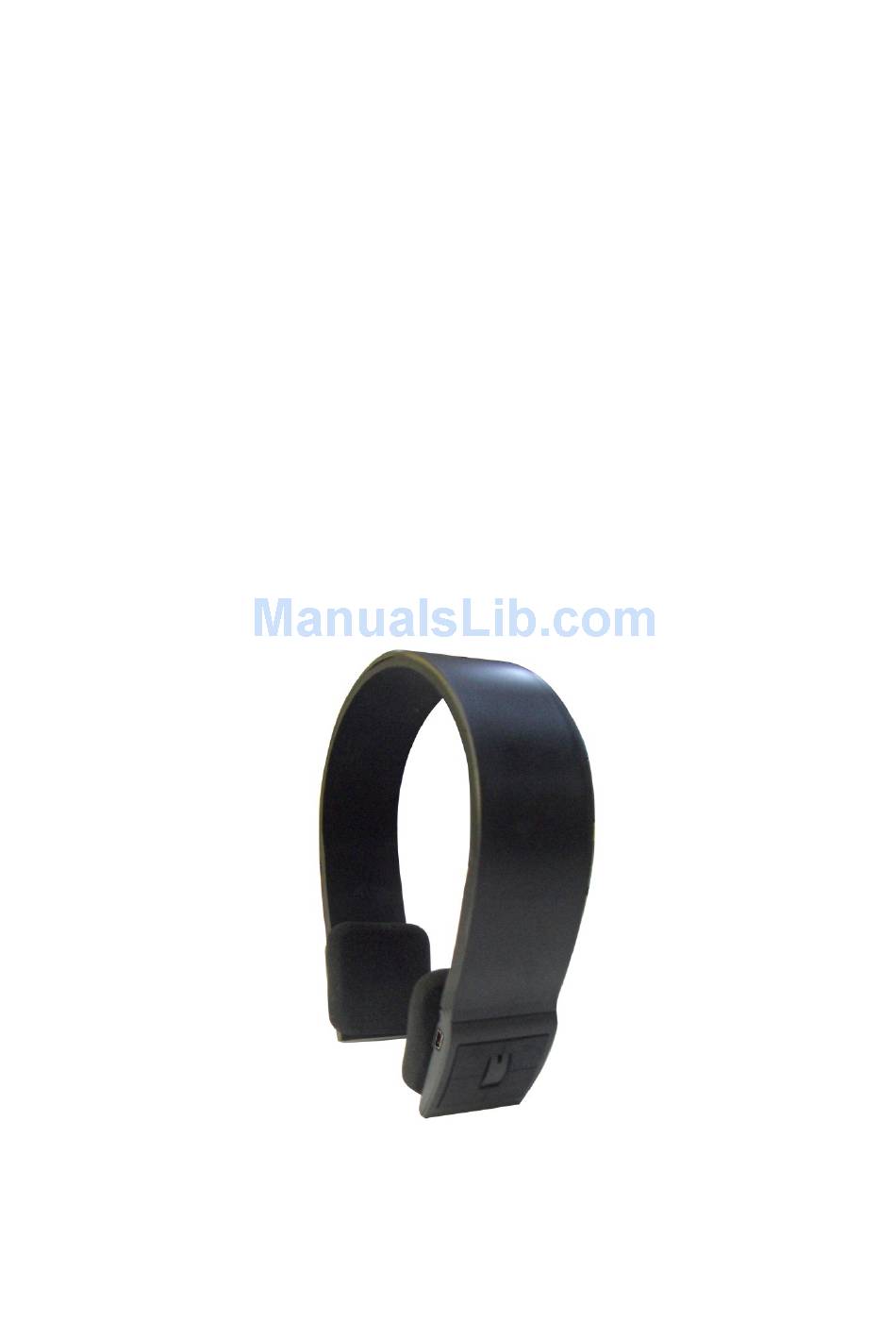

- Page 1 User’s manual WHB-15 Bluetooth stereo headset...
-
Page 2: Specifications
Specifications Bluetooth V2.1+EDR Bluetooth version SUPPORT: HSP, HFP, A2DP and AVRCP Volume up/down Song last/next MFB pair/pick/hang/recall Effective range 10 meters Music: Up to 10 hours Working time Talk: Up to 11hours Standby time Up to 250 hours Input DC: 5V/130mA Charging time Approx 3 hours Microphone... - Page 3 function: 1) Pairing with the Bluetooth mobile phone and PDA (such iPhone) which support HFP. • Answer, end and reject call from the headset • Redial last number • Voice dial • Adjust the volume 2) Pairing with Bluetooth music devices and Bluetooth transmitter which support A2DP •...
- Page 4 I - Before using 1) Overview • 1. extension panel can fit different size user. • 2. < key :next song • 3. > key :last song • 4. LED Indicator for different states • 5. Multifunction button (MFB):Switch on/off the headset, answer, stop call, voice dial redial last number, pause and play •...
- Page 5 • When the red light is on, the headset is charging. • When the blue light is on, the headset is charged fully. • It takes about almost 3 hours to charge the headset fully. Note: when you plug the charger cable please turn off the BH-02. Warning: •...
- Page 6 Specific pairing procedures may vary with different mobile phone. Please refer to your mobile phone manual for further information. Steps as follows: • Please keep the headset and mobile phone in the range of 1 meter when pairing. • Make the headset enter into pairing mode (LED is red and blue blink) •...
- Page 7 Notes: Before connecting to a Bluetooth device, please turn on the Bluetooth device’s Bluetooth function. On some Bluetooth devices, take some Nokia mobile phones for example, you have to allow automatic connecting in the mobile phone’s settings. Please refer to your mobile phone’s manual for further information.
- Page 8 • When the volume is adjusted to max or min, you will hear a indication tone. • For some mobile phones, when you press the key of accepting on the phone, the conversation will be sent to the mobile phone. At this time, you can switch the call to headset by using the conversation switch button or through operating on the mobile phone.
- Page 9 • Remote control the function of last song/next song/pause, it needs your mobile phone or Bluetooth transmitter supports AVRCP. Please refer to the instruction of your mobile phone or Bluetooth transmitter for further information. 7) LED 1) battery Charging LED indicator Status of the headset Red LED is on Charging...
- Page 10 Care and maintenance Please read the following suggestions carefully, that will help you to fulfill any warranty obligations and to enjoy this product for many years. • Keep dry and don’t put it in the dump place, in case of effecting the interior circuit of product.
- Page 11 Can I use the WHB-15 bluetooth stereo headphones with more than one device at the same time? No, you can only use the WHB-15 headset with 1 devices at a time. Once it is connected to one device, it won't connect to the others at the same time.
- Page 12 If you see that your computer/laptop can detect your WHB-15 bluetooth stereo headphone but you get an error when trying to pair, you should download the latest Bluetooth drivers for your make/model of laptop or computer.
- Page 13 2.1 which is what the BH02 now utilize or other Android Phones. What is the pass code for pairing with my phone The pass code for the WHB-15 headset is “0000”. Use this code when ever prompted during pairing with a mobile phone or other device requiring a pass code.
