Summary of Contents for atmosphere planet
- Page 1 Technical Manual PLANET-ATM-TN-15-340 Issue 1.1 20/02/2015 PLANET Data Communication Server Technical Manual 20/02/2015 ATM-TN-15-340 / Technical Manual 1/10...
-
Page 2: Table Of Contents
Technical Manual PLANET-ATM-TN-15-340 Issue 1.1 20/02/2015 Table of contents Overview ........................3 Product hardware specifications ..................4 Hardware Block Diagram ....................5 Appearance ........................6 Dimension ........................7 Led Indicators ........................ 9 Mounting ........................10 20/02/2015 ATM-TN-15-340 / Technical Manual 2/10... -
Page 3: Overview
(Ethernet) and serial interface (USB), an extensive storage capacity (SD Card), and includes a GPS receiver for timing and location. Embedded PLANET applications, available through an additional user tablet or PC terminal, provide added value functions such as tracking, messaging and weather data exchange. -
Page 4: Product Hardware Specifications
Technical Manual PLANET-ATM-TN-15-340 Issue 1.1 20/02/2015 Product hardware specifications Interfaces and connectors Features 28VDC Power Supply: Fanless Processor Board (PC104) : Intel ASNE0053R12B3PNE ATOM Ethernet (10/100) : 1RJ45 port Linux OS GPS : TNC Female Memory : 1GB IRIDIUM : TNC Female... -
Page 5: Hardware Block Diagram
Technical Manual PLANET-ATM-TN-15-340 Issue 1.1 20/02/2015 Hardware Block Diagram LTE Antenna GPS Antenna 10/100 USB 2.0 Ethernet Up to 1GB Modem LTE SDRAM SPI Flash Mini SD Card PciExpress Intel Atom Processor (PC104) RS232 Iridium Antenna Iridium Board Power Supply Board... -

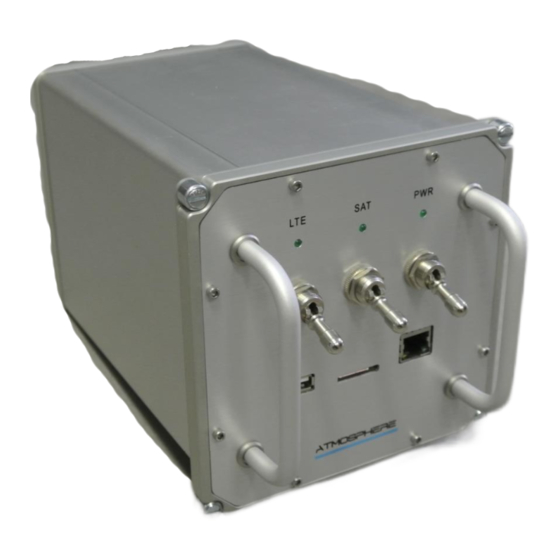

Page 6: Appearance
Technical Manual PLANET-ATM-TN-15-340 Issue 1.1 20/02/2015 Appearance Power Satellite Front view Switch Switch Switch Ethernet USB 2.0 LTE Sim card slot Back view Power Connector ASNE0053R12B3PNE LTE Connector GPS Connector SMA Female TNC Female Iridium Connector TNC Female 20/02/2015 ATM-TN-15-340 / Technical Manual... -
Page 7: Dimension
Technical Manual PLANET-ATM-TN-15-340 Issue 1.1 20/02/2015 Dimension Front view 145mm 145mm Side view 170mm 20/02/2015 ATM-TN-15-340 / Technical Manual 7/10... - Page 8 Technical Manual PLANET-ATM-TN-15-340 Issue 1.1 20/02/2015 Dimensional Line Drawing – Front End Cap Dimensional Line Drawing - Back End Cap 20/02/2015 ATM-TN-15-340 / Technical Manual 8/10...
-
Page 9: Led Indicators
Technical Manual PLANET-ATM-TN-15-340 Issue 1.1 20/02/2015 Led Indicators Led name Color Meaning Green Power is on PWR (POWER) No power is being received Green Iridium Modem is turned on SAT (IRIDIUM) Iridium Modem is turned off Green RF Emissions are activated... -
Page 10: Mounting
Technical Manual PLANET-ATM-TN-15-340 Issue 1.1 20/02/2015 Mounting The Planet Box offers the possibility to be mounted on a MS25212 rack with 4 DZUS screws. 20/02/2015 ATM-TN-15-340 / Technical Manual 10/10...
